Description

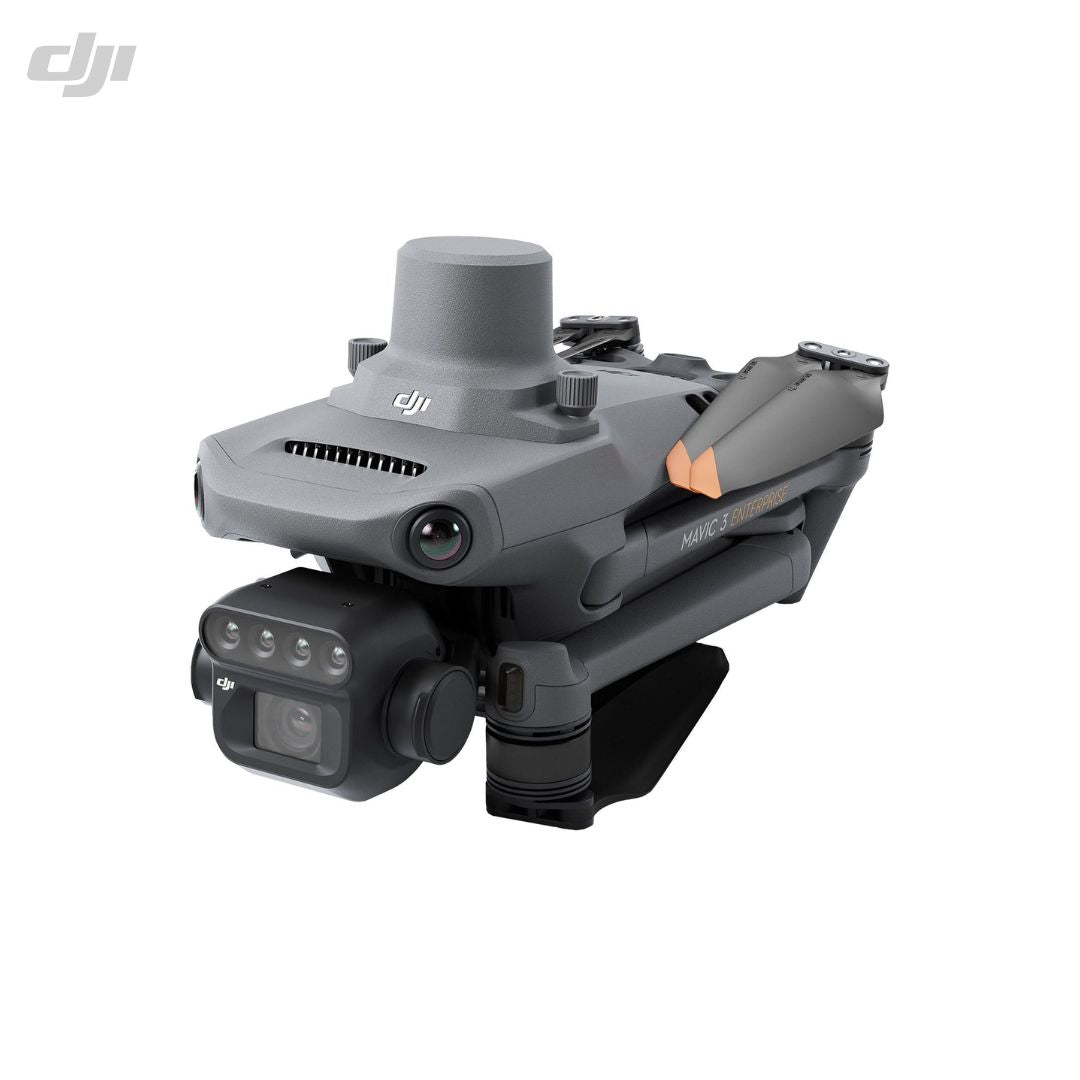

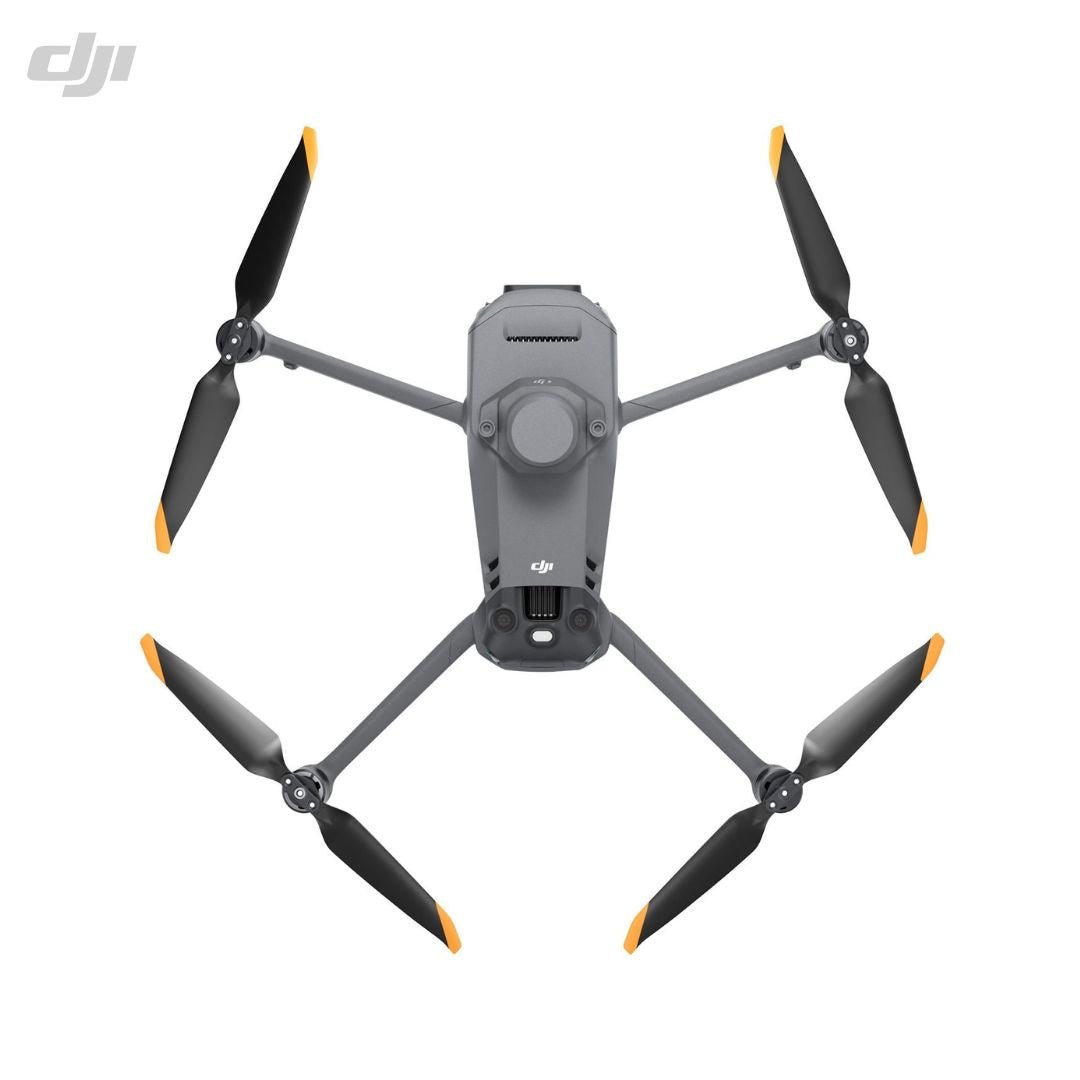

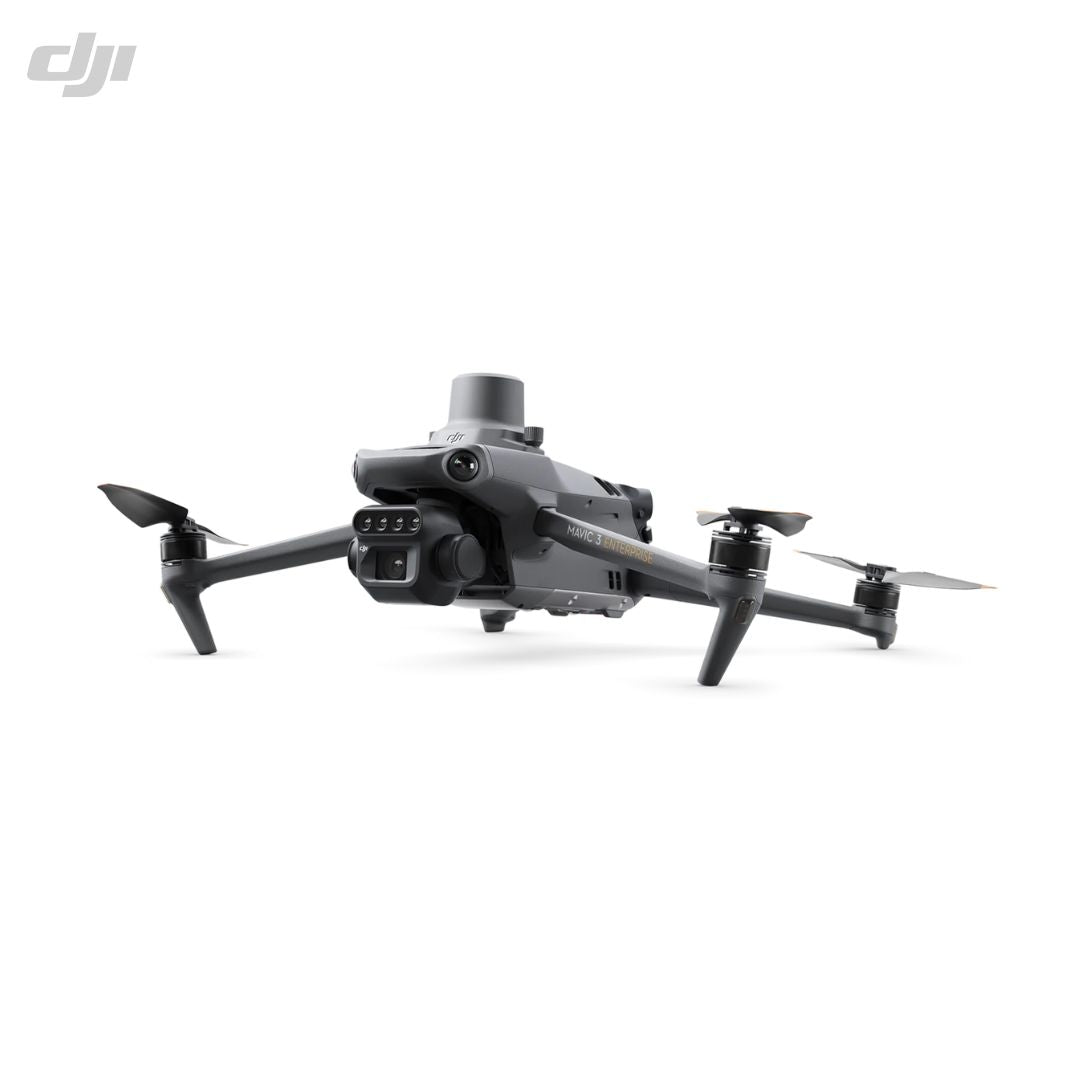

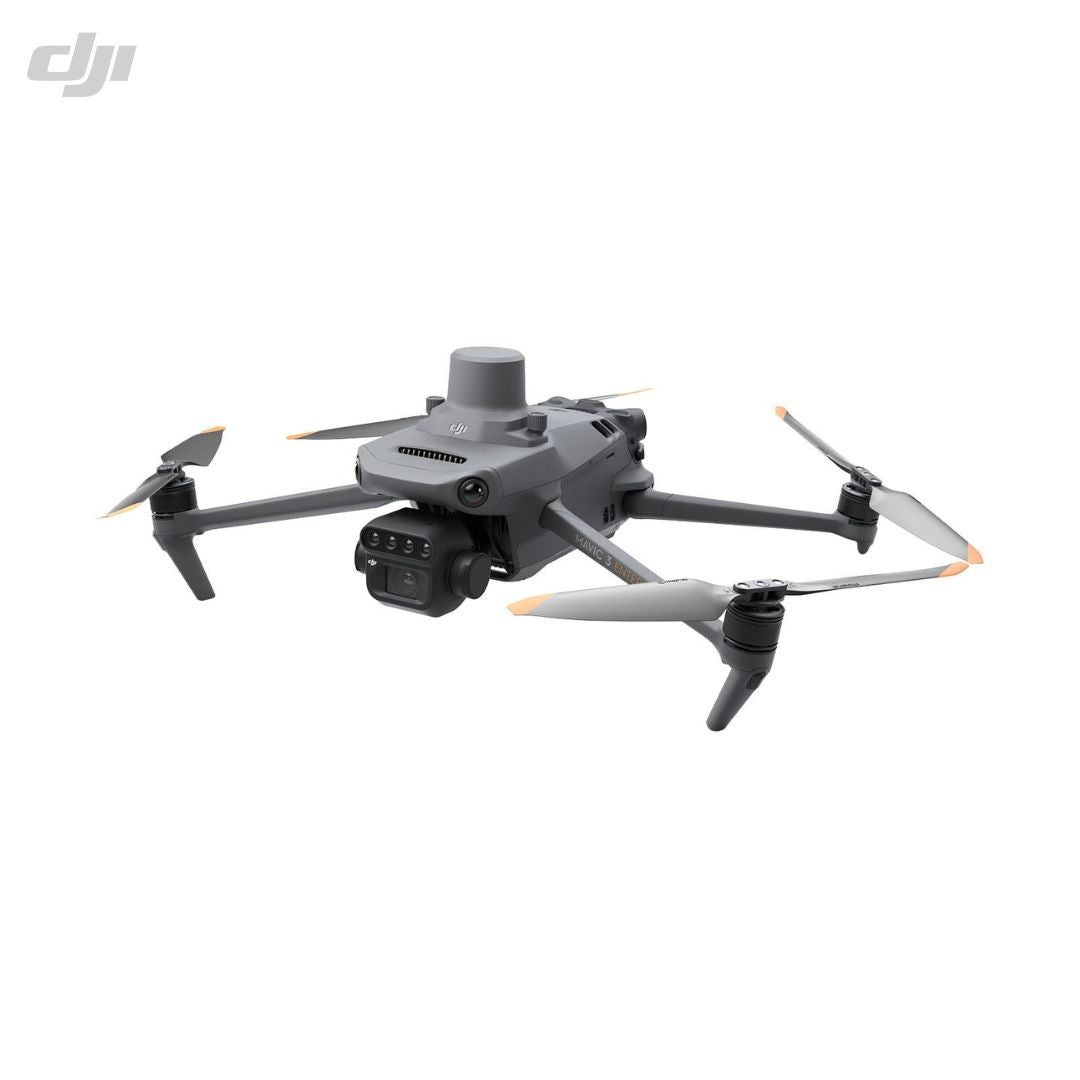

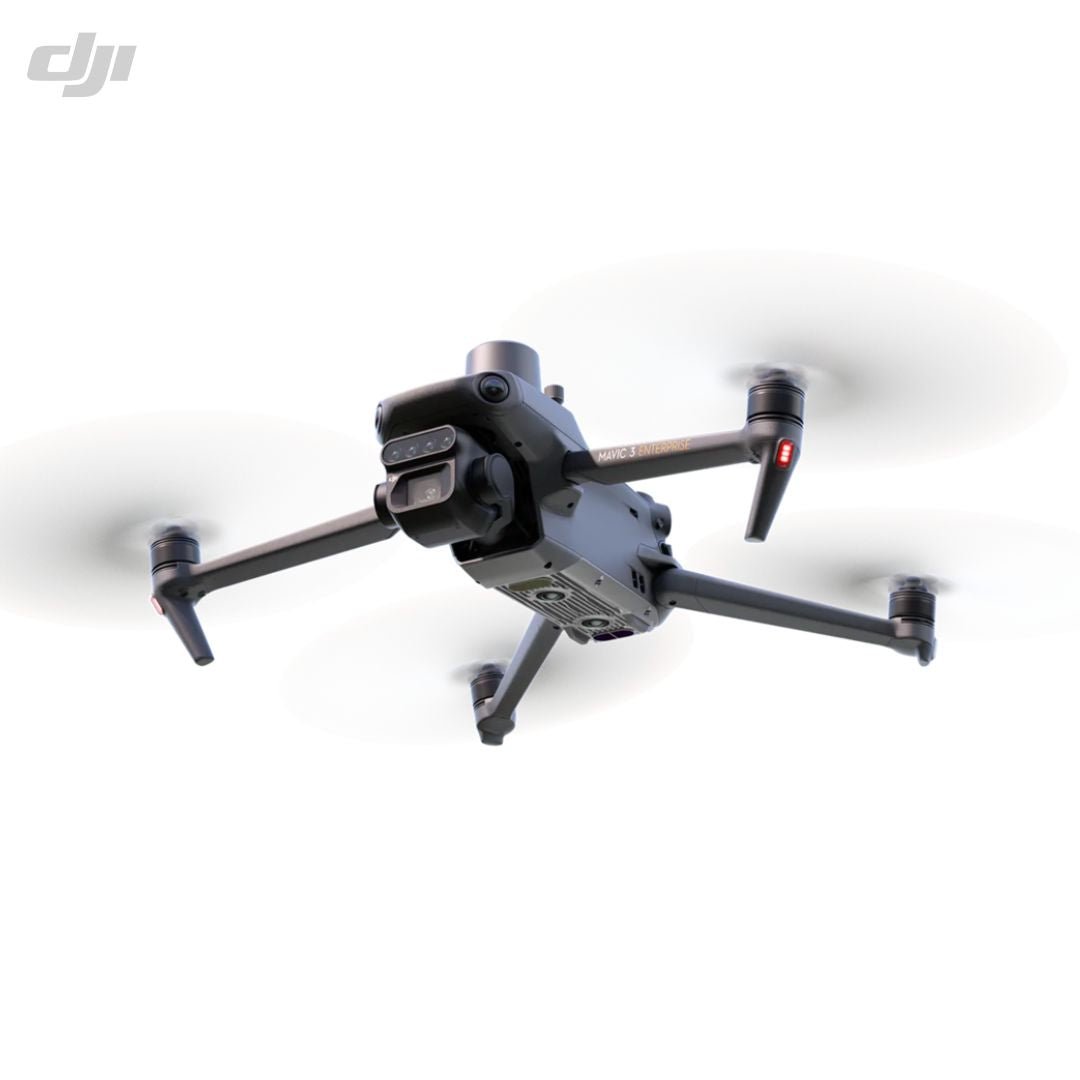

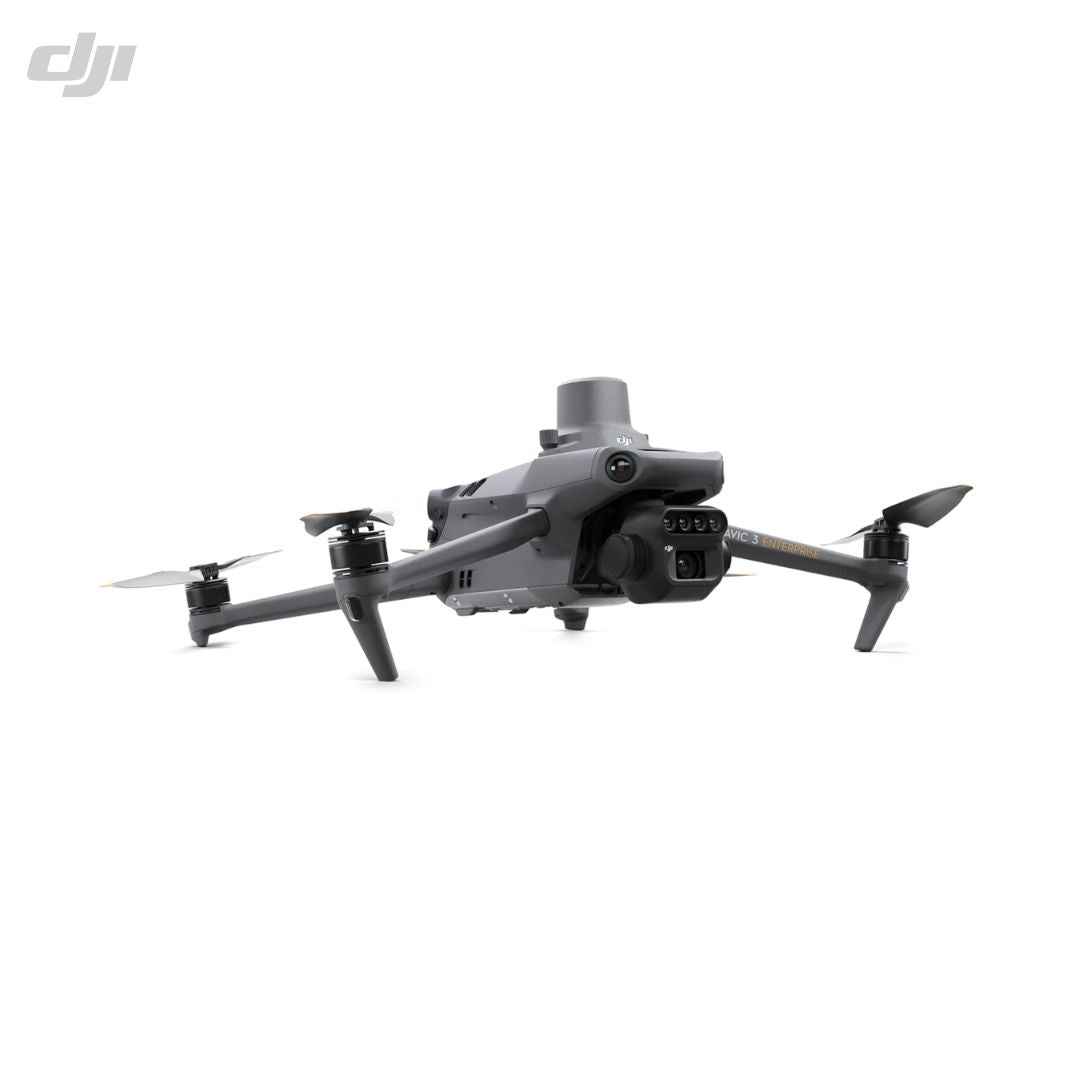

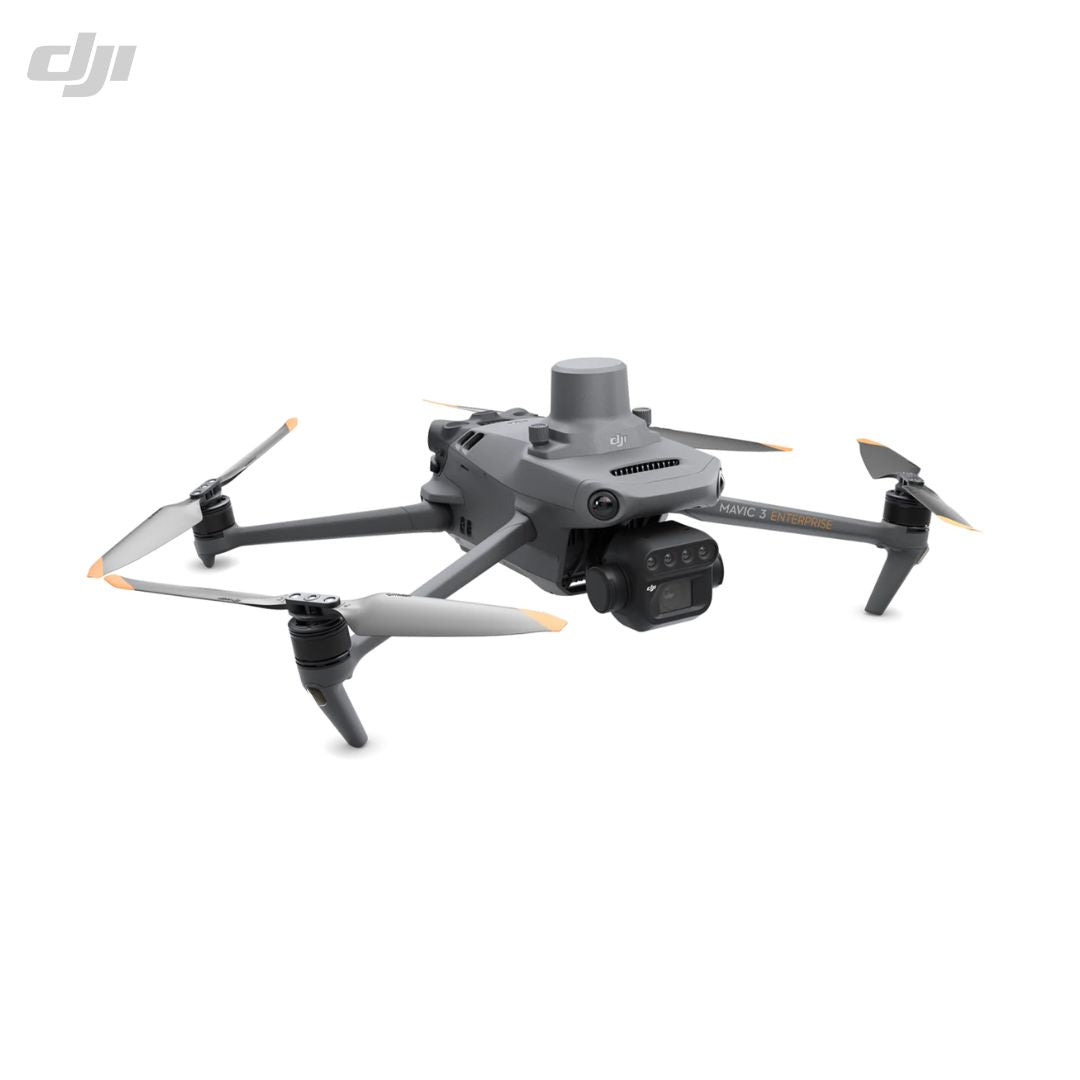

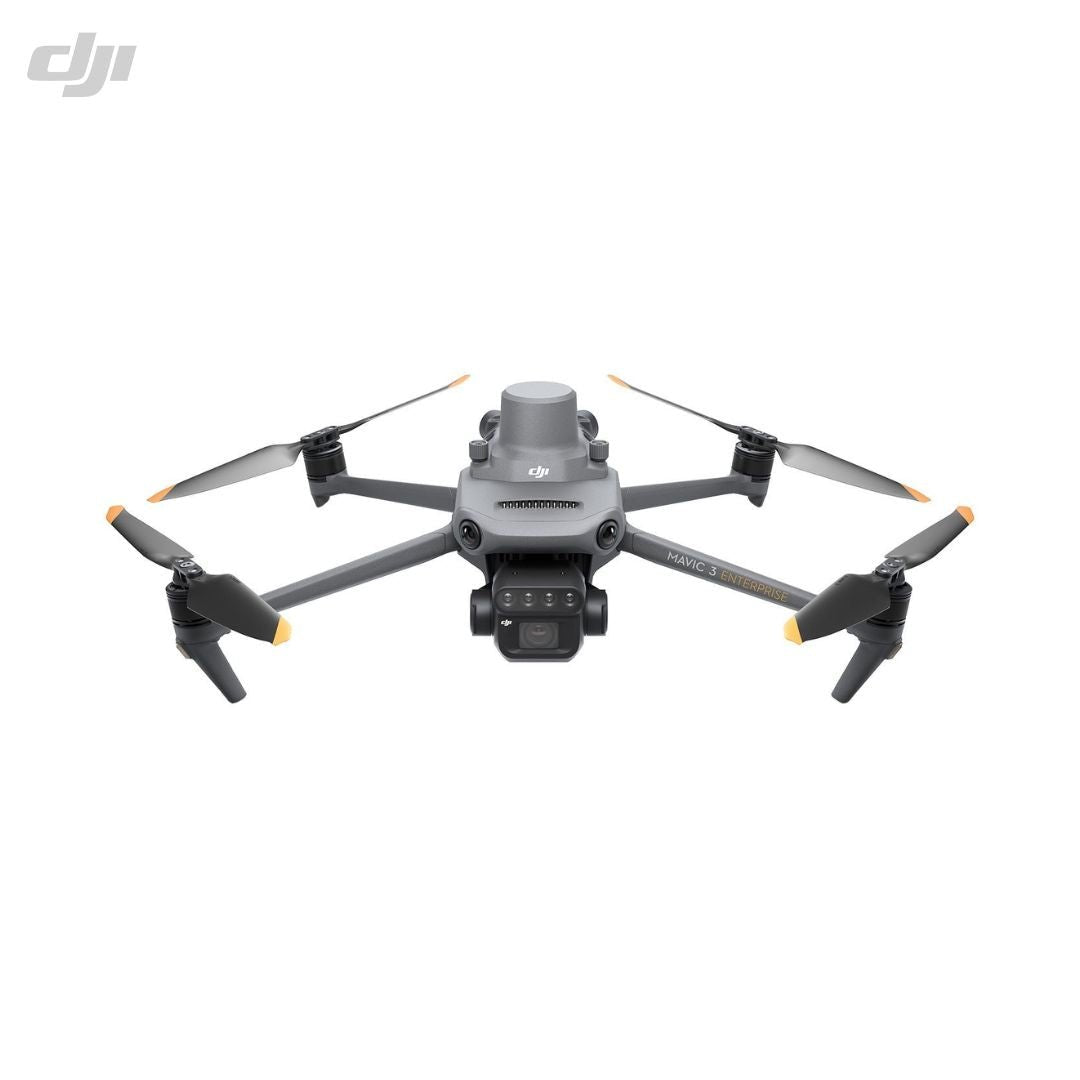

The DJI Mavic 3 Multispectral can deliver highly effective aerial surveying with its ability to see the invisible elements. It features a multispectral camera and an RGB camera, which helps in analysing crop growth with total clarity. Mavic 3M comes with an omnidirectional obstacle avoidance system, centimetre level RTK positioning, ultra-long battery life, high-efficiency fast charging, and up-to 15 km transmission distance.
The DJI Mavic 3M is highly useful for agricultural drone operations as it provides both precision and rich data. Along-with agricultural production management it can also be used for environmental and natural resource surveys.
Specifications
Aircraft Details |
|
|
Net Weight: |
(with battery, propellers, and RTK module) 951 g |
|
MTOW: |
1,050 g |
|
Dimensions: |
(LxWxH) 223×96.3×122.2 mm (Folded, without propellers) | 347.5×283×139.6 mm (Unfolded, without propellers) |
|
Diagonal Length: |
380.1 mm |
|
Max. Ascent Speed: |
6 m/s (Normal Mode) | 8 m/s (Sport Mode) |
|
Max. Descent Speed: |
6 m/s (Normal Mode) | 6 m/s (Sport Mode) |
|
Max. Flight Speed: |
(Normal Mode) 15 m/s |
|
Max. Flight Speed: |
(Sport Mode) Flying forward 21 m/s | Flying sideways 20 m/s | Flying backwards 19 m/s |
|
Max. Wind Speed Resistance: |
12 m/s |
|
Max. Flight Time: |
43 minutes |
|
Max. Hover Time: |
37 minutes |
|
Max. Flight Distance: |
32 km |
|
Max Angular Velocity: |
200°/s |
|
GNSS: |
GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled) |
|
Hovering Accuracy Range: |
(Vertical) ±0.1 m (Vision Positioning enabled) | ±0.5 m (GNSS Positioning enabled) | ±0.1 m (D-RTK enabled) |
|
Hovering Accuracy Range: |
(Horizontal) ±0.3 m (Vision Positioning enabled) | ±0.5 m (HD Positioning enabled) | ±0.1 m (RTK enabled) |
|
Operating Temperature: |
-10° to 40° C (14° to 104° F) |
Accessories
RGB Camera |
|
|
Image Sensor: |
4/3 CMOS | Effective Pixels 20 MP |
|
Lens: |
FOV 84° | Equivalent focal length 24 mm | Aperture f/2.8 to f/11 | Focus 1 m to ∞ |
|
ISO Range: |
100-6400 |
|
Shutter Speed: |
8-1/8000 s (Electronic shutter) | 8-1/2000 s (Mechanical shutter) |
|
Max. Image Size: |
5280×3956 |
|
Photo Shooting Mode: |
Single shot (20 MP) | Timelapse (20 MP) | JPEG (0.7/1/2/3/5/7/10/15/20/30/60 s) | JPEG + RAW (3/5/7/10/15/20/30/60 s) | Panorama (20 MP, original material) |
|
Video Resolution: |
H.264 | 3840×2160@30fps (4K) | 1920×1080@30fps (FHD) |
|
Max. Video Bit-Rate: |
130Mbps (4K) | 70Mbps (FHD) |
|
Supported File System: |
exFAT |
|
Image Format: |
JPEG/DNG (RAW) |
|
Video Format: |
MP4 (MPEG-4 AVC/H.264) |
Multispectral Camera |
|
|
Image Sensor: |
1/2.8-inch CMOS | Effective pixels 5 MP |
|
Lens: |
FOV 73.91° (61.2° x 48.10°) | Equivalent focal length 25 mm | Aperture f/2.0 | Fixed Focus |
|
Gain Range: |
1x-32x |
|
Shutter Speed: |
1/30~1/12800 s (Electronic Shutter) |
|
Max. Image Size: |
2592×1944 |
|
Image Format: |
TIFF |
|
Video Format: |
MP4 (MPEG-4 AVC/H.264) |
|
Photo Shooting Mode: |
Single shot (5 MP) | Time-lapse (5 MP) | TIFF (2/3/5/7/10/15/20/30/60 s) |
|
Video Resolution: |
H.264 | 1920 x 1080@30fps (FHD) |
|
Max. Video Bit-Rate: |
60 Mbps Stream |
Gimbal |
|
|
Stabilization System: |
3-axis mechanical gimbal (tilt, roll, pan) |
|
Mechanical Range: |
Tilt -135° to 45° | Roll -45° to 45° | Pan -27° to 27° |
|
Controllable Range: |
Tilt -90° to 35° | Uncontrollable Pan |
|
Max. Control Speed: |
Tilt 100°/s |
|
Angular Vibration Range: |
±0.007° |
DJI RC Pro Ent Edition |
|
|
Dimensions: |
(LxWxH): 183.27×137.41×47.6 mm (Antenna is folded and no control sticks are installed) | 183.27×203.35×59.84 mm (Antenna unfolded and control sticks are installed) |
|
Weight: |
Approx. 680 g |
|
Image Transmission System: |
DJI O3 Image Transmission Industry Edition |
|
Screen Resolution: |
1920×1080 |
|
Screen Size: |
5.5 inches |
|
Screen Frame Rate: |
60 fps |
|
Screen Brightness: |
1,000 nits |
|
Touch-Screen: |
10-point multi-touch |
|
Battery: |
Lithium-ion battery (5000 mAh, 7.2 V) |
|
Rated Power: |
12 Watts |
|
Storage Capacity: |
64 GB Internal Memory (ROM) | Supports microSD card usage to increase storage capacity |
|
Operating Time: |
Approx. 3 hours |
|
Video Output Port: |
Mini-HDMI |
|
Operating Temperature: |
-10° to 40° C (14° to 104°F) |
|
Charging Temperature: |
5° to 40° C (41° to 104° F) |
|
Supported DJI Aircraft: |
DJI Mavic 3E | DJI Mavic 3T | DJI Mavic 3M |
|
GNSS: |
GPS + Galileo + GLONASS |
Battery |
|
|
Capacity: |
5000 mAh |
|
Standard Voltage: |
15.4 V |
|
Max. Charging Voltage: |
17.6 V |
|
Battery Type: |
LiPo 4S |
|
Chemical System: |
Lithium Cobalt |
|
Energy: |
77 watt-hours |
|
Weight: |
335.5 g |
|
Charging Temperature: |
5° to 40° C (41° to 104° F) |
Battery Charger |
|
|
Input: |
100V to 240V (AC), 50Hz to 60Hz, 2.5A |
|
Output Power: |
Maximum output power of 100 Watts (total) | When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power. |
Charging Hub |
|
|
Input: |
USB-C 5V to 20V, 5.0A |
|
Output: |
Battery Port 12V to 17.6V, 8.0A |
|
Charging Type: |
Three batteries on charging rotation |
|
Charging Temperature: |
5° to 40° C (41° to 104° F) |
