Description

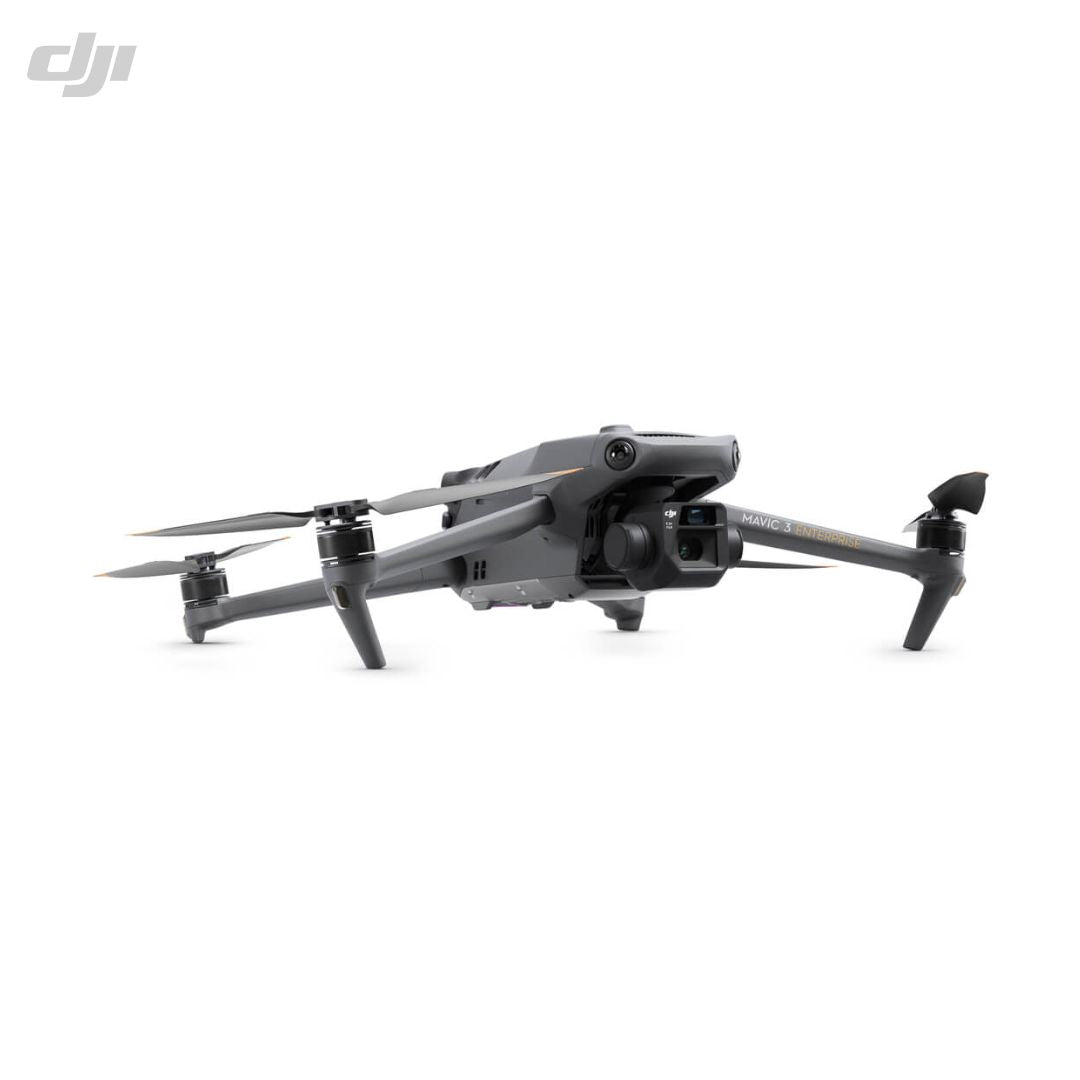

The Mavic 3 Enterprise series features small yet powerful commercial drones. The Mavic 3E comes with a mechanical shutter, a 56x zoom camera, 4/3 CMOS wide camera, omnidirectional sensing, DJI O3 enterprise transmission system, and up-to 45 mins of flight time. This compact and portable drone can also be equipped with additional accessories like RTK module for centimetre-level positioning and high-volume loudspeaker.
The DJI Mavic 3E is a highly useful commercial drone as it can complete the mapping missions very efficiently and can perform well in low-light conditions as well.
Specifications
Aircraft Details |
|
|
Weight: |
(with propellers, without accessories) 915 g |
|
MTOW: |
1,050 g |
|
Dimensions: |
(L×W×H): 221×96.3×90.3 mm (Folded, without propellers) 347.5×283×107.7 mm (Unfolded, without propellers) |
|
Max. Ascent Speed: |
6 m/s (Normal Mode) 8 m/s (Sport Mode) |
|
Max. Descent Speed: |
6 m/s (Normal Mode) 6 m/s (Sport Mode) |
|
Max. Flight Speed: |
(Normal Mode, at sea level, no wind) 15 m/s |
|
Max. Flight Speed: |
(Sport Mode, at sea level, no wind): Forward 21 m/s Side 20 m/s Backward 19 m/s |
|
Max. Wind Speed Resistance: |
12 m/s |
|
Max. Take-Off Altitude: |
6000 m (without payload) |
|
Max. Flight Time: |
45 minutes |
|
Max. Hover Time: |
38 minutes |
|
Max. Flight Distance: |
32 km |
|
Max. Pitch Angle: |
30° (Normal Mode) 35° (Sport Mode) |
|
Max. Angular Velocity: |
200°/s |
|
GNSS: |
GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled) |
|
Hovering Accuracy (Vertical): |
±0.1 m (with Vision System) ±0.5 m (with GNSS) ±0.1 m (with RTK) |
|
Hovering Accuracy (Horizontal): |
±0.3 m (with Vision System) ±0.5 m (with High-Precision Positioning System) ±0.1 m (with RTK) |
|
Operating Temperature: |
Range: -10° to 40° C (14° to 104° F) |
|
Propeller Model: |
9453F Propellers for Enterprise |
Accessories
Wide Camera |
|
|
Sensor: |
4/3 CMOS Effective pixels 20 MP |
|
Lens: |
FOV 84° Format Equivalent 24 mm Aperture f/2.8-f/11 Focus 1 m to ∞ |
|
ISO Range: |
100-6400 |
|
Shutter Speed: |
8-1/8000 s (Electronic Shutter) 8-1/2000 s (Mechanical Shutter) |
|
Max. Image Size: |
5280×3956 |
|
Still Photography Modes: |
Single (20 MP) Timed (20 MP) JPEG (0.7/1/2/3/5/7/10/15/20/30/60 s) JPEG+RAW (3/5/7/10/15/20/30/60 s) Smart Low-light Shooting (20 MP) Panorama (20 MP, raw image) |
|
Video Resolution: |
H.264 3840×2160@30fps (4K) 1920×1080@30fps (FHD) |
|
Bit-Rate: |
130 Mbps (4K) 70 Mbps (FHD) |
|
Supported Files Formats: |
exFAT |
|
Photo Format: |
JPEG/DNG (RAW) |
|
Video Format: |
MP4 (MPEG-4 AVC/H.264) |
Tele Camera |
|
|
Sensor: |
1/2-inch CMOS Effective pixels 12 MP |
|
Lens: |
FOV 15° Format Equivalent 162 mm Aperture f/4.4 Focus 3 m to ∞ |
|
ISO Range: |
100-6400 |
|
Shutter Speed: |
8-1/8000 s (Electronic Shutter) |
|
Max. Image Size: |
4000×3000 |
|
Photo Format: |
JPEG |
|
Video Format: |
MP4 (MPEG-4 AVC/H.264) |
|
Still Photography Modes: |
Single (12 MP) Timed (12 MP) JPEG (0.7/1/2/3/5/7/10/15/20/30/60 s) Smart Low-light Shooting (12 MP) |
|
Video Resolution: |
H.264 3840×2160@30fps (4K) 1920×1080@30fps (FHD) |
|
Bit-Rate: |
130 Mbps (4K) 70 Mbps (FHD) |
|
Digital Zoom: |
8x (56x hybrid zoom) |
Gimbal |
|
|
Stabilization: |
3-axis (tilt, roll, pan) |
|
Mechanical Range: |
Tilt -135° to 100° |
|
Controllable Range: |
Tilt -90° to 35° Pan not controllable |
|
Max Control Speed: |
Tilt 100°/s |
|
Angular Vibration Range: |
±0.007° |
DJI RC Pro Enterprise |
|
|
Dimensions: |
(L×W×H): 183.27×137.41×47.6 mm (Antennas folded and controller sticks unmounted) |
|
Weight: |
Approx. 680 g |
|
Video Transmission System: |
DJI O3 Enterprise Transmission |
|
Max. Transmission Distance: |
FCC 15 km CE/SRRC/MIC 8 km |
|
Video Transmission Operating Frequency: |
2.400-2.4835 GHz 5.725-5.850 GHz |
|
Antenna: |
4 Antennas, 2T4R |
|
Screen Resolution: |
1920×1080 |
|
Screen Size: |
5.5 inches |
|
Screen Frame Rate: |
60 fps |
|
Brightness: |
1,000 nits |
|
Touchscreen Control: |
10-point multi-touch |
|
Battery: |
Li-ion (5000 mAh @ 7.2 V) |
|
Charging Type: |
Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V |
|
Rated Power: |
12 W |
|
Storage Capacity: |
64 GB Internal Storage (ROM) Supports a microSD card for expanded capacity |
|
Operating Time: |
Approx. 3 hours |
|
Charging Temperature: |
5° to 40° C (41° to 104° F) |
|
Supported DJI Aircraft: |
DJI Mavic 3E | DJI Mavic 3T |
|
GNSS: |
GPS+Galileo+GLONASS |
Battery |
|
|
Capacity: |
5000 mAh |
|
Standard Voltage: |
15.4 V |
|
Max. Charging Voltage: |
17.6 V |
|
Type: |
LiPo 4S |
|
Chemical System: |
LiCoO2 |
|
Energy: |
77 Wh |
|
Weight: |
335.5 g |
|
Charging Temperature: |
5° to 40° C (41° to 104° F) |
Charger |
|
|
Input: |
100-240 V (AC Power), 50-60 Hz, 2.5 A |
|
Output Power: |
100 W |
|
Output: |
Max. 100 W (total) When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power. |
Charging Hub |
|
|
Input: |
USB-C 5-20 V, 5.0 A |
|
Output: |
Battery Port 12-17.6 V, 8.0 A |
|
Rated Power: |
100 W |
|
Charging Type: |
Three batteries charged in sequence |
|
Charging Temperature Range: |
5° to 40° C (41° to 104° F) |
Speaker |
|
|
Dimensions: |
(L×W×H): 114.1×82.0×54.7 mm |
|
Weight: |
85±2 g |
|
Interface: |
USB-C |
|
Rated Power: |
3 W |
|
Max. Volume: |
110 dB @ 1 m |
|
Effective Broadcast Distance: |
100 m @ 70 dB |
|
Bit-Rate: |
16 Kbps/32 Kbps |
|
Operating Temperature Range: |
-10° to 40° C (14° to 104° F) |
