Description

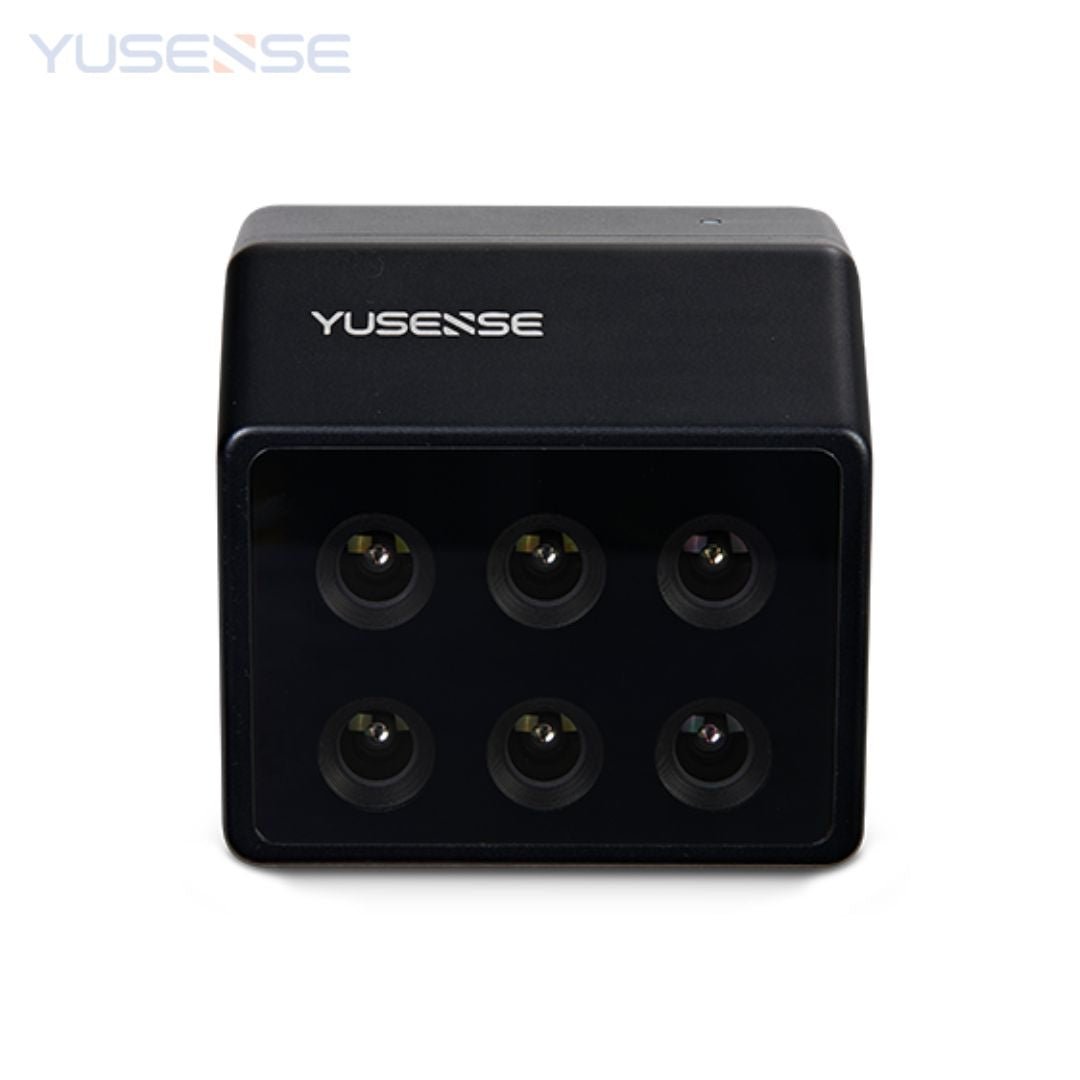

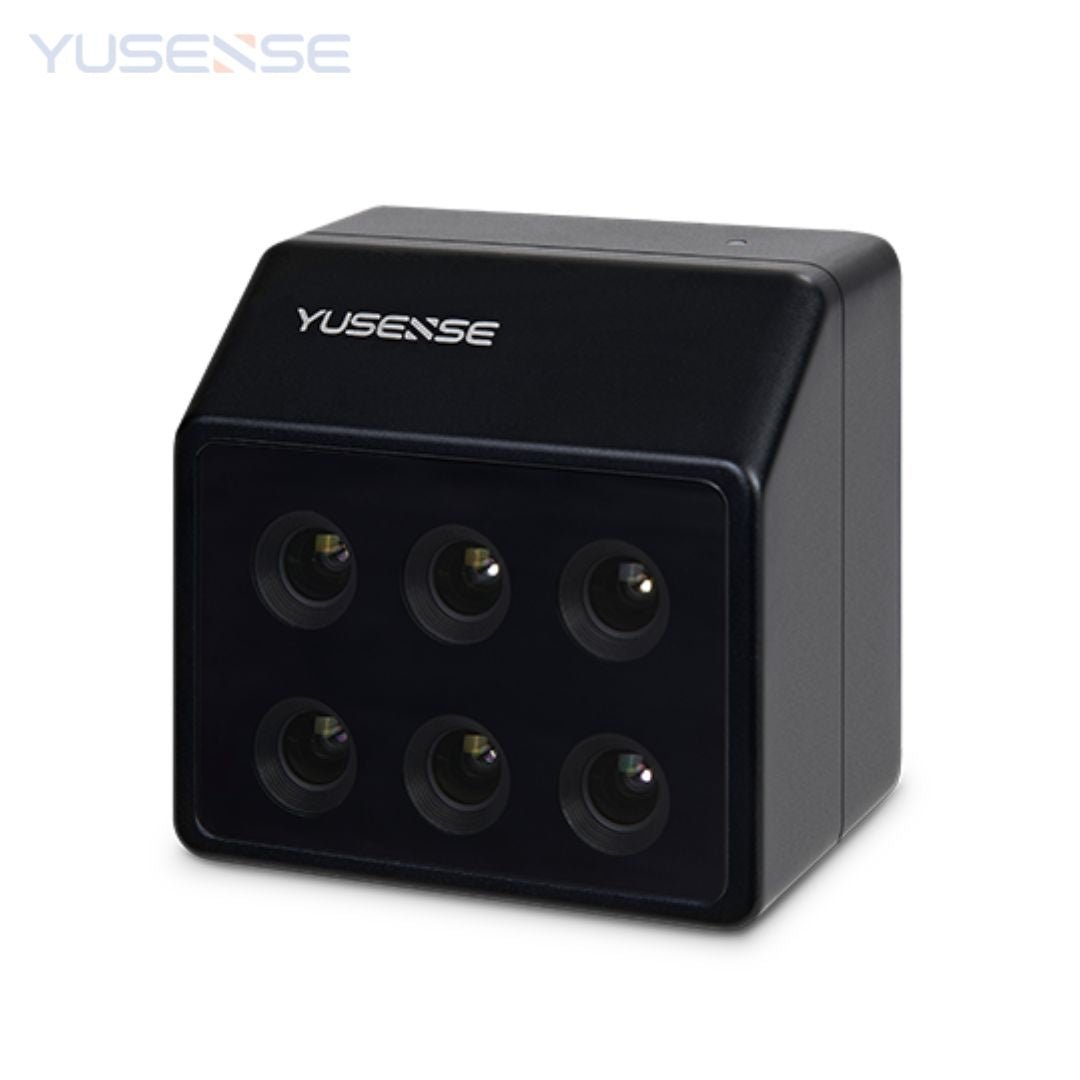

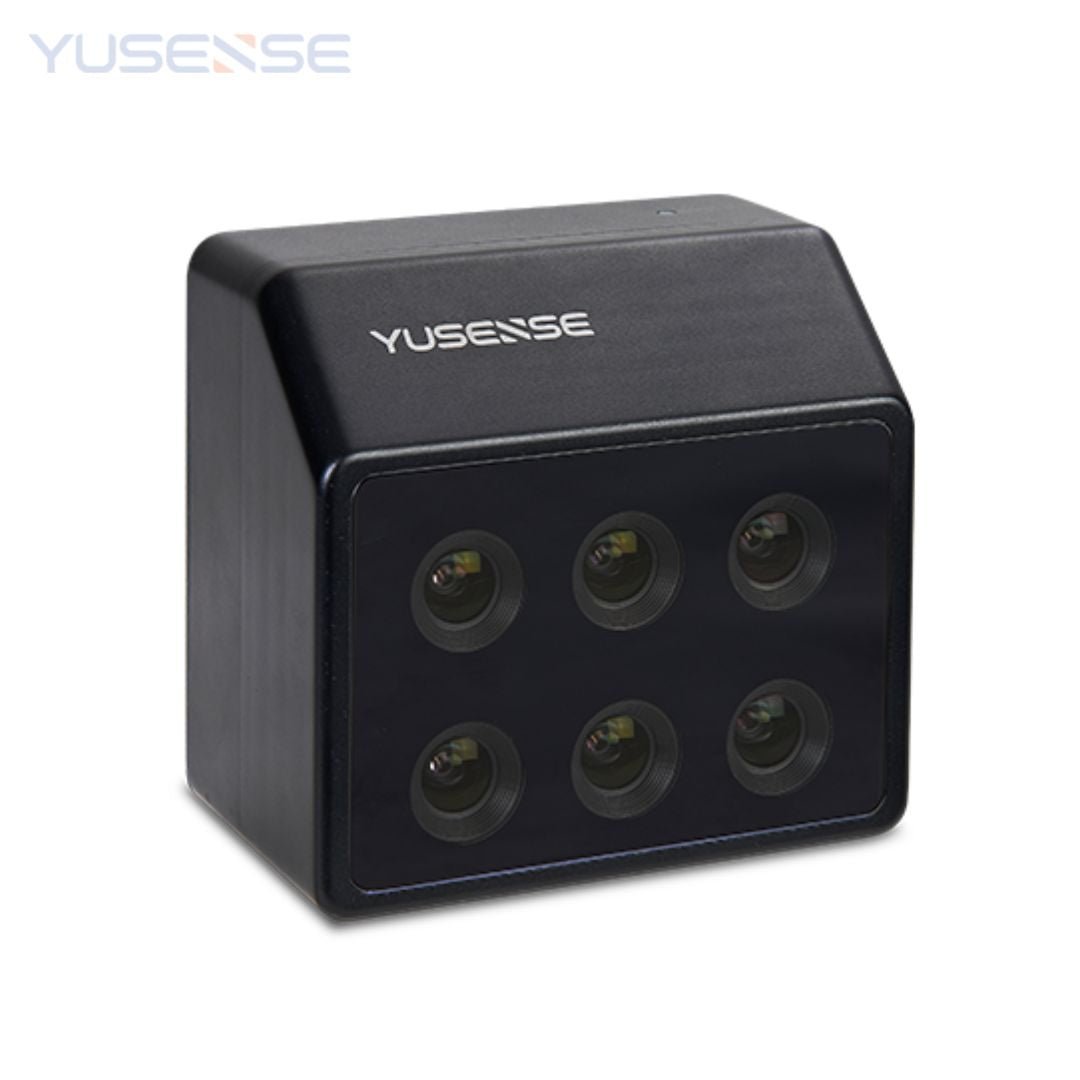

The Yusense MS600 V2 is a multispectral drone payload that is compatible with various multi-rotor and fixed-wind UAV platforms. This lightweight payload is made of aluminium alloy and is equipped with six multispectral channels of 1.2 MP, 12 bit global shutter, sapphire optical glass windows, and a Downlink Light Sensor (DLS).
The Yusense MS600 V2 is a highly useful and versatile payload that can be used for many agricultural and industrial applications including agricultural growth assessment, forestry and grassland monitoring, vegetation coverage assessments, monitoring of black and odorous water bodies, river and lake ecology, and more.
Specifications
Product Details |
|
Combination Method: |
6 multispectral channels |
Target Size: |
1/3” |
Effective Pixels: |
1.2Mpx |
Shutter Type: |
Overall situation (Global) |
No. of Quantization Bits: |
12bit |
FOV: |
49.5°×38.1° |
Ground Resolution: |
8.65cm@h120m |
Coverage Width: |
110m×83m@h120m |
Spectral Channel: |
450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 750nm@10nm, 840nm@30nm |
Optical Window: |
Sapphire optical glass window |
Host Size: |
80mm×75mm×55mm |
Host Weight: |
280g |
Installation Interface: |
4×M3 |
Powered by: |
12V (please contact our team for power supply with other voltages) |
Power Consumption: |
10W@12V |
Image Format: |
16bit original TIFF & 8bit reflectivity JPEG (including GPS, ambient light information) |
Storage Media: |
Standard 64GB, maximum support 128GB capacity (transmission speed U3 and above rating) micro SD card |
Processing Software: |
Yusense Map/Yusense Map Plus |
Parameter Settings: |
Wi-Fi (WEB interface access)/UART |
Shooting Trigger: |
External trigger, timing trigger, overlap rate trigger, cascade trigger |
Shooting Frequency: |
1Hz (related to the actual reading and writing speed of the storage medium) |
Environment Humidity: |
RH(%) ≤85%(non-condensation) |
Certified Product: |
CE, FCC, RoHS |
Key Features
Network port/TTL serial port |
On-board real-time reflectivity calculations |
Simultaneous imaging of all channels in the fastest 1s |
Standard Downlink Light Sensor (DLS) |
Compatible with multiple types of small multi-rotor UAV and fixed-wing UAV platforms |
