Description

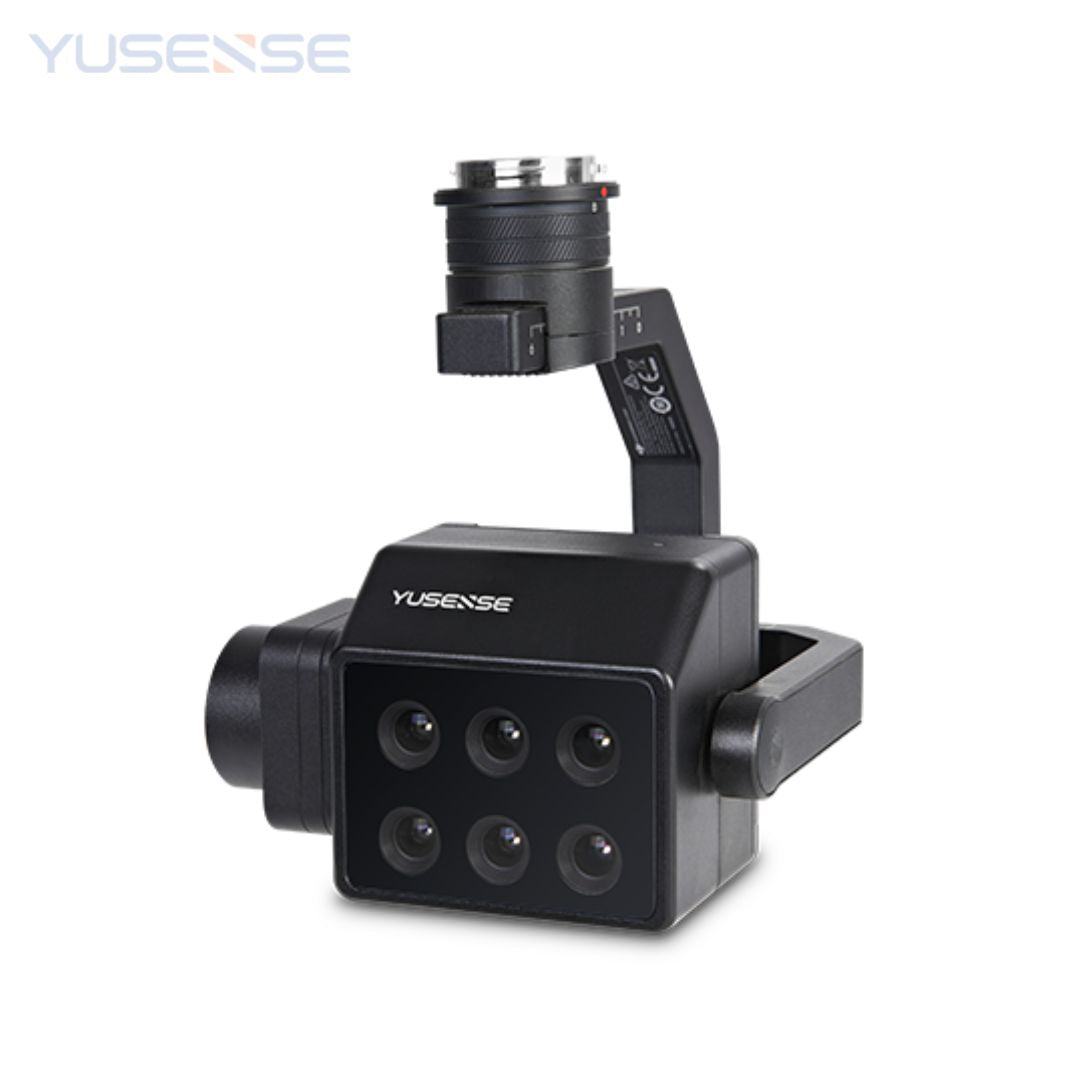

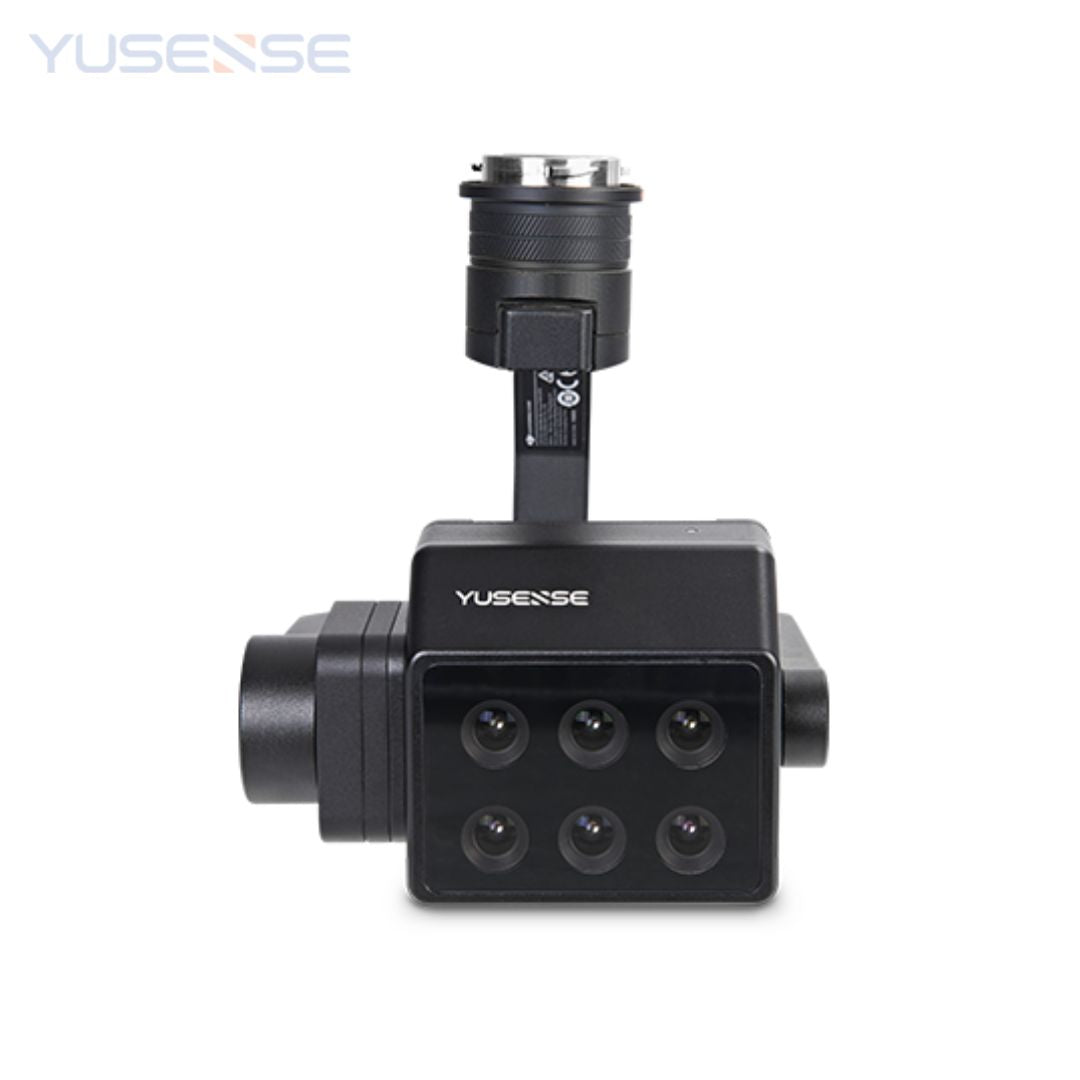

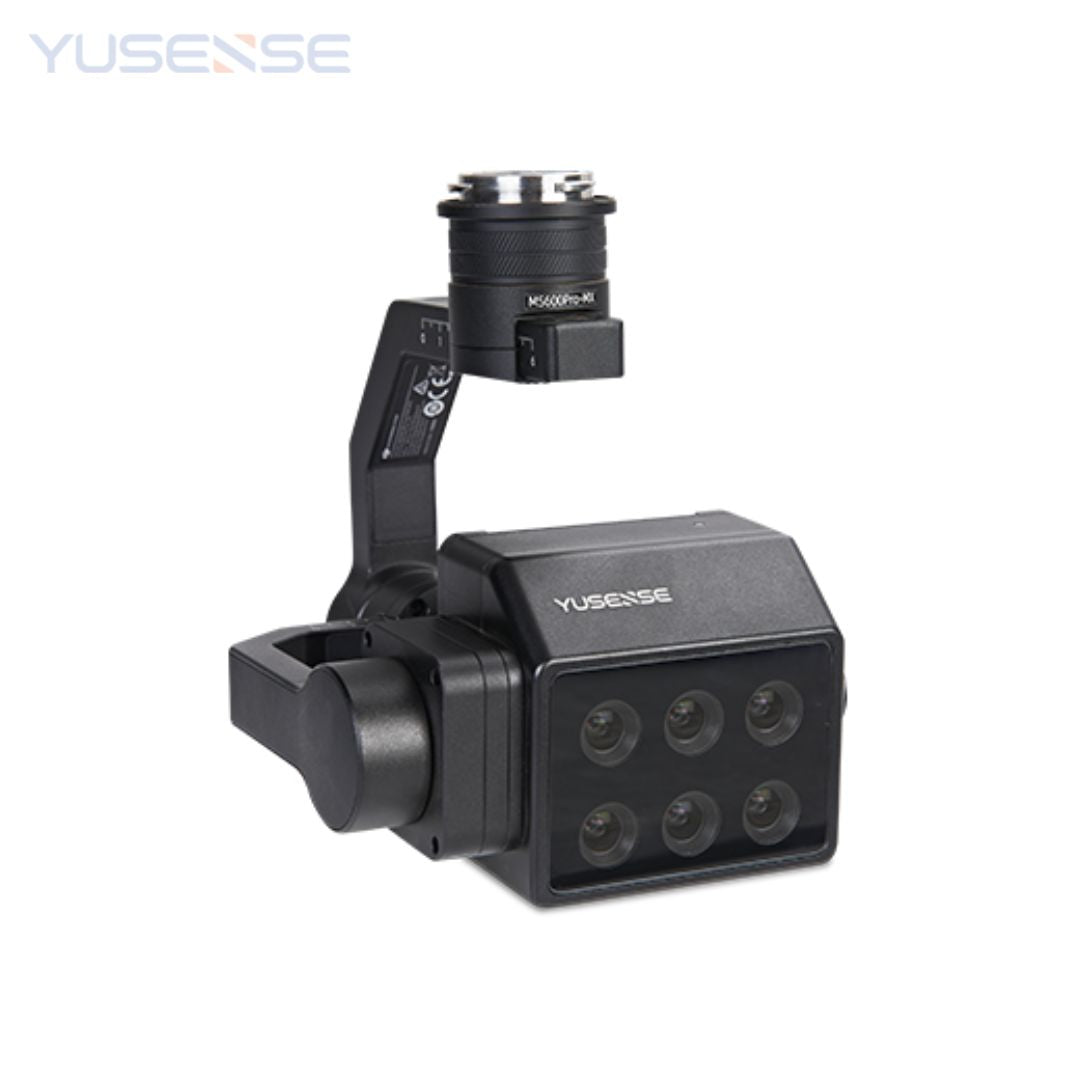

The Yusense MS600 Pro is a multispectral drone payload that is seamlessly compatible with DJI M300/M350 RTK drones. This lightweight payload is made of aluminium alloy and is equipped with six multispectral channels of 1.2 MP, 12 bit global shutter, sapphire optical glass windows, and a Downlink Light Sensor (DLS).
The Yusense MS600 Pro is a highly useful and versatile payload that can be used for many agricultural and industrial applications including agricultural growth assessment, forestry and grassland monitoring, vegetation coverage assessments, monitoring of black and odorous water bodies, river and lake ecology, and more.
Specifications
Product Details |
|
Combination Method: |
6 multispectral channels |
Target Size: |
1/3” |
Effective Pixels: |
1.2Mpx |
Shutter Type: |
Overall situation (Global) |
No. of Quantization Bits: |
12bit |
FOV: |
49.5°×38.1° |
Ground Resolution: |
8.65cm@h120m |
Coverage Width: |
110m×83m@h120m |
Spectral Channel: |
450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 750nm@10nm, 840nm@30nm |
Optical Window: |
Sapphire optical glass window |
Host Size: |
130mm×160mm×150mm (optical axis vertical to the ground) |
Host Weight: |
670g |
Installation Interface: |
X-Port |
Powered By: |
X-Port |
Image Format: |
16bit original TIFF & 8bit reflectivity JPEG (including GPS, ambient light information) |
Storage Media: |
Standard 64GB, maximum support 128GB capacity (transmission speed U3 and above rating) micro SD card |
Processing Software: |
Yusense Map/Yusense Map Plus |
Parameter Settings: |
Yusense Fly/DJI Pilot |
Shooting Trigger: |
Overlap rate trigger, timing trigger |
Shooting Frequency: |
1Hz (related to the actual reading and writing speed of the storage medium) |
Environment Humidity: |
RH(%) ≤85%(non-condensation) |
Certified Product: |
CE, FCC, RoHS |
Key Details
On-board real-time reflectivity calculations |
Simultaneous imaging of all channels in the fastest 1s |
Standard Downlink Light Sensor (DLS) |
DJI X-Port power supply | DJI X-Port Control |
DJI M300/M350 RTK drone customization, plug and play |
