Yusense MS600 Dual - 6 Band Multispectral Payload


Price:
Sale price£6,755.00

Inc. VAT

Finance and business invoice options available

Description

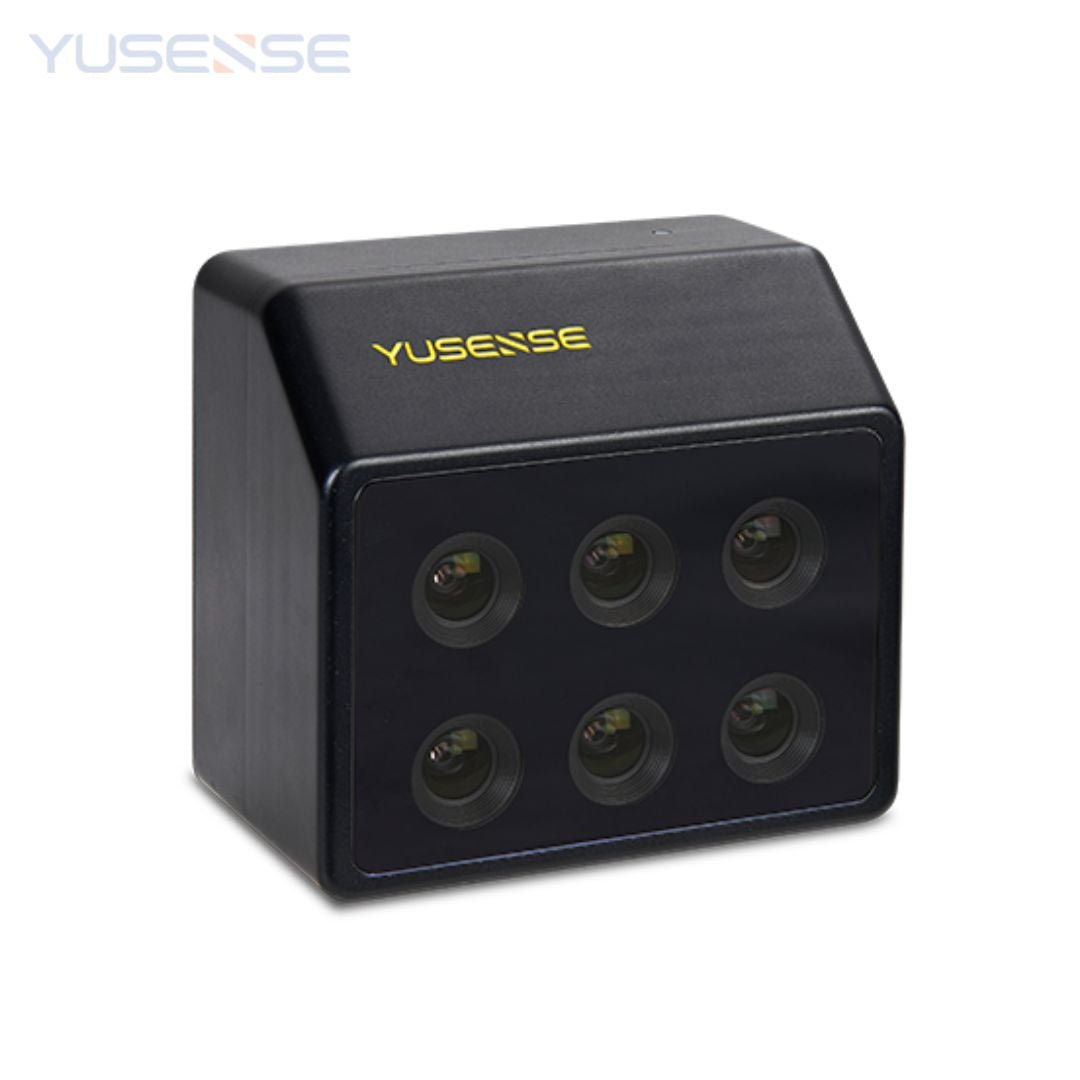

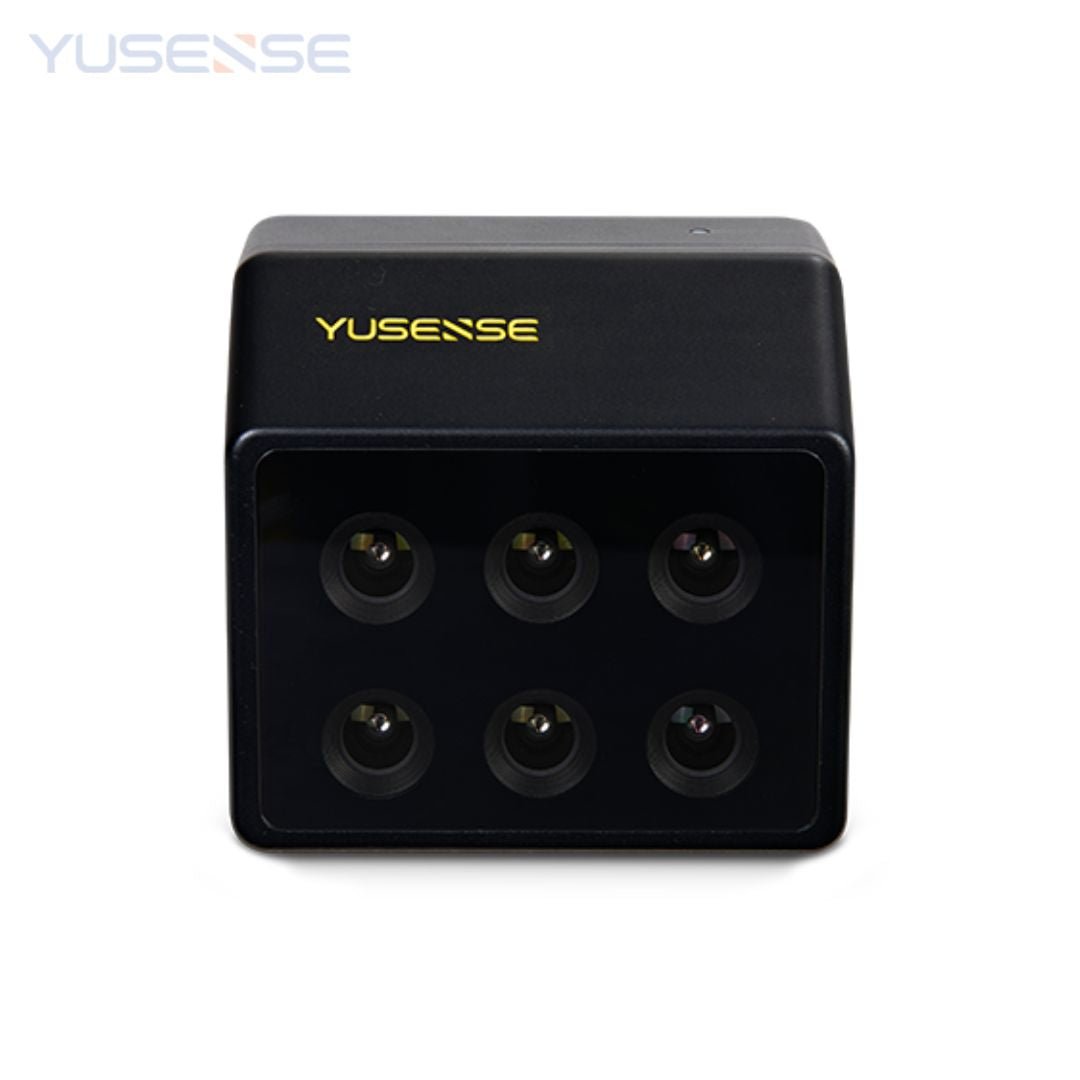

The Yusense MS600 Dual is a multispectral drone payload that is compatible with various multi-rotor and fixed-wind UAV platforms. This lightweight payload is made of aluminium alloy and is equipped with six multispectral channels of 1.2 MP, sapphire optical glass windows, and a Downlink Light Sensor (DLS). The Yusense MS600 Dual's spectral bands are similar to those used by the Sentinel-2 and Landsat-Next satellites.

The Yusense MS600 Dual is a very useful and versatile payload that can be used for satellite remote sensing data verification, vegetation physiological parameter inversion, quantitative inversion of water quality parameters, and many other applications in the fields of agriculture, forestry, grassland, ecological environment, etc.

Specifications

Product Details



Combination Method:

6 multispectral channels

Target Size:

1/3”

Effective Pixels:

1.2Mpx

Shutter Type:

Overall situation (Global)

No. of Quantization Bits:

12bit

FOV:

49.5°×38.1°

Ground Resolution:

8.65cm@h120m

Coverage Width:

110m×83m@h120m

Spectral Channel:

10nm@35nm, 490nm@25nm, 610nm@30nm, 650nm@27nm, 780nm@13nm, 940nm@30nm

Optical Window:

Sapphire optical glass window

Host Size:

80mm×75mm×55mm

Host Weight:

280g

Installation Interface:

4×M3, Cascade application Skyport

Powered by:

12V (please contact our team for power supply with other voltages)

Image Format:

16bit original TIFF & 8bit reflectivity JPEG (including GPS, ambient light information)

Storage Media:

Standard 64GB, maximum support 128GB capacity (transmission speed U3 and above rating) micro SD card

Processing Software:

Yusense Map/Yusense Map Plus

Parameter Settings:

Wi-Fi (WEB interface access)/UART

Shooting Trigger:

External trigger, timing trigger, overlap rate trigger, cascade trigger

Shooting Frequency:

1Hz (related to the actual reading and writing speed of the storage medium)

Environment Humidity:

RH(%) ≤85%(non-condensation)

Certified Product:

CE, FCC, RoHS



Key Details

Network port/TTL serial port
On-board real-time reflectivity calculations
Standard Downlink Light Sensor (DLS)
Synchronous exposure of cascading application scenarios
The band design continues the composition of mainstream satellite bands.
Integrated Skyport interface for cascading application scenarios
Carrying platform: Small multi-rotor UAV, Small fixed-wing UAV
