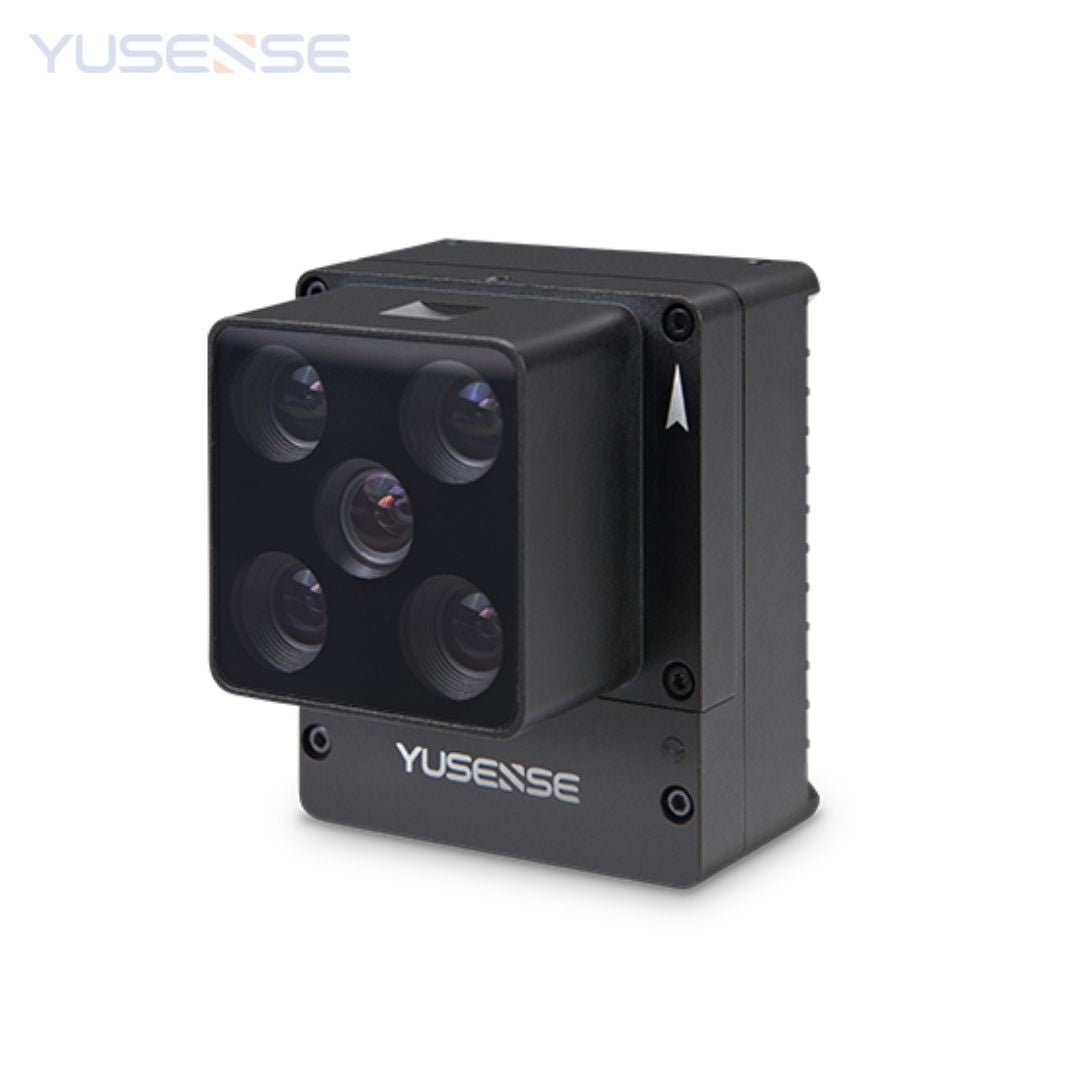

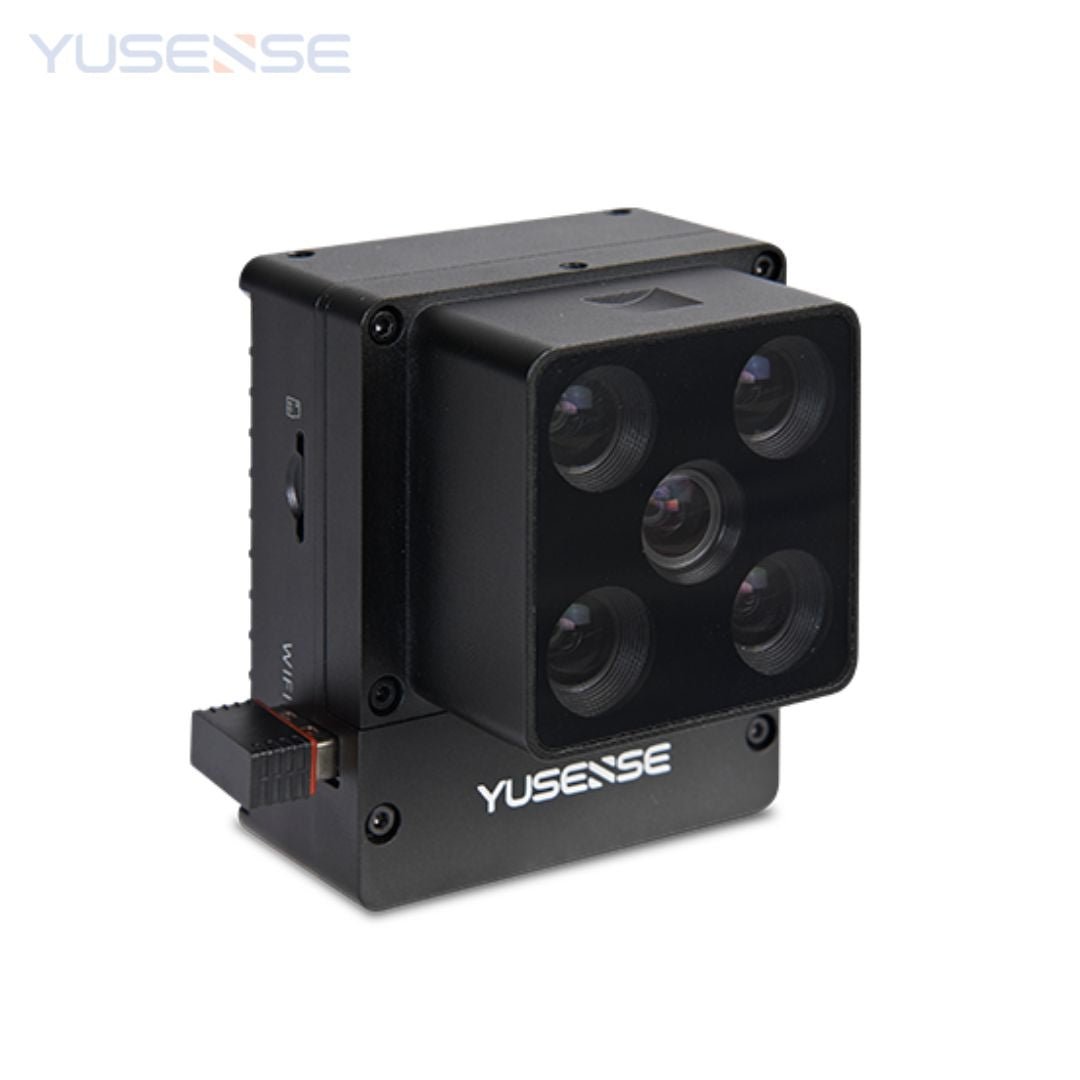

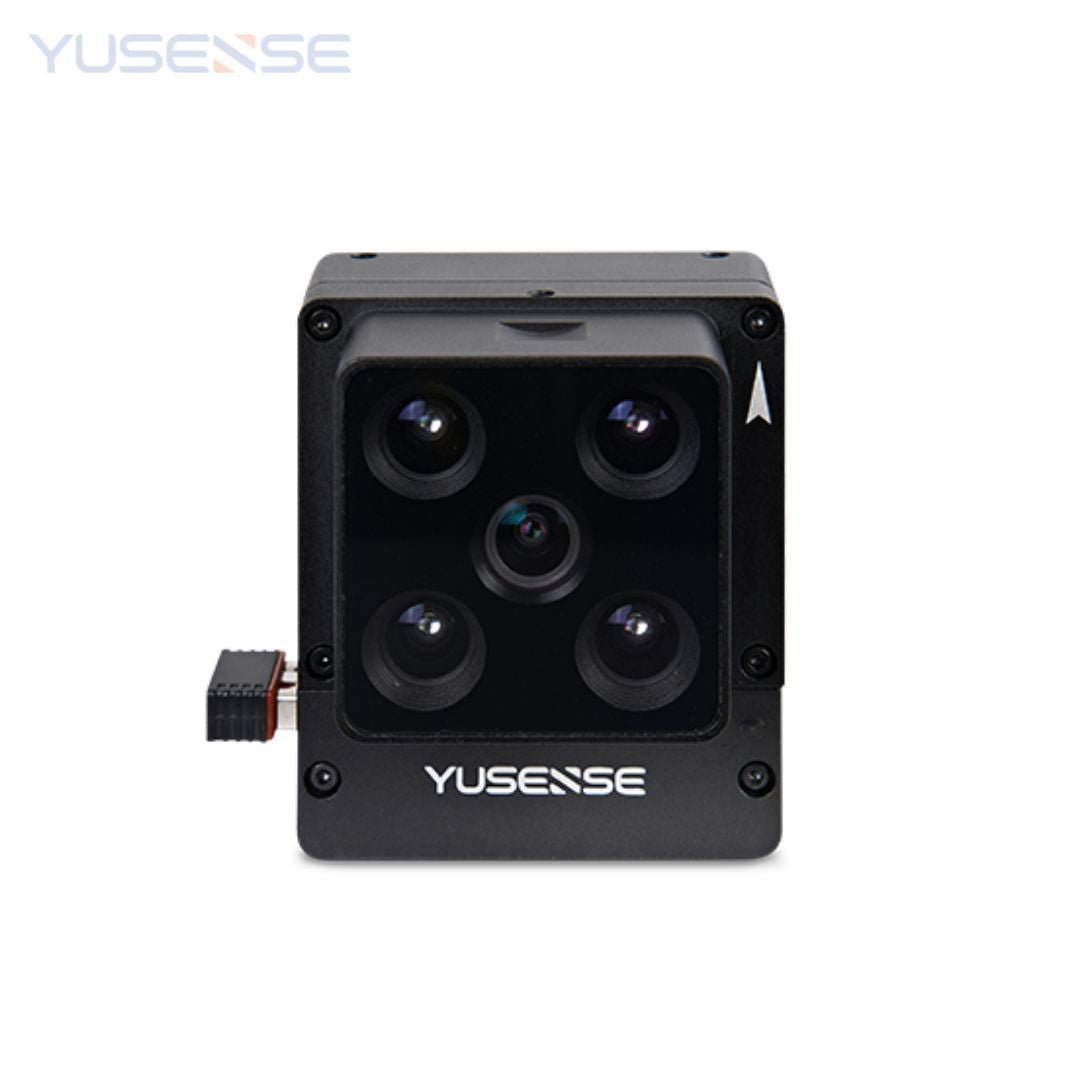

Yusense MS400 - 4 Band Multispectral Payload


Price:
Sale price£4,615.00

Inc. VAT

Finance and business invoice options available

Description

The Yusense MS400 is a multispectral drone payload that is compatible with various small UAV platforms. This lightweight payload is made of aluminium alloy and equipped with four multispectral channels of 1.3 MP, one RGB channel of 8.0 MP, optical-grade glass windows, and a Downlink Light Sensor (DLS).

The Yusense MS400 is a very useful and versatile payload that can be used for agricultural growth assessment, seedling emergence assessment, pest and disease assessment, crop lodging assessment, forestry monitoring, and many other agricultural remote sensing applications.

Specifications

Product Details



Combination Method:

4 multispectral channels + 1 RGB channel

Target Size:

Multispectral 1/4”
RGB 1/4”

Effective Pixels:

Multispectral 1.3Mpx
RGB 8.0Mpx

Shutter Type:

Multispectral – Global
RGB – Rolling Shutter

No. of Quantization Bits:

Multispectral 12bit
RGB 8bit

FOV:

Multispectral 36.7°×31.3°
RGB 37.5°×28.6°

Ground Resolution:

Multispectral 6.23cm@h120m
RGB 2.49cm@h120m

Coverage Width:

Multispectral 80m×67m@h120m
RGB 82m×61m@h120m

Spectral Channel:

55nm@27nm,660nm@22nm, 720nm@10nm,840nm@30nm, RGB

Optical Window:

Optical grade glass windows

Host Size:

55mm×65mm×50mm

Host Weight:

175g Aluminium alloy lightweight body

Installation Interface:

7×M3

Powered by:

12V (please contact our team for power supply with other voltages)

Power Consumption:

7W@12V

Image Format:

Multispectral – 16bit original TIFF & 8bit reflectance JPEG RGB – 8bit JPEG (including GPS, ambient light information)

Storage Media:

Standard and supports up to 64GB capacity (transmission speed U3 and above rating) micro SD card

Processing Software:

Yusense Map/Yusense Map Plus/Yusense Net

Parameter Settings:

Wi-Fi (WEB interface access)/Ethernet/UART

Shooting Trigger:

External trigger, timing trigger, overlap rate trigger, cascade trigger

Shooting Frequency:

1Hz (related to the actual reading and writing speed of the storage medium)

Environment Humidity:

RH(%) ≤85%(non-condensation)

Certified Product:

CE, FCC, RoHS



Key Features

Gigabit network port/TTL serial port
Standard Downlink Light Sensor (DLS)
Carrying platform: Compatible with multiple light and small UAV platforms
