Description

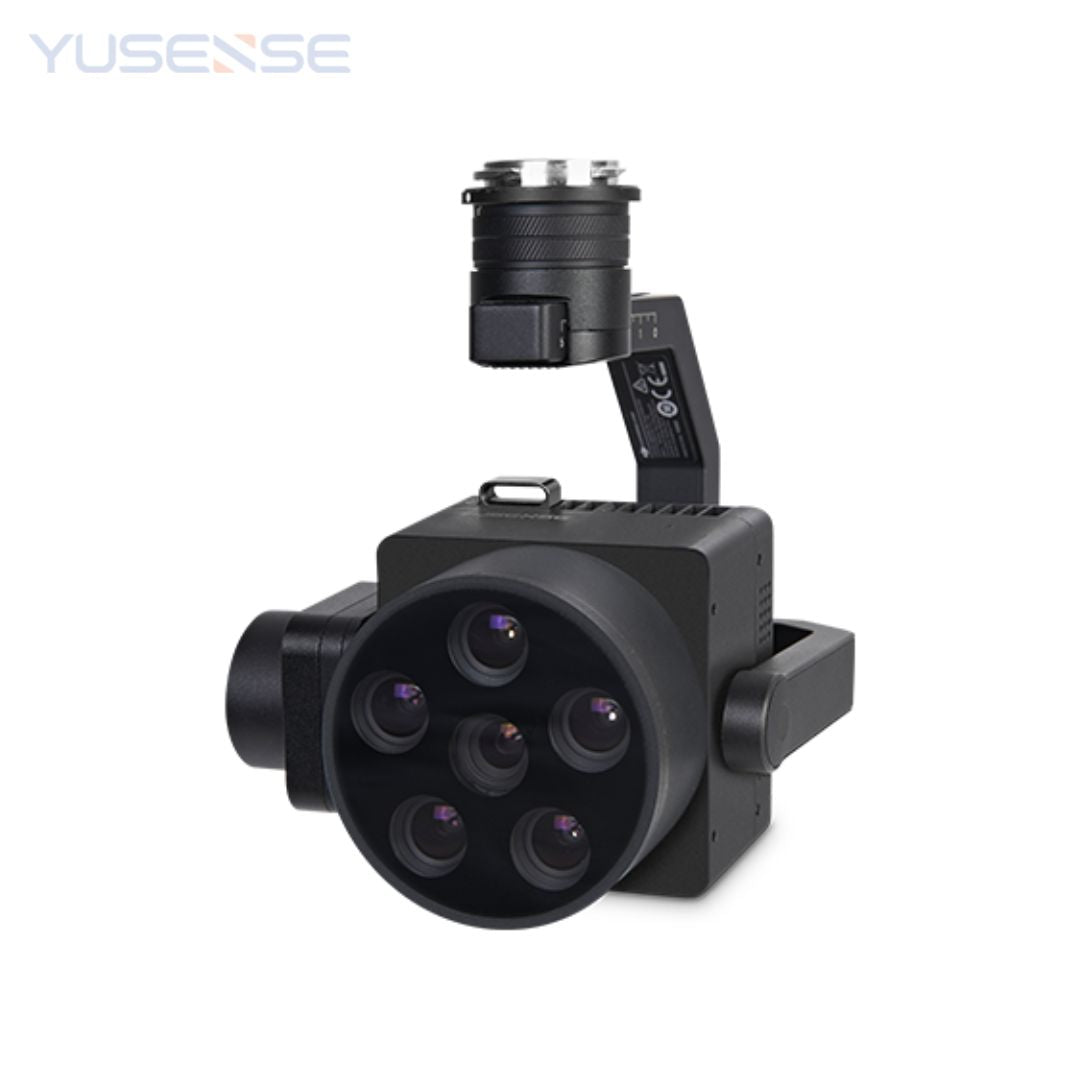

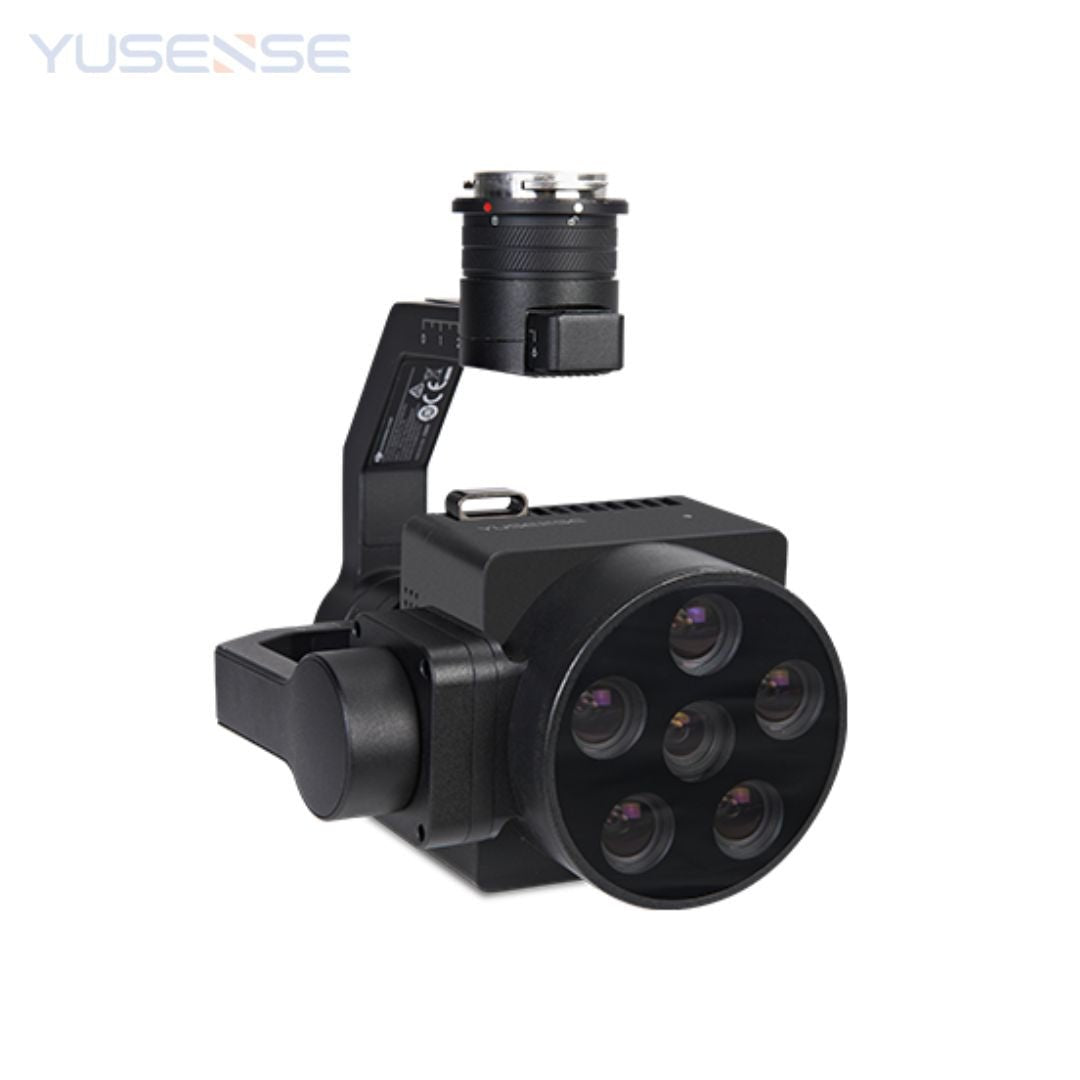

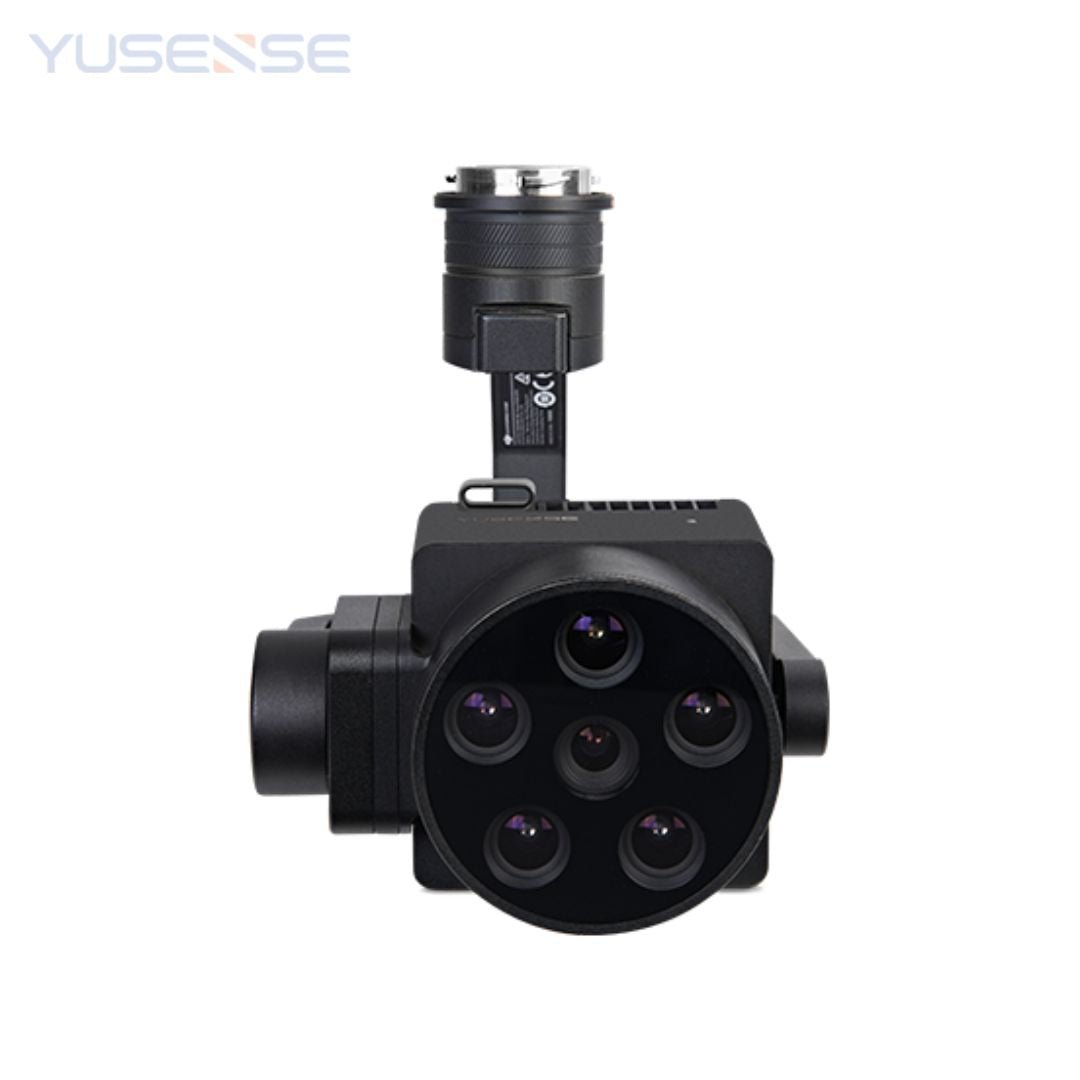

The Yusense AQ600 Pro is a multispectral drone payload that can provide video output as well and is seamlessly compatible with the DJI M300/M350 RTK drones. This lightweight payload is made of aluminium alloy and is equipped with five multispectral channels of 3.2MP, one RGB channel of 12.3MP, and sapphire optical glass windows.
The Yusense AQ600 Pro is a highly useful and versatile payload that can be used for agricultural growth assessment, forestry monitoring, water body eutrophication monitoring, river and lake ecology, monitoring black and odorous water bodies, target recognition, and many other industrial uses.
Specifications
Yusense AQ600 Pro |
|
|
Combination Method: |
5 multispectral channels + 1 RGB channel |
|
Target Size: |
Multispectral 1/1.8” RGB 1/2.3” |
|
Effective Pixels: |
Multispectral 3.2Mpx RGB 12.3Mpx |
|
Shutter Type: |
Multispectral – Global RGB – Rolling Shutter |
|
No. of Quantization Bits: |
Multispectral 12bit RGB 8bit |
|
FOV: |
Multispectral 48.8°×37.5° RGB 47.4°×36.4° |
|
Ground Resolution: |
Multispectral 5.28cm@h120m RGB 2.60cm@h120m |
|
Coverage Width: |
Multispectral 109m×82m@h120m RGB 106m×79m@h120m |
|
Spectral Channel: |
450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB |
| Optical Window: | Sapphire Optical Glass Window |
| Host Size: | 130mm×160mm×165mm (optical axis vertical to the ground) |
| Host Weight: | 780g |
| Installation Interface: | X-Port |
| Powered by: | X-Port |
| Image Format: | Multispectral – 16bit original TIFF & 8bit reflectance JPEG RGB – 8bit JPEG (including GPS, ambient light information) |
| Video Format: | MP4 |
| Storage Media: | Standard configuration 128GB, Supports up to 2TB USB3.1 storage device |
| Processing Software: | Yusense Map/Yusense Map Plus |
| Parameter Settings: | Yusense Fly/DJI Pilot |
| Shooting Trigger: | Overlap rate trigger, timing trigger |
| Shooting Frequency: | Photo mode – 1Hz (related to the actual reading and writing speed of the storage medium) Video mode – 20Hz |
| Environment Humidity: | RH(%) ≤85%(non-condensation) |
| Certified Product: | CE, FCC, RoHS |
Key Features
| DJI X-Port Control |
| Simultaneous imaging of all channels in the fastest 1s |
| On-board real-time spectral inversion, video output |
| Standard Downlink Light Sensor (DLS) |
| DJI X-Port power supply, 128G solid-state USB flash drive |
| DJI M300/M350 RTK drone customization, plug and play |
