Description

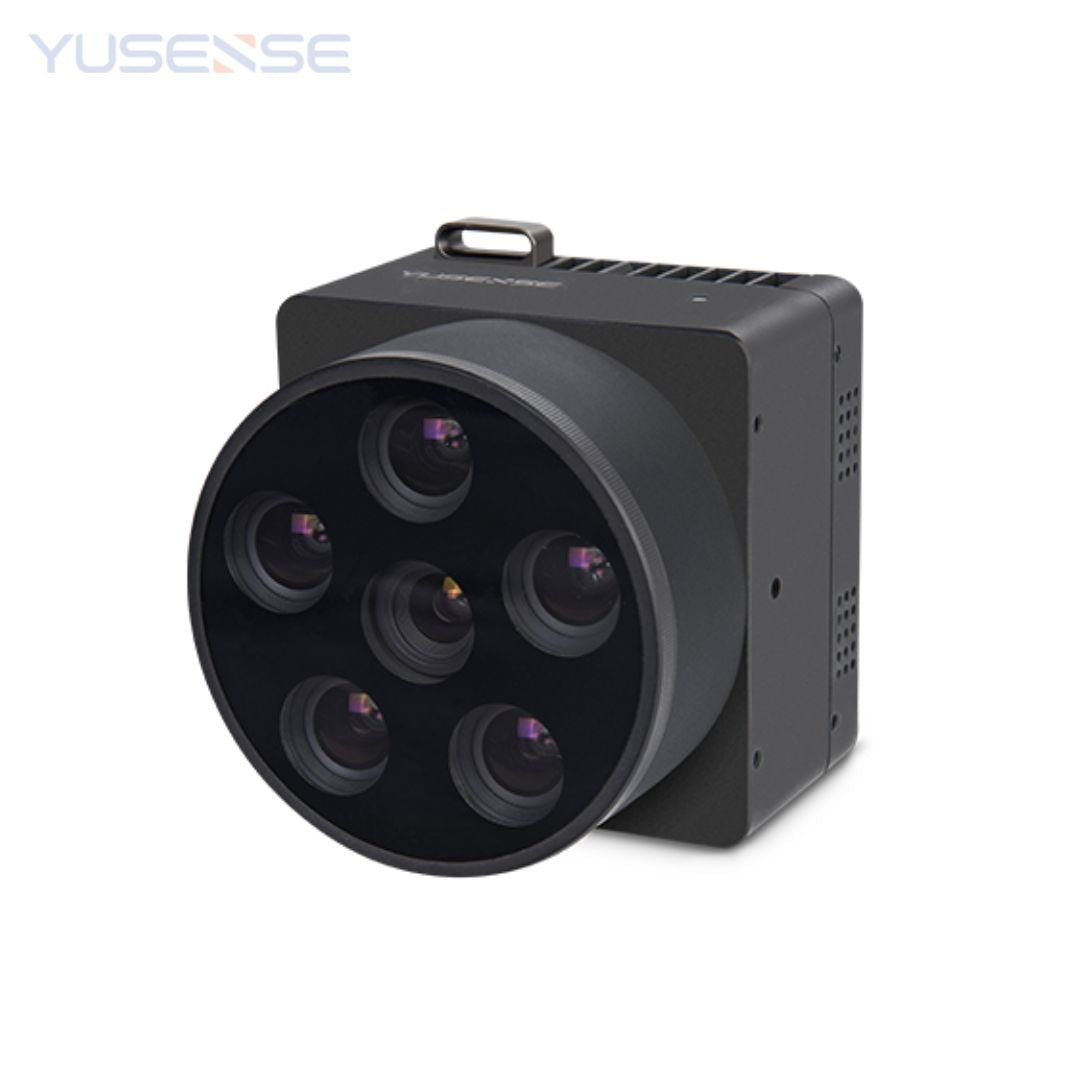

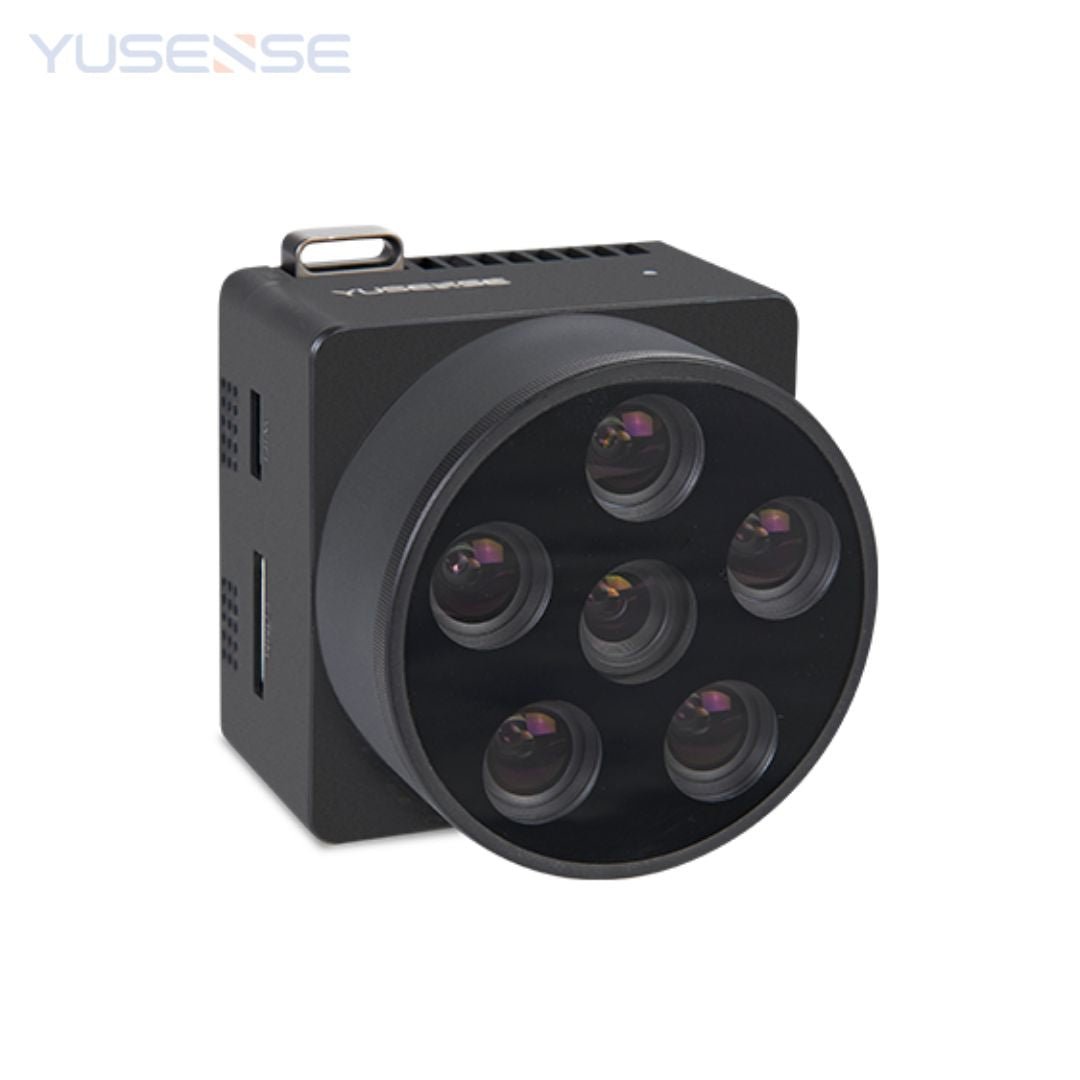

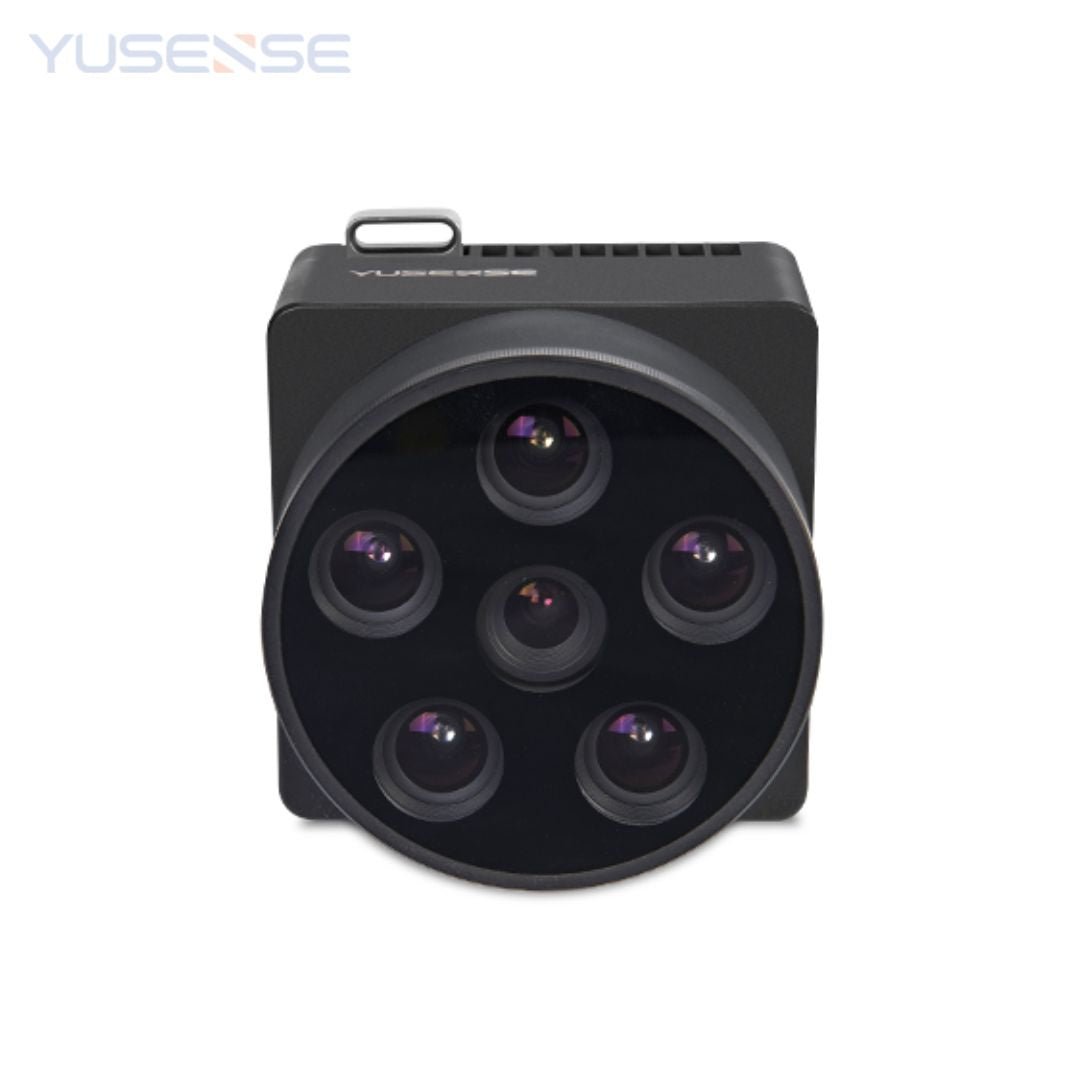

The Yusense AQ600 is a multispectral drone payload that can provide video output as well and is compatible with various multi-rotor and fixed-wing UAVs. This lightweight payload is made of aluminium alloy and is equipped with five multispectral channels of 3.2 MP, one RGB channel of 12.3 MP, and sapphire optical glass windows.
The Yusense AQ600 is a highly useful and versatile payload that can be used for agricultural growth assessment, forestry monitoring, water body eutrophication monitoring, river and lake ecology, monitoring black and odorous water bodies, target recognition, and many other industrial uses.
Specifications
Product Details |
|
|
Combination Method: |
5 multispectral channels + 1 RGB channel |
|
Target Size: |
Multispectral 1/1.8” RGB 1/2.3” |
|
Effective Pixels: |
Multispectral 3.2Mpx RGB 12.3Mpx |
|
Shutter Type: |
Multispectral – global RGB – rolling shutter |
|
No. of Quantization Bits: |
Multispectral 12bit RGB 8bit |
|
Field Of View (FOV): |
Multispectral 48.8°×37.5° RGB 47.4°×36.4° |
|
Ground Resolution: |
Multispectral 5.28cm@h120m RGB 2.60cm@h120m |
|
Coverage Width: |
Multispectral 109m×82m@h120m RGB 106m×79m@h120m |
|
Spectral Channel: |
450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB |
|
Optical Window: |
Sapphire optical glass window |
|
Host Size: |
80mm×80mm×78mm |
|
Host Weight: |
415g |
|
Installation Interface: |
8×M3 |
|
Powered by: |
12V (please contact us for power supply with other voltages) |
|
Power Consumption: |
16W@12V |
|
Image Format: |
Multispectral – 16bit original TIFF & 8bit reflectance JPEG RGB – 8bit JPEG (including GPS, ambient light information) |
|
Video Format: |
MP4 |
|
Storage Media: |
Standard configuration 128GB, supports up to 2TB USB3.1 storage device |
|
Processing Software: |
Yusense Map/Yusense Map Plus |
|
Parameter Settings: |
Wi-Fi (WEB interface access) / Ethernet / UART |
|
Shooting Trigger: |
External trigger, timing trigger, overlap rate trigger, cascade trigger |
|
Shooting Frequency: |
Photo mode – 1Hz (related to the actual reading and writing speed of the storage medium) Video mode – 20Hz |
|
Environment Humidity: |
RH(%) ≤ 85%(non-condensation) |
|
Certified Product: |
CE, FCC, RoHS |
Key Features
| Gigabit network port/TTL serial port |
| Simultaneous imaging of all channels in the fastest 1s |
| On-board real-time spectral inversion, video output |
| Standard Downlink Light Sensor (DLS) |
| Compatible with multiple types of rotor and fixed-wing UAV platforms | Carrying platform: Small multi-rotor UAV or Fixed wing UAV |
