Description

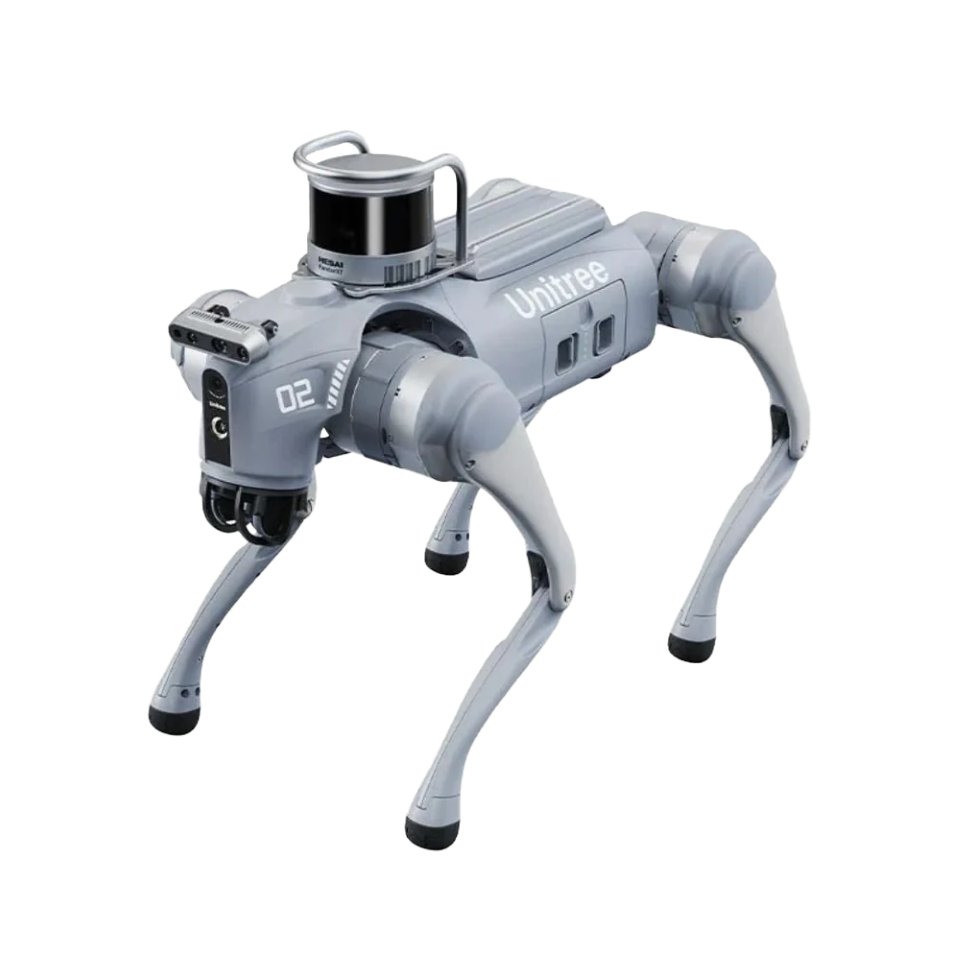

The Unitree Go2 series consists of Unitree's upgraded and improved quadruped robot dogs with 12 aluminium knee joint motors. The Unitree Go2 Edu comes with a super wide-angle 3D LiDAR, foot-end force sensors, secondary development ability, high-computing power module, and a 15000mAh ultra long-life battery. It is also equipped with voice function, ISS 2.0 intelligent side-follow system, joint heat pipe coolers which can effectively decrease temperatures.

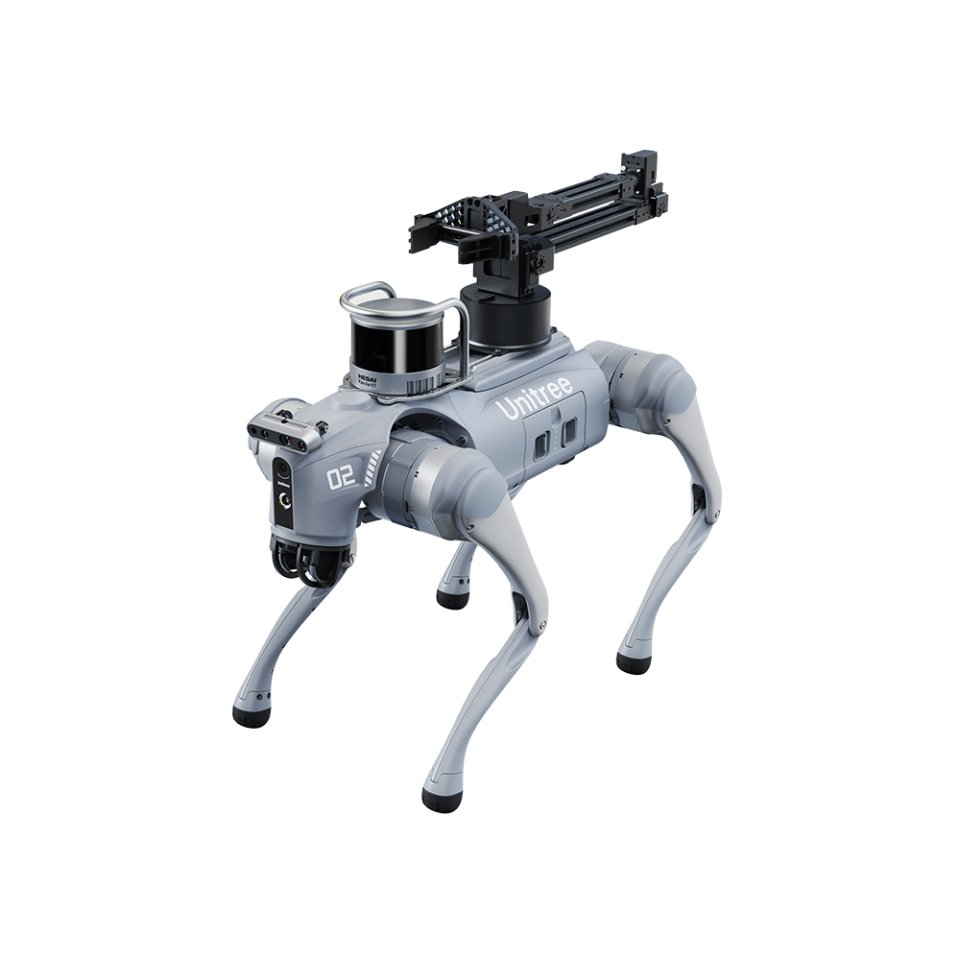

The D1 Arm is compatible with the Go2 Edu and Go2 Ent series.
Specifications
Go2 Edu Plus |
|
Dimensions: |
L: 70cm W: 31cm H: 40cm |
Material: |
Aluminium Alloy + High Strength Engineering Plastic |
Voltage: |
28~33.6V |
Max. Power Output: |
3,000W |
Payload: |
8 ~12kg |
Max. Speed: |
3.7~5m/s |
Max. Climb Drop Height: |
16cm |
Max. Climb Angle: |
40° |
Max. Torque: |
45N.m |
Range Of Motion: |
Body -48~48°, Thighs -200~90°, Shank -156~48° |
Smart Battery: |
15,000 mAh |
Battery Life: |
2~4 hours |
Fast Power Charger: |
33.6V, 9A |

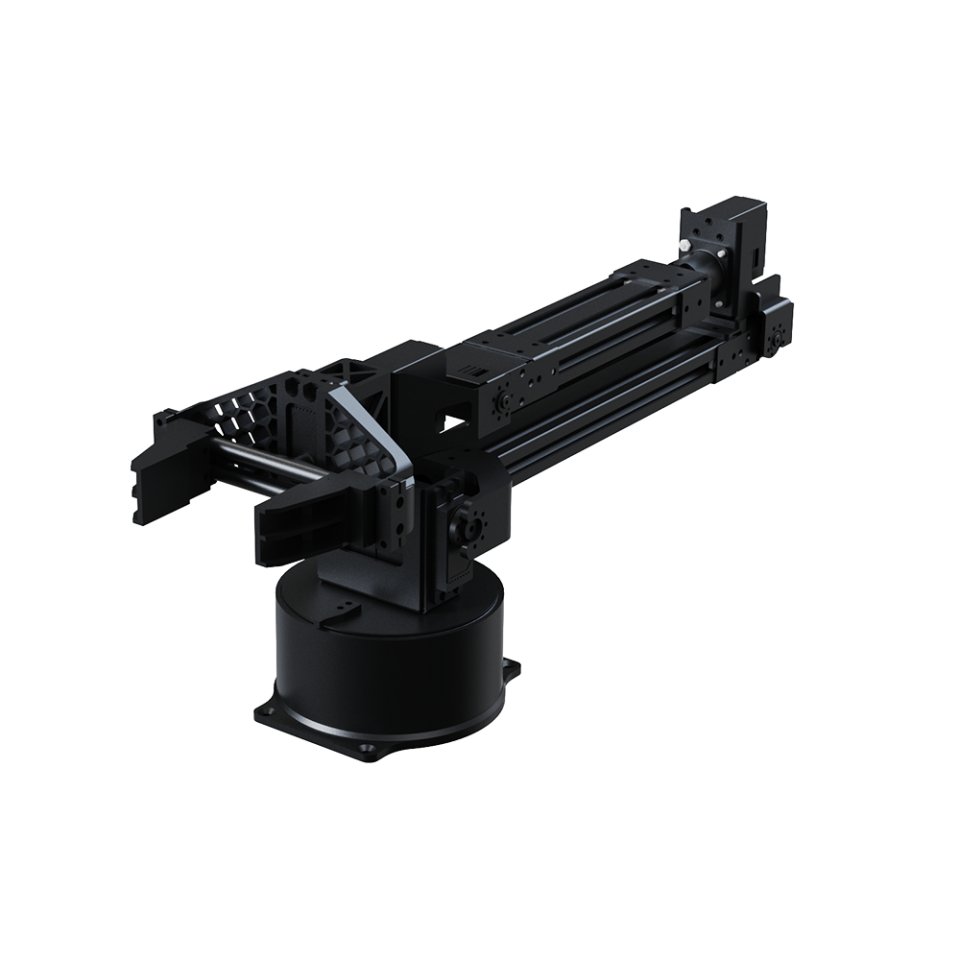

D1 Arm |
|
Dimensions: |
L: 30cm W: 15m H: 20cm |
Degrees Of Freedom: |
6 |
Load: |
500g (ideal weight) |
Power Requirement: |
24V 2.5A (MAX 5A) |
Power: |
60W |
Included
An Extra Jetson Orin NX board |
Intra-Joint Circuit (knee) |
Joint Heat Pipe Cooler |
Wireless Vector Positioning Tracking Module |
4G Module |
Voice Module |
ISS 2.0 Intelligent Side-Follow System |
Charging Pile Compatibility |
HD Wide-Angle Camera |
Foot-End Force Sensing |
RTT 2.0 Image Transmission |
Front Lamp |
WiFi6 with Dual-Band |
Bluetooth 5.2/4.2/2.1 |
Autonomous Detection And Avoidance |
Charge Pile Compatibility |
