Description

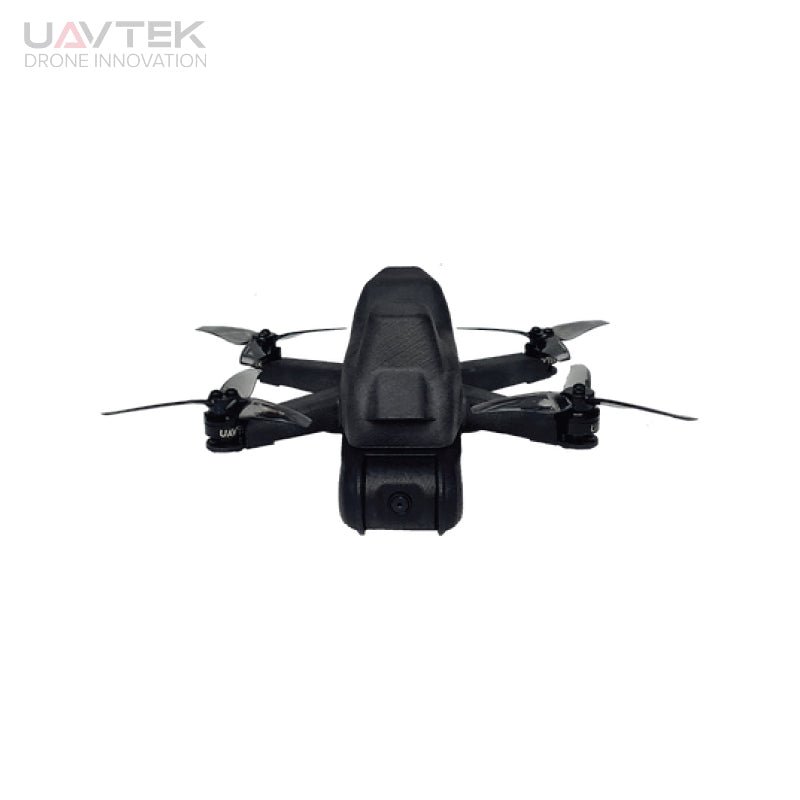

The Bug was created to be a Nano UAV fit for the field. It gives full HD situational awareness to the operator with minimal visual profile and capability to fly with wind conditions up to 45 knots. The small mass of the Bug gives it an excellent risk profile and safety case compared to larger airframes. This makes it the ideal choice for use in urban areas. The Bug also makes use of cellular networks, so can easily overcome the challenge of RF disruption in an urban environment.
The Bug has the ability to land, watch and listen, allowing covert surveillance and reconnaissance for hours. Additionally, the Bug can direct the camera to a fixed position regardless of flight direction. The Bug configuration allows payloads of up to 50g and stays within the 300g maximum take off weight limit.
Specifications
Aircraft Details |
|
|
Dimensions: |
190 x 155 x 70mm |
|
Propeller Size: |
3" |
|
MTOW: |
300g |
|
Max. Payload Capacity: |
50g |
|
Payload Options: |
Ti Camera, LTE module |
|
Cruise & Max. Speed: |
80kph |
|
Endurance: |
Up to 20 mins |
|
Max. Windspeed: |
40knts (45knts gust) |
Camera |
|
|
Day Camera: |
EO 5MP |
|
Thermal Camera: |
No |
|
Video Stream: |
1080P |
Key Features
|
Follow-Me-Mode: |
Yes |
| Autonomous Operation: | Yes |
| Return-To-Home: | Yes |
| Smart Return-To-Home: | Yes |
| Return To Rally Point: | Yes |
| Swarm Capability: | Yes with tactical data radio (DTC) |
| Emergency Modes (Abort): | Yes |
| Other Modes: | Non GPS, GPS restricted, GPS non-restricted, fully autonomous, full safety flight |
