Description

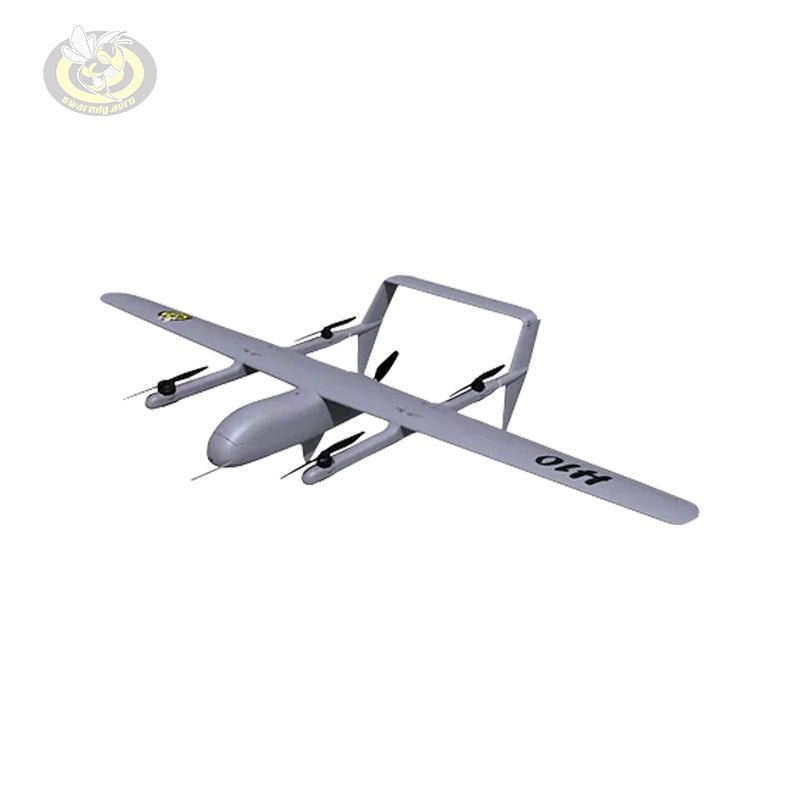

The H10 Poseidon MkIV VTOL UAS 2UAVS is specifically designed for covert mobile surveillance and combat operations requiring low noise and heat signatures, as well as fast deployment and evacuation times. The H10 Poseidon MkIV VTOL UAS operates at Extended Visual Line Of Sight (EVLOS) ranges of up to 50 km. The H10 Poseidon MkIV VTOL UAS is capable of autonomously patrolling designated areas, identifying and tracking targets at EVLOS distances, and loitering around designated target areas while broadcasting encrypted Reconnaissance, Surveillance, and Target Acquisition (RSTA) data to authorized users, as well as delivering gravity munitions from up to 600 m AGL altitude with down to 2 m CEP.
Designed to operate in GNSS denied environments, the H10 Poseidon is an excellent option for covert missions. This electric system can be prepared for operations in under 10 minutes.
The H10 Poseidon features 4 mounted VTOL propellers along with a fully electric motor and cruise propeller. Able to carry up to 4kg with a maximum flight speed of 85km/h and total range of 180km (EVLOS 50km) the H10 Poseidon is built for covert mid-range missions with flight endurance of up to 2.5 hours.
H10 Poseidon MkIV VTOL UAS is usually supplied with the following components:
| Two or three H10 Poseidon MkIV VTOL UAVs with optional payloads |
| One Ground Control Station |
| Training for operators and technicians |
| Some other components required for antenna facilities, storage cases, documentation, and maintenance |
Specifications
Airframe Details |
|
|
Wingspan: |
4,600 mm |
|
Length: |
2,180 mm |
|
Height: |
690 mm |
|
Max. Take-off Weight: |
40 kg |
|
Max. Endurance: |
2.75 hrs |
|
Max. Speed: |
100 km/h |
|
Stall Speed: |
58 km/h |
|
Cruise Speed: |
72 km/h |
|
Max. Total Range: |
180 km |
