Description

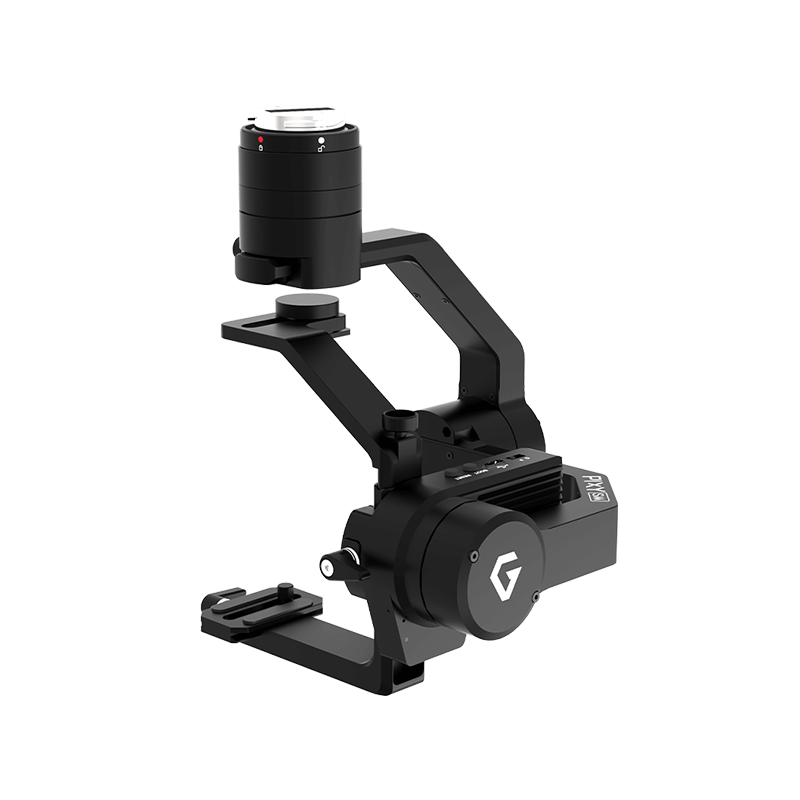

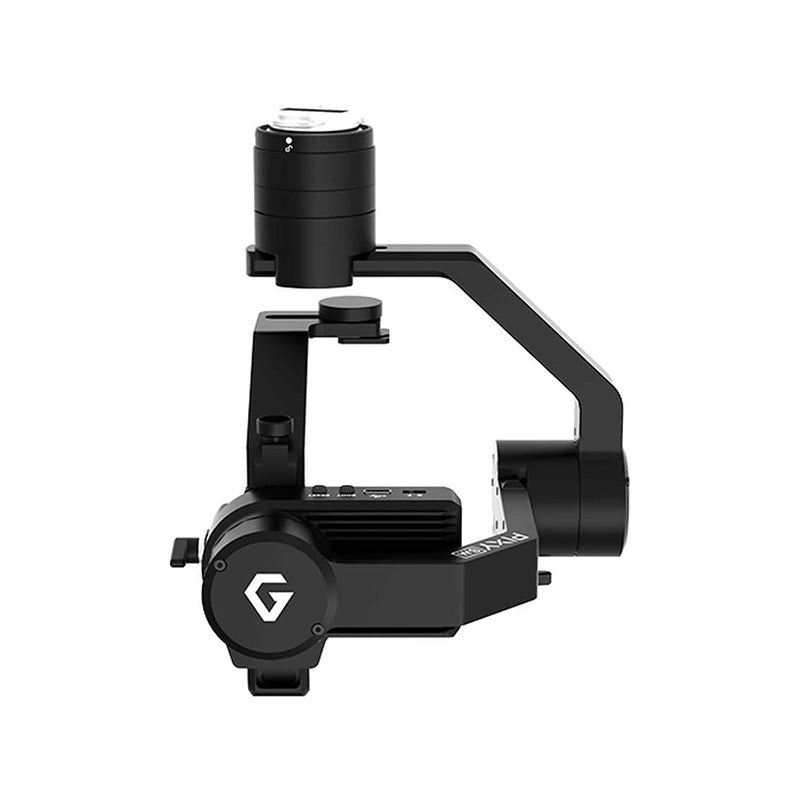

The Pixy SM is specially designed to integrate the leading professional M300 RTK drone with the full-frame mirrorless Sony α7R IV camera, offering an unbeatable combination for precision aerial mapping missions. With the Pixy SM, the most powerful drone and superior sensor are now perfectly combined for industrial operations, making your entire system clean and easy to deploy.
The Pixy SM is optimized to work perfectly with the 61-megapixel Sony α7R IV, ensuring that you can get high-resolution imagery for creating accurate maps.
Specifications
Mechanical & Electrical Characteristics |
|
|
Working Current: |
Static current: 400mA (@13.7V) Dynamic current: 800mA (@13.7V) Locked motor current: Max 4.0A (@13.7V) |
| Weight: | 1.26 lbs (0.57 kg) |
| Gimbal Dimension: | 147(W) x 157(D) x 190(H) |
Peripheral |
|
| Operating Power: | 13.7V |
| Connections: | DJI Skyport V2, USB 2.0, UART |
Working Performance |
|
| GPS Accuracy: | 0.05 m* |
| Angular Vibration Range: | ± 0.02° |
| Max. Controlled Rotation Speed: | Pan axis: 100°/s Tilt axis: 100°/s Roll axis: 100°/s |
| Mechanical Endpoint Range: | Pan axis control: +330° to -330° Tilt axis control: +135° to -45° Roll axis control: +25° to -90° |
| Controlled Rotation Range: | Pan axis control: +160° to -160° Tilt axis control: +135° to -45° Roll axis control: ± 25° |
