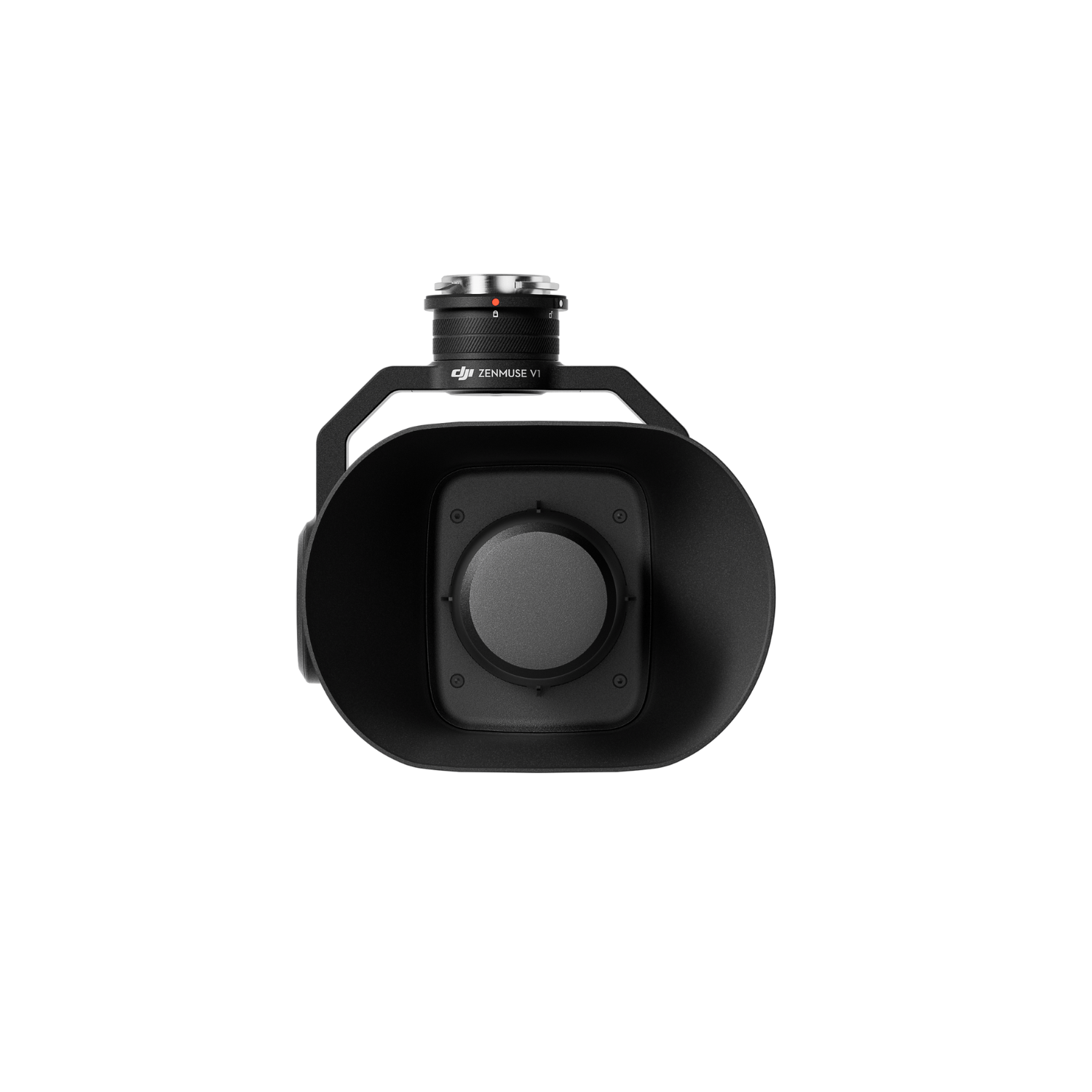

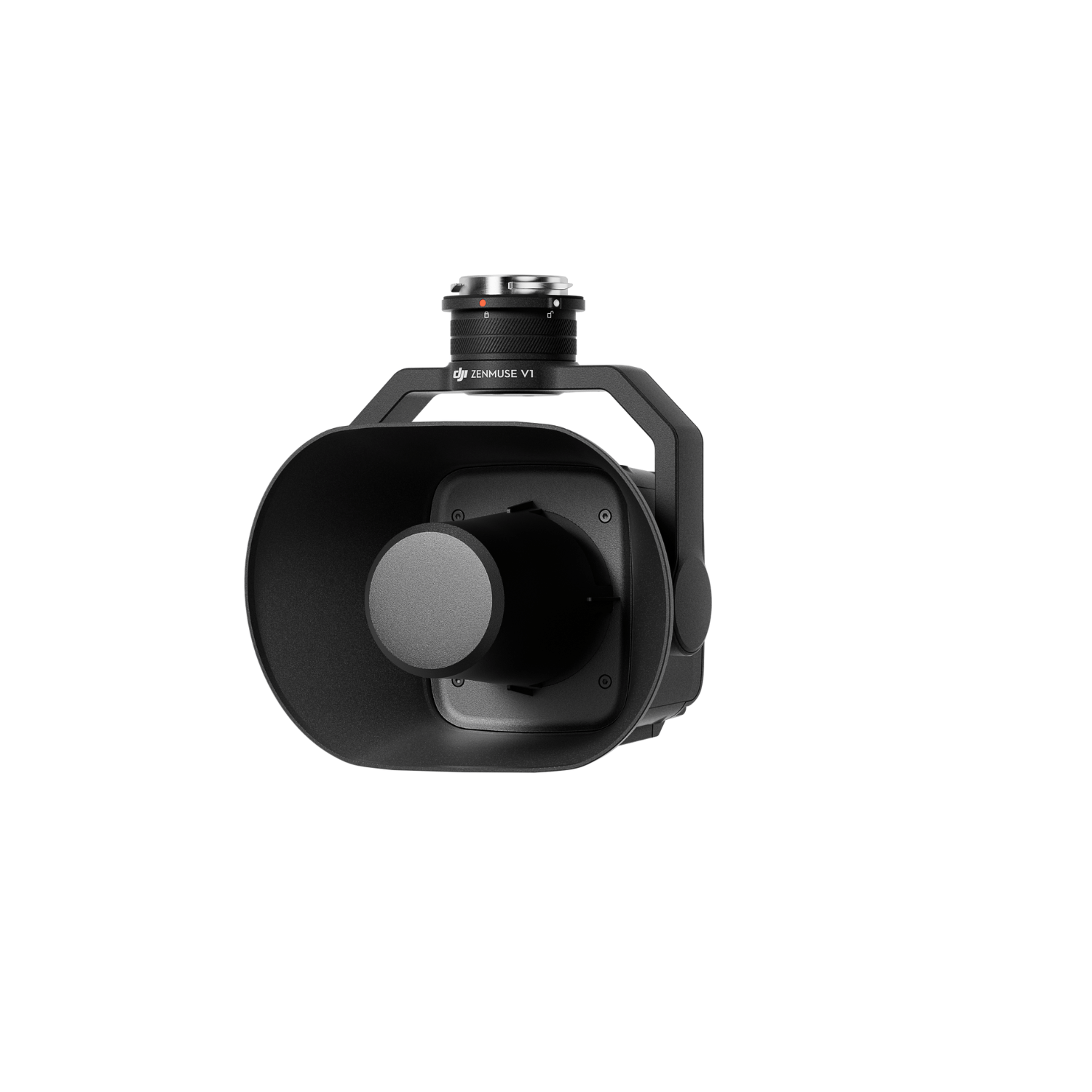

DJI Zenmuse V1

Zenmuse V1 is DJI's first speaker designed for multi-payload drone platforms, compatible with Matrice 350 RTK and Matrice 300 RTK. It boasts high volume and long broadcast distance, and supports multiple broadcast modes, making it ideal for scenarios like public safety, emergency response, and more.

Multiple Broadcast Modes

Record & Broadcast

Record and transmit messages to the speaker using the DJI Pilot 2 app. This feature includes local playback and recording storage. Recording a broadcast is instant and convenient, enabling rapid communication of important information in emergent scenarios without complex operations.

Text-to-Speech

Input text can be converted to speech via the DJI Pilot 2 app and transmitted to the speaker. This mode supports adjustments to tone and speech rate, as well as loop playback, ensuring that information is conveyed clearly and flexibly to the target audience.

Audio File Playback

The DJI Pilot 2 app supports the import of local audio files, which can then be transmitted to the speaker for playback. This allows for the quick dissemination of preset content during operations, enhancing efficiency and smoothness.

Powerful Sound, Extended Reach

At 1 meter, Zenmuse V1's maximum loudness can reach 127 decibels [1], on par with the sound level of a jet taking off. Powerful volume ensures clear communication. With an effective broadcast distance of up to 500 meters, [1] it ensures coverage even in vast areas.

Clear, Directional Recording

During recording, DJI RC Plus can directionally capture voices directly above the microphone. Combined with environmental noise cancelling technology, it effectively minimizes surrounding noise interference, ensuring clearer recordings.

Precise Control, Targeted Broadcast

Zenmuse V1 can synchronize with other gimbal-equipped payloads to achieve coordinated tilt angles, ensuring that the sound is directed precisely towards the intended direction, thereby enhancing the broadcast efficiency.

Reliable and Intuitive

Payload Protection

Zenmuse V1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.

Hearing Protection

When the drone is not in flight and the volume exceeds 40%, the DJI Pilot 2 app will display a pop-up reminder to prevent discomfort to people nearby.

Strong Environmental Adaptability

With an IP54 rating for dust and water resistance,[2] Zenmuse V1 can operate in ambient temperatures ranging from -20° to 50° C (-4° to 122° F), making it adaptable to various operating environments.

Efficient Remote Controller Shortcut

Zenmuse S1 supports customisable shortcut of the remote controller for one-press recording. Press once to start recording, and press again to play the recording, providing convenient operation to significantly improve the efficiency of on-site personnel.

Flexible Mounting,Lightweight Build

Zenmuse V1 can be mounted to any gimbal connector of the single downward gimbal, dual downward gimbals, or the single upward gimbal, accommodating various operational needs. Weighing only 0.69 kg, [3] it is compact and easy to carry.

Mobile SDK

With the help of the Mobile SDK, users can quickly integrate the functions of the Zenmuse V1 into their self-developed mobile apps, enabling drone applications to support commercial scenarios and enhance operational efficiency.

Notes:

[1] Measured in a laboratory environment at 25°C (77°F). Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.

[2] Under controlled laboratory conditions, it can achieve an IP54 protection rating under IEC 60529 standards. The IP rating is not permanently effective and may diminish due to product wear and tear.

[3] The net weight of the Zenmuse V1 is 690 g±10 g, excluding the weight of the transport case.

Specifications

General

Environment

Gimbal

Speaker

Basic Features

Special Features

In the Box

1 x Zenmuse V1
