Description

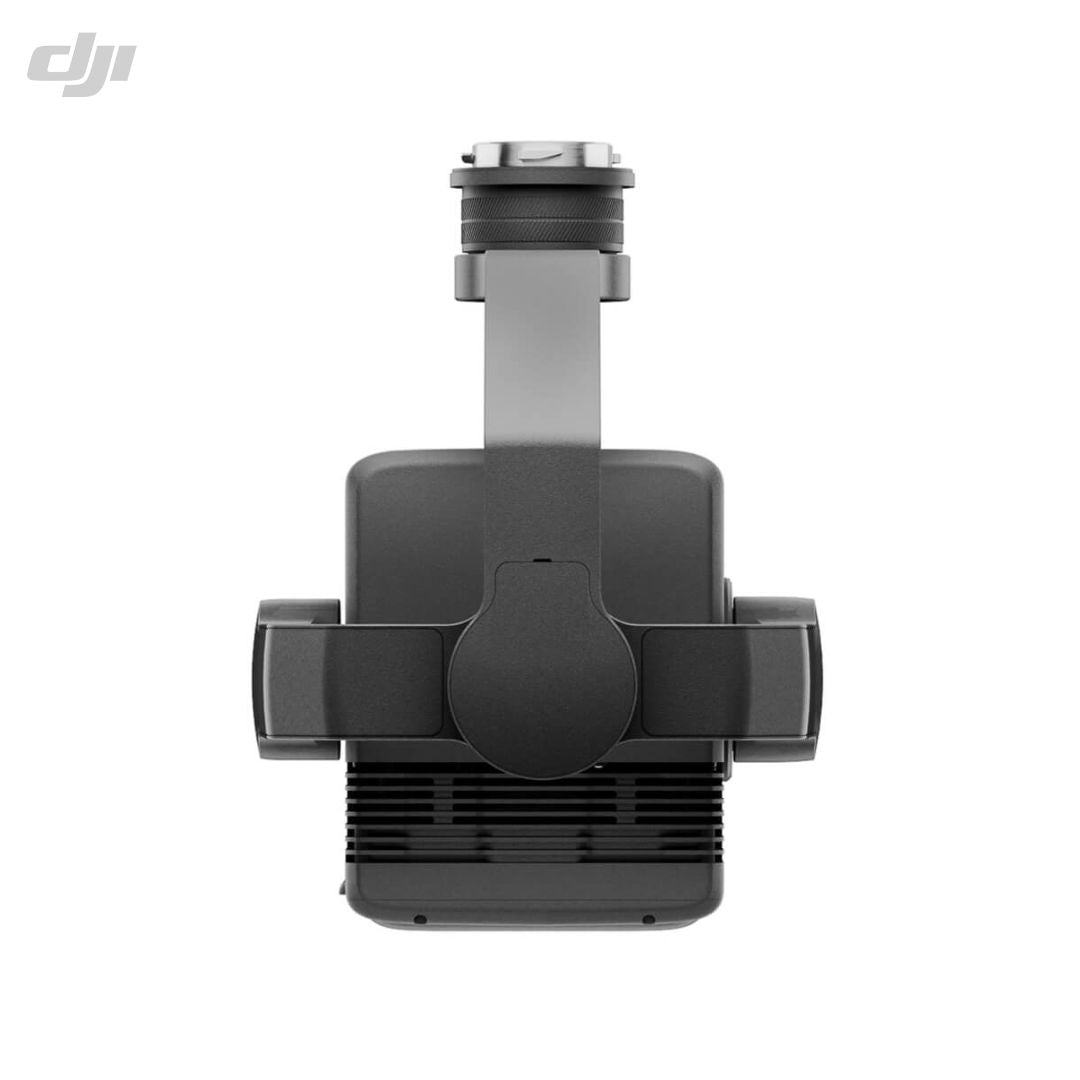

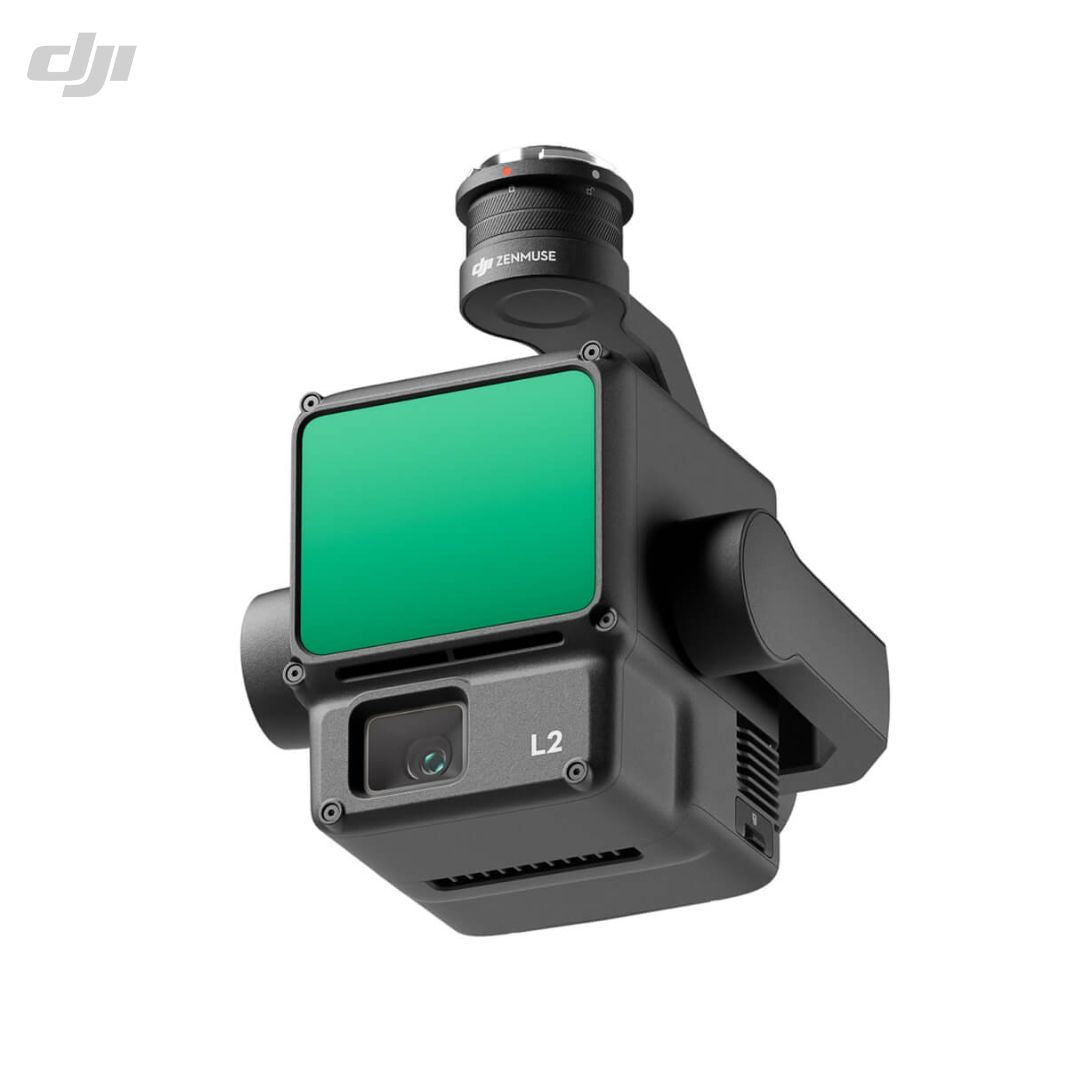

The DJI Zenmuse L2 Payload consists of a powerful LiDAR module, a 20 MP RGB camera with 4/3 CMOS and a high-accuracy IMU system. The Zenmuse L2 is seamlessly compatible with the Matrice 350 RTK and Matrice 300 RTK, and with DJI Terra it can provide real-time 3D data at any time of the day. The L2 can efficiently capture the details of complex structures and can deliver highly accurate reconstructed 3D models.
Faster point cloud capture and accurate scanning of complex subjects over a wider area are both possible with the Zenmuse L2. Users can preview, replay, and analyse point cloud models on-site while activities are underway thanks to Task Quality Reports produced by DJI Terra, which provides an easy-to-use one-stop solution for increasing overall effectiveness.
The Zenmuse L2 can be highly useful in land surveying and mapping, topographic mapping, agriculture, forestry management, electricity management, AEC and surveying, energy, infrastructure management, etc.
Specifications
DJI Zenmuse L2 |
|
|
Dimensions: |
(LxWxH): 155×128×176 mm |
|
Weight: |
905±5 g |
|
Supported Aircraft: |
Matrice 300 RTK (requires DJI RC Plus) and Matrice 350 RTK |
LiDAR |
|
|
Ranging Accuracy: |
(RMS 1σ): 2 cm @ 150 m |
|
FOV: |
Non-repetitive scanning pattern 70° (horizontal) × 75° (vertical) | Repetitive scanning pattern 70° (horizontal) × 3° (vertical) |
|
Laser Safety: |
Class 1 |
|
Minimum Detection Range: |
3 m |
|
Laser Wavelength: |
905 nm |
|
Laser Spot Size: |
Horizontal 4 cm, Vertical 12 cm @ 100 m |
RGB Mapping Camera |
|
|
Sensor Size: |
4/3 CMOS, Effective Pixels 20 MP |
|
Lens: |
FOV 84° | Format Equivalent 24 mm | Aperture f/2.8-f/11 | Focus Points 1 m to ∞ (with autofocus) |
|
Shutter Speed: |
Mechanical Shutter 2-1/2000s | Electronic Shutter 2-1/8000s |
|
Photo Size: |
5280×3956 (4:3) |
|
ISO Range: |
Video 100-6400 | Photo 100-6400 |
|
Video Bit-Rate: |
85Mbps (4K) | 30 Mbps (FHD) |
|
Photo Format: |
JPEG/DNG (RAW) |
|
Video Format: |
MP4 (MPEG-4 AVC/H.264) |
Gimbal |
|
|
Stabilized System: |
3-axis (tilt, roll, pan) |
|
Angular Vibration Range: |
0.01° |
|
Mount: |
Detachable DJI SKYPORT |
|
Mechanical Range: |
Tilt -143° to +43° | Pan ±105° |
|
Controllable Range: |
Tilt -120° to +30° | Pan ±90° |
In The Box
| Zenmuse L2 x1 |
| MicroSD Card (128GB) x1 |
| Lens Cap x1 |
| Storage Case x1 |
| Lens Cleaning Cloth x1 |
