Description
DJI's newly launched Zenmuse H30 series includes the H30 and H30T, which are all-weather, multi-sensor aerial payloads. The Zenmuse H30 series utilizes intelligent algorithms to offer enhanced detail from greater distances and more precise angles, which allows drone pilots to see further and clearer during the day and provides improved night vision in low-light conditions.

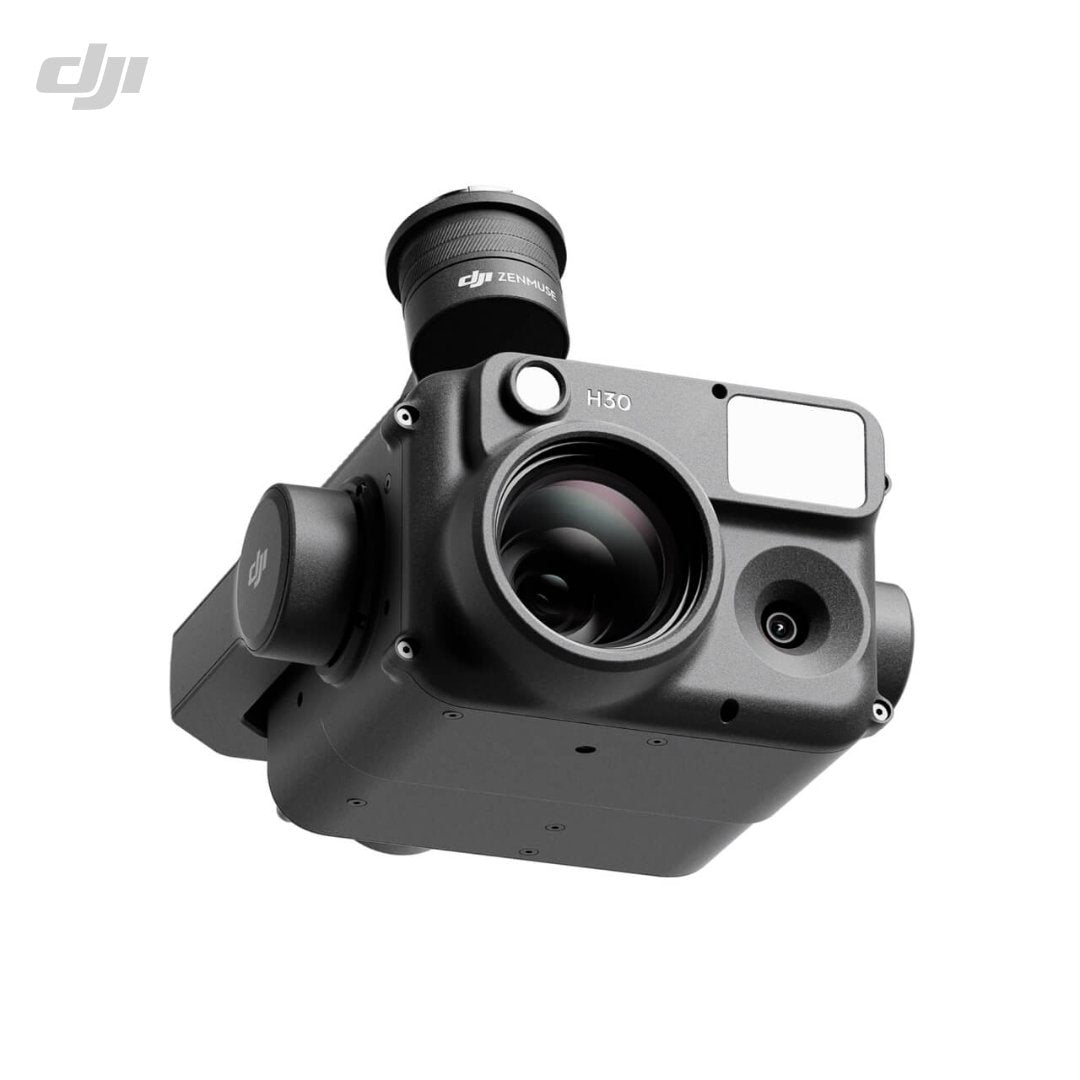

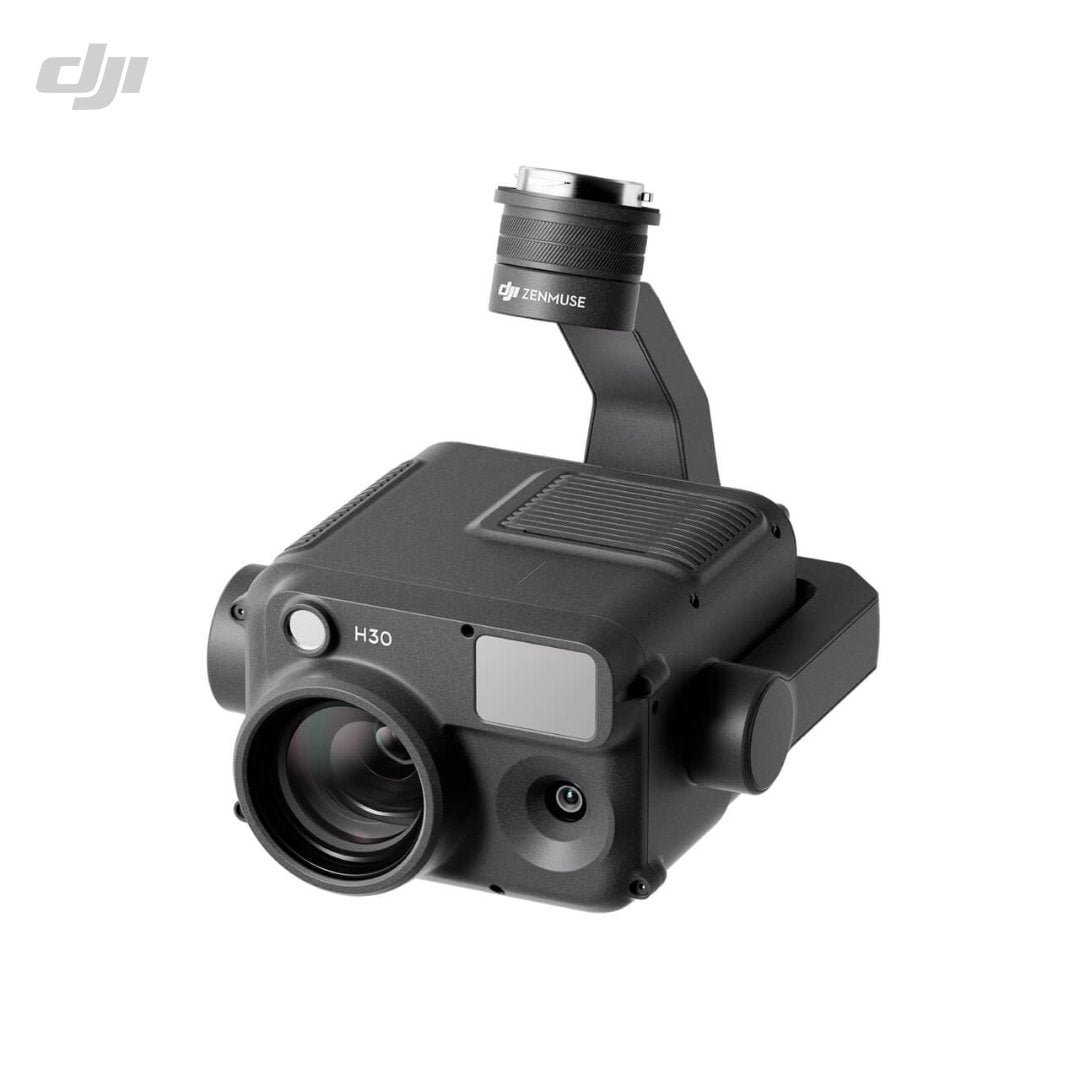

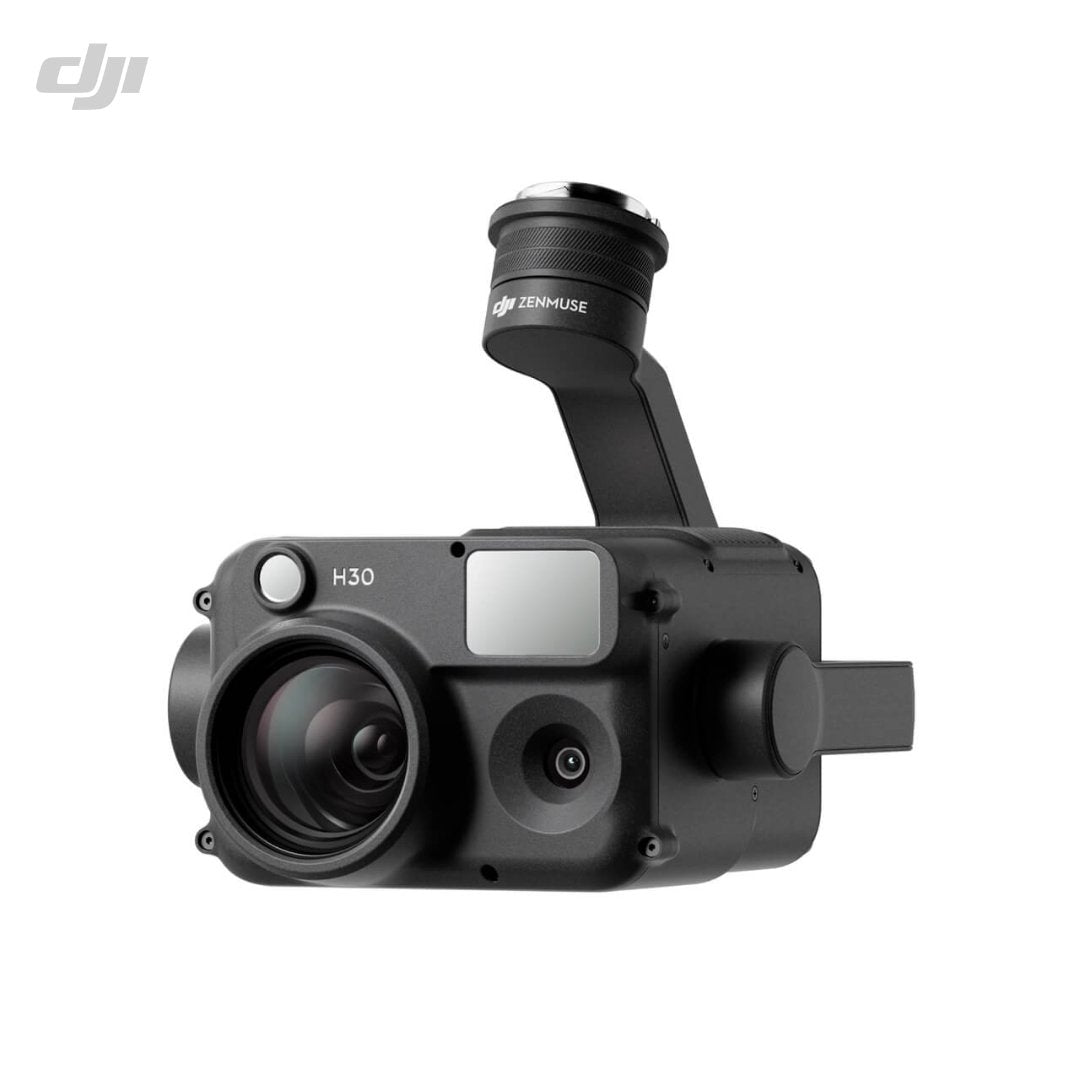

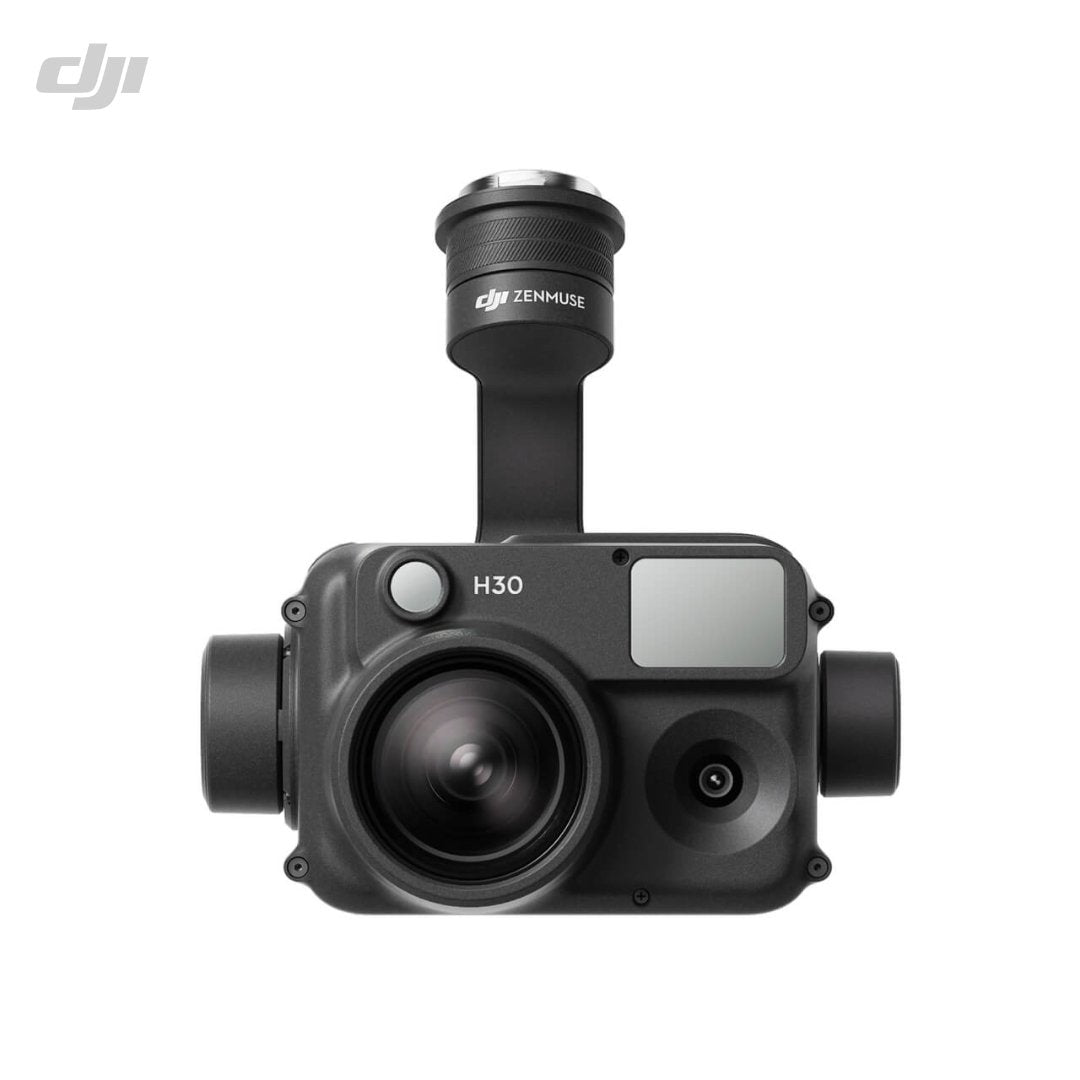

The Zenmuse H30 payload integrates four modules: a wide-angle camera, a zoom camera, a laser range finder, and an NIR auxiliary light. The H30 is seamlessly compatible with the Matrice 300 RTK and Matrice 350 RTK drones, and can be highly effective across various sectors including public safety, firefighting, emergency search and rescue, energy and utility inspections, critical infrastructure operations etc.
Specifications
DJI Zenmuse H30 |
|
|
Weight: |
920±5 g |
|
Dimensions: |
(LxWxH): 170×145×165 mm |
|
Ingress Protection Rating: |
IP54 |
|
Power: |
26 W |
|
Supported Aircraft: |
Matrice 300 RTK (requires DJI RC Plus) and Matrice 350 RTK |
Zoom Camera |
|
|
Sensor: |
1/1.8-inch CMOS, Effective Pixels 40 MP |
|
Lens: |
Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm) | Aperture: f/1.6-f/5.2 | DFOV: 66.7°-2.9° |
|
Focus Mode: |
MF, AFC, AFS |
|
Exposure Mode: |
Manual, Auto |
|
Exposure Compensation: |
±3.0 (1/3 increments) |
|
Electronic Shutter Speed: |
1/8000-2 s |
|
ISO Range: |
Single Shot: 100-25600 Night Scene: 100-819200 |
|
Video Resolution: |
Single Shot: 3840×2160@30fps, 1920×1080@30fps Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps |
|
Video Format: |
MP4 |
|
Video Codec & Bit-Rate: |
H.264, H.265 | CBR, VBR |
|
Max Photo Size: |
7328×5496, 3664×2748 |
|
Photo Format: |
JPG |
Wide Camera |
|
|
Sensor: |
1/1.3-inch CMOS, Effective Pixels 48 MP |
|
Lens: |
Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm) | Aperture: f/1.7 | DFOV: 82.1° |
|
Focus Mode: |
MF, AFC, AFS |
|
Exposure Compensation: |
±3.0 (1/3 increments) |
|
Electronic Shutter Speed: |
1/8000-2 s |
|
ISO Range: |
Single Shot: 100-25600 Night Scene: 100-409600 |
|
Video Format: |
MP4 |
|
Video Codec & Bit-Rate: |
H.264, H.265 | CBR, VBR |
|
Max. Photo Size: |
8064×6048, 4032×3024 |
|
Photo Format: |
JPG |
Laser Rangefinder |
|
|
Wave Length: |
905 nm |
|
Measurement Range: |
3-3000 m |
|
Measurement Accuracy: |
500 m: ±(0.2 m+ measurement distance×0.15%) 500 m: ±1.0 |
|
Laser Spot Size: |
@100 m: approx. 50×450 mm @1000 m: approx. 450×4500 mm |
|
Safety Regulation Level: |
Class 1 |
|
Accessible Emission Limit: |
260 nJ |
|
Reference Aperture: |
18 mm |
Accessories

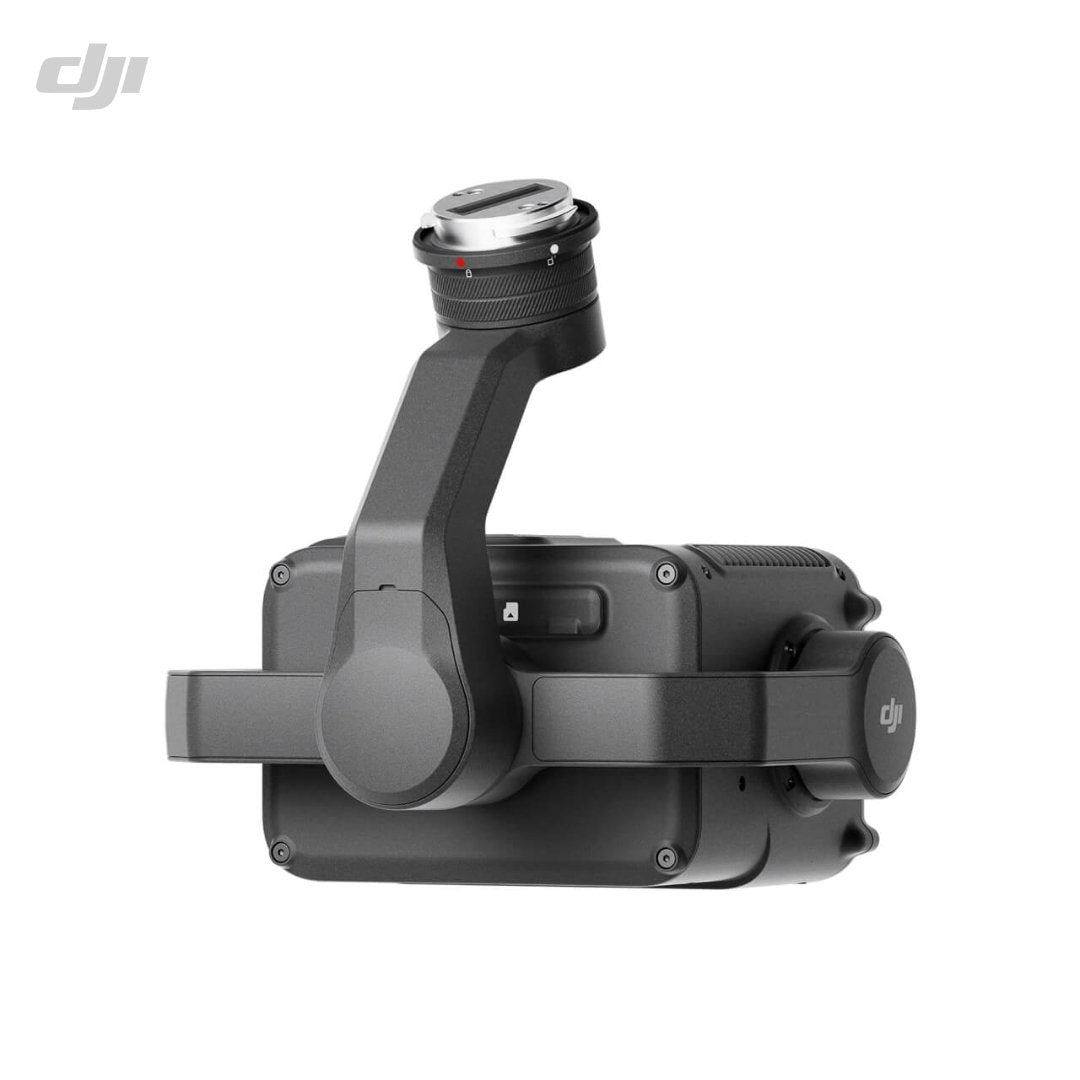

Gimbal |
|
|
Stabilization System: |
3-axis (tilt, roll, pan) |
|
Angular Vibration Range: |
Hover ±0.002° | Flight ±0.004° |
|
Mounting: |
Detachable DJI SKYPORT |
|
Mechanical Range: |
Tilt: -132.5° to +73° | Roll: ±60° | Pan: ±328° (Structural limit, not controllable range) |
|
Controllable Range: |
Tilt: -120° to +60° | Pan: ±320° |
|
Operation Mode: |
Follow/Free/Re-centre |
Key Features
| 40MP zoom camera supports up to 34× optical zoom and 400× digital |
| 3000m max laser range finding distance is an approx. 2.5-times increase |
| Zoom and wide camera support Night Scene mode to improve performance in low light |
| Dust and water resistance rated at IP54, and operational from -20° to 50° C (-4° to 122° F), meeting all-weather operational demands |
