Description

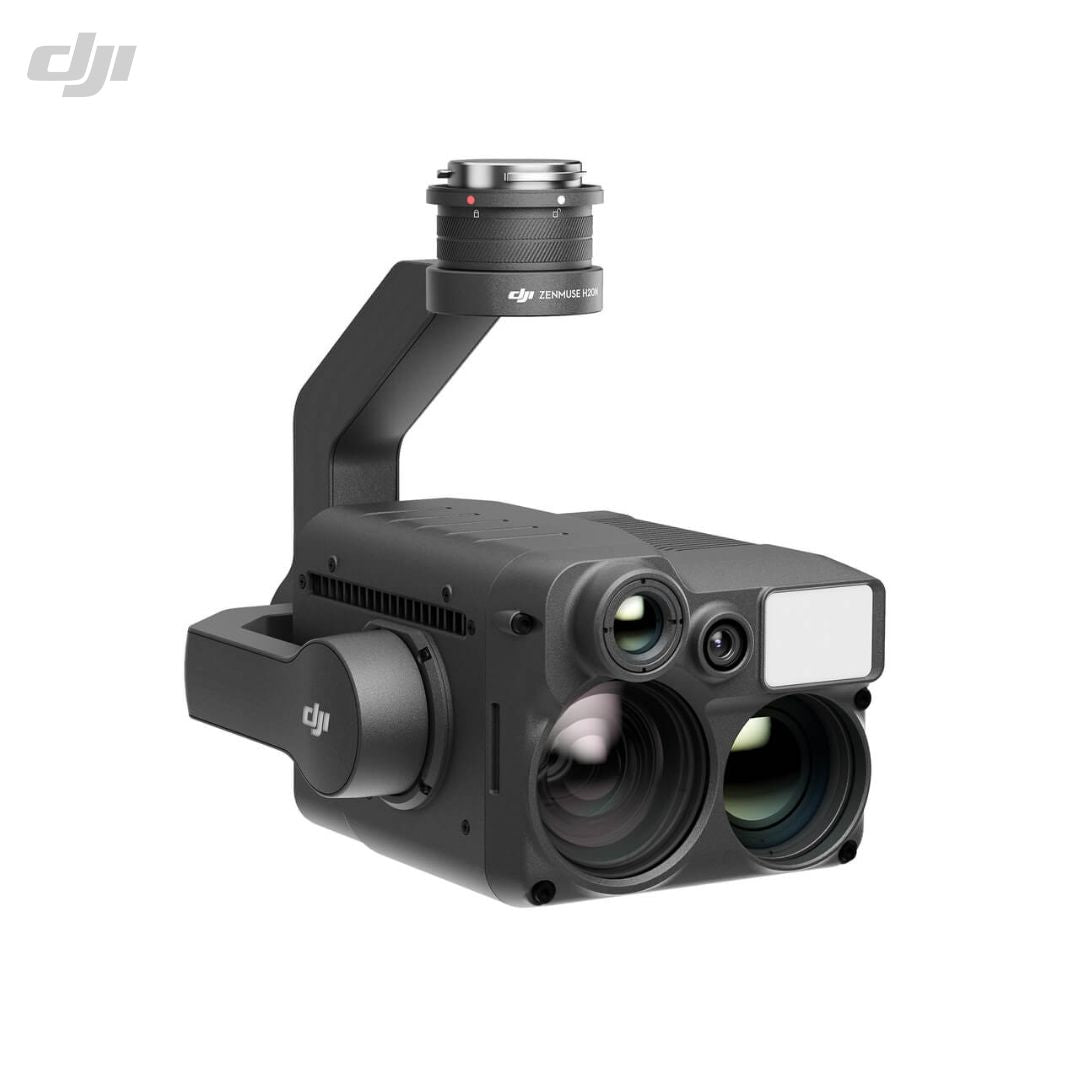

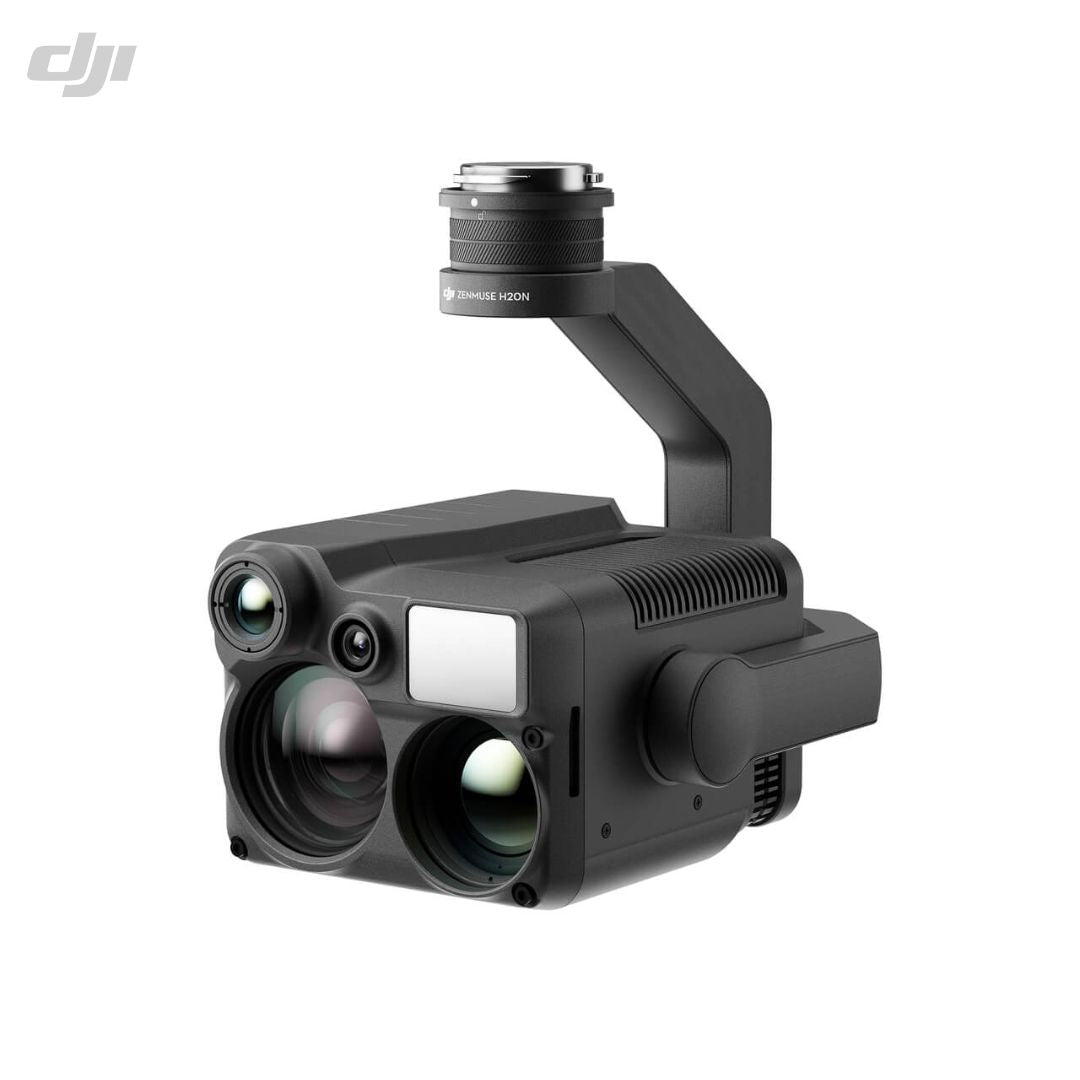

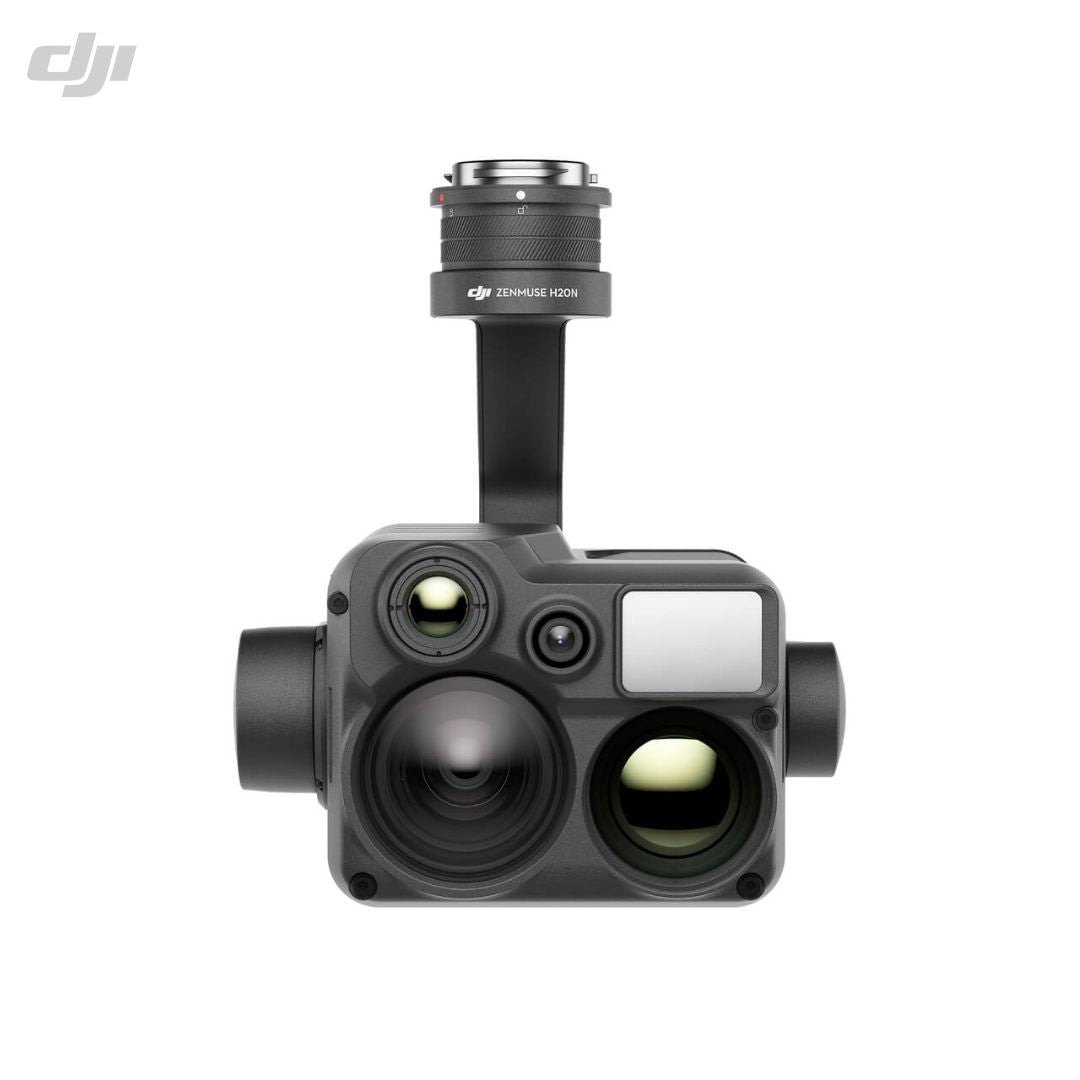

The DJI Zenmuse H20N provides enhanced night vision as its zoom and wide-angle cameras are integrated with Starlight sensors that are tailor-made for low-light environments. It is also equipped with a powerful laser rangefinder, 640x512 dual thermal cameras with 2x and 8x zoom, and many smart thermal features like colour palettes, isotherms, temperature alarm, gain modes etc. It comes with IP44 rating and can function well under extreme weather conditions. The Zenmuse H20N is seamlessly compatible with Matrice 300 RTK drone.
The DJI Zenmuse H20N is a versatile hybrid payload with powerful thermal and night-vision capabilities to enhance drone mission capabilities.
Specifications
DJI Zenmuse H20N |
|
|
Dimensions: |
(LxWxH): 178x135x161 mm |
|
Weight: |
878±5 g |
|
Protection Rating: |
IP44 |
|
Laser Safety: |
Class 1M (IEC 60825-1:2014) |
|
Supported Aircraft: |
Matrice 300 RTK |
Zoom Camera |
|
|
Sensor: |
1/1.8" CMOS; Effective Pixels 4M |
|
Lens: |
Focal Length 6.8-119.9 mm (equivalent approximately 32.7-574.5 mm) | Aperture f/1.6-f/11 | Focus 1 m to ∞ (wide); 8 m to ∞ (tele) |
|
Focus Mode: |
MF/AF-C/AF-S |
|
Exposure Compensation: |
±3.0 (1/3 increments) |
|
Metering Mode: |
Spot Metering, Average Metering |
|
ISO Range: |
Video 100-102400 | Photo 100-102400 |
|
Video Format: |
MP4 |
|
Photo Format: |
JPEG |
|
Max. Image Size: |
2688×1512 |
Wide Camera |
|
|
Sensor: |
1/2.7" CMOS; Effective Pixels 2M |
|
Lens: |
DFOV 73.6° | Focal Length 4.5 mm (equivalent approximately 29 mm) | Aperture f/2.8 | Focus 1 m to ∞ |
|
Exposure Compensation: |
±3.0 (1/3 increments) |
|
Metering Mode: |
Spot Metering, Average Metering |
|
ISO Range: |
Video 100-102400 | Photo 100-102400 |
|
Video Format: |
MP4 |
|
Image Format: |
JPEG |
|
Max. Image Size: |
1920×1080 |
Tele Infrared Thermal Camera |
|
|
Thermal Imager: |
Uncooled VOx Microbolometer |
|
Lens: |
DFOV 12.5° | Focal Length 44.5 mm (equivalent approximately 196 mm) | Aperture f/1.2 | Focus 45 m to ∞ |
|
Equivalent Digital Zoom Rate: |
16x | 32x |
|
Video Resolution: |
640×512@30fps |
|
Video Format: |
MP4 |
|
Image Resolution: |
640×512 |
|
Image Format: |
R-JPEG* (16 bit raw included) |
|
Pixel Pitch: |
12 μm |
|
Spectral Band: |
8-14 μm |
|
Sensitivity: |
≤50 mK @ f/1.0 |
|
Scene Range: |
-20° C to 150° C (High Gain) | 0° C to 500° C (Low Gain) |
|
Palette: |
White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot |
Wide Infrared Thermal Camera |
|
|
Thermal Imager: |
Uncooled VOx Microbolometer |
|
Lens: |
DFOV 45.5° | Focal Length 12 mm (equivalent: approximately 53 mm) | Aperture f/1.0 | Focus 5 m to ∞ |
|
Equivalent Digital Zoom Rate: |
4x |
|
Video Resolution: |
640×512 @ 30 fps |
|
Video Format: |
MP4 |
|
Image Resolution: |
640×512 |
|
Image Format: |
R-JPEG (16 bit raw included) |
|
Pixel Pitch: |
12 μm |
|
Spectral Band: |
8-14 μm |
|
Sensitivity: |
50 mK @ f/1.0 |
|
Palette: |
White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot |
Accessories
Gimbal |
|
|
Angular Vibration Range: |
±0.01° |
|
Mount: |
Detachable |
|
Controllable Range: |
Pan ±320° | Tilt -120° to +60° |
|
Mechanical Range: |
Pan ±330° | Tilt -132.5° to +68° | Roll -90° to +60° |
|
Max. Control Speed: |
Pan 90°/s | Tilt 90°/s |
Laser Range Finder |
|
|
Wave Length: |
905 nm |
|
Max. Power: |
3.5 mW |
|
Single Pulse Width: |
6 ns |
|
Measuring Accuracy: |
± (0.2 m + target distance x 0.15%) |
|
Measuring Range: |
3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity) |
