Description

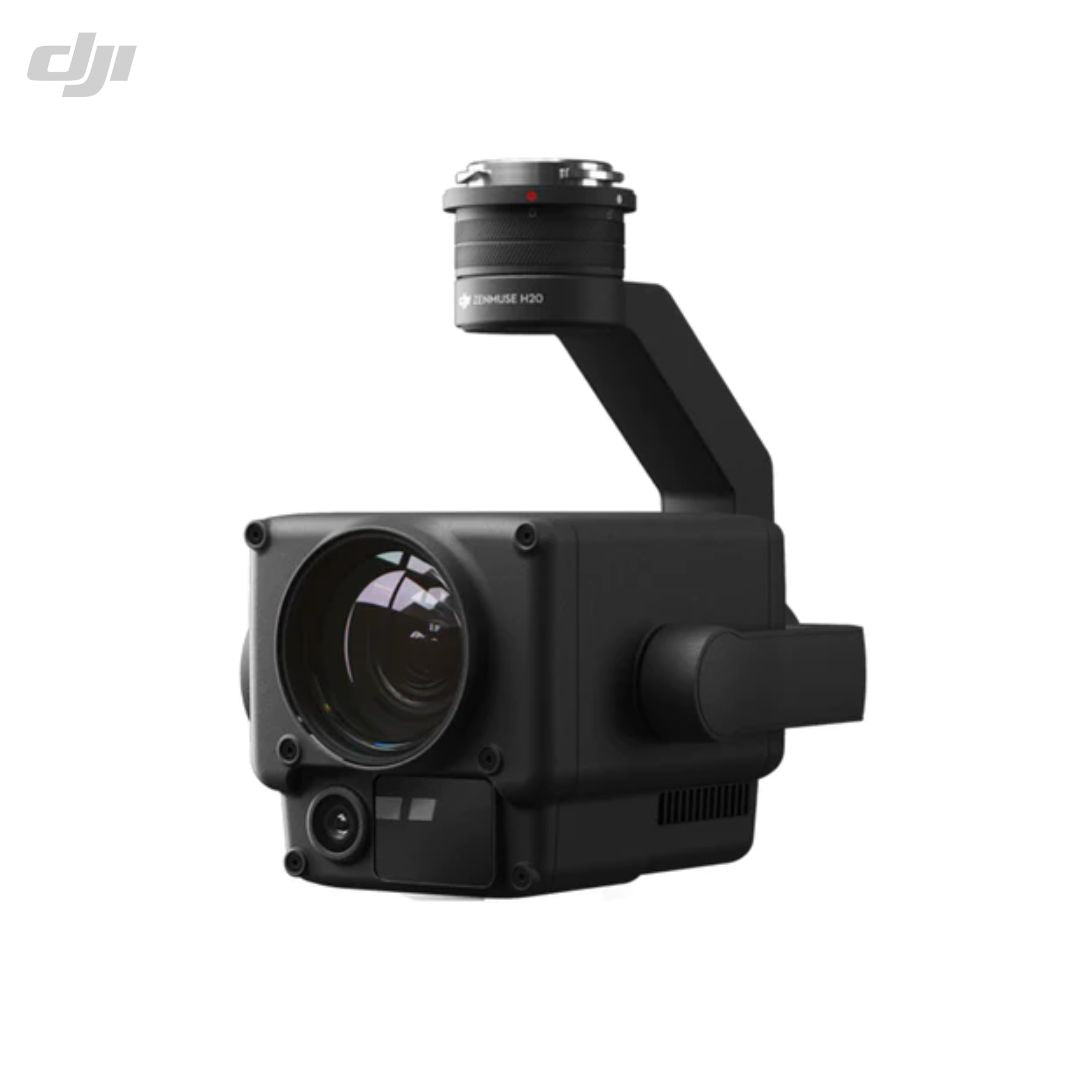

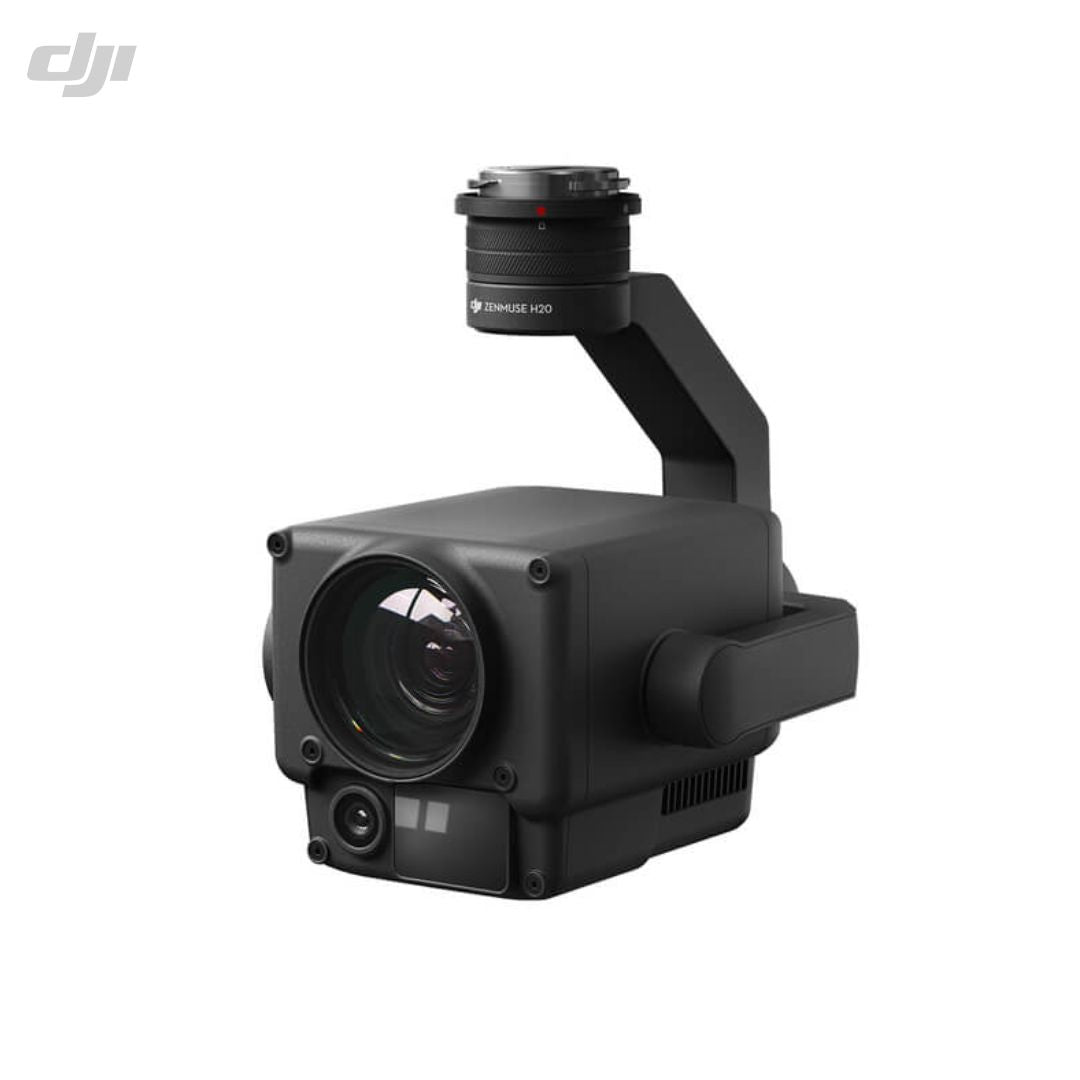

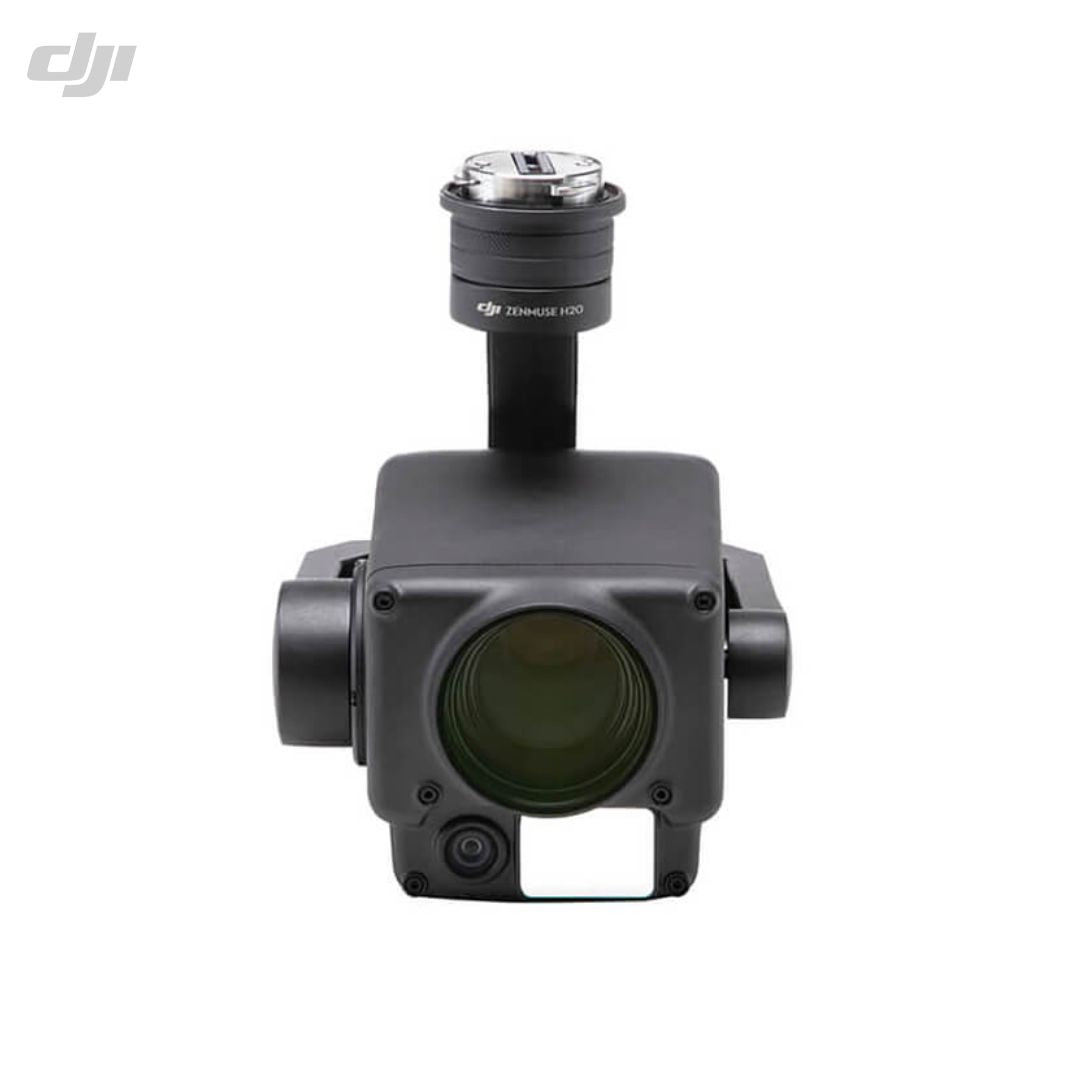

The DJI Zenmuse H20 series consists of multi-sensor payloads which improves the mission efficiency for a wide range of commercial drone operations. The Zenmuse H20 is a triple sensor solution which comes with a powerful 20 MP zoom camera, a 12MP 82.9°DPOV wide-angle camera and a very accurate 1200m laser rangefinder. It is IP44 rated and can function well under harsh weather conditions. The Zenmuse H20 is seamlessly compatible with DJI Matrice 300 RTK drone.
The DJI Zenmuse H20 is a multi-sensor payload and comes with multiple intelligent capabilities. It can be highly useful in firefighting, powerline inspections, law enforcement, search and rescue missions.
Specifications
DJI Zenmuse H20 |
|
|
Weight: |
678±5 g |
|
Dimensions: |
(LxWxH): 150×114×151 mm |
|
Ingress Protection Rating: |
IP44 |
|
Laser Safety: |
Class 1M (IEC 60825-1:2014) |
|
Supported Aircraft: |
Matrice 300 RTK |
Zoom Camera |
|
|
Sensor: |
1/1.7" CMOS, 20 MP |
|
Lens: |
DFOV 66.6°-4° | Focal length 6.83-119.94 mm (equivalent: 31.7-556.2 mm) | Aperture f/2.8-f/11 (normal), f/1.6-f/11 (night scene) | Focus 1 m to ∞ (wide), 8 m to ∞ (telephoto) |
|
Focus Mode: |
MF/AF-C/AF-S |
|
Metering Mode: |
Spot metering, Centre-weighted metering |
|
Electronic Shutter Speed: |
1 ~ 1/8000 s |
|
ISO Range: |
Video 100 – 25600 | Photo 100 – 25600 |
|
Video Format: |
MP4 |
|
Photo Format: |
JPEG |
|
Photo Size: |
5184 × 3888 |
Wide Camera |
|
|
Sensor: |
1/2.3" CMOS, 12 MP |
|
Lens: |
DFOV 82.9° | Focal length 4.5 mm (equivalent: 24 mm) | Aperture f/2.8 | Focus 1 m to ∞ |
|
Exposure Compensation: |
±3.0 (1/3 increments) |
|
Metering Mode: |
Spot metering, Center-weighted metering |
|
Shutter Speed: |
1 ~ 1/8000 |
|
ISO Range: |
Video 100 – 25600 | Photo 100 – 25600 |
|
Video Resolution: |
1920×1080@30fps |
|
Video Format: |
MP4 |
|
Photo Format: |
JPEG |
|
Photo Size: |
4056 x 3040 |
Accessories
Gimbal |
|
|
Angular Vibration Range: |
±0.01° |
|
Mount: |
Detachable |
|
Controllable Range: |
Pitch -120° to +30° | Yaw ±320° |
|
Mechanical Range: |
Pitch -132.5° to +42.5° | Yaw ±330° | Roll -90° to +60° |
Laser Rangefinder |
|
|
Wave Length: |
905 nm |
|
Measurement Range: |
3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate) |
|
Measurement Accuracy: |
± (0.2 m + D×0.15%) | D is the distance to a vertical surface |
Features |
|
|
Hybrid Optical Zoom: |
23×(DFOV 4°, EQV 556.2mm) |
|
Max. Zoom: |
200×(DFOV 0.5°, EQV 4800mm) |
|
One Click Capture: |
One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously |
|
Night Scene: |
Supported (Zoom camera) |
|
Timestamp: |
Including GPS, date, and time |
