Description

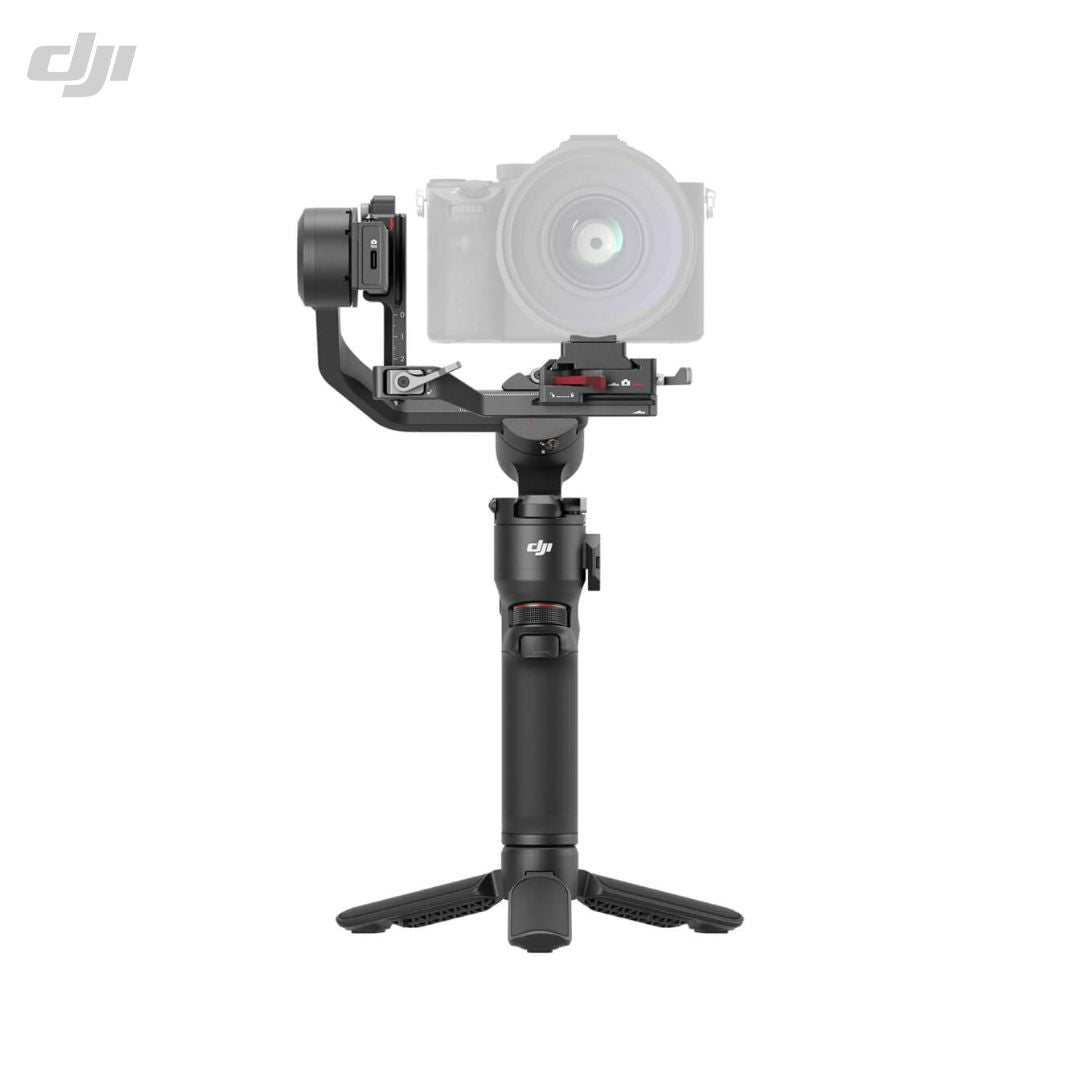

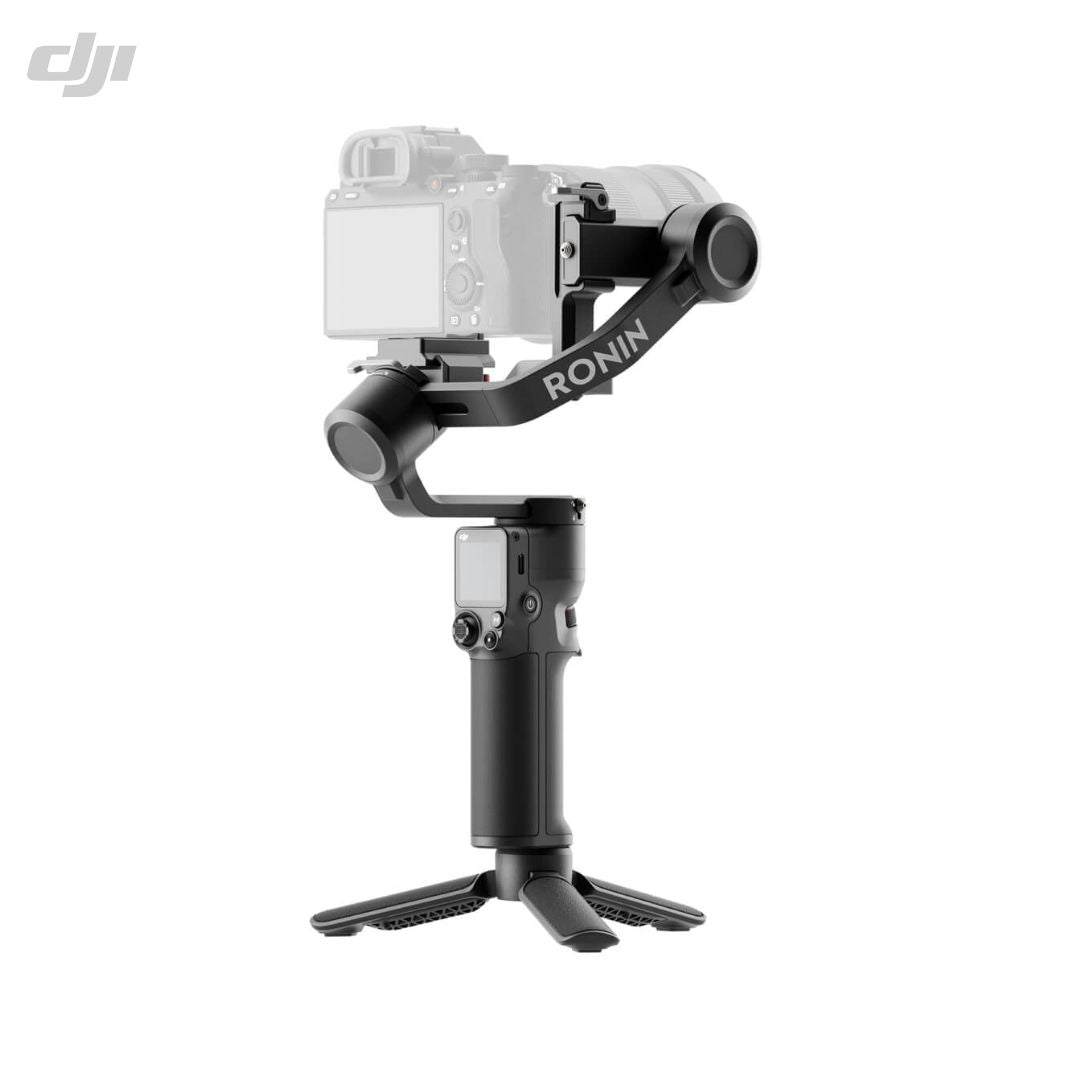

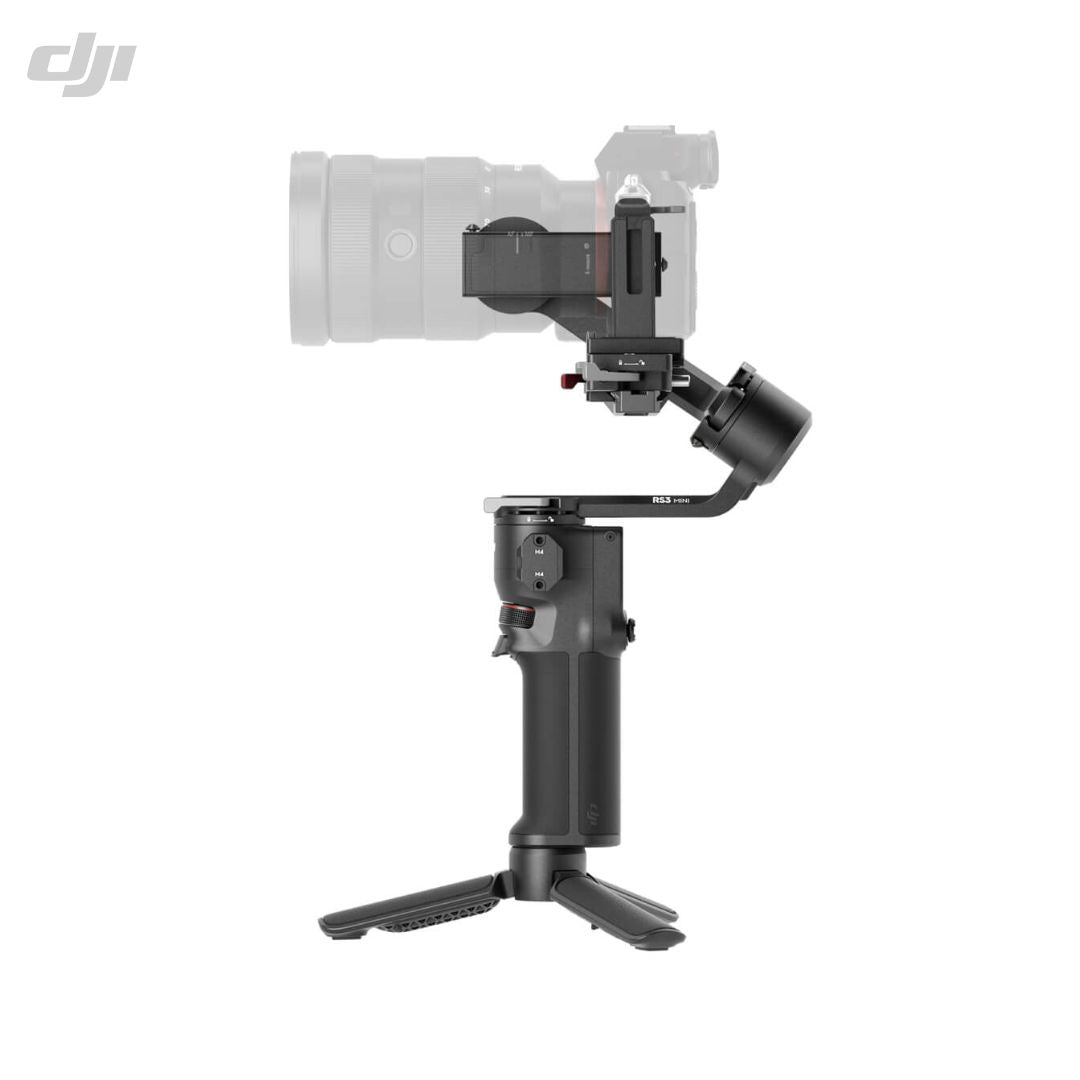

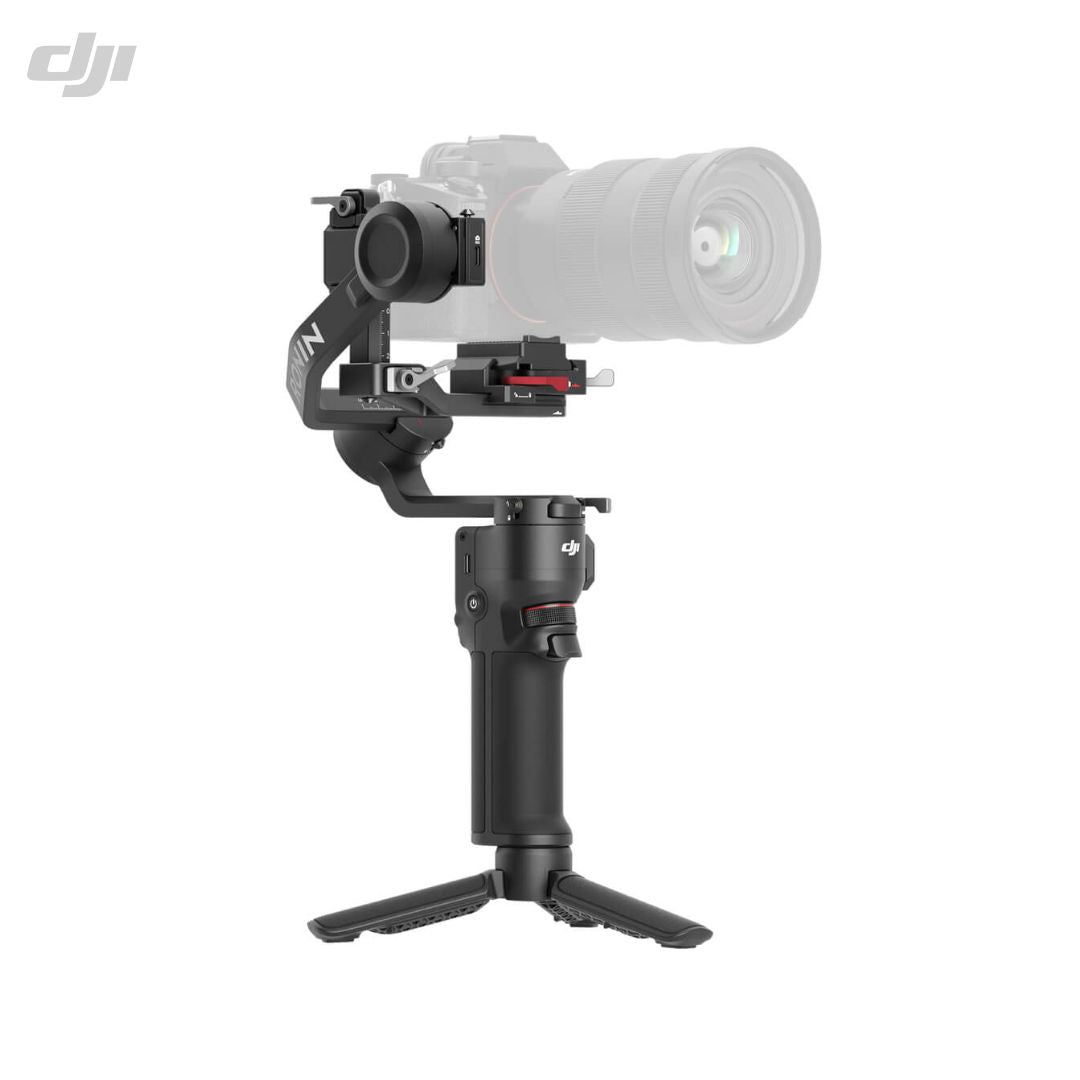

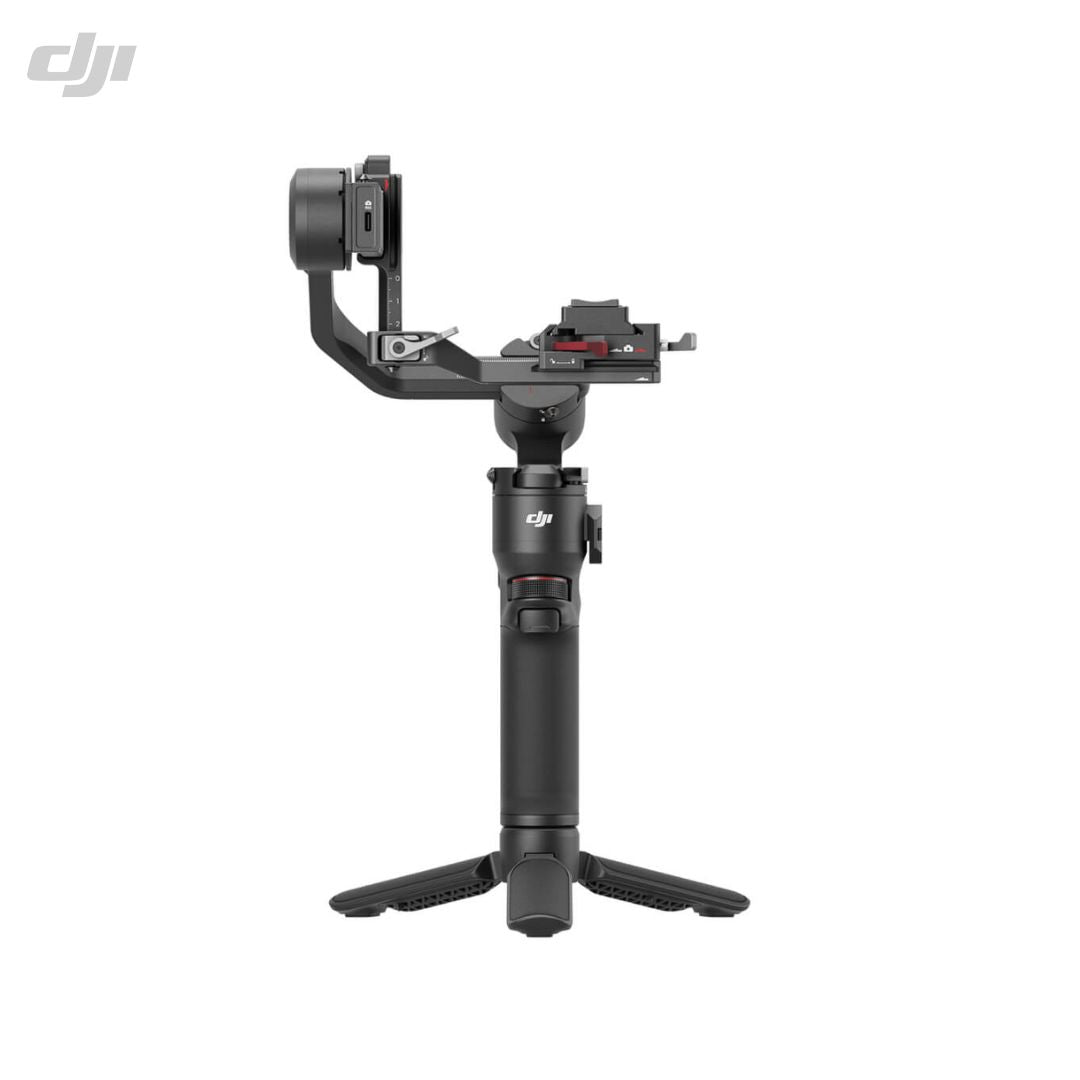

The DJI RS 3 Mini is a small, lightweight and reliable handheld stabilizer. It supports mainstream mirror-less cameras as well as lens combinations. It comes with a powerful payload capacity of up-to 2kg, Bluetooth shutter control, gimbal mode switch button, front dial focusing, 1.4" full-colour touchscreen and a battery life of up to 10 hours. With its high-torque motors, the RS 3 Mini can maintain stability during zooming to maximum focal lengths on the majority of lenses, eliminating the necessity for re-balancing.
The DJI RS 3 Mini is a compact and portable stabilizer, and it can be a very useful for top class photography or videography while travelling.
Specifications
Peripheral |
|
|
Accessory Port: |
1/4"-20 Mounting Hole | RSS Camera Control Port (USB-C) | NATO Expansion Port |
|
Connections: |
Bluetooth 5.1 | USB-C Charging Port |
|
Ronin App Requirements: |
iOS 11.0 or above | Android 7.0 or above |
Battery |
|
|
Model: |
HB7-2450mAh-7.2 |
|
Type: |
18650 Li-ion 2S |
|
Capacity: |
2450 mAh |
|
Energy: |
17.64 Wh |
|
Operating Time: |
10 hours |
|
Charging Specification: |
5 V/2 A |
|
Charging Time: |
Approx. 2.5 hours |
|
Suggested Charging Temp: |
5° to 40° C (41° to 104° F) |
Working Performance |
|
|
Tested Payload: |
0.4-2 kg (0.8-4.4 lbs) |
|
Max. Controlled Rotation Speed: |
Pan 360°/s | Tilt 360°/s | Roll 360°/s |
|
Mechanical Range: |
Pan Axis 360° continuous rotation | Roll Axis -95° to +240° | Tilt Axis -110° to +210° |
Mechanical & Electrical Properties |
|
|
Operating Frequency: |
2.4000-2.4835 GHz |
|
Weight: |
Gimbal 795 g (1.75 lbs) in portrait mode and 850 g (1.8 lbs) in horizontal shooting mode (both including the Quick-Release Plate and excluding the Extended Grip/Tripod) | Extended Grip/Tripod Approx. 128 g (0.2 lbs) |
|
Dimensions: |
(LxWxH): 323×195×98 mm (Folded, height excludes the Extended Grip/Tripod) | 180×159×296 mm (Unfolded, excluding camera and the Extended Grip/Tripod) |
