Description

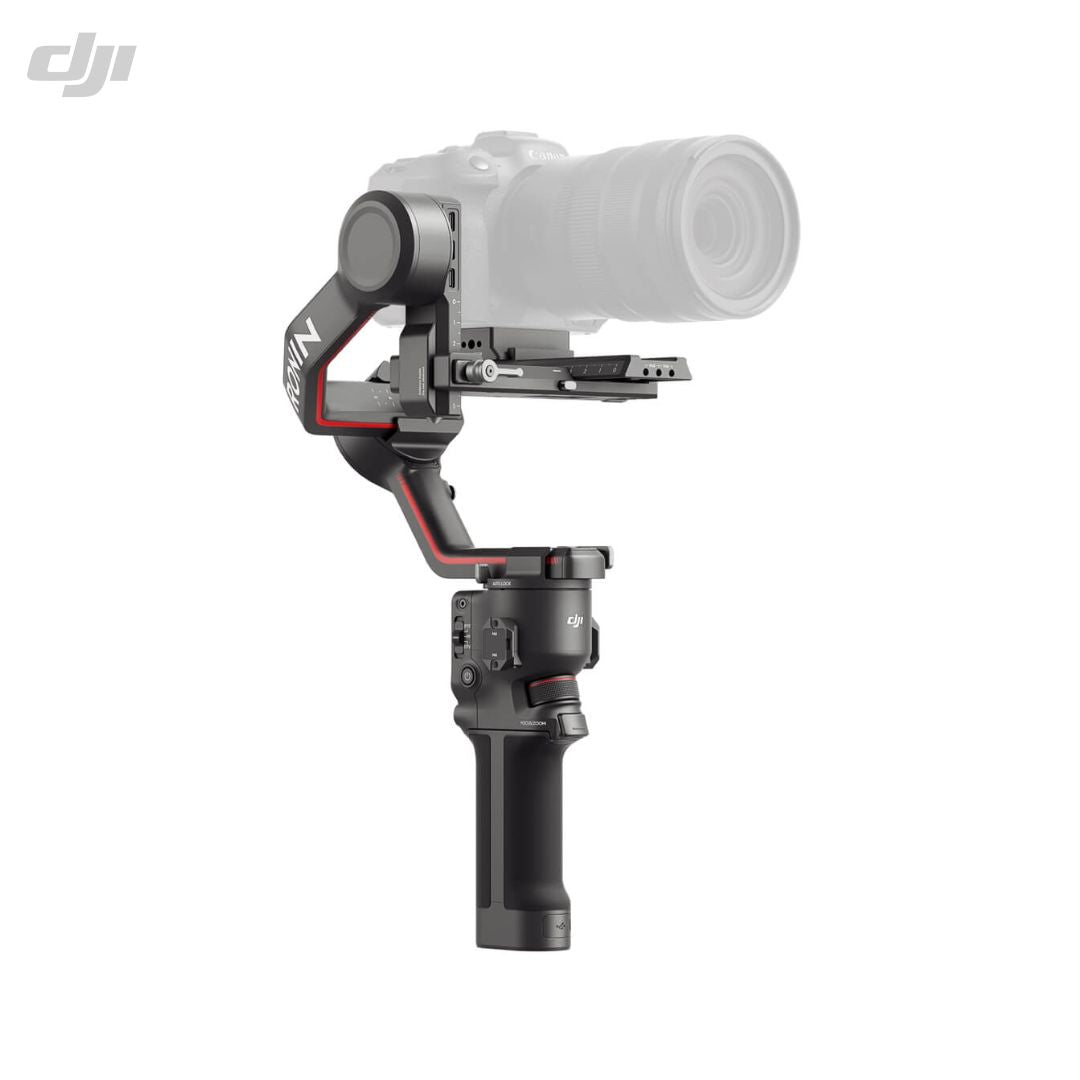

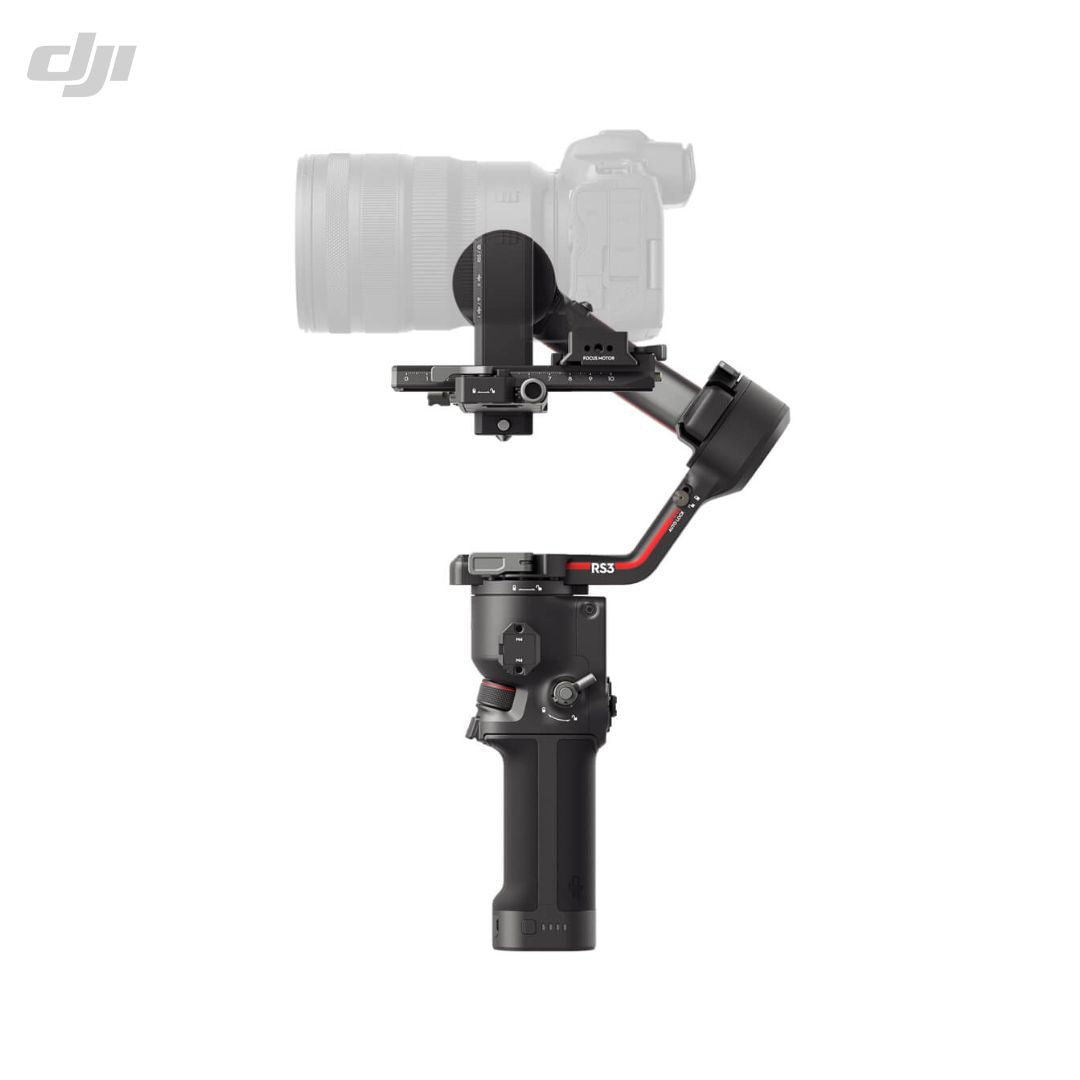

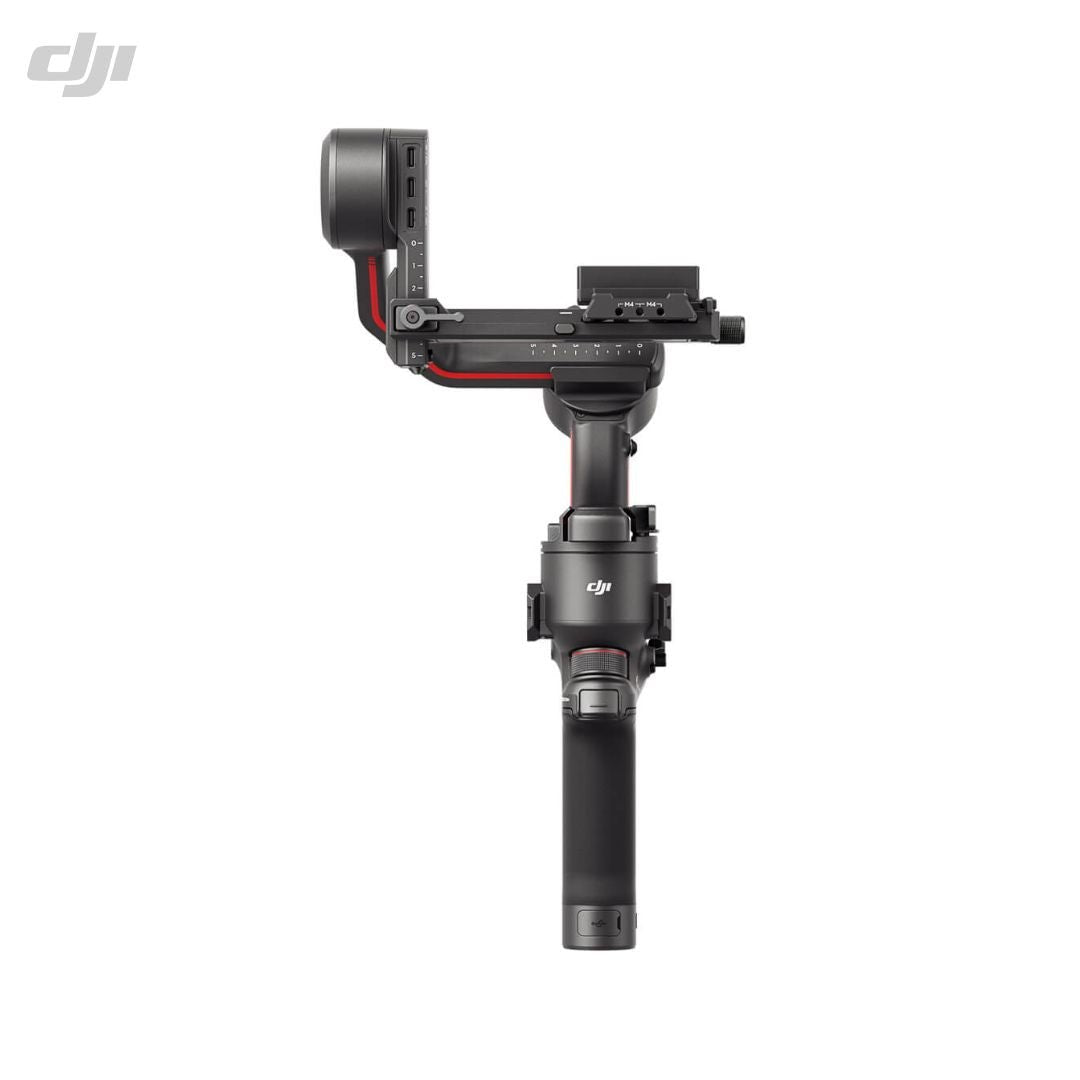

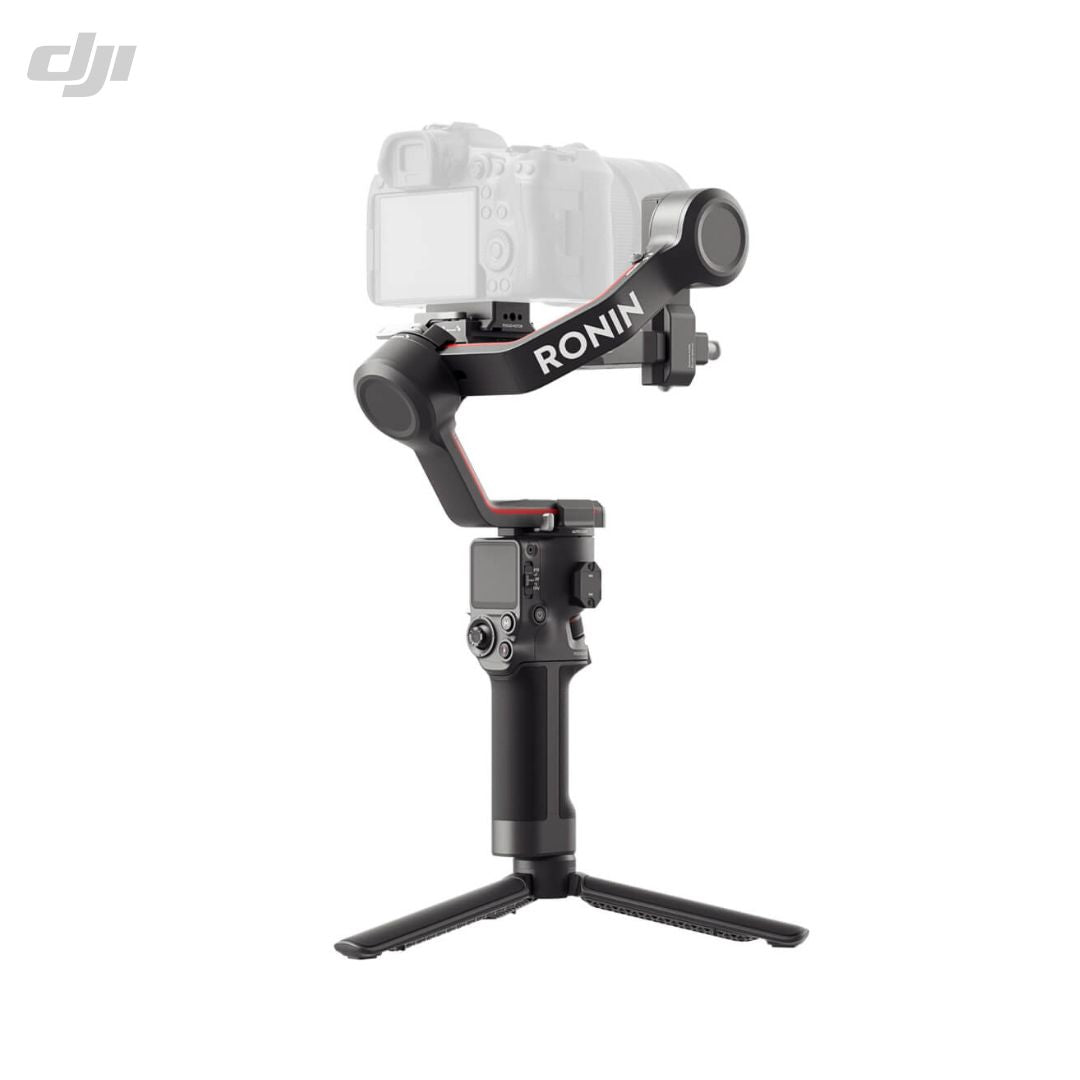

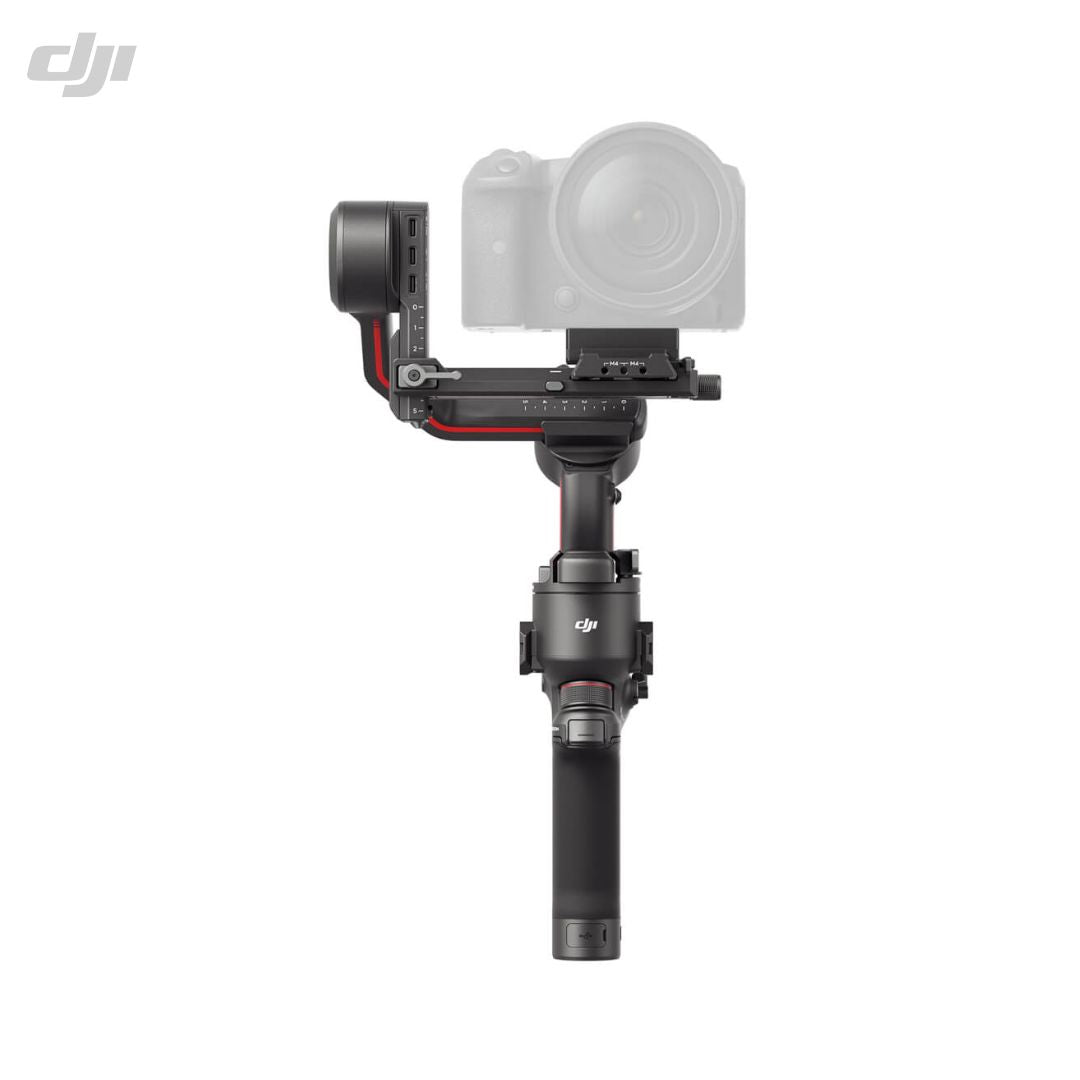

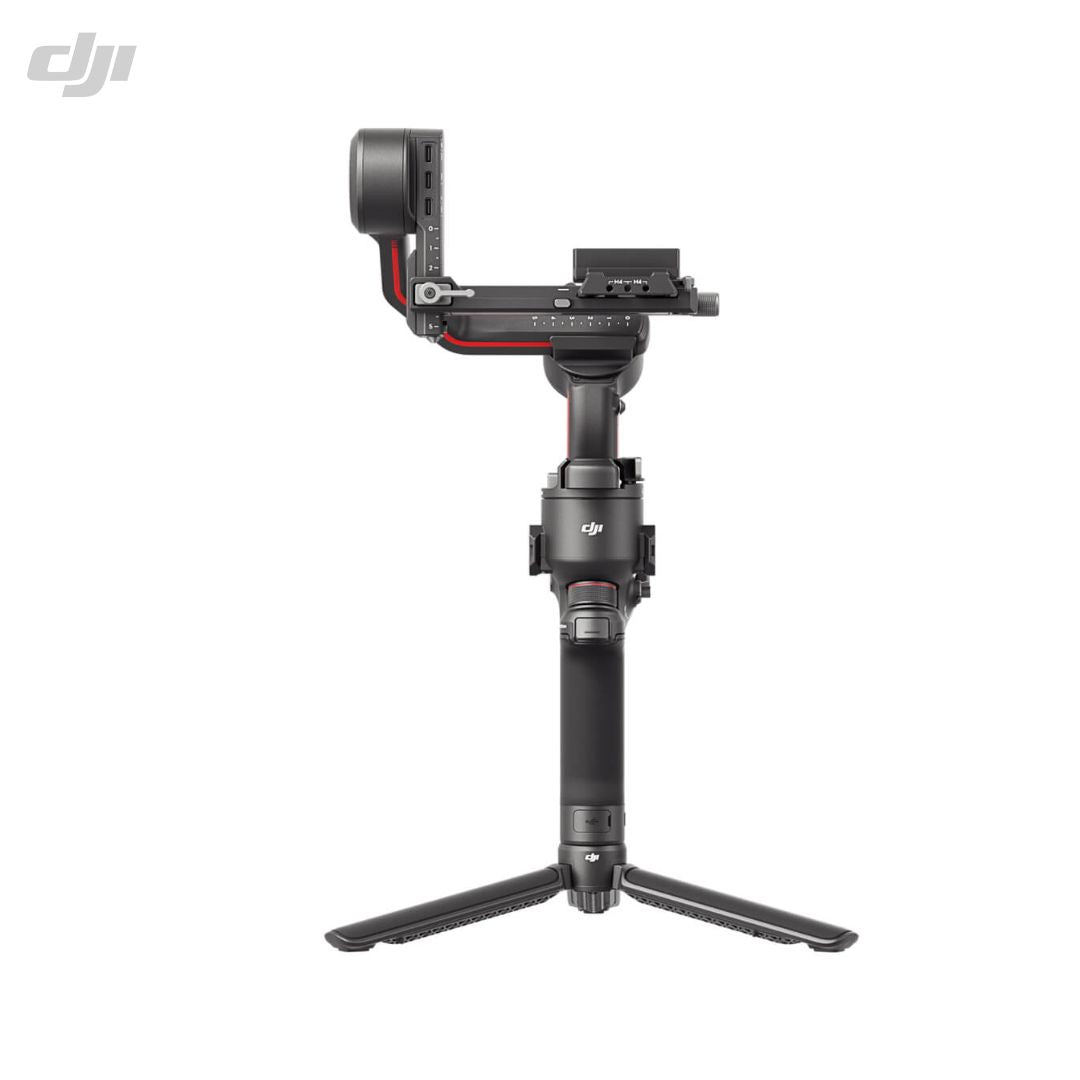

The DJI RS 3 is a light, sleek and powerful handheld imaging solution. It comes with dual-layered quick-release plates for camera mounting, automated axis locks, and wireless shutter control. The DJI RS 3 supports various mainstream cameras with the payload capacity of up-to 3kg. It is also equipped with a 1.8" OLED touchscreen, customisable front dial and a switch to change mode instantly. The RS 3 supports the Ronin Image Transmitter and enables live monitoring via smartphone. Its battery provides about 12-hours of operating time and get charged very quickly.
The DJI RS 3 is a perfect handheld stabilizer for solo creators and independent crews as it provides professional stabilization for efficient shooting experience.
Specifications
Peripheral |
|
|
Accessory Port: |
NATO Ports | 1/4"-20 Mounting Hole | Cold Shoe | Video Transmission/Focus Motor Port (USB-C) | RSS Camera Control Port (USB-C) | Focus Motor Port (USB-C) |
|
Connections: |
Bluetooth 5.0 | Charging Port (USB-C) |
Battery |
|
|
Model: |
BHX711-3000-7.2V |
|
Type: |
2S |
|
Capacity: |
3000 mAh |
|
Energy: |
21 Wh |
|
Max. Runtime: |
12 hours |
|
Charging Time: |
Approx. 2.5 hours when using 18W quick charging (supports PD protocol) |
Working Performance |
|
|
Tested Payload: |
3 kg (6.6 lbs) |
|
Max. Controlled Rotation: |
Pan 360°/s | Tilt 360°/s | Roll 360°/s |
|
Mechanical Range: |
Pan axis 360° continuous rotation | Roll axis -95° to +240° | Tilt axis -112° to +214° |
Mechanical & Electrical Properties |
|
|
Operating Frequency: |
2.400-2.484 GHz |
|
Weight: |
Gimbal Approx. 990 g (2.18 lbs) | Grip Approx. 200 g (0.44 lbs) | Extended Grip/Tripod (Plastic) Approx. 183 g (0.4 lbs) | Upper and Lower Quick-Release Plates Approx. 107 g (0.23 lbs) |
|
Dimensions: |
LxWxH: 254×230×68 mm (Folded, excluding camera, grip, and the Extended Grip/Tripod) | 364×187×170 mm (Unfolded, height includes the grip and excludes the Extended Grip/Tripod) |
DJI Ronin Image Transmitter |
|
|
Connections: |
Power/Communication Port (USB-C) | HDMI Port (Mini HDMI) | RSS Camera Control Port (USB-C) |
|
Expansion Port: |
Cold Shoe |
|
Operating Frequency: |
2.400-2.484 GHz | 5.725-5.850 GHz |
|
Weight: |
126 g (0.27 lbs) |
|
Dimensions: |
(L×W×H): 82×63×24 mm |
|
Transmitter Power: |
2.400-2.484 GHz |
|
Transmission Range: |
200 m (SRRC/FCC) | 100 m (CE) |
|
Latency: |
60 ms |
|
Operating Current/Voltage: |
900 mA, 3.7V |

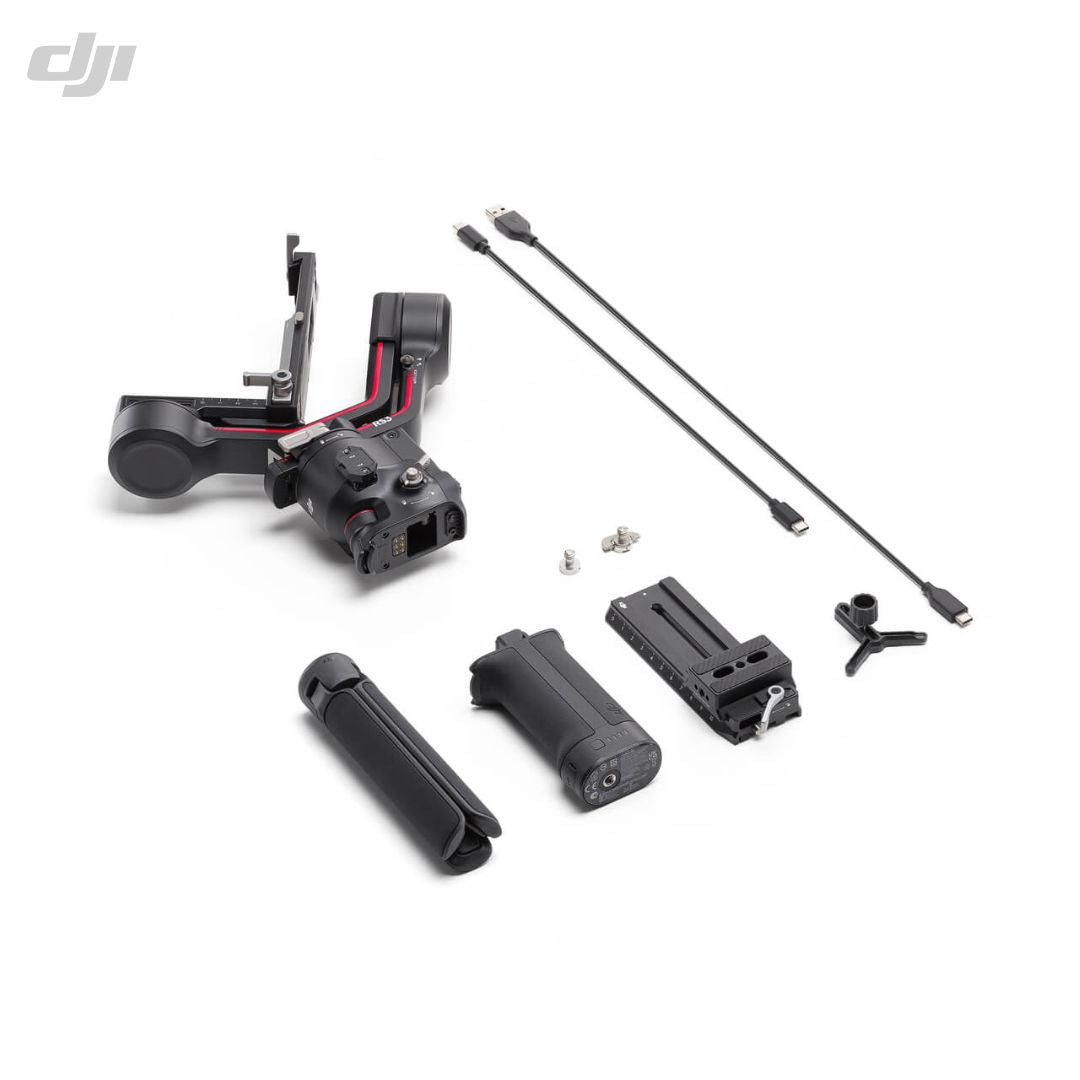

In The Box
| Gimbal x1 |
| BG21 Grip x1 |
| Lens-Fastening Support x1 |
| Extended Grip/Tripod (Plastic) x1 |
| Quick-Release Plate (Arca-Swiss/Manfrotto) x1 |
| Multi-Camera Control Cable (USB-C, 30 cm) x1 |
| Screw Kit x1 |
| USB-C Charging Cable (40 cm) x1 |
