Description

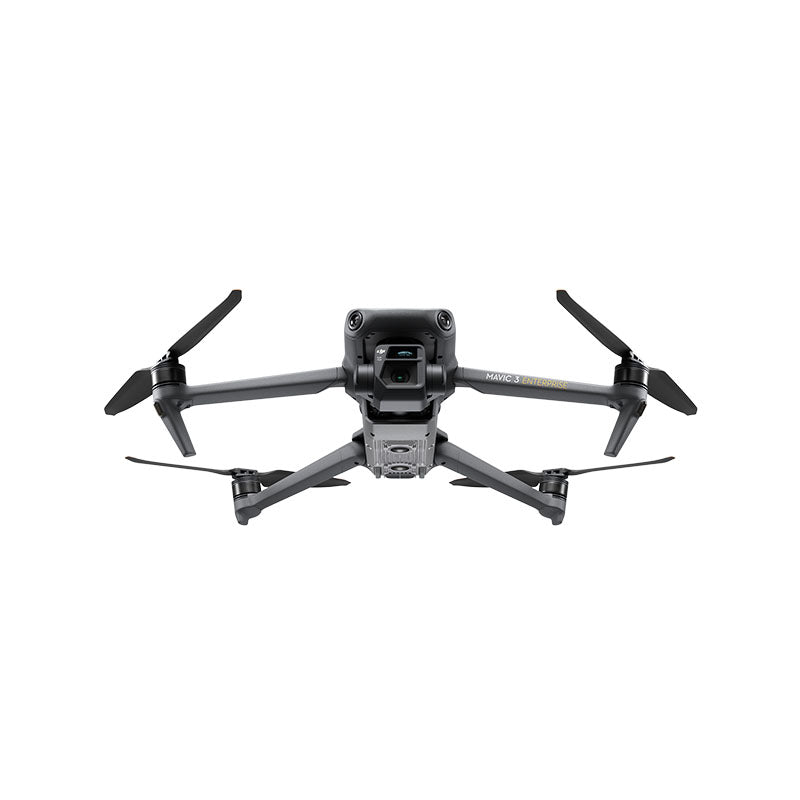

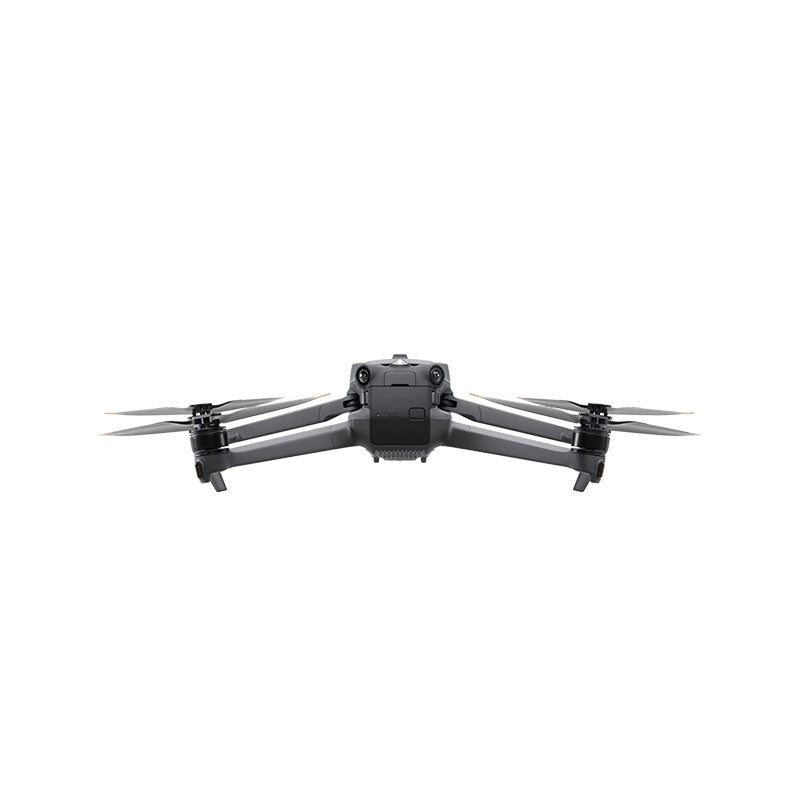

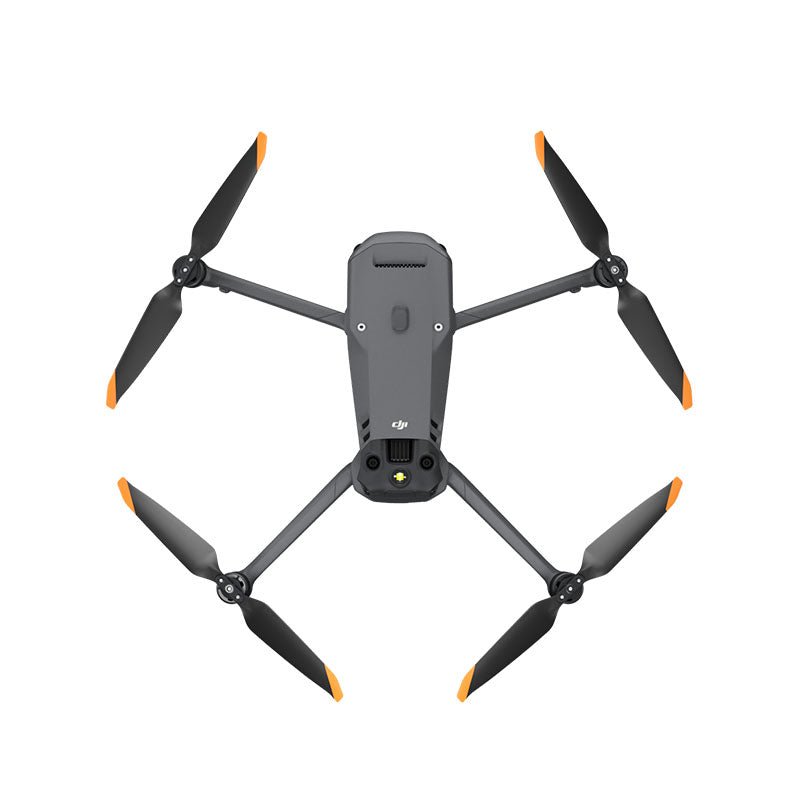

The DJI Mavic 3 Enterprise Series redefines industry standards for small commercial drones. With a mechanical shutter, a 56× zoom camera, and an RTK module for centimetre-level precision. The Mavic 3E brings mapping and mission efficiency to new heights.
A thermal version is available for firefighting, search and rescue, inspection, and night operations.
Specifications
Product Details |
|
|
MTOW: |
1,050 g |
|
Dimensions: |
(L×W×H): 221×96.3×90.3 mm (Folded, without propellers) 347.5×283×107.7 mm (Unfolded, without propellers) |
|
Max. Ascent Speed: |
6 m/s (Normal Mode) 8 m/s (Sport Mode) |
|
Max. Descent Speed: |
6 m/s (Normal Mode) 6 m/s (Sport Mode) |
|
Max Flight Speed: |
(Normal Mode) 15 m/s (Sport Mode) Forward 21 m/s, Side 20 m/s, Backward 19 m/s |
|
Max. Wind Speed Resistance: |
12 m/s |
|
Max. Flight Time: |
45 minutes |
|
Max. Hover Time: |
38 minutes |
|
Max. Flight Distance: |
32 km |
|
Max. Pitch Angle: |
30° (Normal Mode) 35° (Sport Mode) |
|
Max Angular Velocity: |
200°/s |
|
GNSS: |
GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled) |
Wide Camera |
|
|
Sensor: |
4/3 CMOS Effective pixels 20 MP |
|
Lens: |
FOV 84° Format Equivalent 24 mm Aperture f/2.8-f/11 Focus 1 m to ∞ |
|
ISO Range: |
100-6400 |
|
Shutter Speed: |
8-1/8000 s (Electronic Shutter) 8-1/2000 s (Mechanical Shutter) |
|
Max. Image Size: |
5280×3956 |
|
Still Photography Modes: |
Single (20 MP) Timed (20 MP) JPEG (0.7/1/2/3/5/7/10/15/20/30/60 s) JPEG+RAW (3/5/7/10/15/20/30/60 s) Smart Low-light Shooting (20 MP) Panorama (20 MP, raw image) |
|
Video Resolution: |
H.264 3840×2160@30fps (4K) 1920×1080@30fps (FHD) |
|
Bitrate: |
130 Mbps (4K) 70 Mbps (FHD) |
|
Supported File Formats: |
exFAT |
|
Photo Format: |
JPEG/DNG (RAW) |
|
Video Format: |
MP4 (MPEG-4 AVC/H.264) |
Tele Camera |
|
|
Sensor: |
1/2-inch CMOS Effective pixels 12 MP |
|
Lens: |
FOV 15° Format Equivalent 162 mm Aperture f/4.4 Focus 3 m to ∞ |
|
ISO Range: |
100-6400 |
|
Shutter Speed: |
8-1/8000 s (Electronic Shutter) |
|
Max. Image Size: |
4000×3000 |
|
Photo Format: |
JPEG |
|
Video Format: |
MP4 (MPEG-4 AVC/H.264) |
|
Still Photography Modes: |
Single (12 MP) Timed (12 MP) JPEG (0.7/1/2/3/5/7/10/15/20/30/60 s) Smart Low-light Shooting (12 MP) |
|
Video Resolution: |
H.264 3840×2160@30fps (4K) 1920×1080@30fps (FHD) |
|
Bitrate: |
130 Mbps (4K) 70 Mbps (FHD) |
|
Digital Zoom: |
8x (56x hybrid zoom) |
Accessories
Gimbal |
|
| Stabilization: | 3-axis (tilt, roll, pan) |
| Mechanical Range: | Tilt -135° to 100° Roll -45° to 45° Pan -27° to 27° |
| Controllable Range: | Tilt -90° to 35° Pan not controllable |
| Max. Control Speed: | 100°/s |
| Angular Vibration Range: | ±0.007° |
DJI RC |
|
|
Dimensions: |
183.27×137.41×47.6 mm (Antennas folded and controller sticks unmounted) 183.27×203.35×59.84 mm (Antennas unfolded and controller sticks mounted) |
|
Weight: |
Approx. 680 g |
|
Screen Resolution: |
1920×1080 |
|
Screen Size: |
5.5 inches |
|
Screen Frame Rate: |
60 fps |
|
Brightness: |
1,000 nits |
|
Touchscreen Control: |
10-point multi-touch |
|
Battery: |
Li-ion (5000 mAh @ 7.2 V) |
|
Charging Type: |
Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V |
|
Rated Power: |
12 W |
|
Storage Capacity: |
64 GB Internal Storage (ROM) Supports a microSD card for expanded capacity |
|
Charging Time: |
Approx. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V) Approx. 2 hours (with a USB charger at 12 V) Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously) |
|
Operating Time: |
Approx. 3 hours |
|
Video Output Port: |
Mini-HDMI port |
|
GNSS: |
GPS+Galileo+GLONASS |
Battery |
|
|
Capacity: |
5000 mAh |
|
Standard Voltage: |
15.4 V |
|
Max. Charging Voltage: |
17.6 V |
|
Type: |
LiPo 4S |
|
Energy: |
77 Wh |
|
Weight: |
335.5 g |
|
Charging Temperature: |
5° to 40° C (41° to 104° F) |
Charger |
|
|
Input: |
100-240 V (AC Power), 50-60 Hz, 2.5 A |
|
Output Power: |
100 W |
Charging Hub |
|
|
Input: |
USB-C 5-20 V, 5.0 A |
|
Output: |
Battery Port 12-17.6 V, 8.0 A |
|
Rated Power: |
100 W |
|
Charging Type: |
Three batteries charged in sequence |
|
Charging Temperature Range: |
5° to 40° C (41° to 104° F) |
Speaker |
|
|
Dimensions: |
(L×W×H): 114.1×82.0×54.7 mm |
|
Weight: |
85±2 g |
|
Interface: |
USB-C |
|
Rated Power: |
3 W |
|
Max Volume: |
110 dB @ 1 m |
|
Effective Broadcast Distance: |
100 m @ 70 dB |
|
Bit Rate: |
16 Kbps/32 Kbps |
