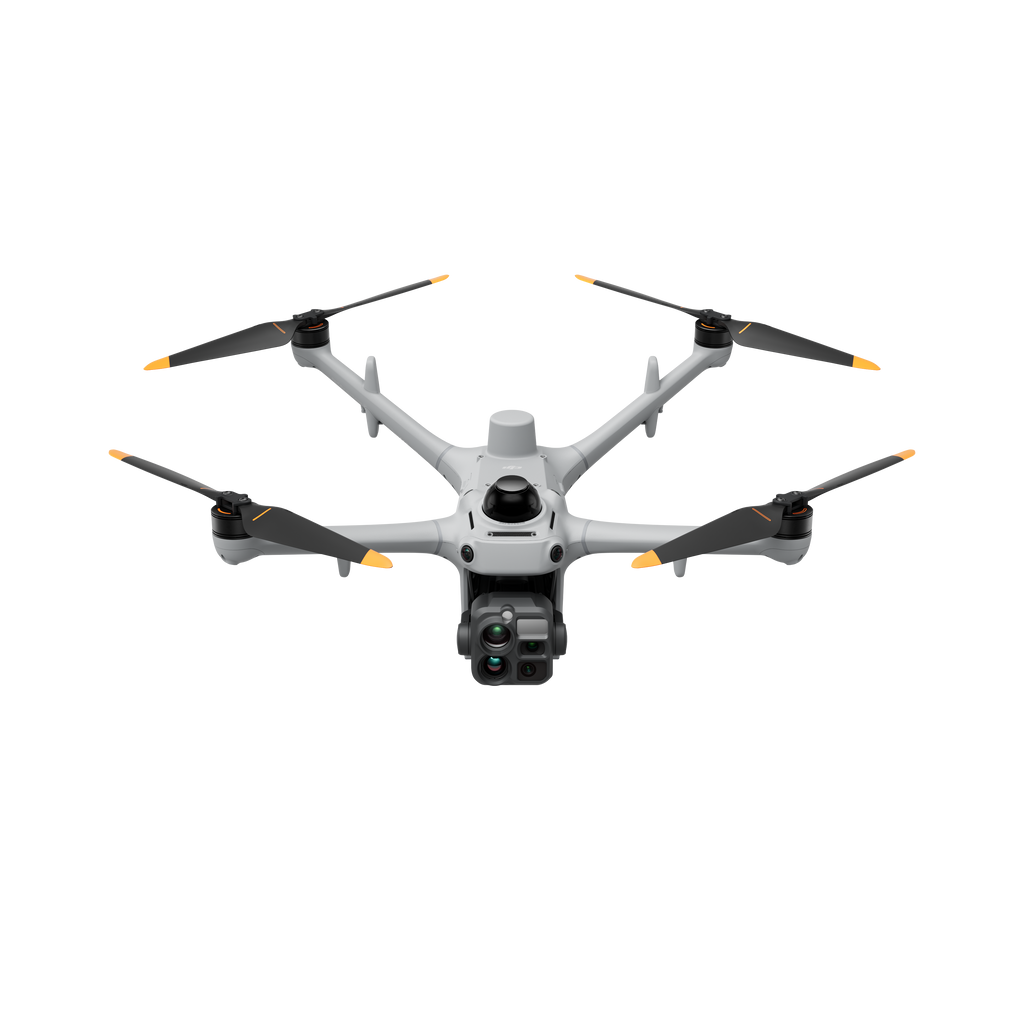

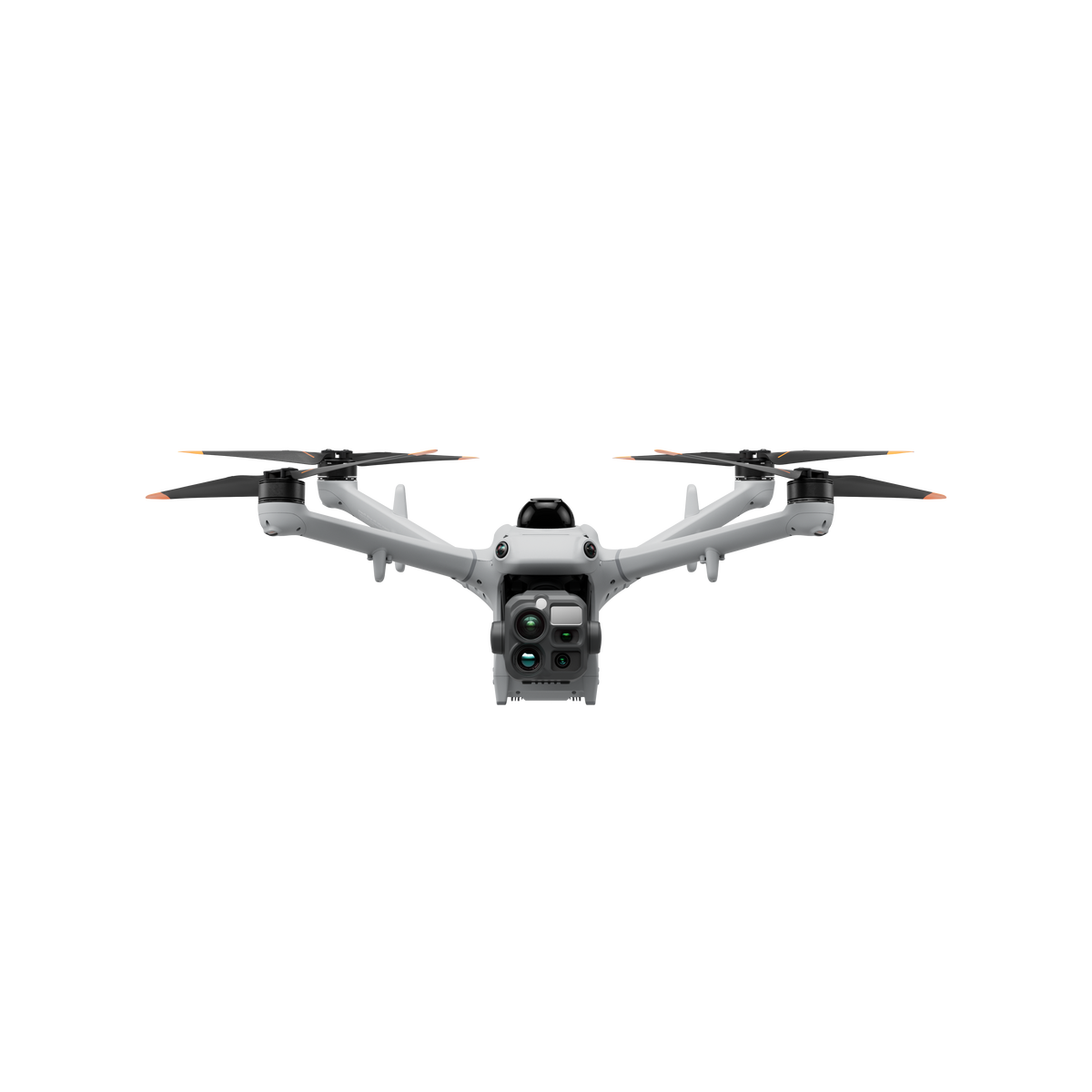

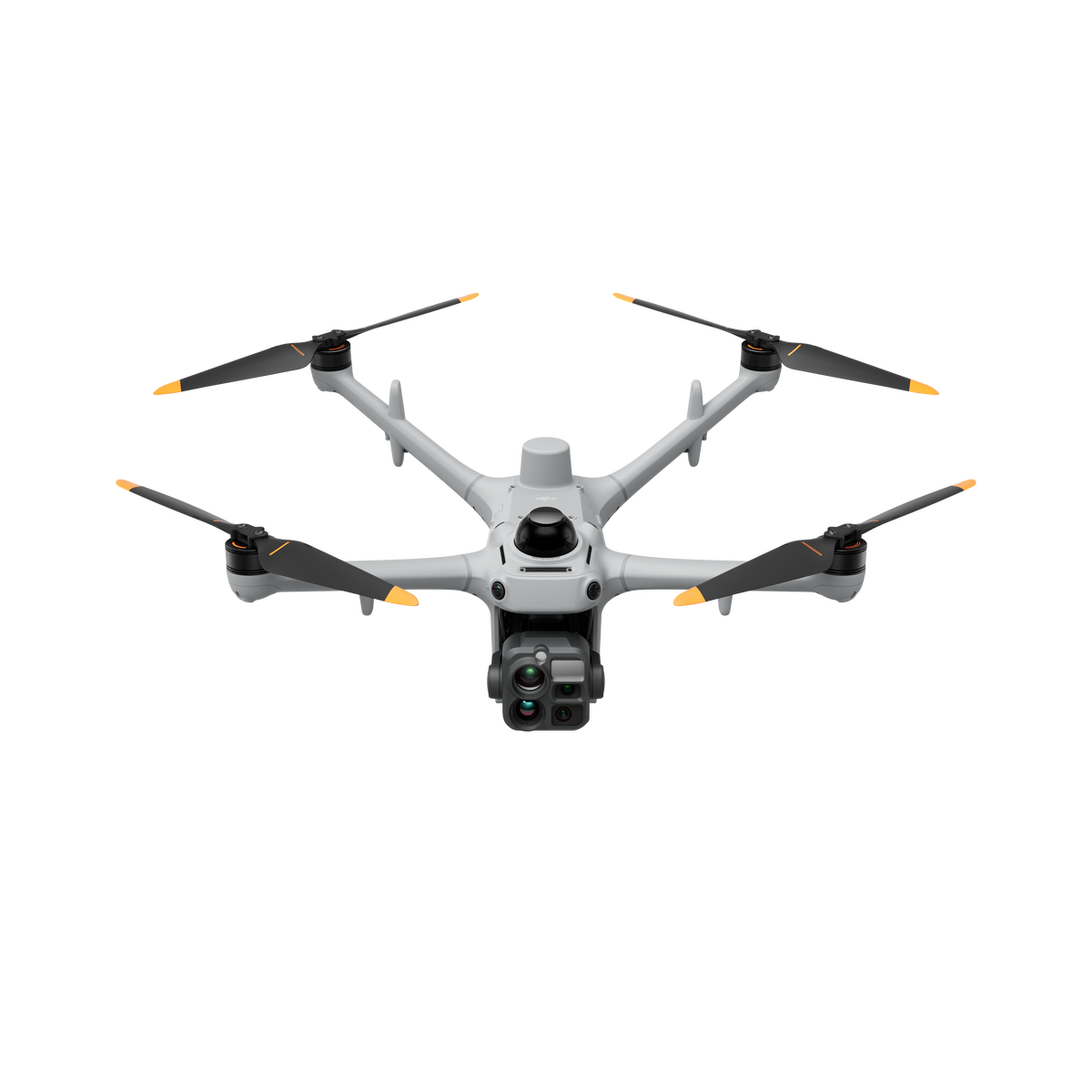

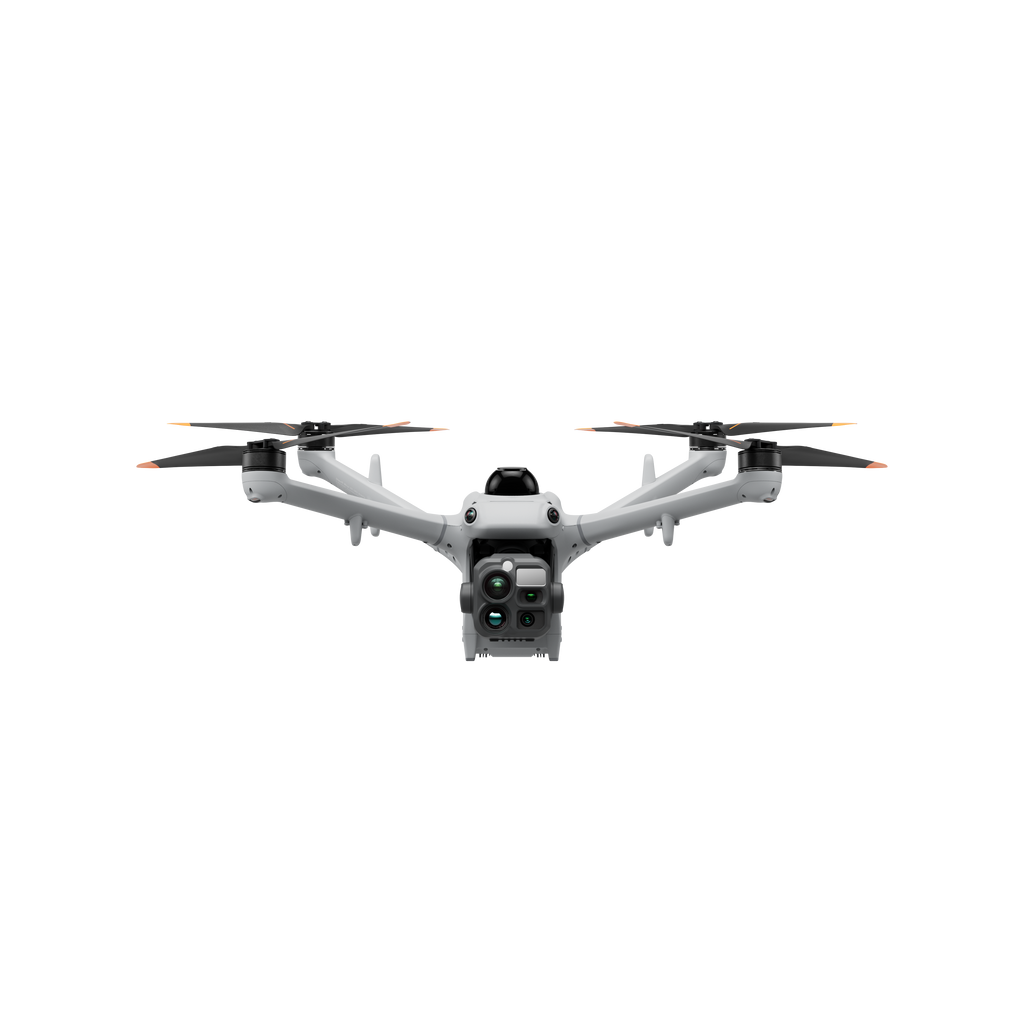

DJI Matrice 5TD

The DJI Matrice 5TD is an advanced enterprise drone designed to support demanding operations across public safety, security, infrastructure inspection and remote monitoring.

Equipped with advanced thermal, telephoto and low-light imaging capabilities, the Matrice 5TD provides operators with greater situational awareness and the flexibility to capture critical information across a range of environments.

With up to 59 minutes of maximum flight time, high-speed flight capabilities and compatibility with DJI Dock 4, the Matrice 5TD supports both responsive missions and automated drone operations.

Key Features

Extended Flight Performance

Offers up to 59 minutes of maximum flight time, supporting longer missions and increased operational efficiency.

Advanced Thermal Imaging

Features a thermal camera with 1280 × 1024 resolution, supporting detailed thermal observation and situational awareness.

Enhanced Visual Imaging

Combines telephoto and low-light imaging capabilities to support observation, inspection and monitoring in challenging lighting conditions.

Rapid Response Capabilities

Supports FlyTo speeds of up to 21 m/s, helping operators respond quickly to time-sensitive operational requirements.

Flexible Payload Options

Supports compatible accessories, including speaker, spotlight and parachute solutions, with a maximum additional payload capacity of 450 g.

DJI Dock 4 Compatibility

Designed to work with DJI Dock 4, enabling automated deployment and rapid battery swapping as part of an integrated system.

Applications

Public Safety and Emergency Response

Support situational awareness, incident assessment and search and rescue operations with advanced aerial imaging.

Security and Surveillance

Assist with perimeter monitoring, site observation and security operations.

Infrastructure Inspection

Capture detailed visual and thermal information to support inspection and assessment of critical assets.

Remote Monitoring

Support recurring observation and monitoring missions across industrial facilities and remote locations.

Specifications

Technical Specifications

Specification	Details
Maximum Flight Time	Up to 59 minutes
Practical Operating Time	Up to 48 minutes
Maximum FlyTo Speed	Up to 21 m/s
Thermal Camera Resolution	1280 × 1024
Thermal Super Resolution	2560 × 2048
Additional Payload Capacity	Up to 450 g
Aircraft Protection Rating	IP55
Compatible Dock	DJI Dock 4
Remote Operations Platform	DJI FlightHub 2



In the Box

Matrice 5TD Combo with O4 Ground Station and AP1 Parachute

1 x Matrice 5TD ( with AP1 Parachute and microSD card pre-installed)

1 x CW Propeller (Pair)

1 x CCW Propeller (Pair)

1 x Tool Kit with 6 x Screws, 3 x Propeller Clamps and 3 x Washers

4 x Parachute Screws (M2.5 x 5)

4 x Connection Cable Screws (M1.6 x 5)

1 x DJI O4 Ground Station

1 x USB-C to USB-C Cable

2 x Ethernet Connector

4 x Expansion Bolts

1 x Installation Card

1 x Tool Kit



DJI Matrice 5TD Combo with O4 Ground Station

1 x Matrice 5TD ( With microSD card pre-installed)

1 x CW Propeller (Pair)

1 x CCW Propeller (Pair)

1 x Tool Kit with 6 x Screws, 3 x Propeller Clamps and 3 x Washers

1 x DJI Ground O4 Station

1 x USB-C to USB-C Cable

2 x Ethernet Connector

4 x Expansion Bolts

1 x Installation Card

1 x Tool Kit
