Description

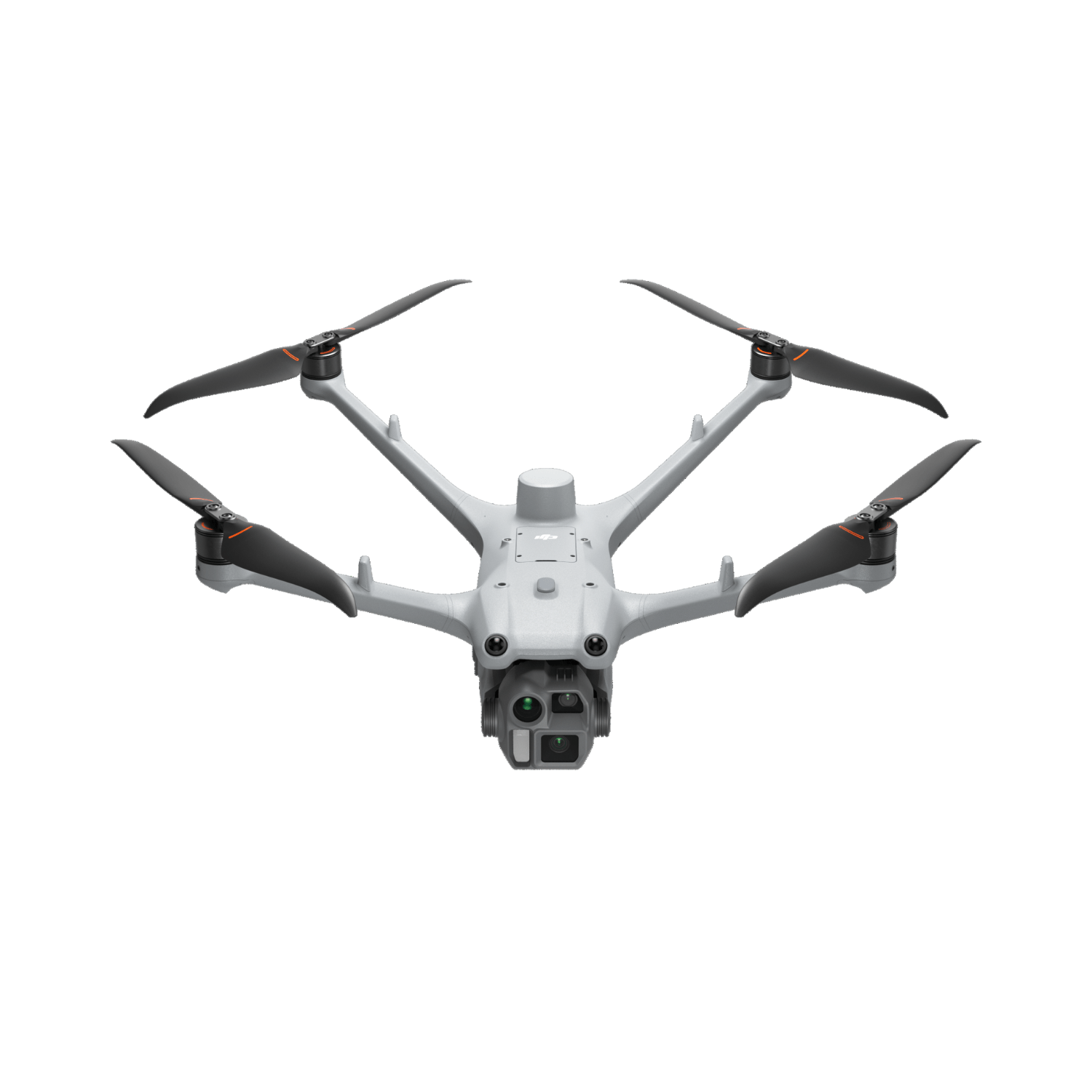

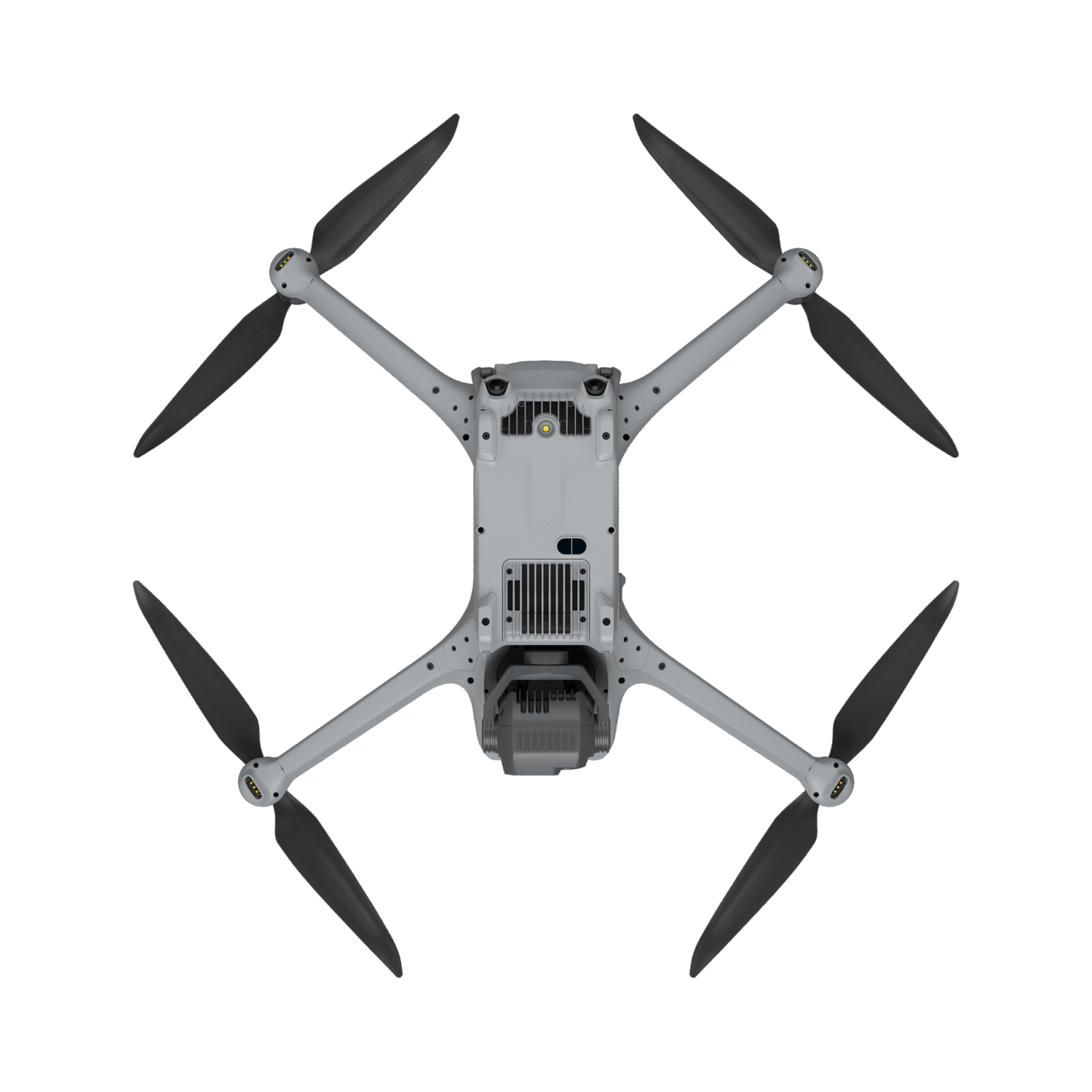

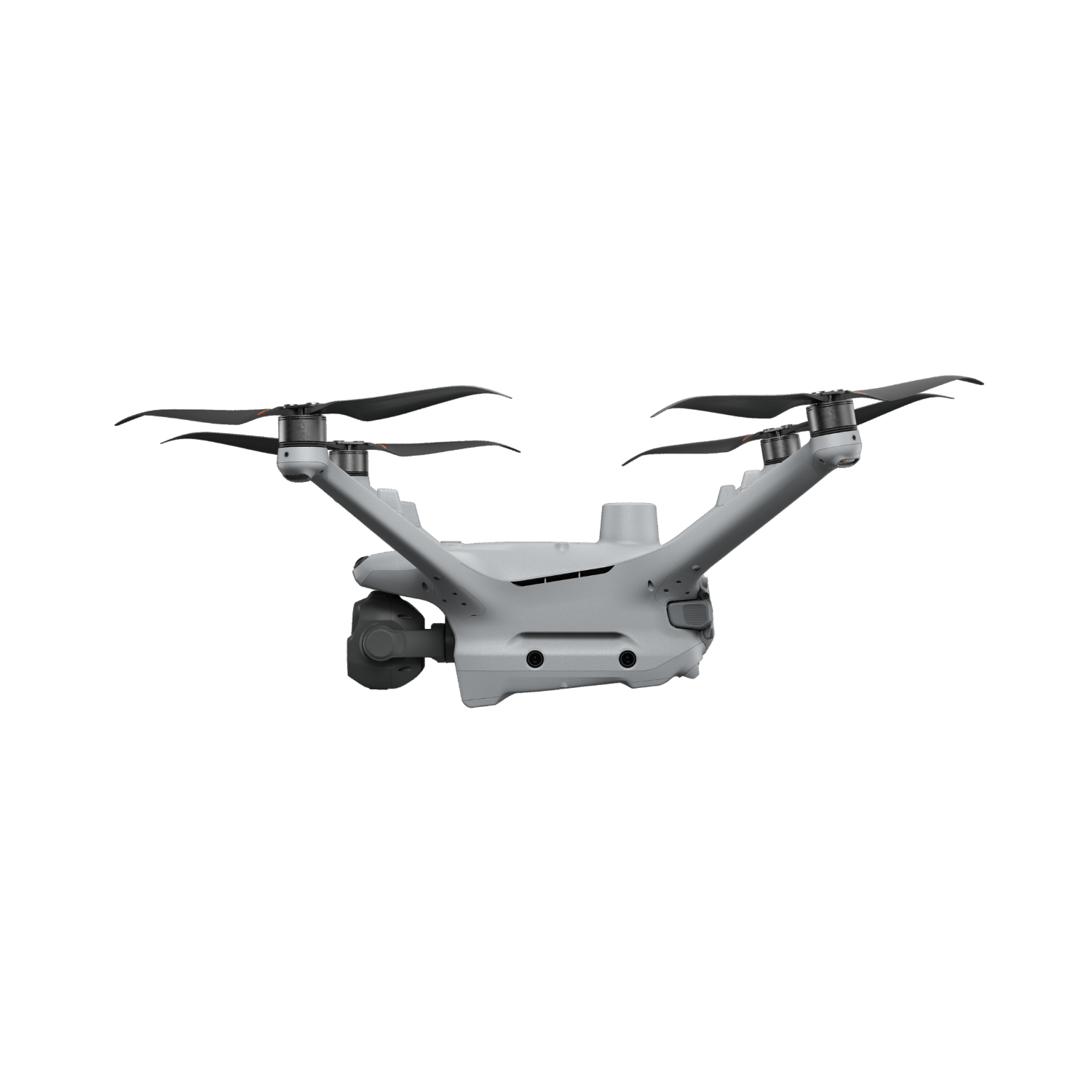

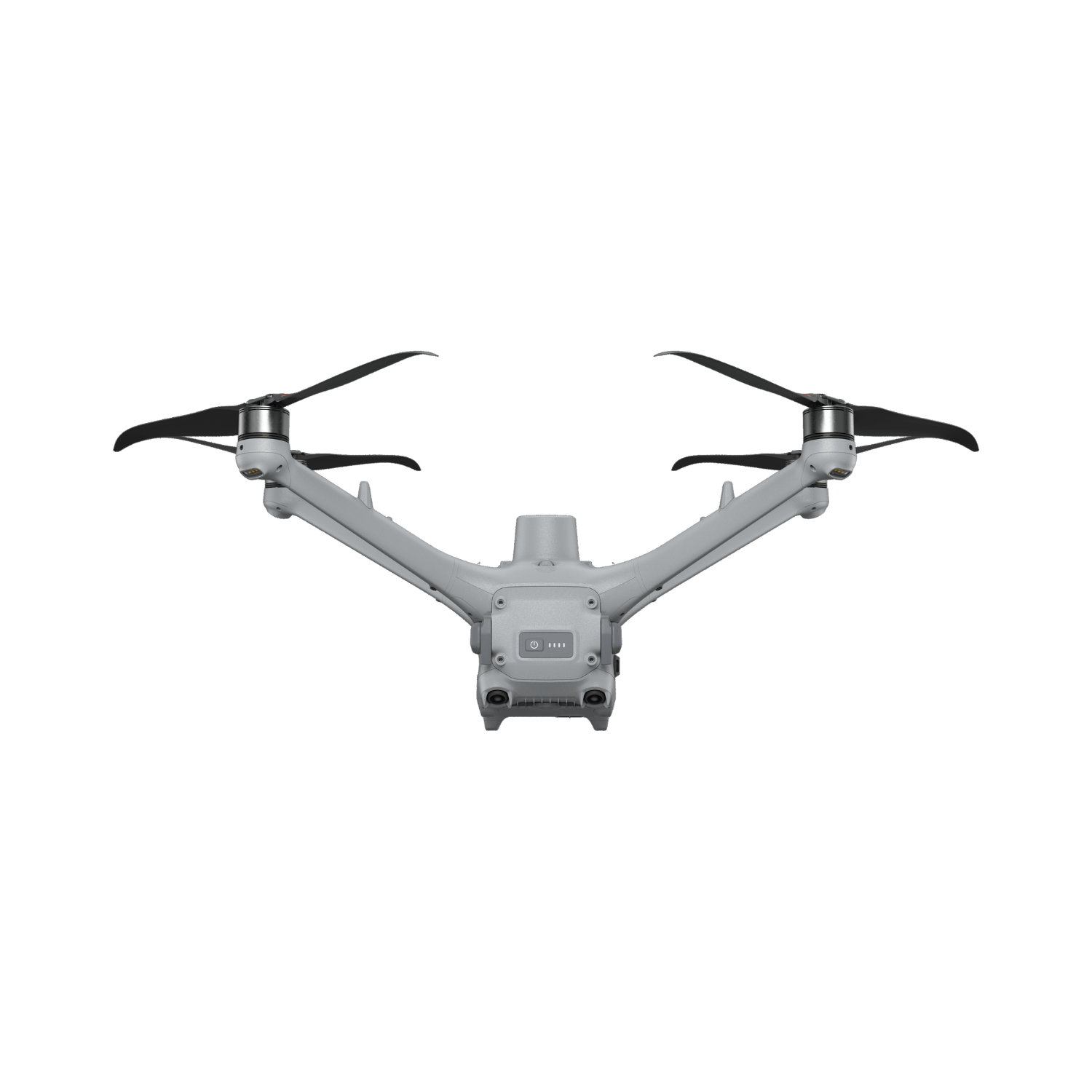

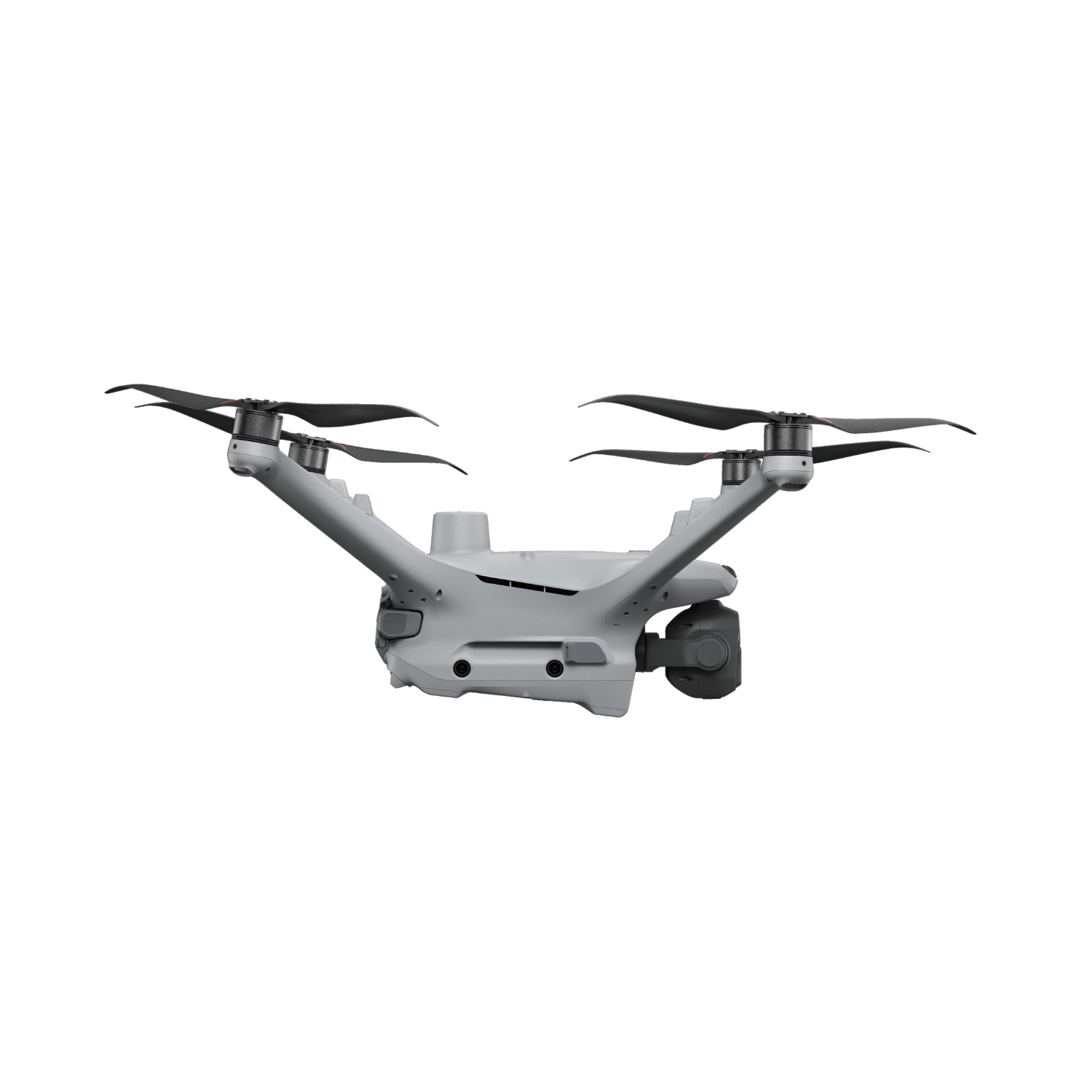

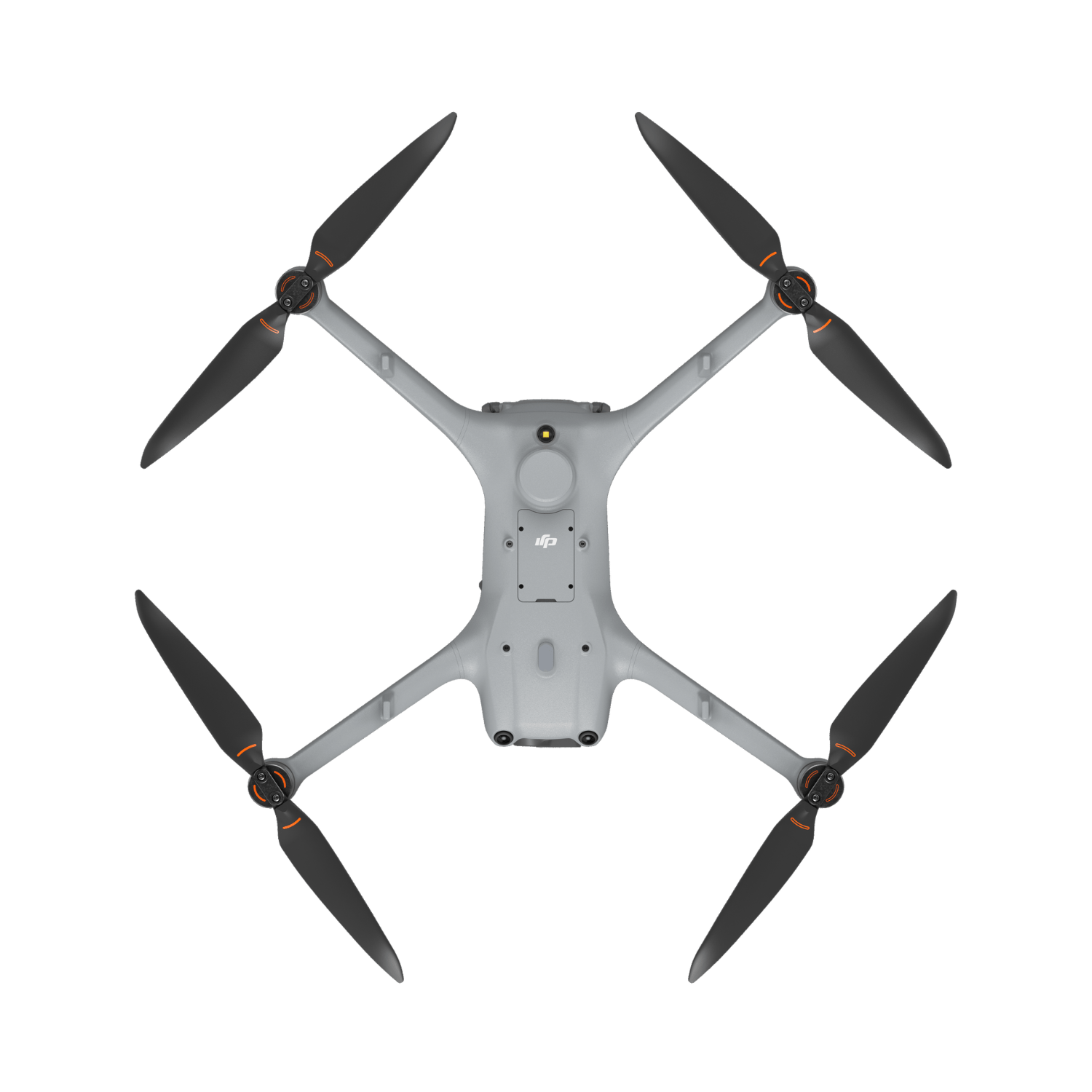

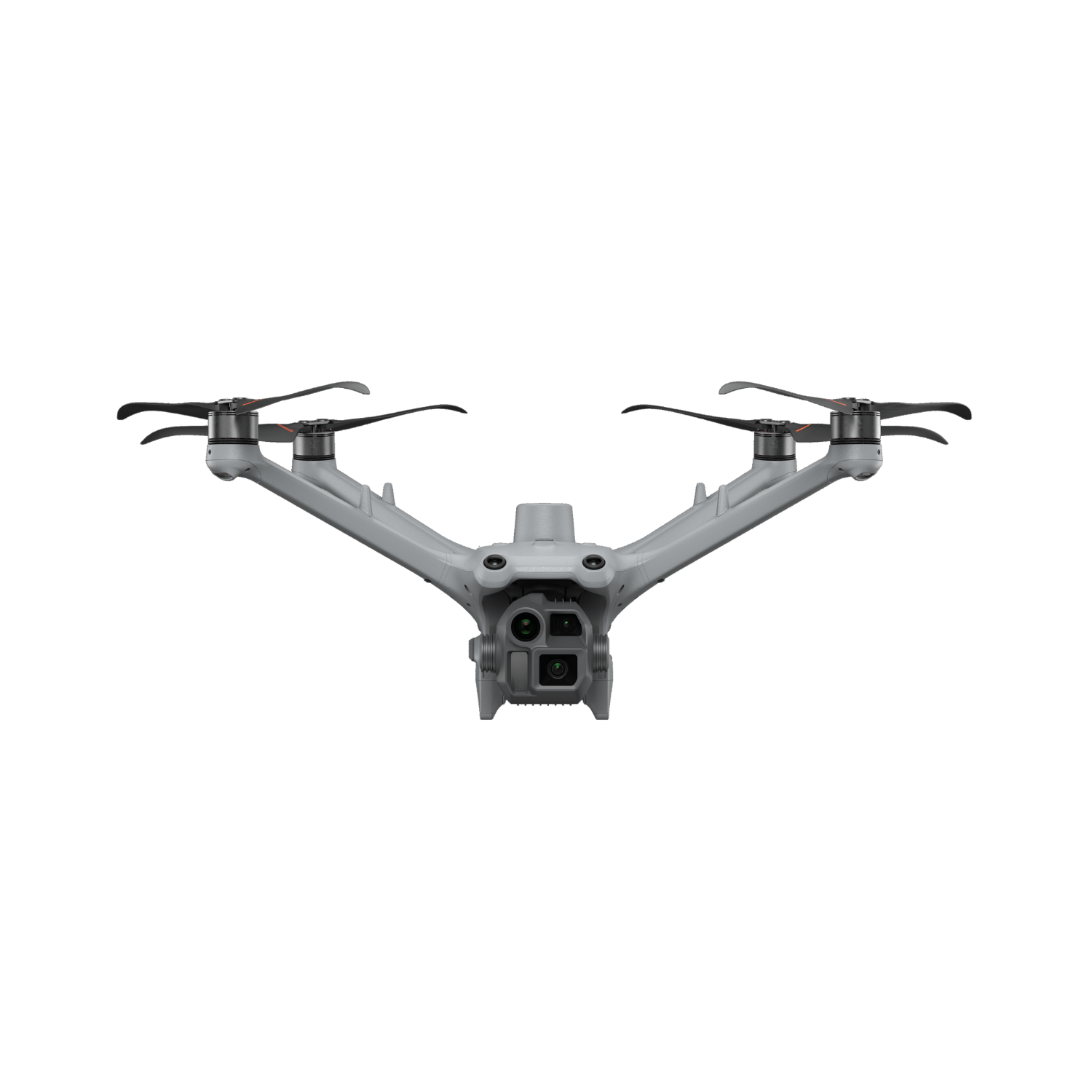

The all-new water- and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time and the ability to pair with the DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera, and a Laser Range Finder. The Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections.
Longer Flight Time, Robust Protection
When fully charged, the Matrice 4D/4TD delivers an impressive 47-minute flight time at a speed of 15 m/s, achieving a 37% increase in operational time. At a radius of 10 km, these drones provide 18 minutes of operation. Both models are designed to endure harsh conditions with an IP55 dust and water resistance rating.
Obstacle Sensing for Safe Operation
The Obstacle Sensing Module for the Matrice 4D/4TD combines rotating LiDAR and millimetre-wave radar technologies, providing precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings. Additionally, it enhances positioning in low-light conditions, ensuring operational safety in power distribution networks and intricate substation layouts.
Unmatched Clarity and Precision for Any Task, Anytime
The Matrice 4D Series drones feature four high-resolution, low-light fisheye lenses, significantly enhancing visual low-light positioning and obstacle sensing capabilities.
The new Night Scene mode offers full-colour night vision.
Clear Vision and Stable Images
The Matrice 4D Series drones are equipped with medium tele and tele cameras with foreground stabilisation. The medium tele camera is effective for mid-range inspections, detecting pins and cracks from 10 metres and clearly reading instrument data at substations. The 48 MP tele camera captures details, such as signs, from up to 250 m away. Upgraded stabilisation keeps foreground subjects clear during telephoto shots at 10x zoom or higher.
High-Precision Surveying
The Matrice 4D Series drones excel in high-precision mapping, offering a new 5-direction oblique photography, 3-direction orthophoto photography, and real-time terrain following to meet diverse mapping requirements. DJI FlightHub 2 has been upgraded for Matrice 4D/4TD operations, introducing Smart 3D Capture routes, geometric routes, and slope routes, enhancing efficiency while ensuring detailed modelling.
Seamless Airborne Relay for Mountainous Terrain
The Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function.With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, [5] ensuring smooth video transmission without a 4G signal or in obstructed conditions. This feature significantly extends the transmission range, making it ideal for SAR missions and inspections in mountainous areas.
Specifications
Aircraft
Takeoff Weight (with propellers) |
1850 g |
Max Takeoff Weight |
2090 g |
Dimensions |
377.7×416.2×212.5 mm (L×W×H, without propellers) |
Wheelbase |
Diagonal Wheelbase: 498.5 mm |
Max Ascent Speed |
6 m/s (N Mode) |
Max Descent Speed |
6 m/s (N Mode) |
Max Horizontal Speed (at sea level, no wind) |
Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways |
Max Wind Speed Resistance |
During Operation: 12 m/s |
Max Takeoff Altitude |
6500 m |
Operating Temperature |
-20° to 50° C (-4° to 122° F) |
Ingress Protection Rating |
IP55
|
Max Flight Time (without wind)
|
54 minutes
|
Max Hover Time (without wind) |
47 minutes |
GNSS |
GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.) |
RTK Module |
Built-in, no installation required. |
Cellular Dongle 2 Compartment |
Yes |
AI
AI Detection |
Yes |
Wide Angle Camera
Image Sensor |
4/3 CMOS, Effective Pixels: 20 MP |
Lens |
FOV: 84° |
Night Scene Mode |
Full-Color Night Scene |
ISO Range |
100-25600 Night Scene Mode: 100-204800 |
Shutter Speed |
Electronic Shutter: 2-1/8000 s |
Max Photo Size |
5280×3956 |
Still Photography Modes |
Single: 20 MP |
Minimum Photo Interval |
0.5 s |
Video Codec and Resolution |
H.264, H.265 |
Photo Format |
JPEG/DNG (RAW) |
Video Format |
MP4 (MPEG-4 AVC/H.264)
|
Medium Tele Camera
Image Sensor |
1/1.3-inch CMOS, Effective Pixels: 48 MP |
Lens |
FOV: 35° |
Night Scene Mode |
Full-Color Night Scene |
ISO Range |
100-25600 Night Scene Mode: 100-409600 |
Shutter Speed |
Electronic Shutter: 2-1/8000 s |
Max Photo Size |
8064×6048 |
Still Photography Modes |
Single: 12 MP/48 MP |
Video Codec and Resolution |
H.264, H.265 4K: 3840×2160@30fps FHD: 1920×1080@30fps |
Photo Format |
JPEG |
Video Format |
MP4 (MPEG-4 AVC/H.264) |
Tele Camera
Image Sensor |
1/1.5-inch CMOS, Effective Pixels: 48 MP |
Lens |
FOV: 15° |
Night Scene Mode |
Full-Color Night Scene |
ISO Range |
100-25600 Night Scene Mode: 100-409600 |
Shutter Speed |
Electronic Shutter: 2-1/8000 s |
Max Photo Size |
8192×6144 |
Still Photography Modes |
Single: 12 MP/48 MP |
Video Codec and Resolution |
H.264, H.265 |
Photo Format |
JPEG |
Video Format |
MP4 (MPEG-4 AVC/H.264)
|
Digital Zoom |
16x (112x hybrid zoom) |
Infrared Thermal Camera
Sensor Type |
N/A |
Pixel Pitch |
N/A |
Frame Rate |
N/A |
Lens |
N/A |
Temperature Measurement Method |
N/A |
Temperature Measurement Range |
N/A |
Palette |
N/A |
Photo Format |
N/A |
Video Resolution |
N/A |
Video Bitrate |
N/A
|
Video Format |
N/A |
Still Photography Modes |
N/A |
Digital Zoom |
N/A |
Infrared Wavelength |
N/A |
Infrared Temperature Measurement Accuracy |
N/A |
NIR Auxiliary Light
Infrared Illumination |
N/A |
Laser Module
Laser Rangefinding |
Normal Incidence Range: 1800 m (1 Hz) Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m Measurement Accuracy: Other Distances:
|
Sensing
Sensing Type |
Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft. |
Video Transmission
Video Transmission System |
DJI O4+ Enterprise |
Live View Quality |
720p/30fps, 1080p/30fps (with DJI RC Plus 2 Enterprise) |
Operating Frequency |
2.400-2.4835 GHz |
Max Transmission Distance (unobstructed, free of interference) |
FCC: 25 km CE: 12 km SRRC: 12 km MIC: 12 km |
Max Transmission Distance (with interference) |
Strong interference (dense buildings, residential areas, etc.): 1.5-5 km |
Max Download Speed |
20 MB/s (with DJI Dock 3) |
Latency (depending on environmental conditions and mobile device) |
The video transmission latency from the aircraft to the dock is approximately 100 milliseconds (affected by the actual environmental conditions). |
Antenna |
8 antennas, 2T4R |
Others |
DJI Cellular Dongle 2 |
Remote Controller
Screen Resolution |
1920×1200
|
Screen Size |
7.02 inches |
Brightness |
1400 nit |
Storage Capacity |
Internal Storage (ROM): 128GB |
Operating Time |
Built-in Battery: 3.8 hours |
External Battery |
Supported |
Output Port |
HDMI port |
Model |
TKPL 2 |
Includes:
- DJI Matrice 4D
- Hard case
- RC Plus 2
- Charger
- Care Plus (1 Year)
