Description

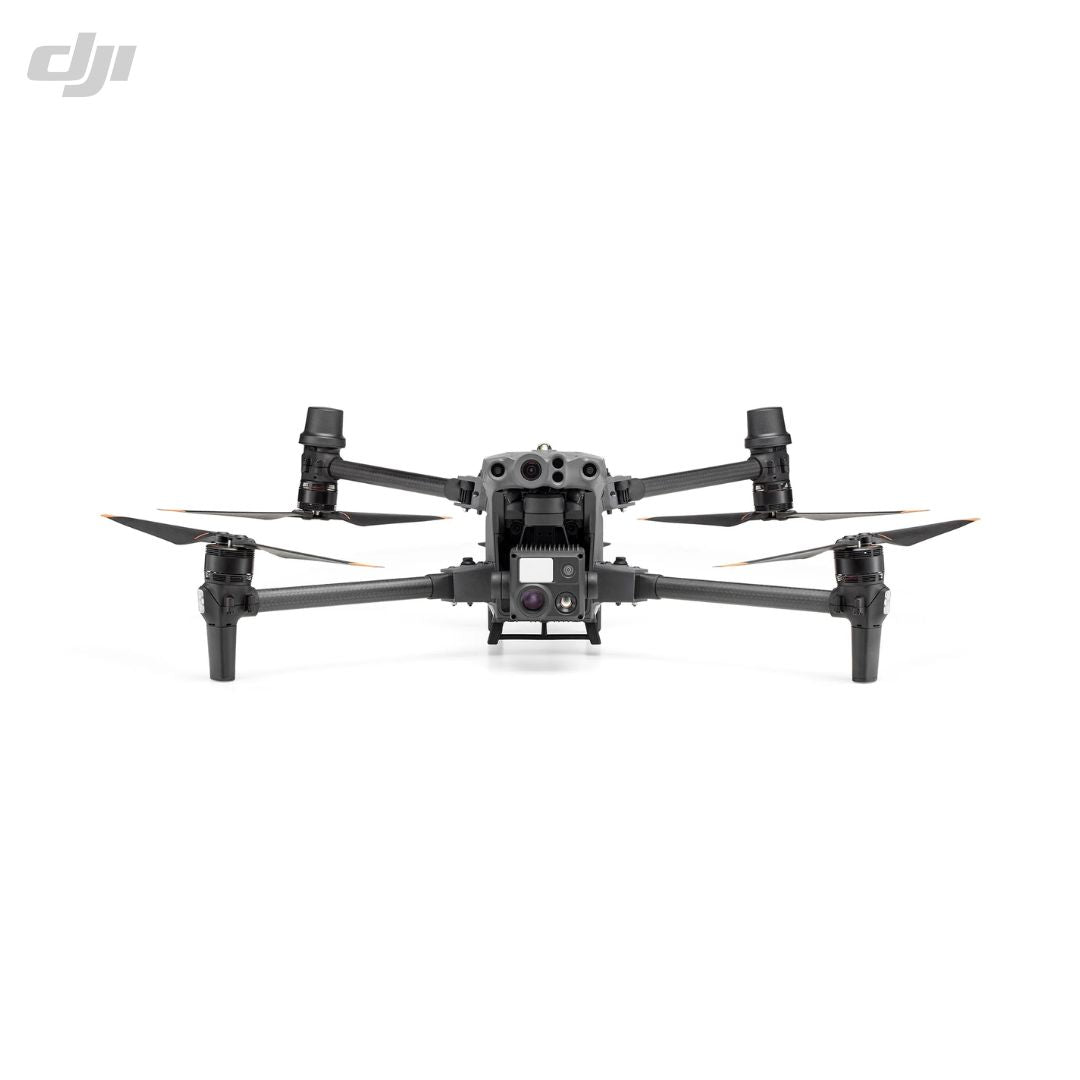

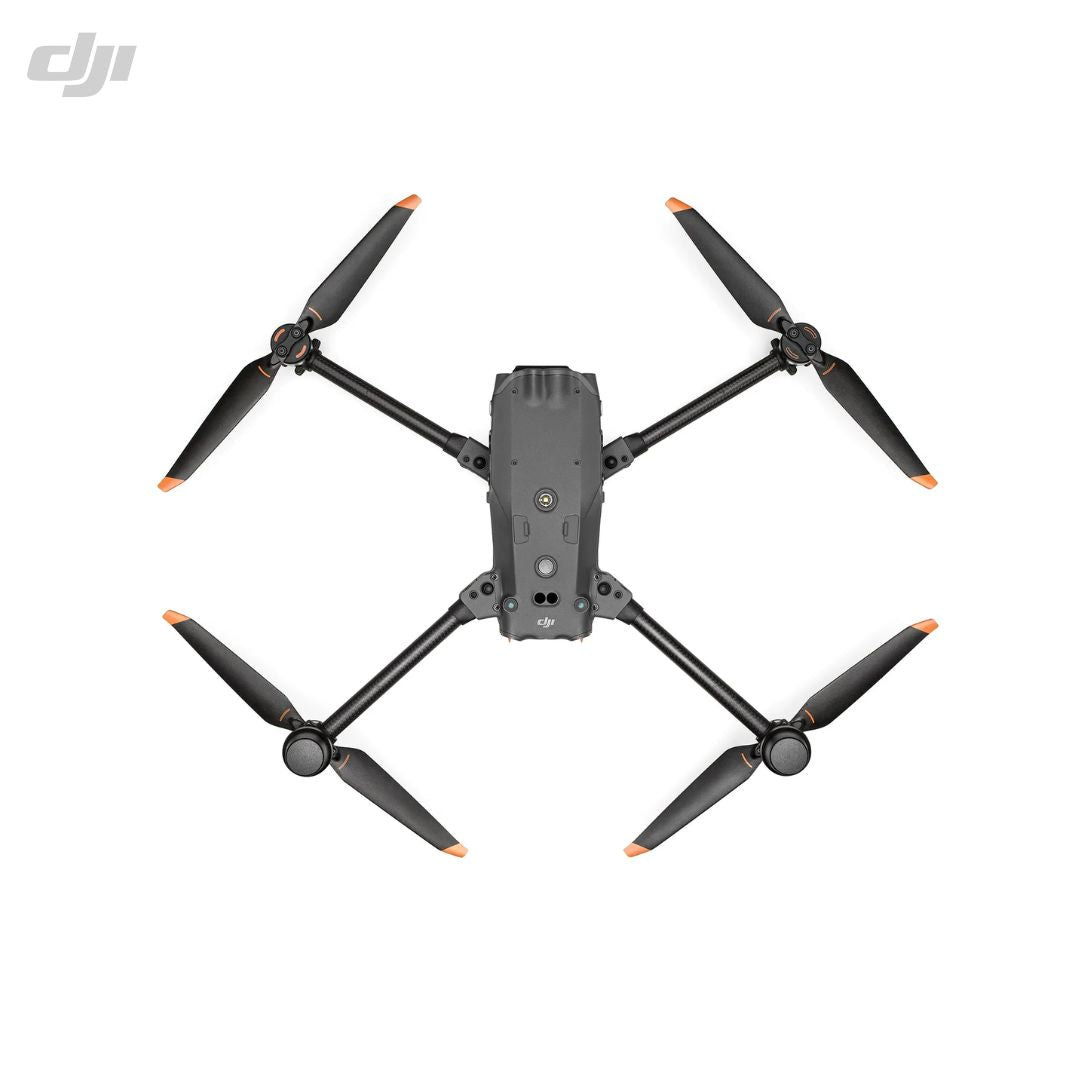

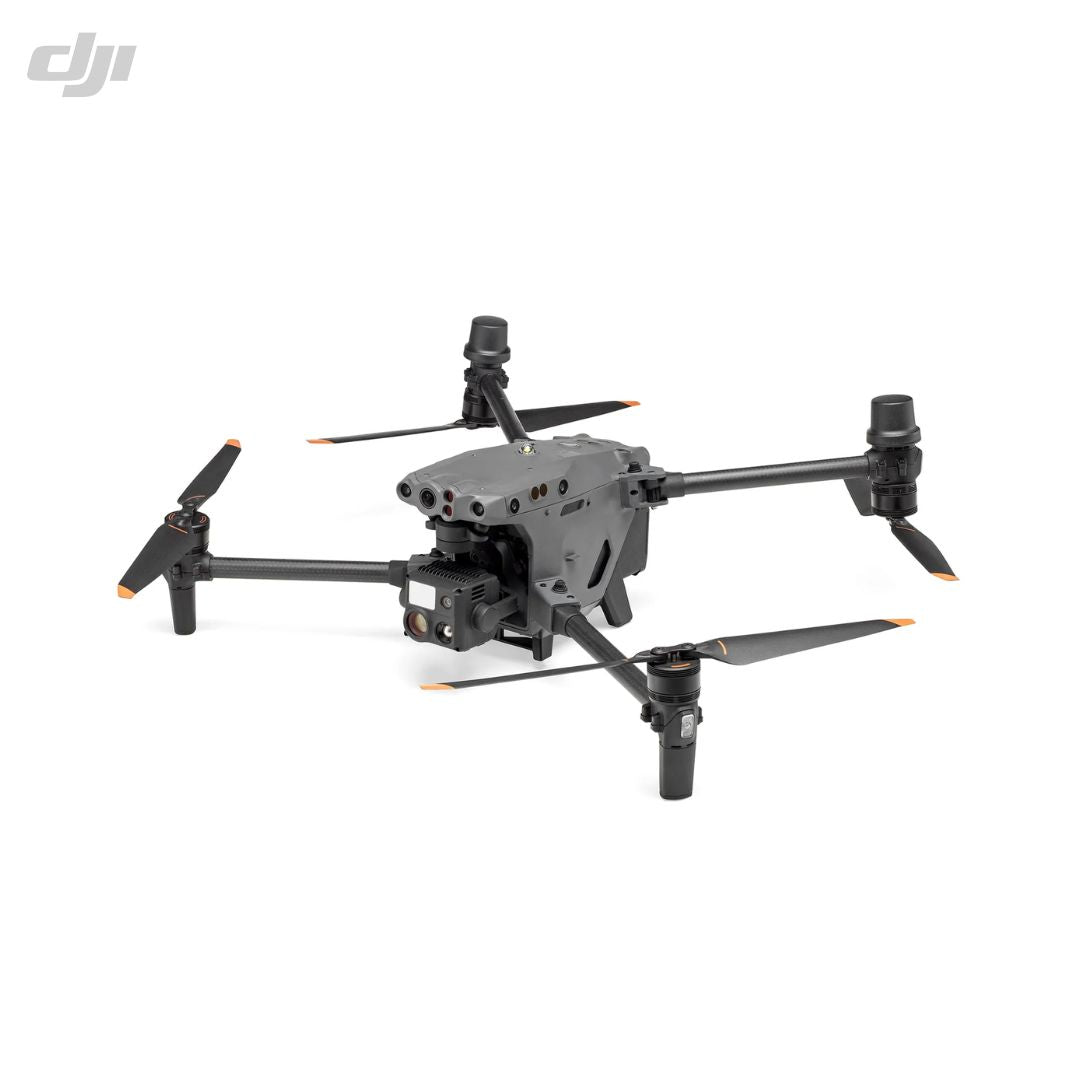

The DJI Matrice 30T is a lightweight, portable, and rugged commercial drone designed to deliver higher operational efficiency. It can fly for up to 41 minutes and can bear adverse environmental conditions with IP55 protection rating. It features a 48MP zoom camera, a 84° FOV wide-angle camera, 640x512 Thermal camera and a laser rangefinder to provide superior image quality across variety of drone operations. It is also seamlessly compatible with the DJI Dock.
The Matrice 30T is a professional-grade drone that is designed for a variety of commercial applications, including security, inspections and search and rescue missions.
Specifications
Aircraft Details |
|
|
Dimensions: |

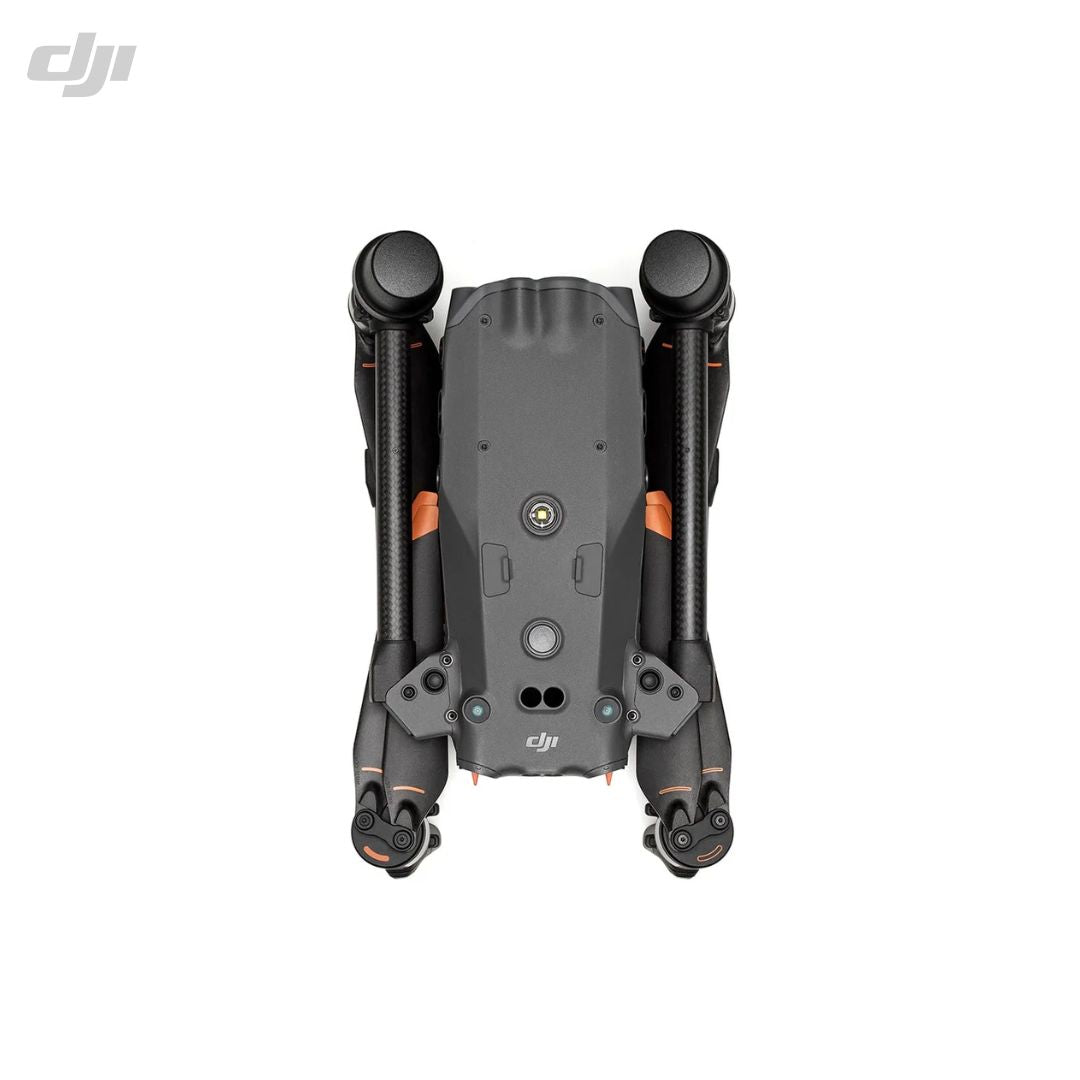

(L×W×H): 470×585×215 mm (unfolded, excl. propellers) 365×215×195 mm (folded) |
|
Weight: |
(incl. two batteries) 3780 g |
|
MTOW: |
4069 g |
|
Operation Frequency: |
2.4000-2.4835 GHz; 5.725-5.850 GHz |
|
Transmitter Power: |
(EIRP) 2.4 GHz |
|
Hovering Accuracy: |
Vertical ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) | Horizontal ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK) |
|
RTK Positioning Accuracy: |
1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical) |
|
Max Angular Velocity: |
Pitch 150°/sec Yaw 100°/sec |
|
Max Pitch Angle: |
35° (N-mode and Forward Vision System enabled: 25°) |
|
Max Ascent Speed: |
6 m/s |
|
Max Descent Speed: |
5 m/s |
|
Max Tilt Descent Speed: |
7 m/s |
|
Max Horizontal Speed: |
23 m/s |
|
Max Wind Resistance: |
12 m/s |
|
Max Hover Time: |
36 minutes |
|
Max Flight Time: |
41 minutes |
|
Motor Model: |
3511 |
|
GNSS: |
GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled) |
|
Operating Temperature: |
-20° to 50° C (-4° to 122° F) |
Accessories
Zoom Camera |
|
|
Sensor: |
1/2" CMOS, Effective pixels 48M |
|
Lens: |
Focal length 21-75 mm (equivalent 113-405 mm) Aperture f/2.8-f/4.2 Focus 5 m to ∞ |
|
Exposure Compensation: |
±3 ev (using 1/3 ev as step length) |
|
Electronic Shutter Speed: |
(Auto-Mode) Photo 1/8000-1/2 s Video 1/8000-1/30 s |
|
Electronic Shutter Speed: |
(Manual Mode) Photo 1/8000-8 s Video 1/8000 -1/30 s |
|
ISO Range: |
100-25600 |
|
Max Video Resolution: |
3840×2160 |
|
Max Photo Size: |
8000×6000 |
Wide Camera |
|
|
Sensor: |
1/2" CMOS, Effective pixels 12M |
|
Lens: |
DFOV 84° Focal length 4.5 mm (equivalent 24 mm) Aperture f/2.8 Focus 1 m to ∞ |
|
Exposure Compensation: |
±3 ev (using 1/3 ev as step length) |
|
Electronic Shutter Speed: |
(Auto-Mode) Photo 1/8000-1/2 s Video 1/8000-1/30 s |
|
Electronic Shutter Speed: |
(Manual Mode) Photo 1/8000-8 s Video 1/8000-1/30 s |
|
ISO Range: |
100-25600 |
|
Max Video Resolution: |
3840×2160 |
|
Photo Size: |
4000×3000 |
Thermal Camera |
|
|
Thermal Imager: |
Uncooled VOx Microbolometer |
|
Lens: |
DFOV 61° |
|
Sensitivity: |
≤30 mk@F1.1 |
|
Photo Size and Video Resolution: |
1280×1024 (Infrared Image Super-resolution Mode) 640×512 (Normal Mode) |
|
Temperature Measurement Method: |
Spot Meter, Area Measurement |
|
Temperature Measurement Range: |
High Gain Mode -20° to 150° C (-4° to 302° F) Low Gain Mode 0° to 500° C (32° to 932° F) |
|
Palette: |
White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
FPV Camera |
|
|
Resolution: |
1920×1080 |
|
DFOV: |
161° |
|
Frame Rate: |
30 fps |
Laser Module |
|
|
Wavelength: |
905 nm |
|
Max Laser Power: |
3.5 mW |
|
Single Pulse Width: |
6 ns |
|
Measurement Accuracy: |
± (0.2 m + D×0.15%) D is the distance to a vertical surface |
|
Measuring Range: |
3-1,200 m (0.5×12 m vertical surface with 20% reflectivity) |
Vision Systems |
|
|
Obstacle Sensing Range: |
Forward 0.6-38 m Upward/Downward/Backward/Sideward 0.5-33 m |
|
FOV: |
65° (H), 50° (V) |
|
Operating Environment: |
Surfaces with clear patterns and adequate lighting (> 15 lux) |
Infrared Sensing Systems |
|
|
Obstacle Sensing Range: |
0.1 to 10 m |
|
FOV: |
30° |
|
Operating Environment: |
Large, diffuse, and reflective obstacles (reflectivity >10%) |
Auxiliary Lights |
|
|
Effective Illumination Distance: |
5m |
|
Illumination Type: |
60 Hz, solid glow |
Remote Controller |
|
|
Screen: |
7.02-inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2 |
|
Internal Battery: |
Li-ion (6500 mAh @ 7.2 V) Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) Charge Time is 2 hours Chemical System is LiNiCoAIO2 |
|
External Battery: |
(WB37) Capacity 4920 mAh Voltage 7.6 V Battery Type Li-ion Energy 37.39 Wh Chemical System LiCoO2 |
|
Operating Time: |
Approx. 3 hours 18 min (Internal Battery) Approx. 6 hours (Internal Battery + External Battery) |
|
GNSS: |
GPS+Galileo+BeiDou |
|
Operating Temperature: |
-20° to 50° C (-4° to 122° F) |
BS30 Intelligent Battery Station |
|
|
Dimensions: |
(LxWxH): 353×267×148 mm |
|
Net Weight: |
3.95 kg |
|
Compatible Battery Type: |
TB30 Intelligent Flight Battery WB37 Intelligent Battery |
|
Input: |
100-240 VAC, 50/60 Hz |
|
Output: |
TB30 Battery Port 26.1 V, 8.9 A (supported up to two outputs simultaneously) WB37 Intelligent Battery 8.7 V, 6 A |
|
Output Power: |
525 W |
|
USB-C Port: |
Max. output power of 65 W |
|
USB-A Port: |
Max. output power of 10 W (5 V, 2 A) |
|
Power Consumption: |
(when not charging battery) 8 W |
|
Output Power: |
(when warming up battery) Approx. 30 W |
|
Operating Temperature: |
-20° to 40° C (-4° to 104° F) |
|
Charging Time: |
Approx. 30 min (charging two TB30 batteries from 20% to 90%) Approx. 50 min (charging two TB30 batteries from 0% to 100%) |
In The Box
| x1 RC Plus |
| x1 BS30 |
| x1 Storage Case |
