Description

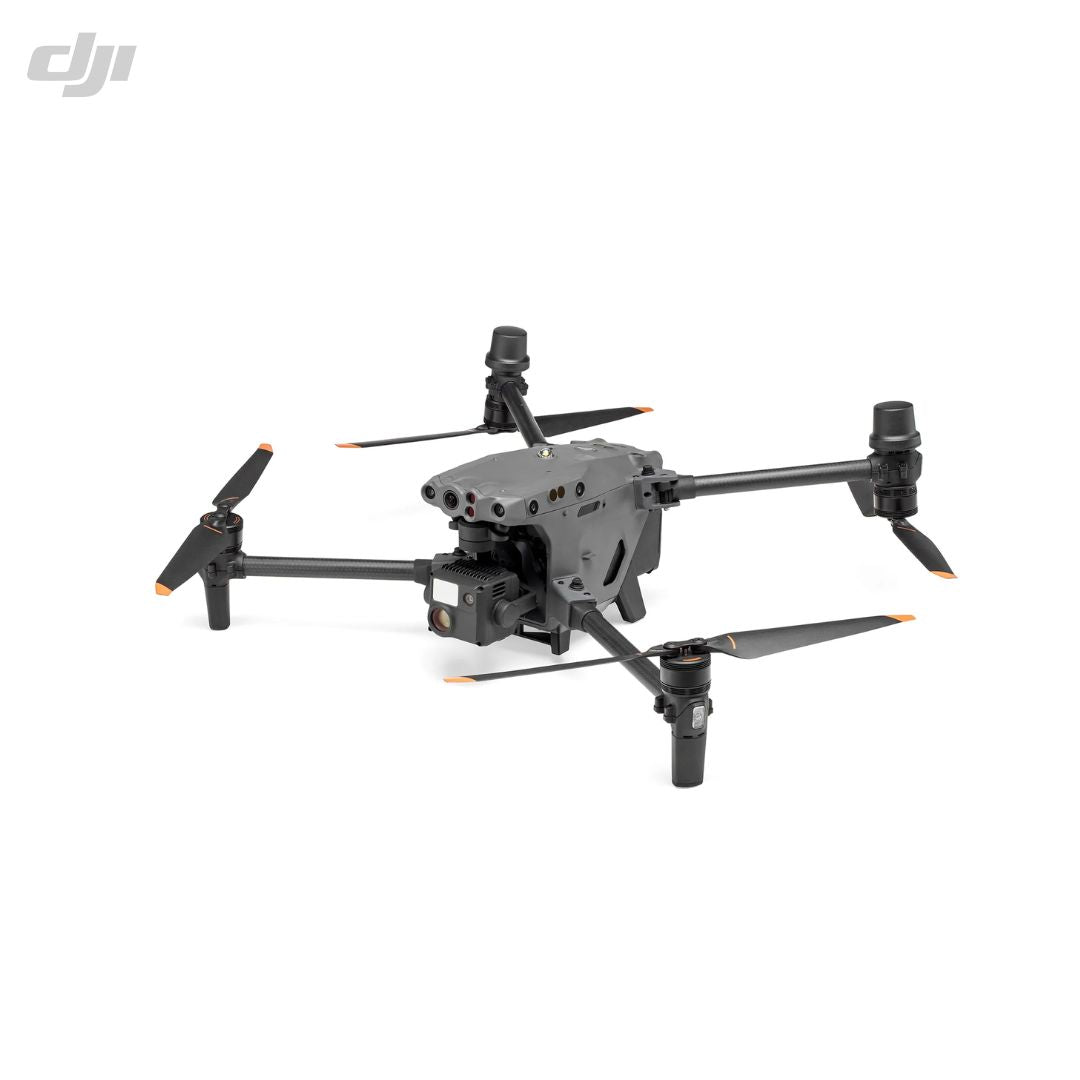

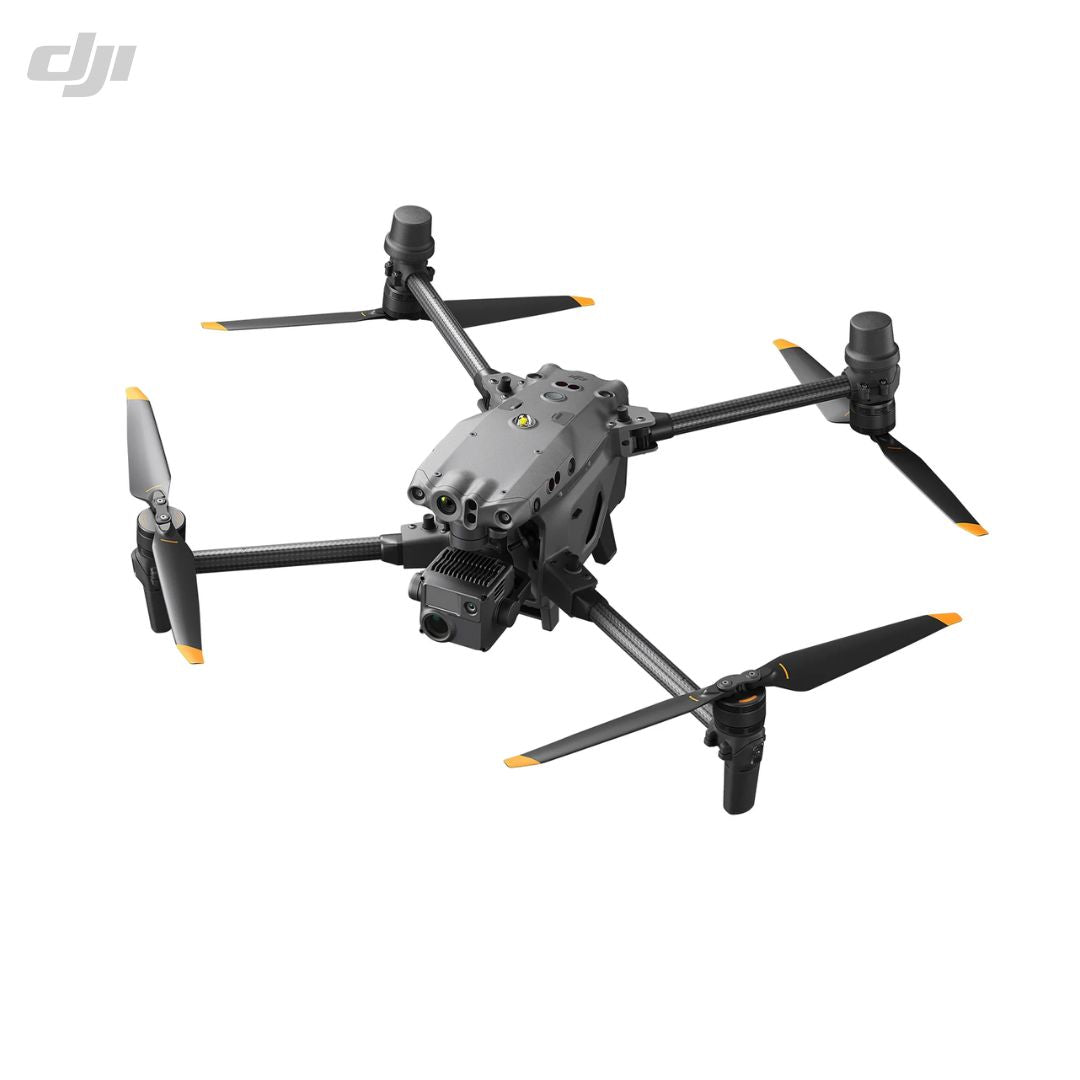

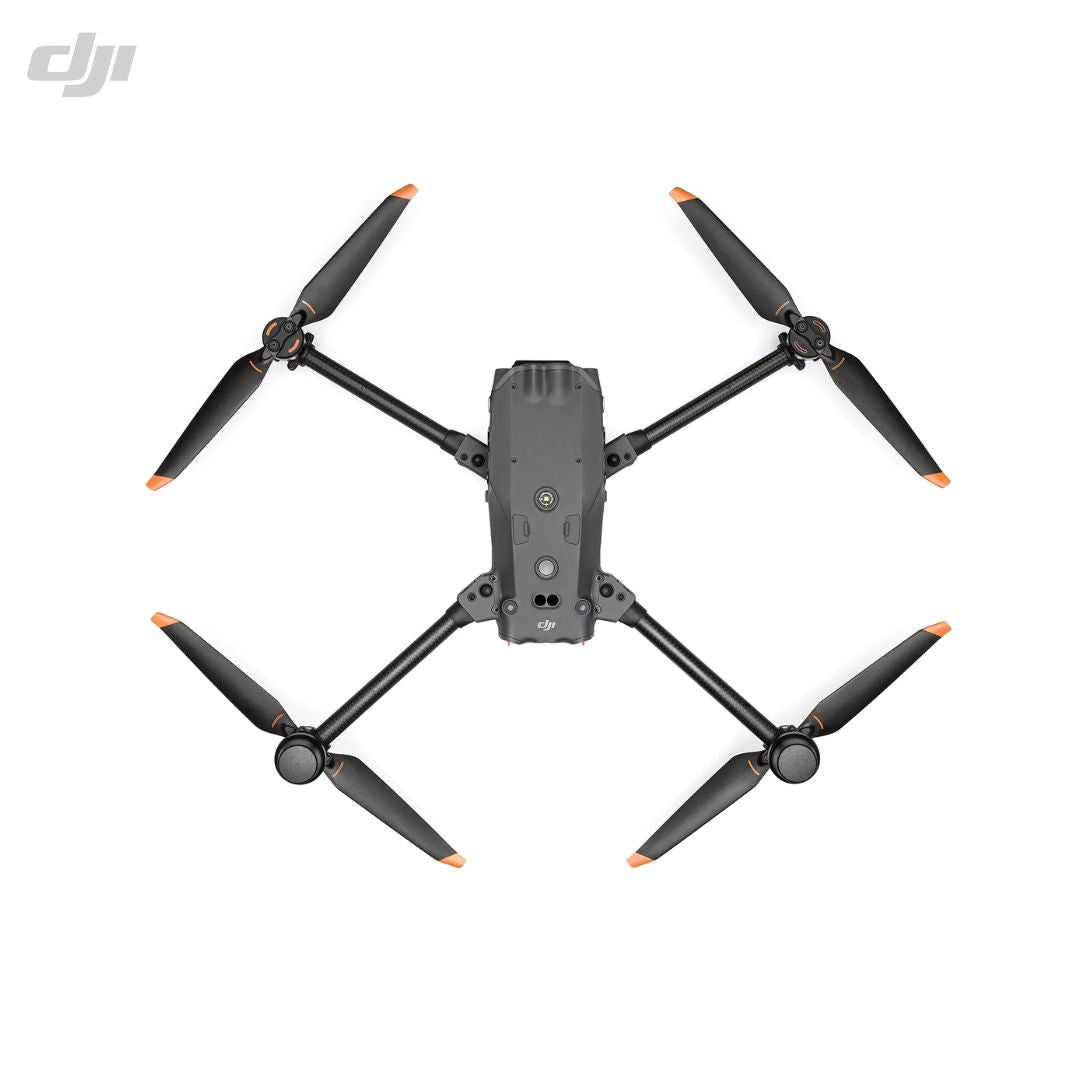

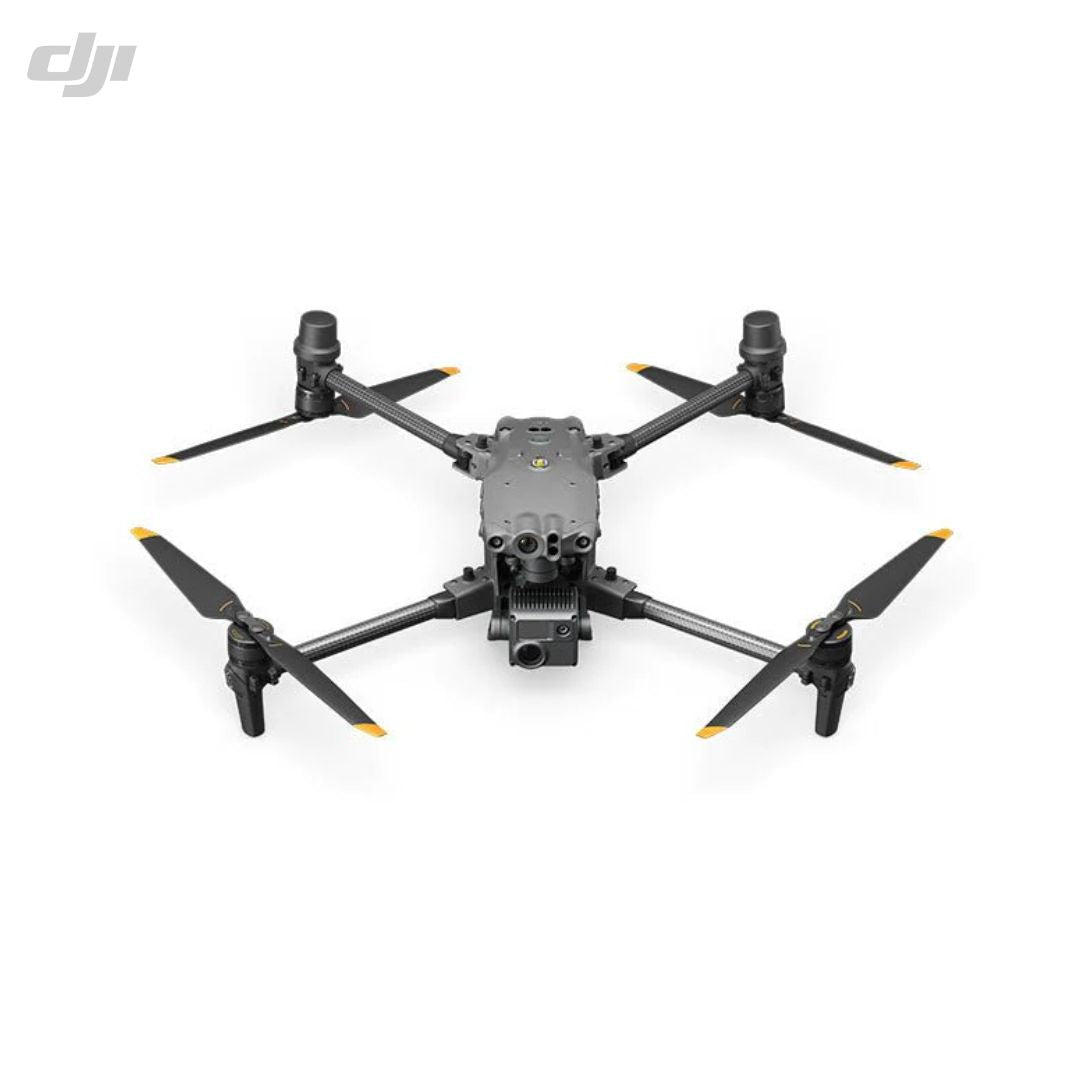

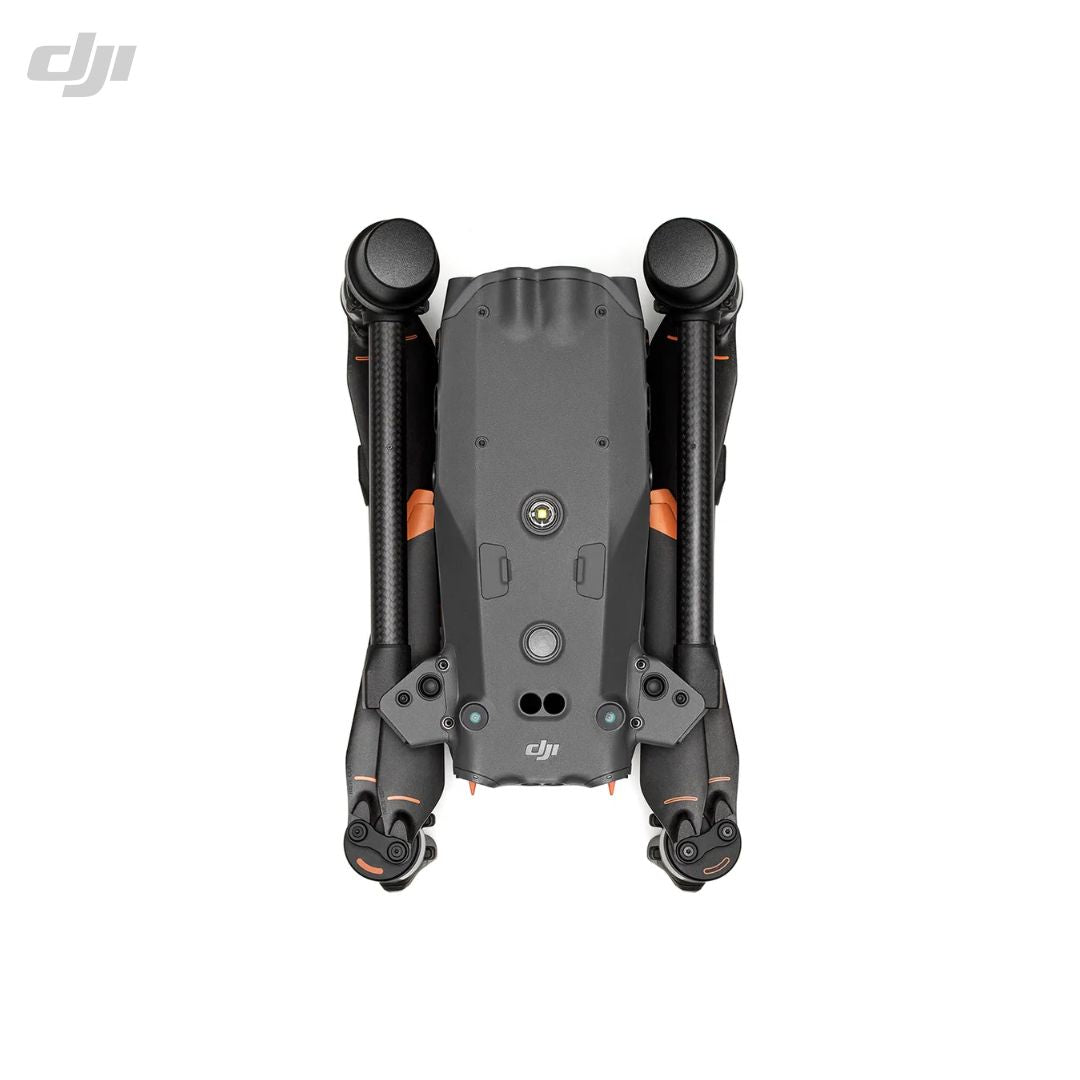

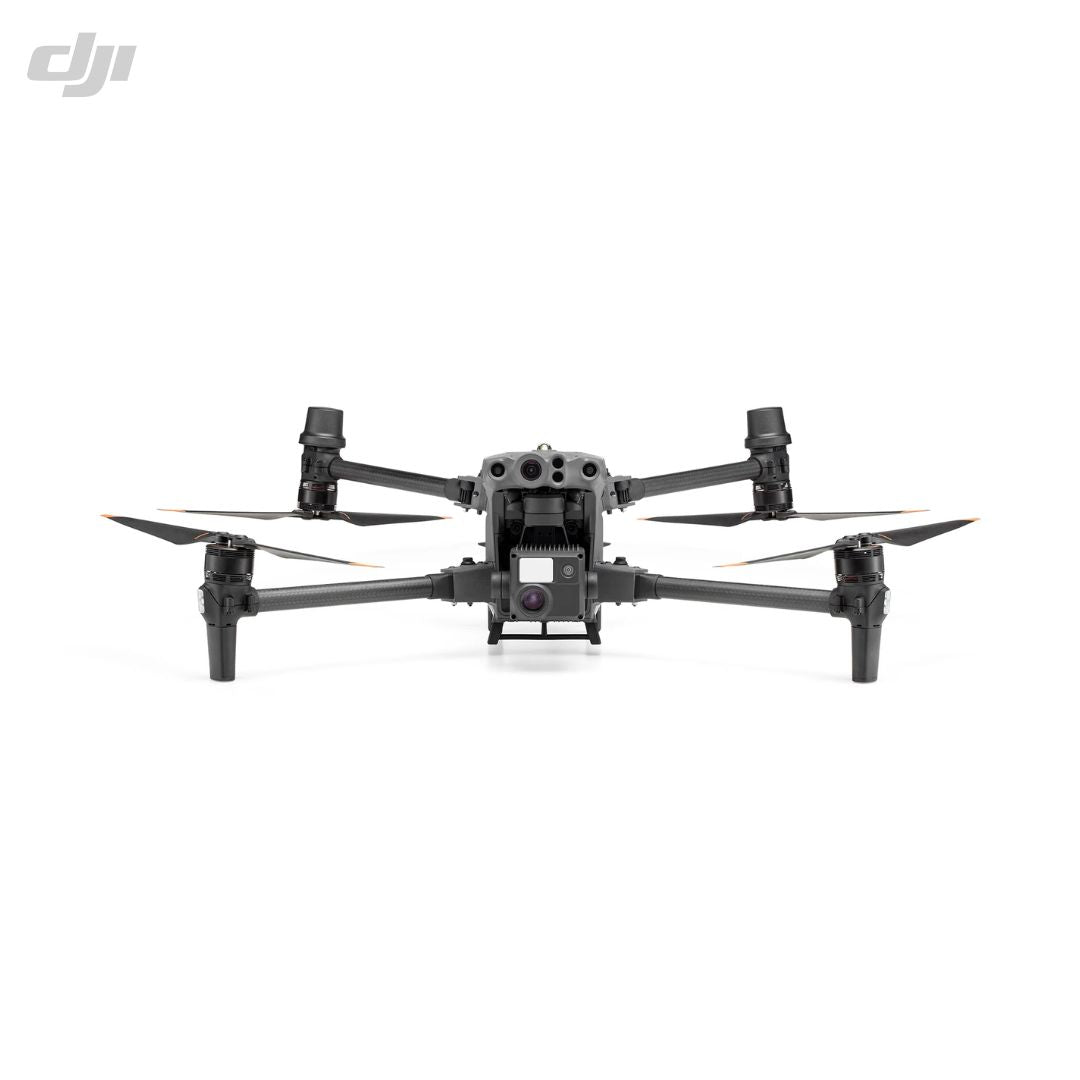

The new DJI Matrice 30 is DJI Enterprise’s flagship drone that fits in a backpack. It integrates multiple high-performance sensors into one single camera payload, is controlled with an ingenious redesigned remote control and runs on upgraded Pilot 2 software, which significantly improves the flight experience.
The M30 model offers much more power, endurance and capability for rugged professional uses, while its size makes it ideal for easy transportation and fast setup.
Specifications
Aircraft Details |
|
|
Dimensions: |
470×585×215 mm (unfolded, excl. propellers) 365×215×195 mm (folded) |
|
Weight: |
(incl. two batteries) 3780 g |
|
MTOW: |
4069 g |
|
Operation Frequency: |
2.4000-2.4835 GHz; 5.725-5.850 GHz |
|
Hovering Accuracy: |
Vertical ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) Horizontal ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK) |
|
Max Angular Velocity: |
Pitch 150°/sec Yaw 100°/sec |
|
Max Pitch Angle: |
35° (N-mode and Forward Vision System enabled: 25°) |
|
Max Ascent Speed: |
6 m/s |
|
Max Descent Speed: |
5 m/s |
|
Max Tilt Descent Speed: |
7 m/s |
|
Max Horizontal Speed: |
23 m/s |
|
Max Wind Resistance: |
12 m/s |
|
Max Hover Time: |
36 minutes |
|
Max Flight Time: |
41 minutes |
|
GNSS: |
GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled) |
|
Operating Temperature: |
-20° to 50° C (-4° to 122° F) |
In The Box
| Aircraft Body |
Accessories
Gimbal |
|
|
Angular Vibration Range: |
±0.01° |
|
Controllable Range: |
Pan ±90° Tilt -120° to +45° |
|
Mechanical Range: |
Pan ±105° Tilt -135° to +60° Roll ±45° |
Zoom Camera |
|
|
Sensor: |
1/2" CMOS, Effective pixels 48M |
|
Lens: |
Focal length 21-75 mm (equivalent 113-405 mm) Aperture f/2.8-f/4.2 | Focus 5 m to ∞ |
|
Exposure Compensation: |
±3 ev (using 1/3 ev as step length) |
|
Electronic Shutter Speed: |
(auto-mode) Photo 1/8000-1/2 s Video 1/8000-1/30 s |
|
Electronic Shutter Speed: |
(manual) Photo 1/8000-8 s Video 1/8000 -1/30 s |
|
ISO Range: |
100-25600 |
|
Max Video Resolution: |
3840×2160 |
|
Max Photo Size: |
8000×6000 |
Wide Camera |
|
|
Sensor: |
1/2" CMOS, Effective pixels 12M |
|
Lens: |
DFOV 84° | Focal length 4.5 mm (equivalent 24 mm) Aperture f/2.8 | Focus 1 m to ∞ |
|
Exposure Compensation: |
±3 ev (using 1/3 ev as step length) |
|
Electronic Shutter Speed: |
(auto-mode) Photo 1/8000-1/2 s Video 1/8000-1/30 s |
|
Electronic Shutter Speed: |
(manual) Photo 1/8000-8 s Video 1/8000-1/30 s |
|
ISO Range: |
100-25600 |
|
Max Video Resolution: |
3840×2160 |
|
Photo Size: |
4000×3000 |
FPV Camera |
|
|
Resolution: |
1920×1080 |
|
DFOV: |
161° |
|
Frame Rate: |
30 fps |
