Description

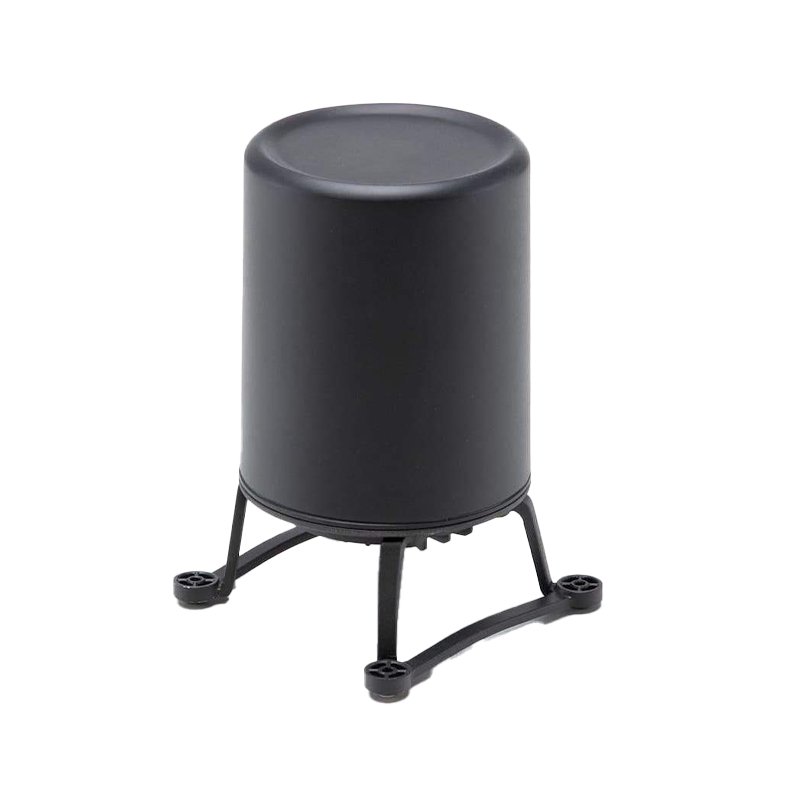

The Circular Scanning Millimetre-Wave (CSM) Radar is a bolt-on object detection system for the DJI M300 RTK and the DJI M350 RTK - which can be used at night and can detect objects such as wires and branches.
It offers 360° horizontal detection to further enhance flight safety and situational awareness.
Specifications
|
Ingress Protection Rating: |
IP45 |
| Detection Range: | 5-98ft (1.5 - 30m) |
| Power Rating: | 12W |
| Operation Frequency: | 24GHz |
| Ambient Temperature: | 5 ~ 40°C (41 ~ 104°F) |
Key Features
| Detect Thin Obstacles: | Use the radar to detect obstacles such as wires, powerlines, and branches |
| Enhance Situational Awareness: | The CSM Radar augments the six collision detection sensors on the DJI M350 RTK and M300 RTK, covering their blind spots |
| Comprehensive Coverage: | The CSM Radar has a detection distance of 1.5 - 30 metres (5 - 98 feet). It offers the following directional coverage: 360° horizontal; 60° vertical; 45° upper |
| Braking And Warning System: | Pre-set the obstacle braking distance to stop the drone when it comes close to an object. The warning system - with slow-beeping function - adds another layer of safety |
| Night-Time Operations: | Can be used at night when the drone's built-in vision system is not functional |
