Description

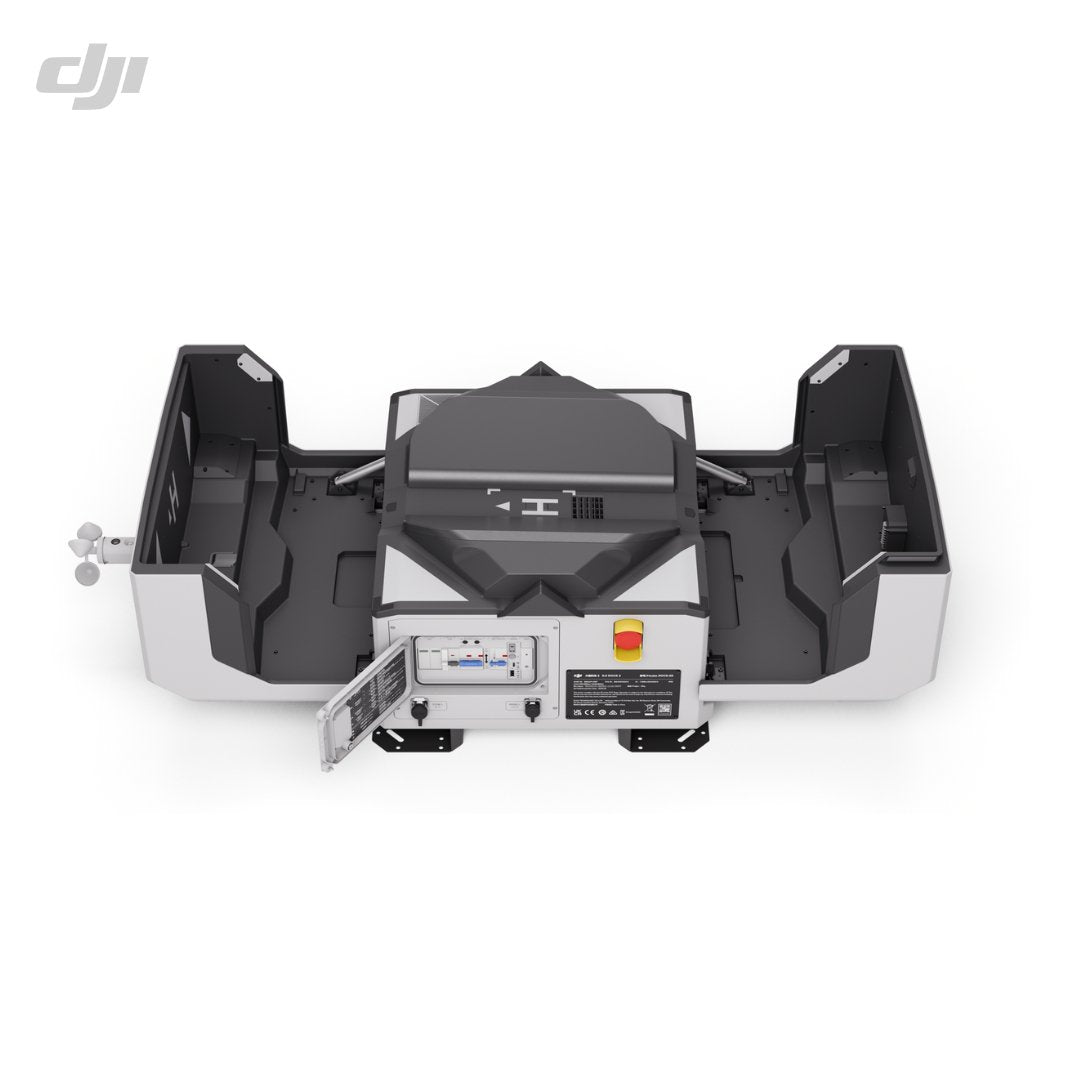

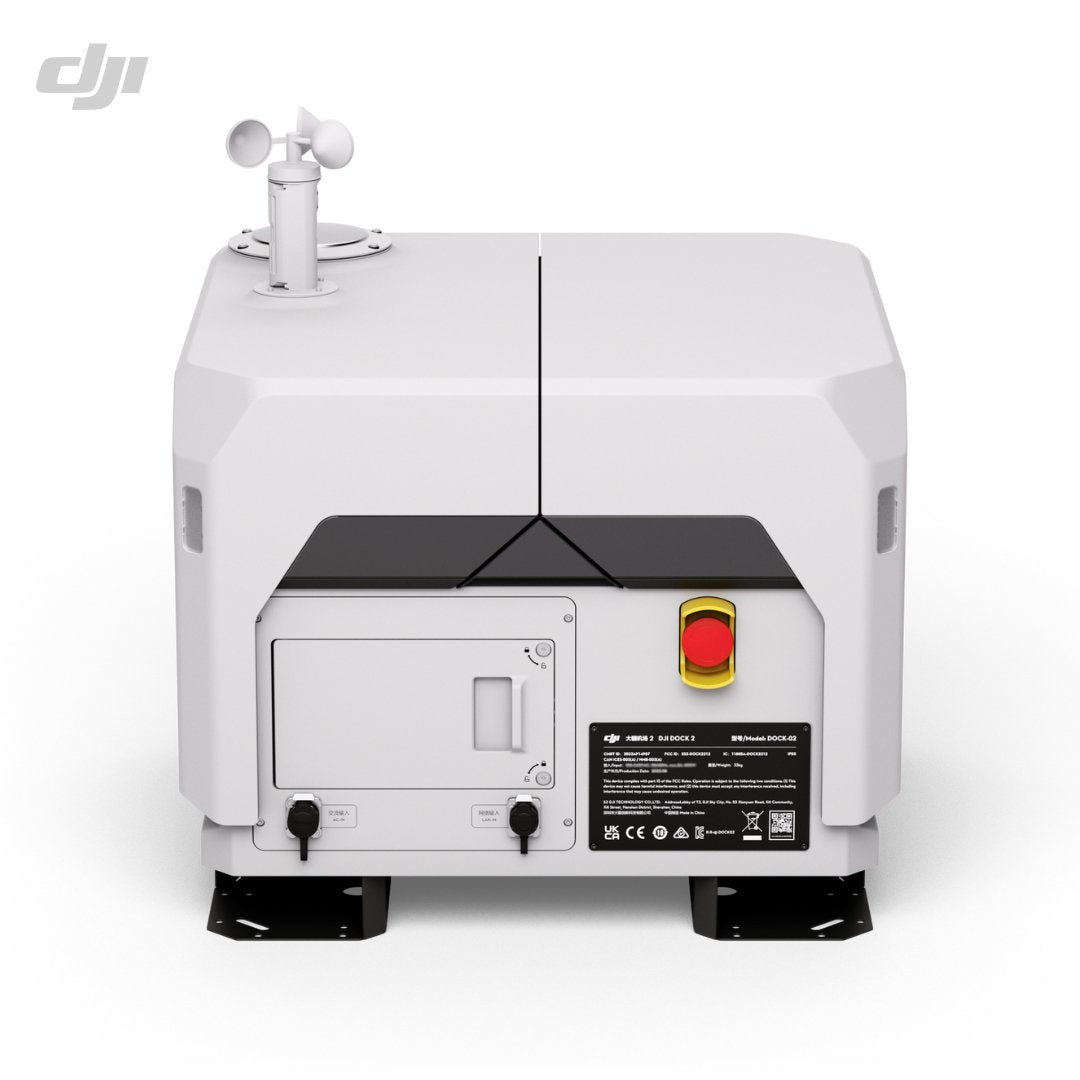

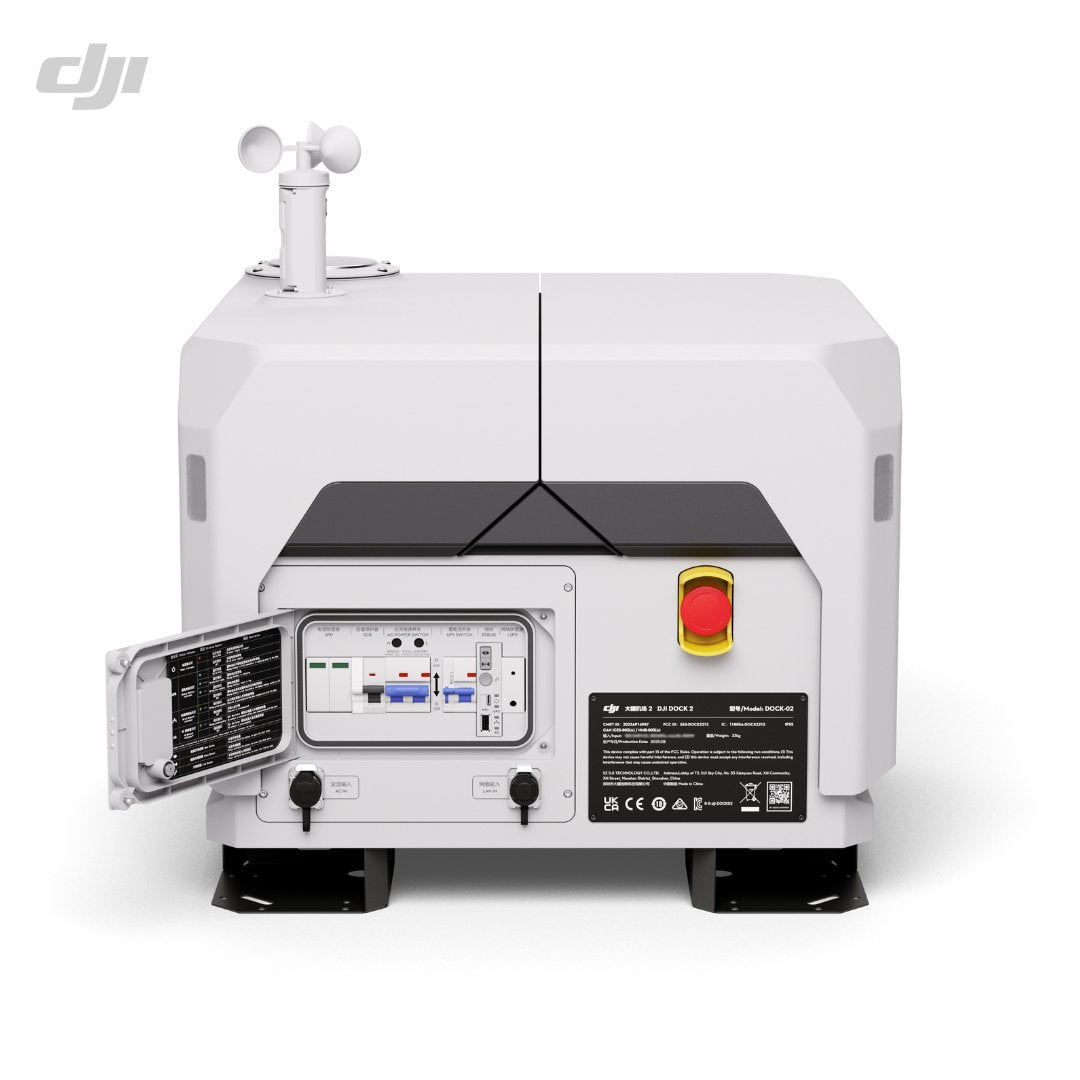

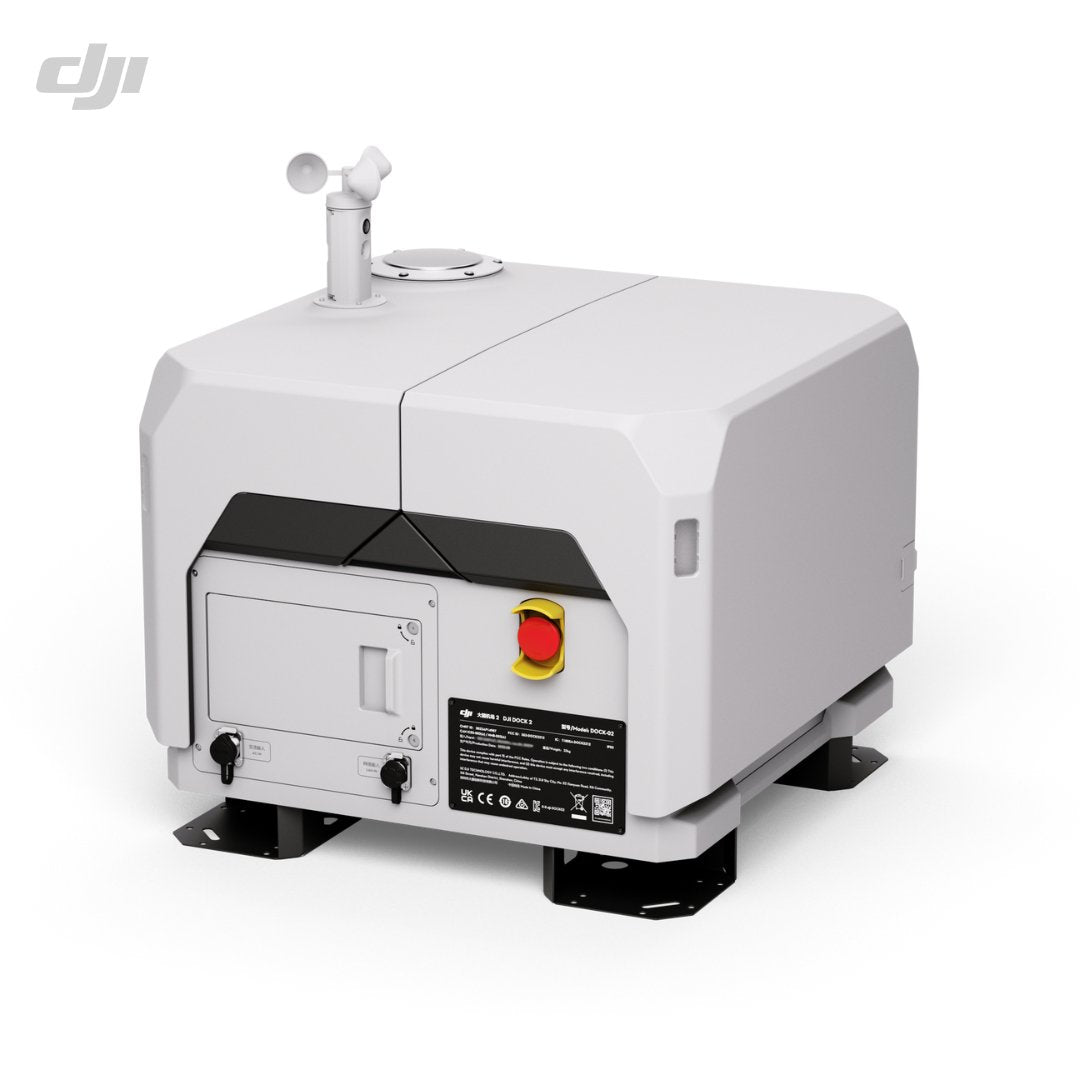

The DJI Dock 2 represents a significant advancement over its predecessor, effortlessly deploying the Matrice 3D or 3TD drones with enhanced efficiency and security. Despite its smaller size, it packs a punch with its impressive capabilities, offering seamless integration and operation. Its lightweight design ensures ease of transportation and deployment, while its advanced features elevate performance levels. Moreover, with cloud-based intelligent functions, the DJI Dock 2 brings unparalleled efficiency and quality to automatic operations, streamlining processes and enhancing overall effectiveness.
Simple Deployment:
Lightweight Design |
Vision-Based Site Evaluation for Quick Site Selection |
Steady Operation:
Quick Take-Off |
Quick Charging |
Dual-Camera Monitoring |
Safe and Reliable:
IP55 Dust and Water Resistant |
Real-Time Weather Change Detection |
Built-in Backup Battery |
Six-Month Maintenance Interval |
Email Notifications for Abnormal Conditions |
Precision Landing |
Cloud-Based Operation:
Cloud Mapping |
Visual Flight Route Editing |
AI Spot-Check |
FlyTo Tasks |
Live Flight Controls via Keyboard and Mouse |
Obstacle Bypass |
Open Ecosystem:
Third-Party Payloads |
Edge Computing |
Private Deployment |
FlightHub 2 Coordination With Private Cloud |
DJI Dock 2 vs DJI Dock 1:
|
DJI Dock 2 |
DJI Dock 1 |
Weight: |
34 kg |
105kg |
Size: |

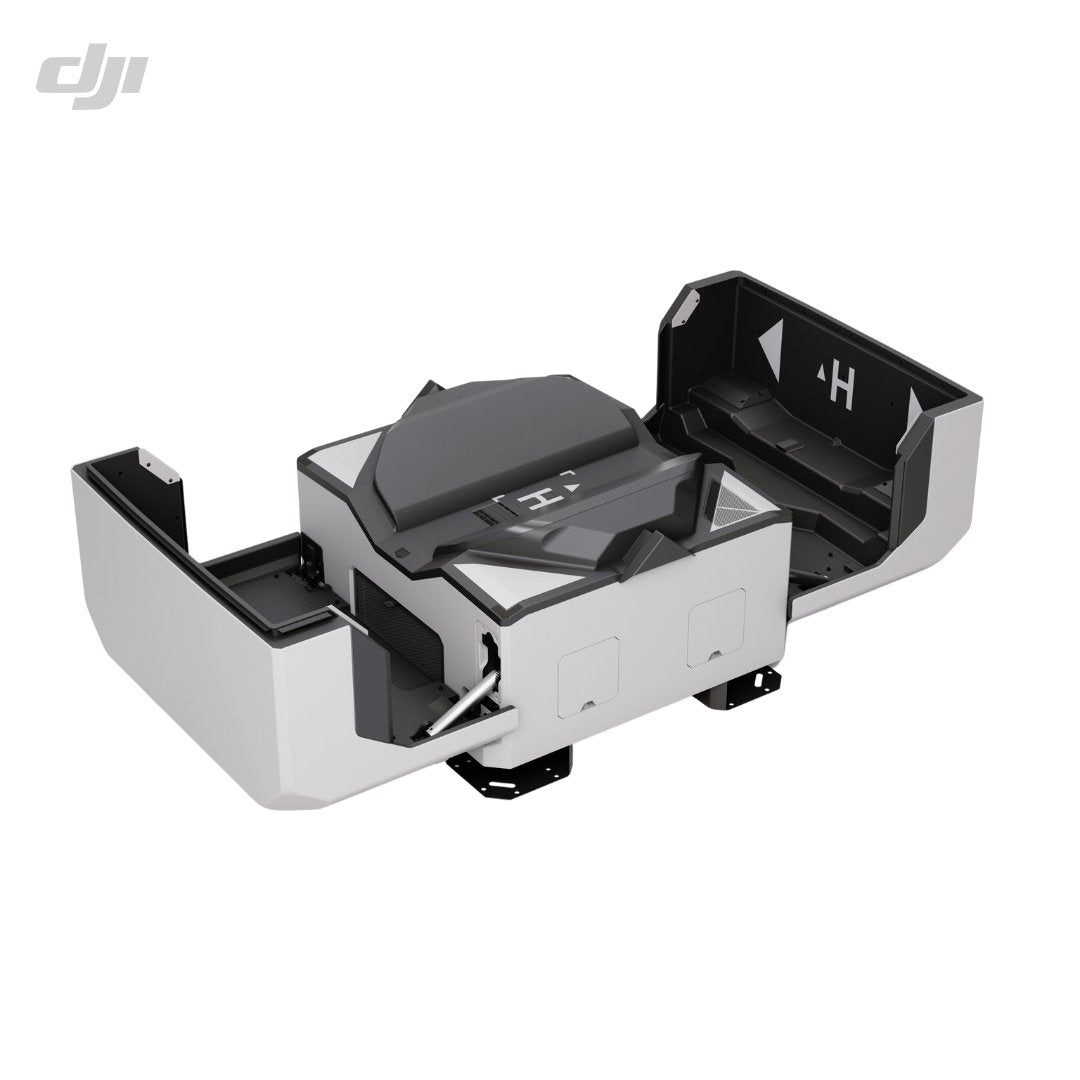

Dock Opened: 1228x583x412mm |
Dock Opened: 1675x885x735mm |

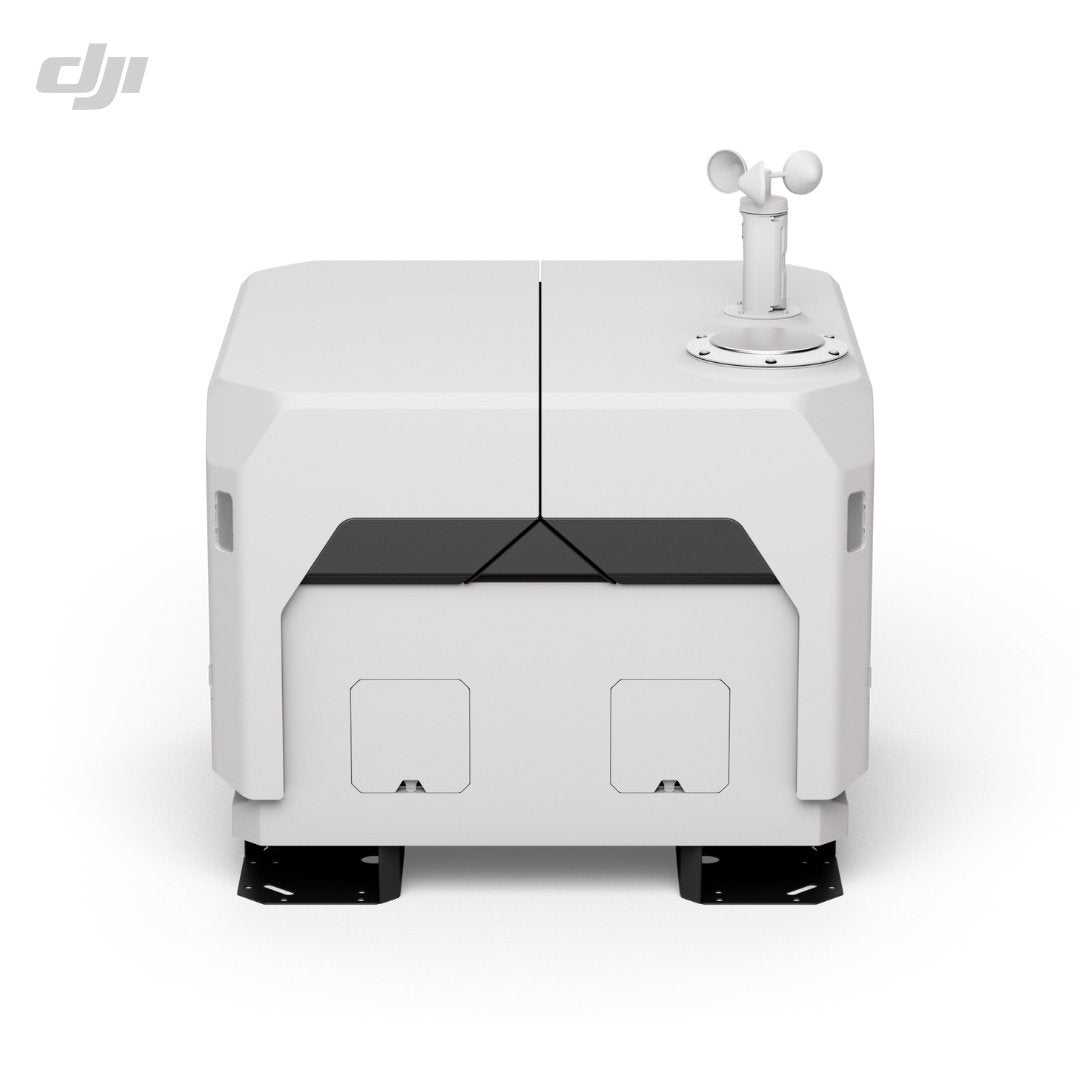

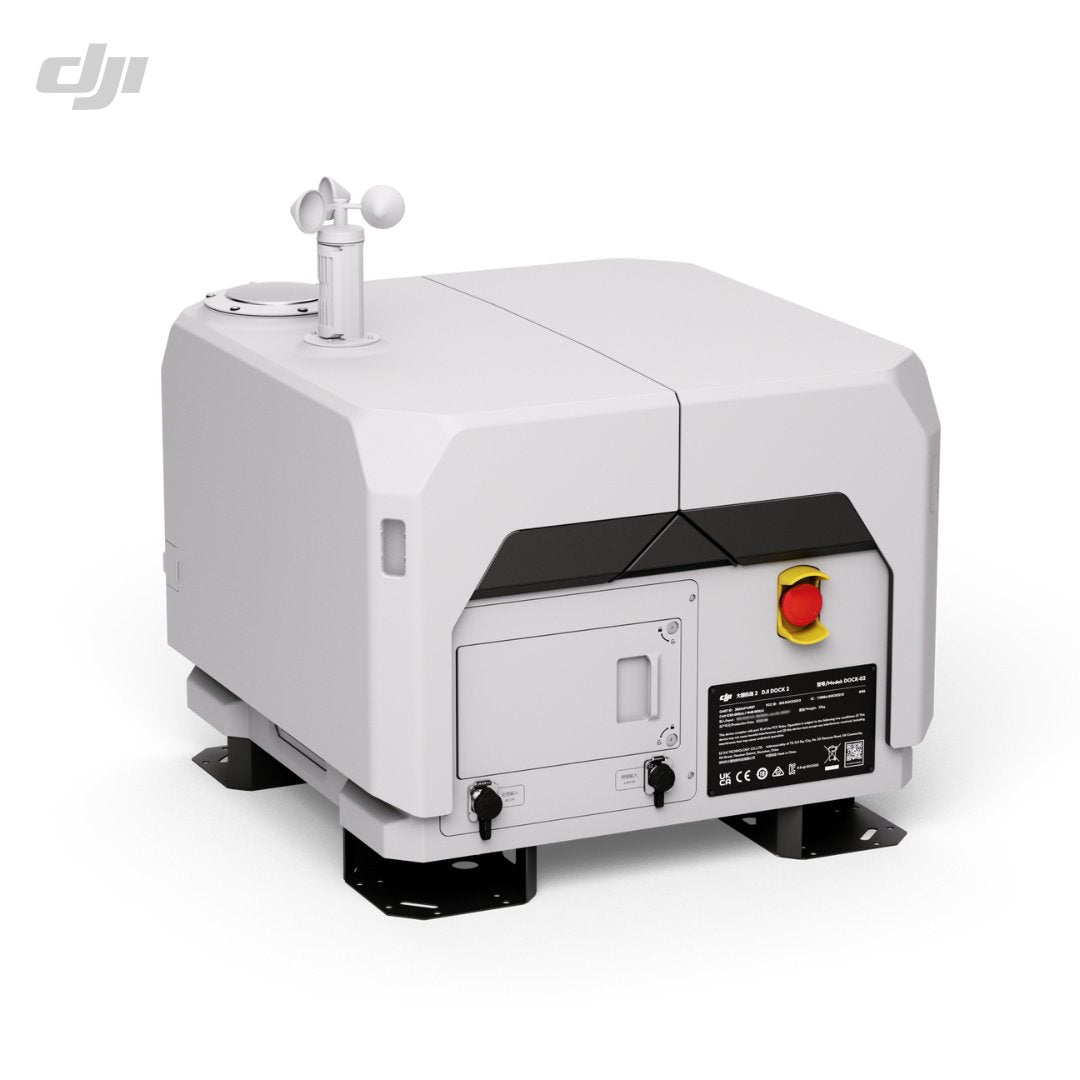

Dock Closed: 570x583x465mm |
Dock Closed: 800x885x1065mm |
|
Input Voltage: |
100 ~ 240 V (AC), 50/60 Hz |
100 ~ 240 V (AC), 50/60 Hz |
Input Power: |
Max 1000 W |
Max 1500 W |
Temperature: |
-25°C ~ 45°C |
-35°C ~ 50°C |
IP Rating: |
IP55 |
IP55 |
Max Take-off Altitude: |
2500 m |
4000 m |
Max Operation Radius: |
10 km |
7 km |
Charge: |
32min(20%-90%) |
25min(10%-90%) |
Battery Cycles: |
400 times |
400 times |
Backup Battery: |
More then 5 hours |
More then 5 hours |
Development: |
Cloud API + Edge computing |
Cloud API + Edge computing |
Monitoring Camera: |
Dual-camera automated switch |
Single camera |
Drone Comparison:
|

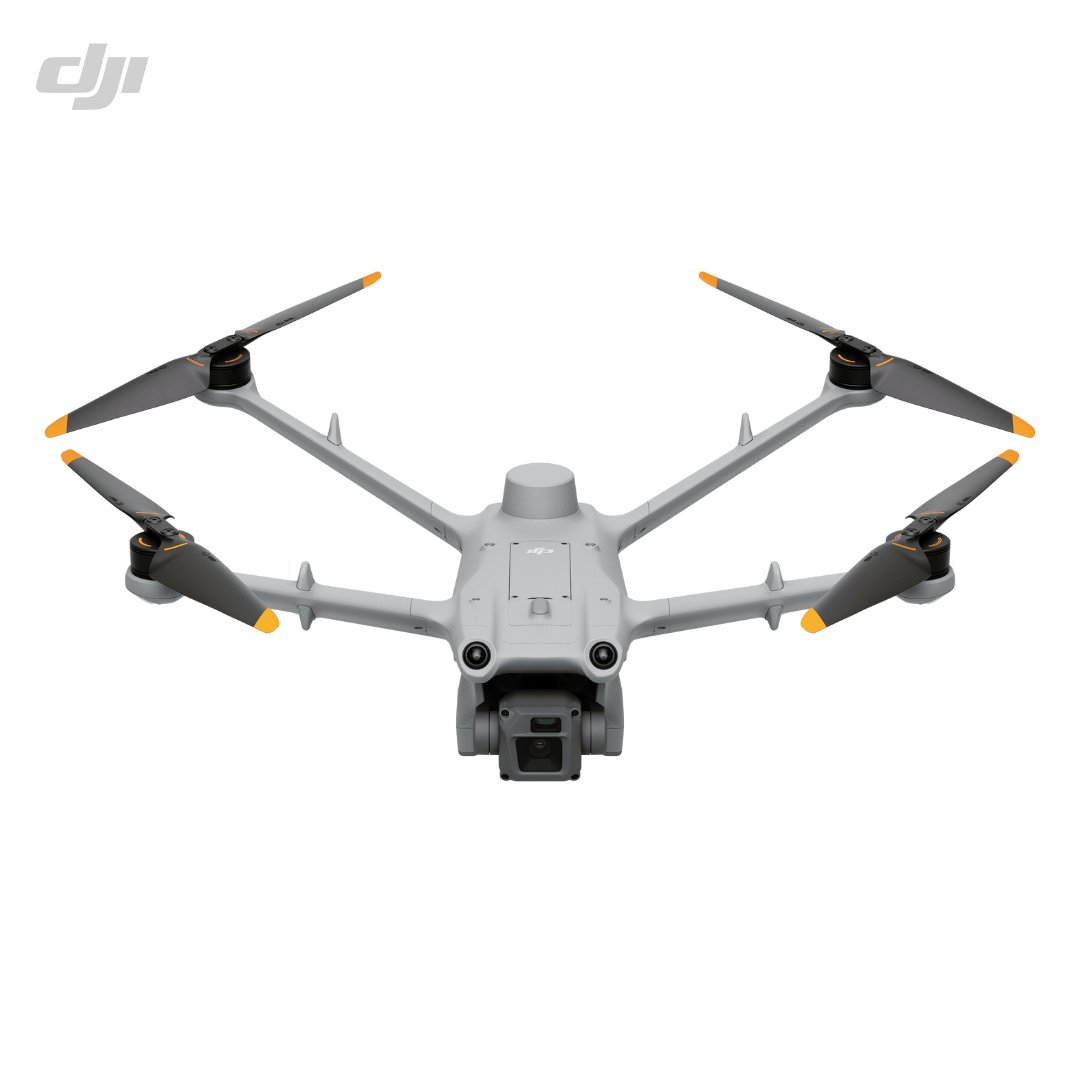

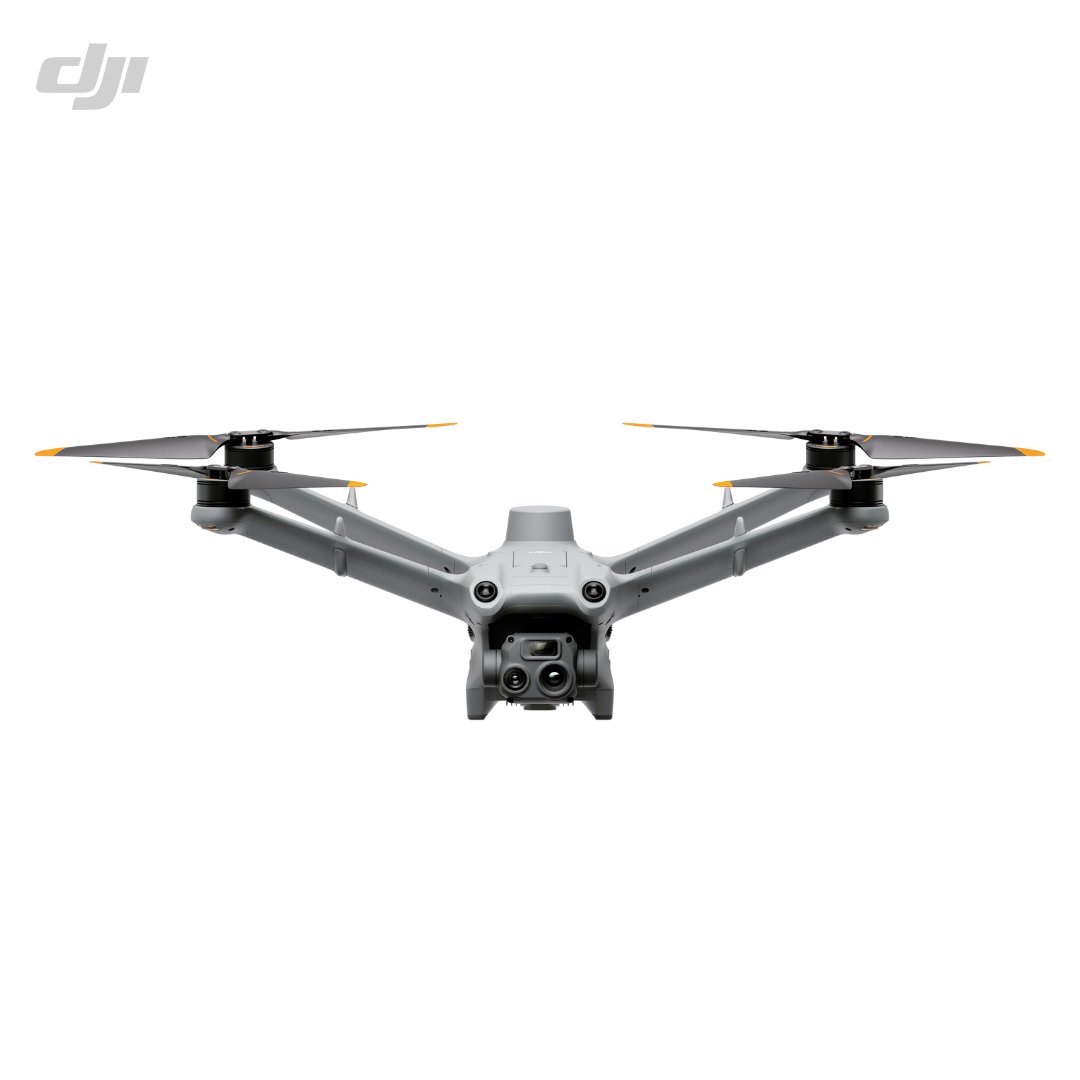

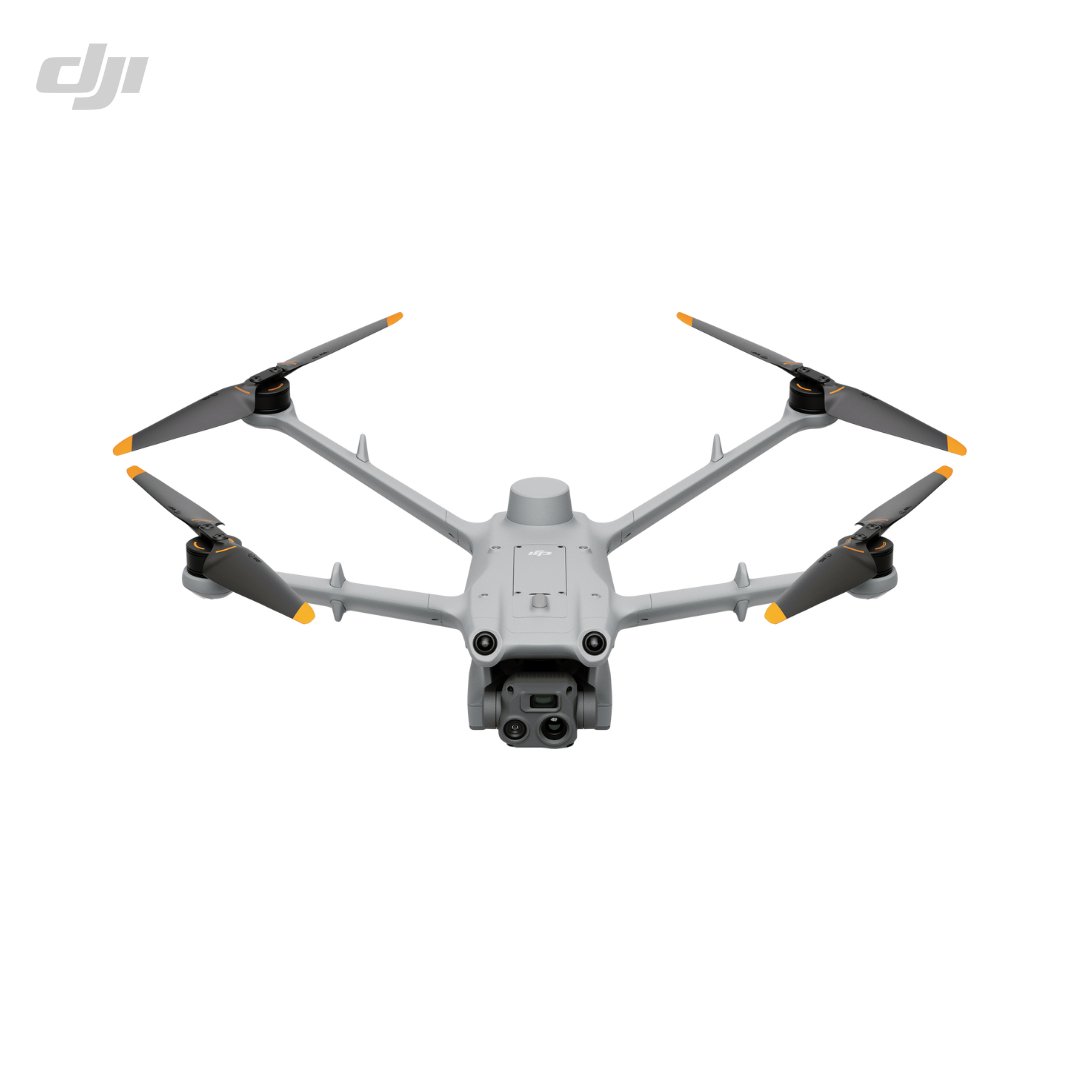

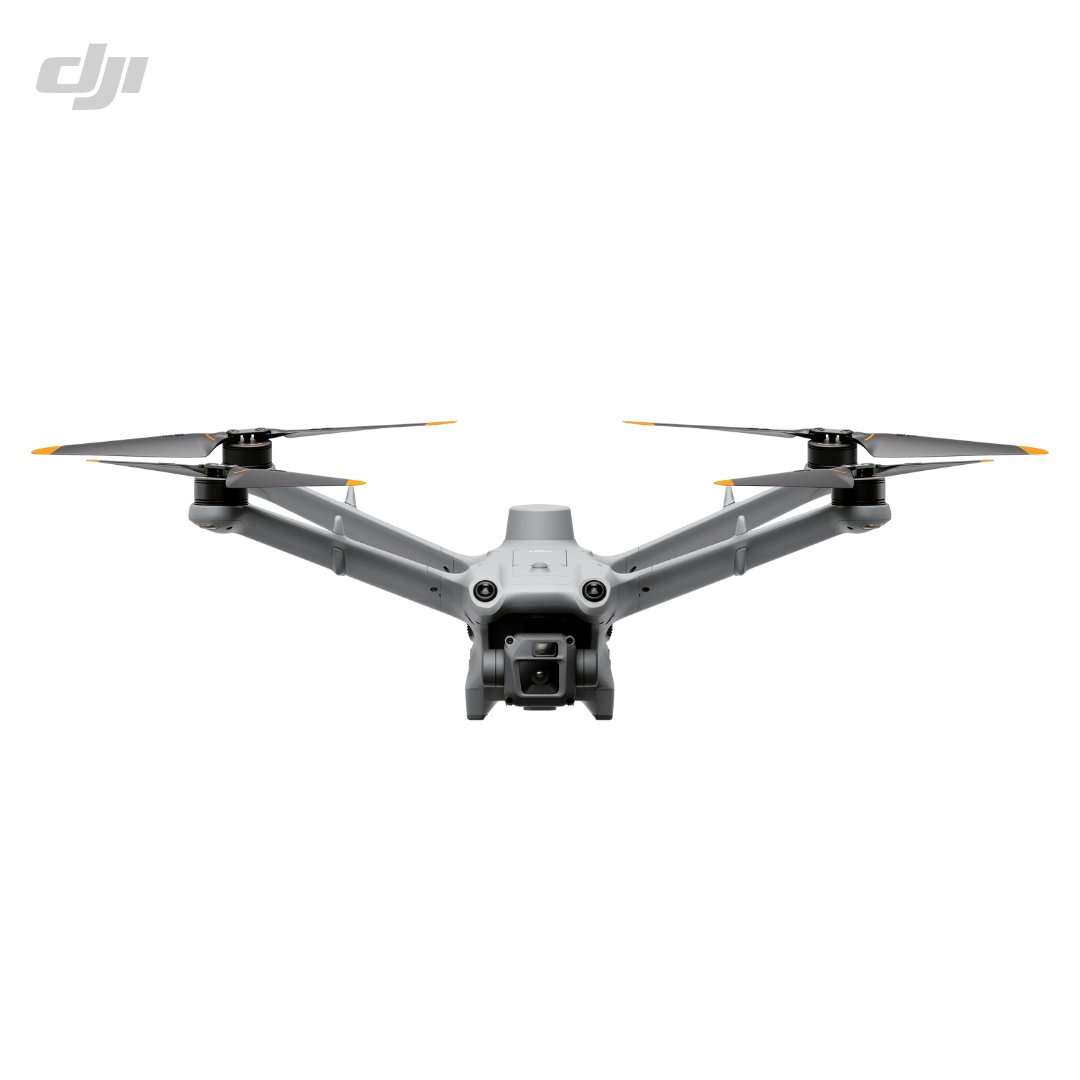

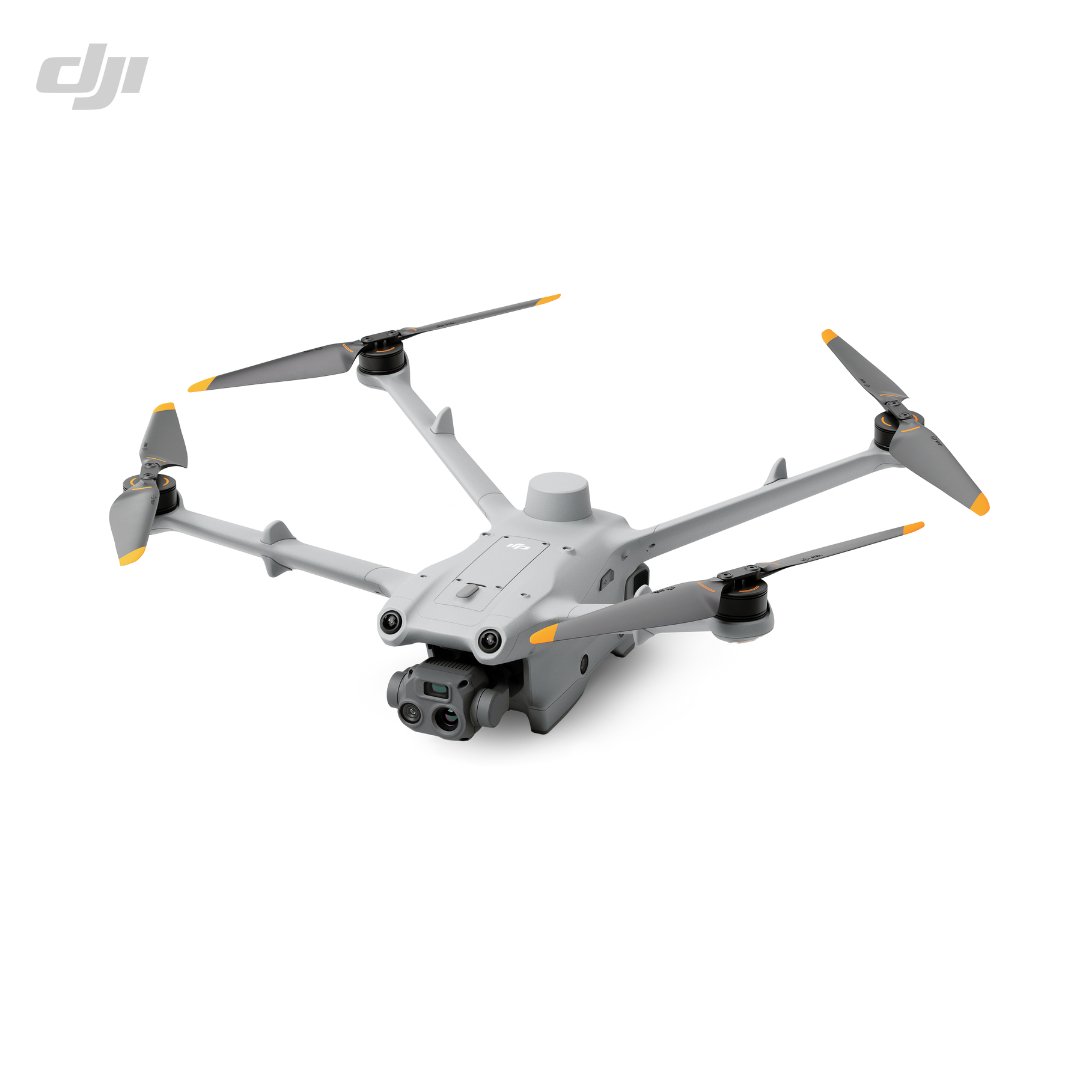

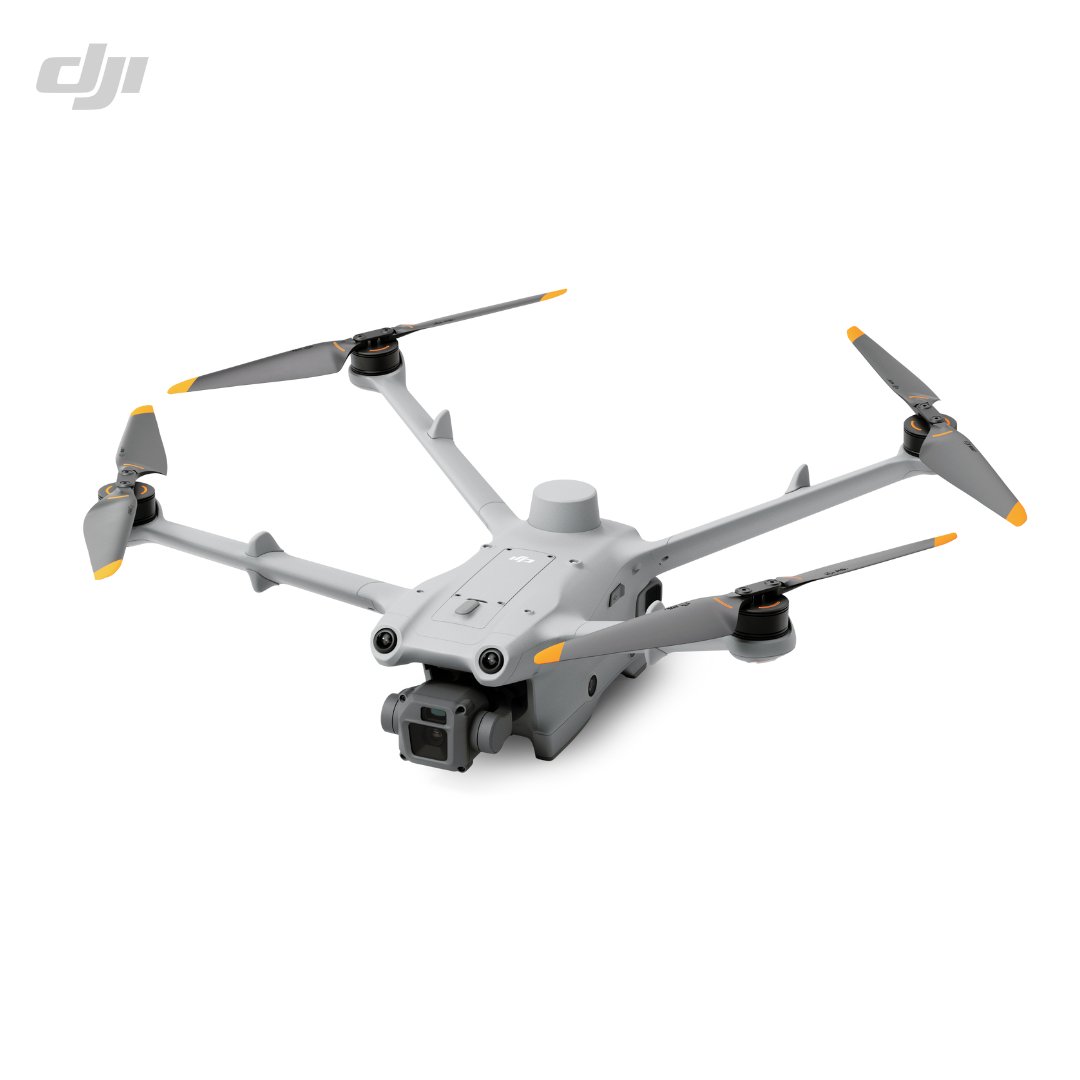

Matrice 3TD |
Mavic 3T |
Matrice 30T (Dock Version) |
Weight (Including Battery): |
1410 g |
920 g |
3870 g |
Size (Unfolded): |
335x398x153mm |
347.5x283x107.7mm |
470x585x246mm |
Max Horizontal Speed:: |
21 m/s |
21 m/s |
23 m/s |
Max Wind Speed Resistance: |
During operation: 12 m/s |
12 m/s |
12 m/s |
Take-off/Landing: 8 m/s |
|
|
|
Max Flight Time: |
50 min |
45 min |
40 min |
Max Hover Time: |
40 min |
38 min |
35 min |
IP Rating: |
IP54 |
Not supported |
IP55 |
Temperature: |
-20°C ~ 45 °C |
-10°C ~ 40°C |
-20°C ~ 50 °C |
Wide Camera: |
1/1.32" CMOS, 48MP |
1/2" CMOS, 48MP |
1/2" CMOS, 12MP |
Zoom Camera: |
1/2" CMOS, 12MP |
1/2" CMOS, 12MP |
1/2" CMOS, 48MP |
56x Hybrid |
56x Hybrid |
5x-16x optical zoom |
|
Thermal Camera: |
640×512@30fps |
640×512@30fps |
640×512@30fps |
Laser Module: |
Not supported |
Not supported |
Supported |
FPV Camera: |
Not supported |
Not supported |
Supported |
