Description
The CZI TK300 tether power supply system comprises drone and ground units, converting single-phase or three-phase AC power into DC high voltage via nickel alloy cables for continuous drone power. It is a lightweight, portable, and highly protective device that can provide up to 80 meters of power via cable to DJI's full range of industrial drones including the Matrice M300 and the M350 RTK drones.
The TK300 can be used for a wide variety of applications, including long-time and large-area emergency lighting, monitoring, and rescue operations.
Specifications
CZI TK300 |
|
Dimensions: |
(L*W*H): 134*92*97 mm |
Weight: |
515g |
Over-Temp Protection: |
80 ℃ |
Over-Current Protection: |
Automatic protection of airborne power supply when output current > 65A |

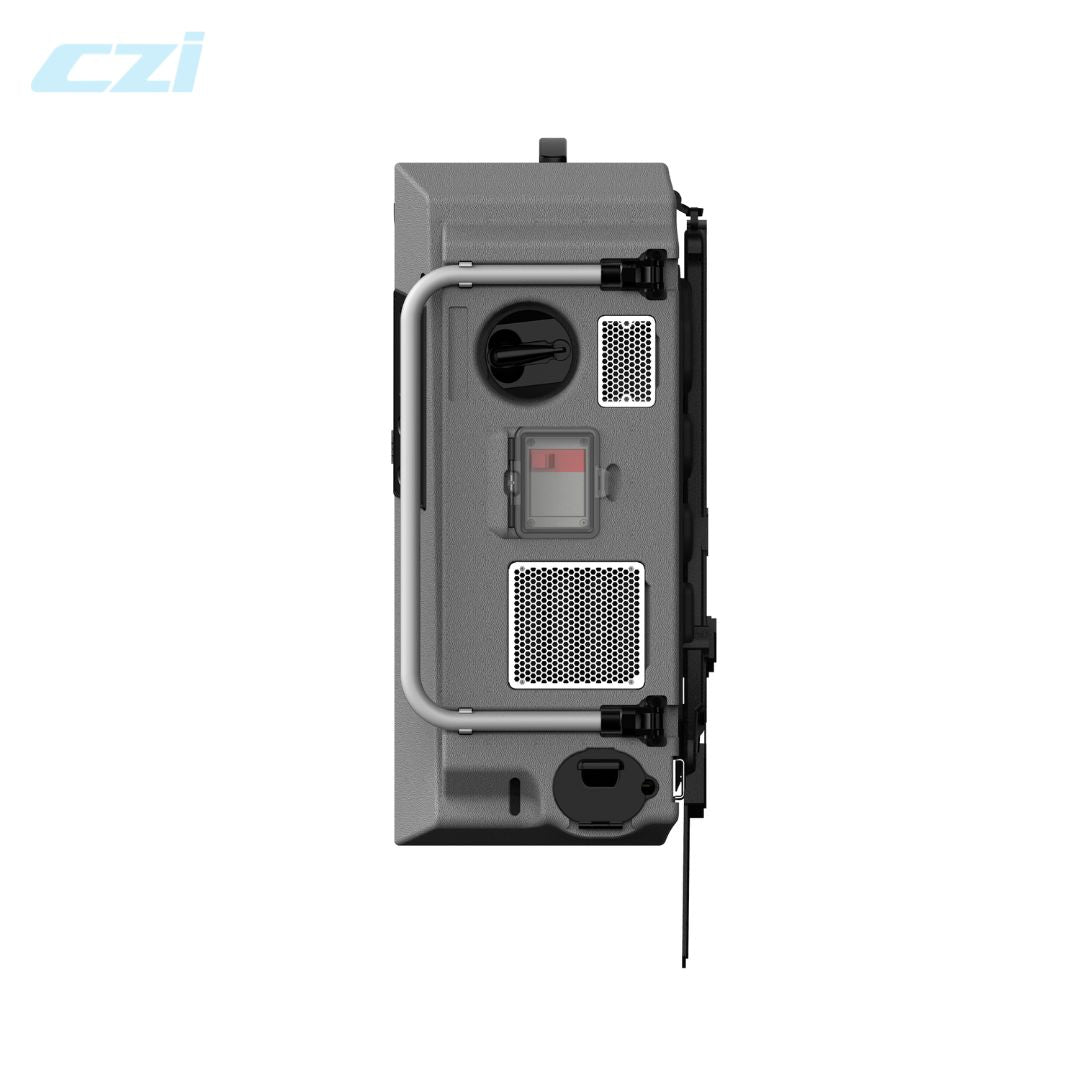

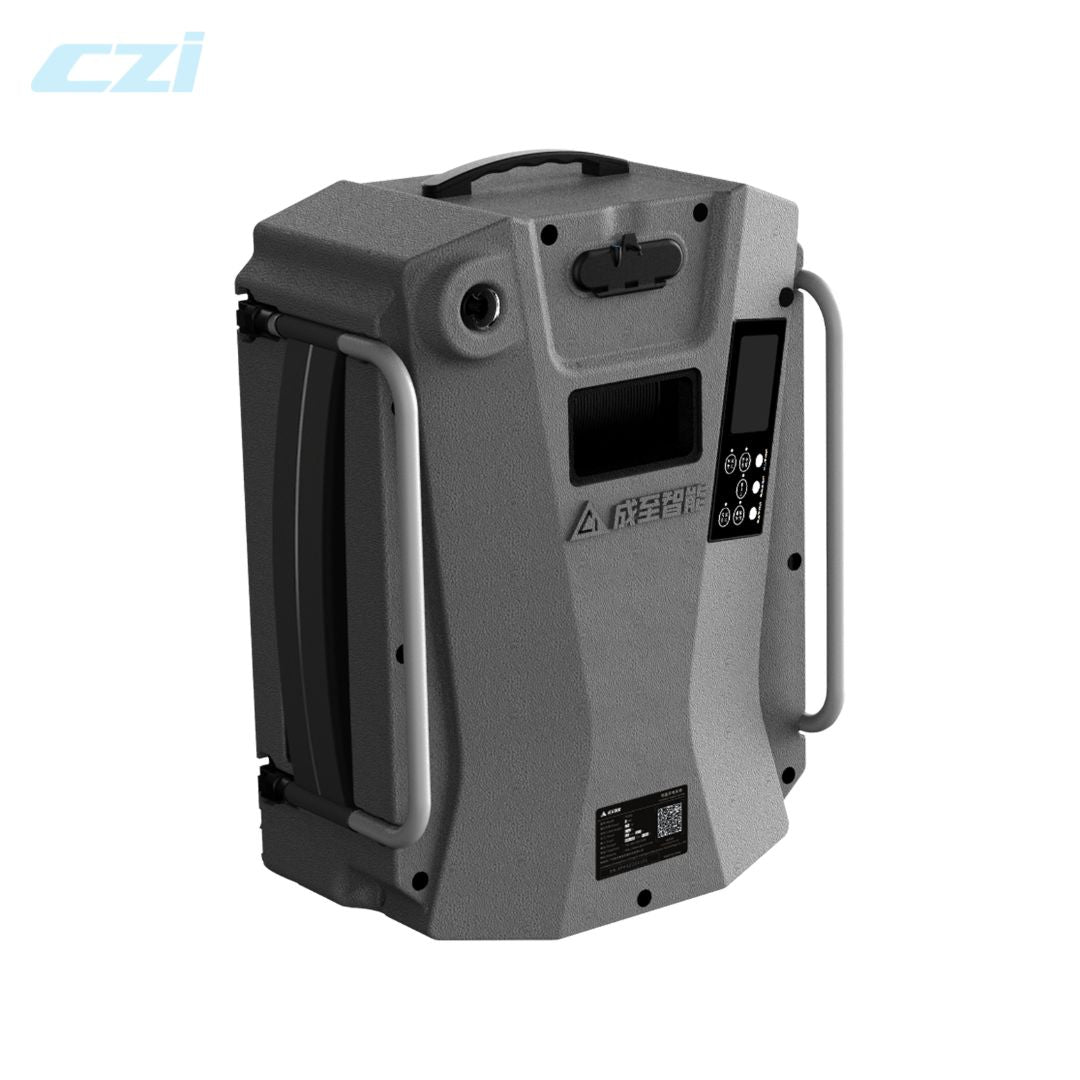

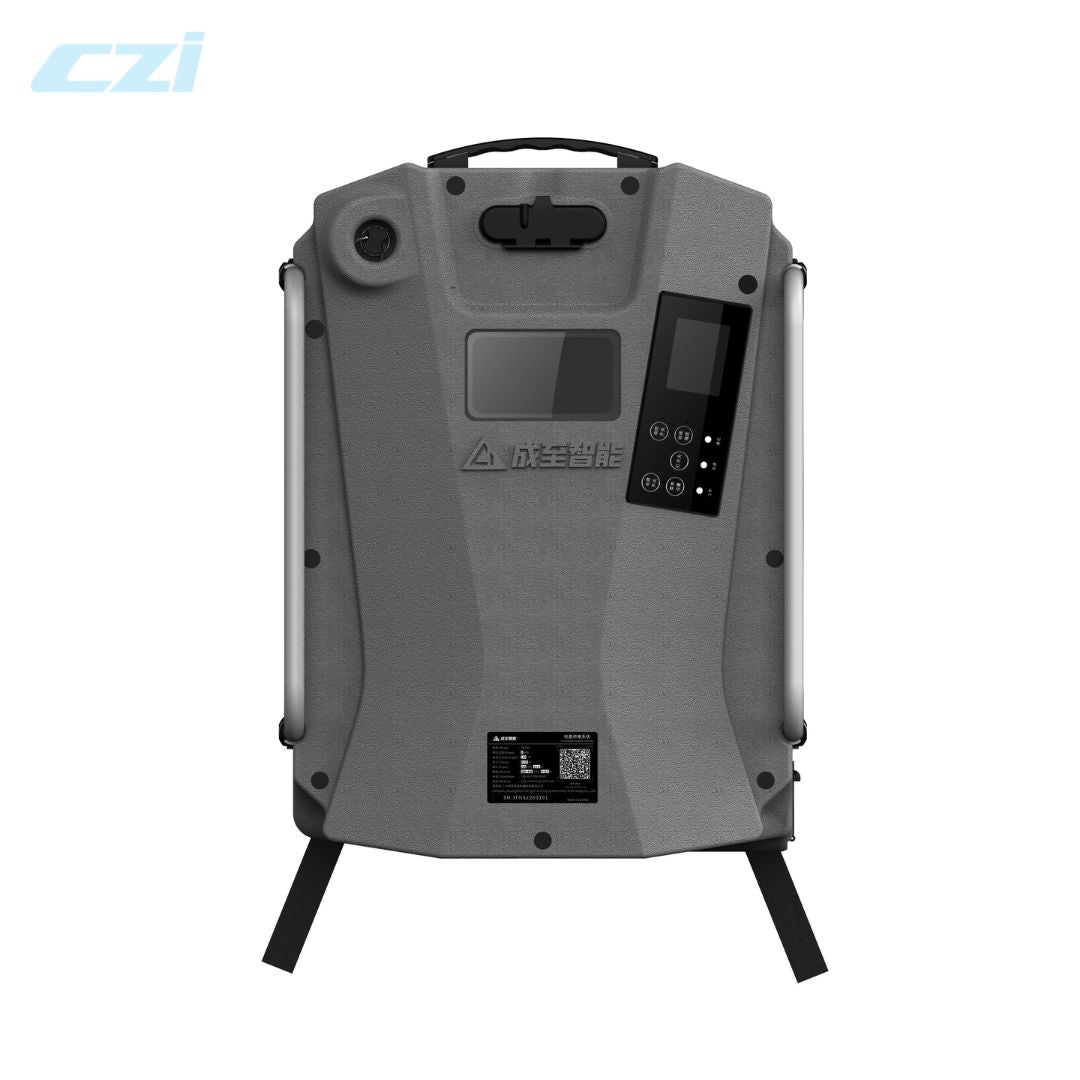

Ground System |
|
Dimensions: |
(L*W*H): 560*390*260mm |
Weight: |
13kg (including cable) |
Power Rating: |
3.0KW |
Carrying Method: |
Backpackable Portable |
Ground Placement: |
2 Folding Brackets |
Cable Length: |
110m |
Rated Input Voltage: |
AC 220 V±10% |
