Description

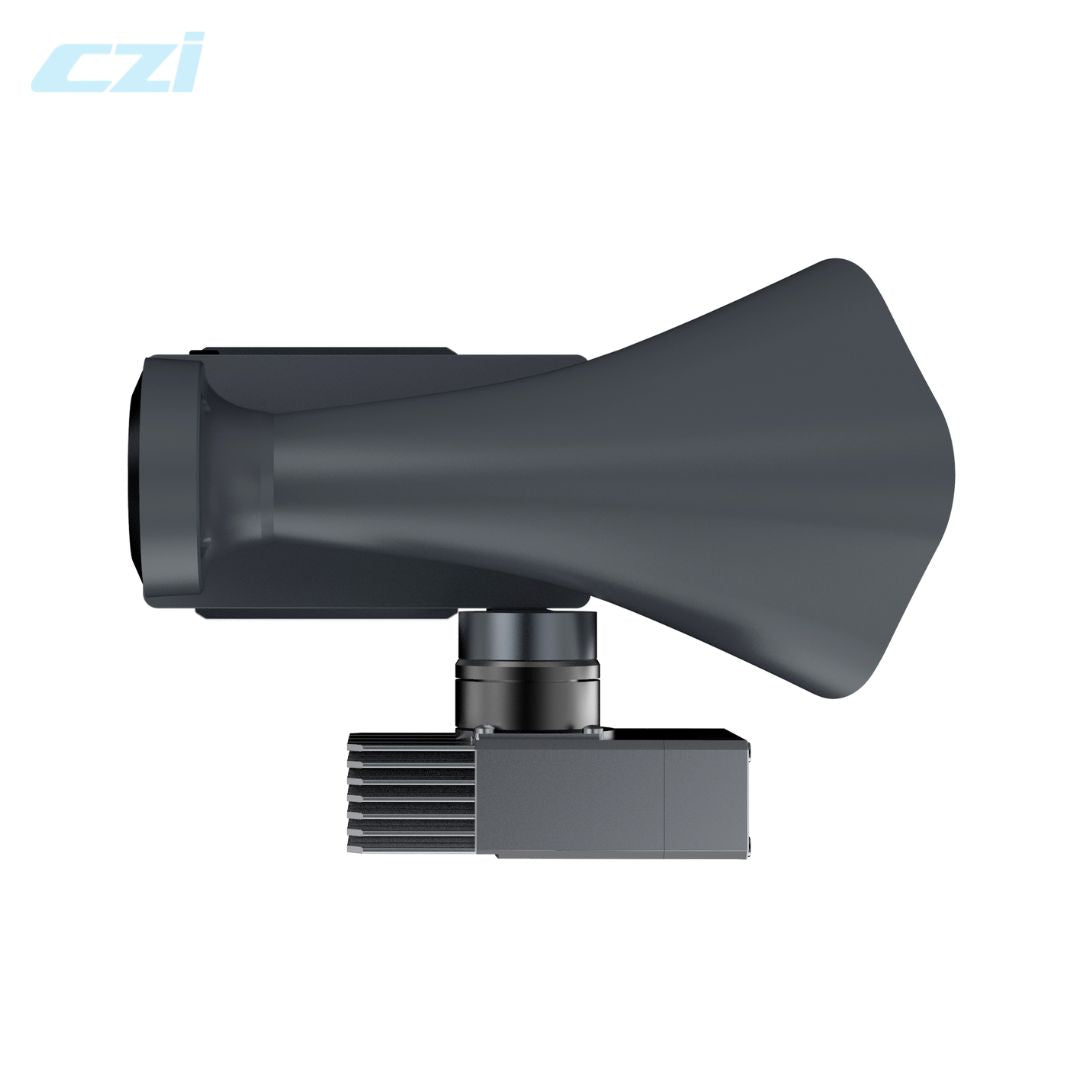

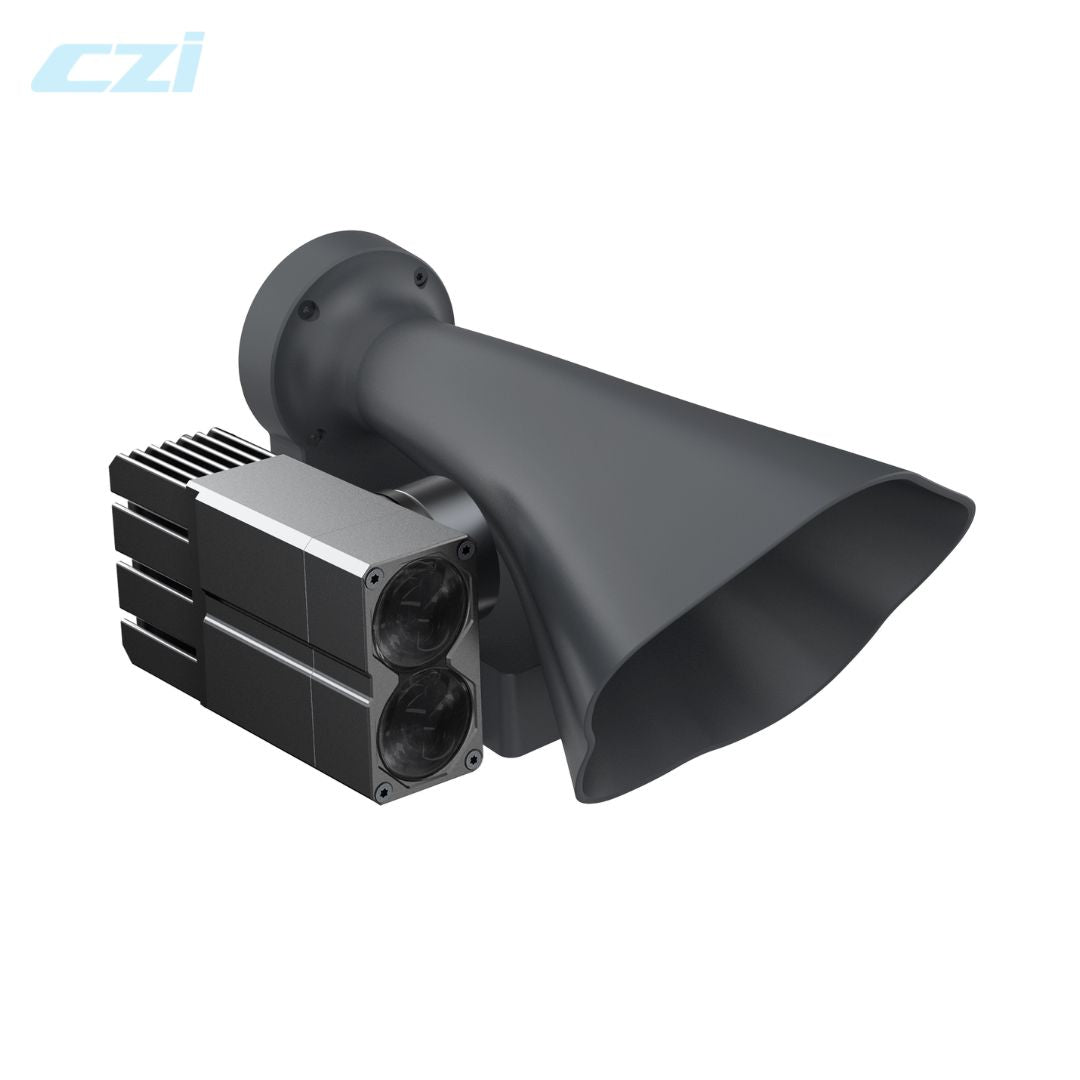

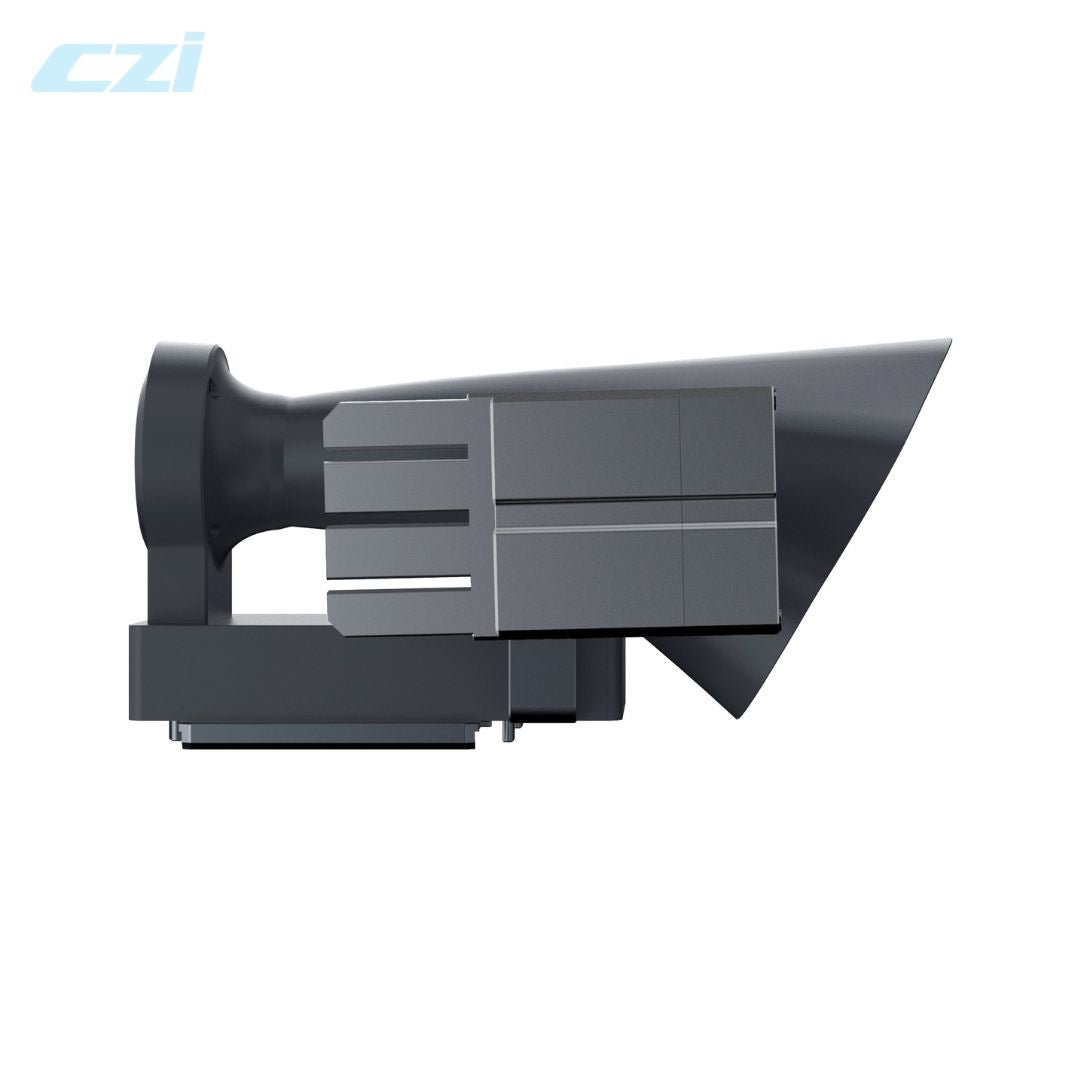

The CZI LP12 is a lightweight and efficient searchlight and broadcasting payload for the DJI M30 drone. It has a streamlined design that reduces wind resistance and improves flight time. The LP12 weighs only 270g and has an effective illumination distance of up to 100 meters. It can also broadcast sound at a distance of up to 200 meters. It is ideal for security patrols and outdoor search and rescue missions. The LP12 is deeply integrated with the DJI Pilot App, making it easy to control the searchlight and broadcasting functions.
The LP12 is one of the most efficient lighting and broadcasting payload product of CZI. It is an ideal product for security patrols and outdoor search and rescue missions.
Specifications
CZI LP12 |
|
|
Dimensions: |
(L*W*H): 156*109*84 |
|
Weight: |
288g (without quick-mount fixture) 300g (with quick-mount fixture) |
|
Search Light Power: |
Regular mode 30W Ultra bright mode & Flashing mode 40W |
|
Speaker Power: |
15W |
|
Power Supply Voltage: |
24V |
|
Search Light FOV: |
13° |
|
Spot Diameter: |
34m (distance 150m) 22.8m (distance 100m) 29.6m (distance 130m) 11.4m (distance 50m) |
|
Illuminated Area: |
102㎡ (distance 50m) 407㎡ (distance 100m) 688㎡ (distance 130m) 917㎡ (distance 150m) |
|
Central Illuminance: |
25Lux (distance 50m) 6.3Lux (distance 100m) 2.5Lux (distance 130m) 1.7Lux (distance 150m) |
|
Gimbal Movement Range: |
Pitch -120°~+45° |
|
Max Sound Pressure: |
122dB |
|
Audio Formats: |
mp3/wav/m4a/flac/aac |
