Description

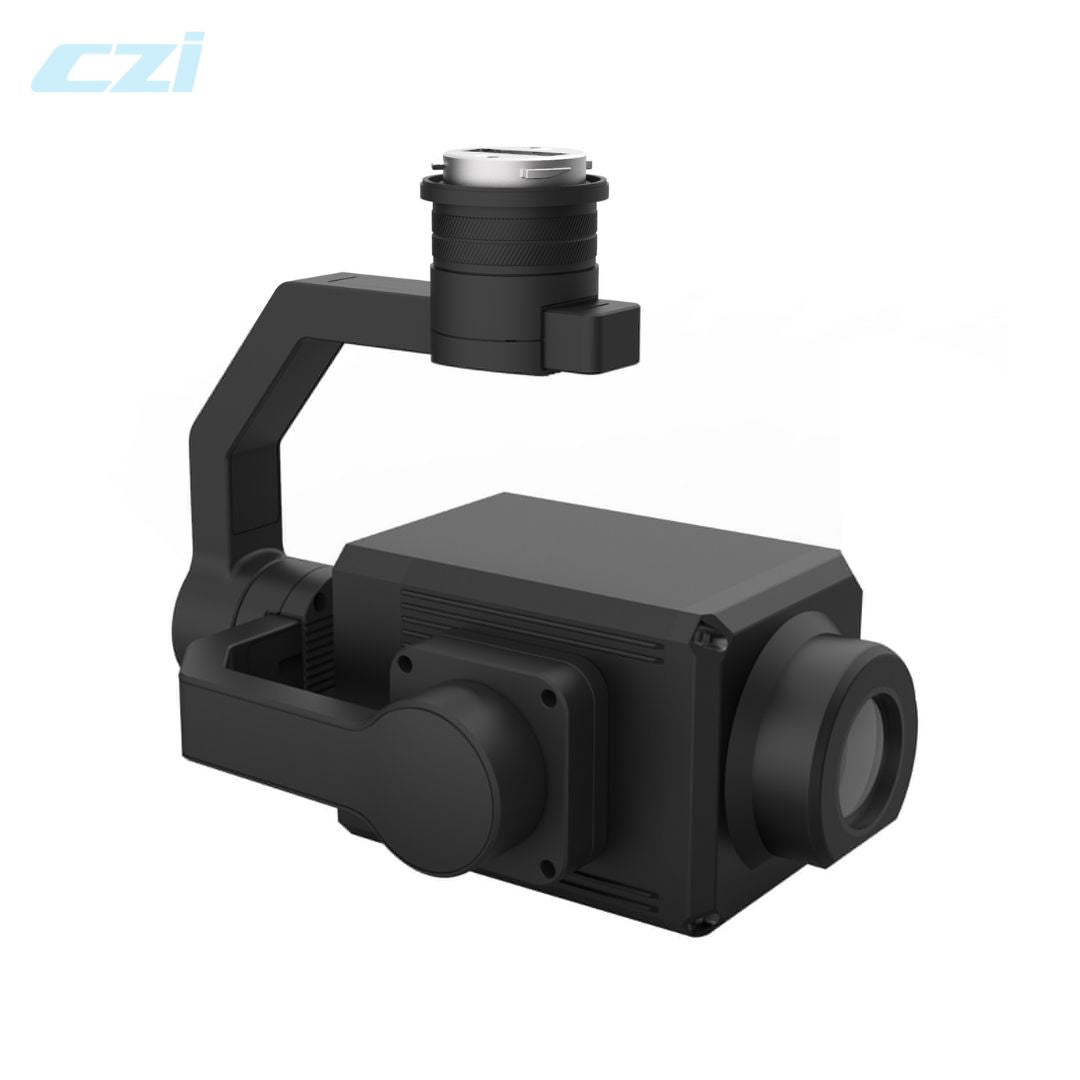

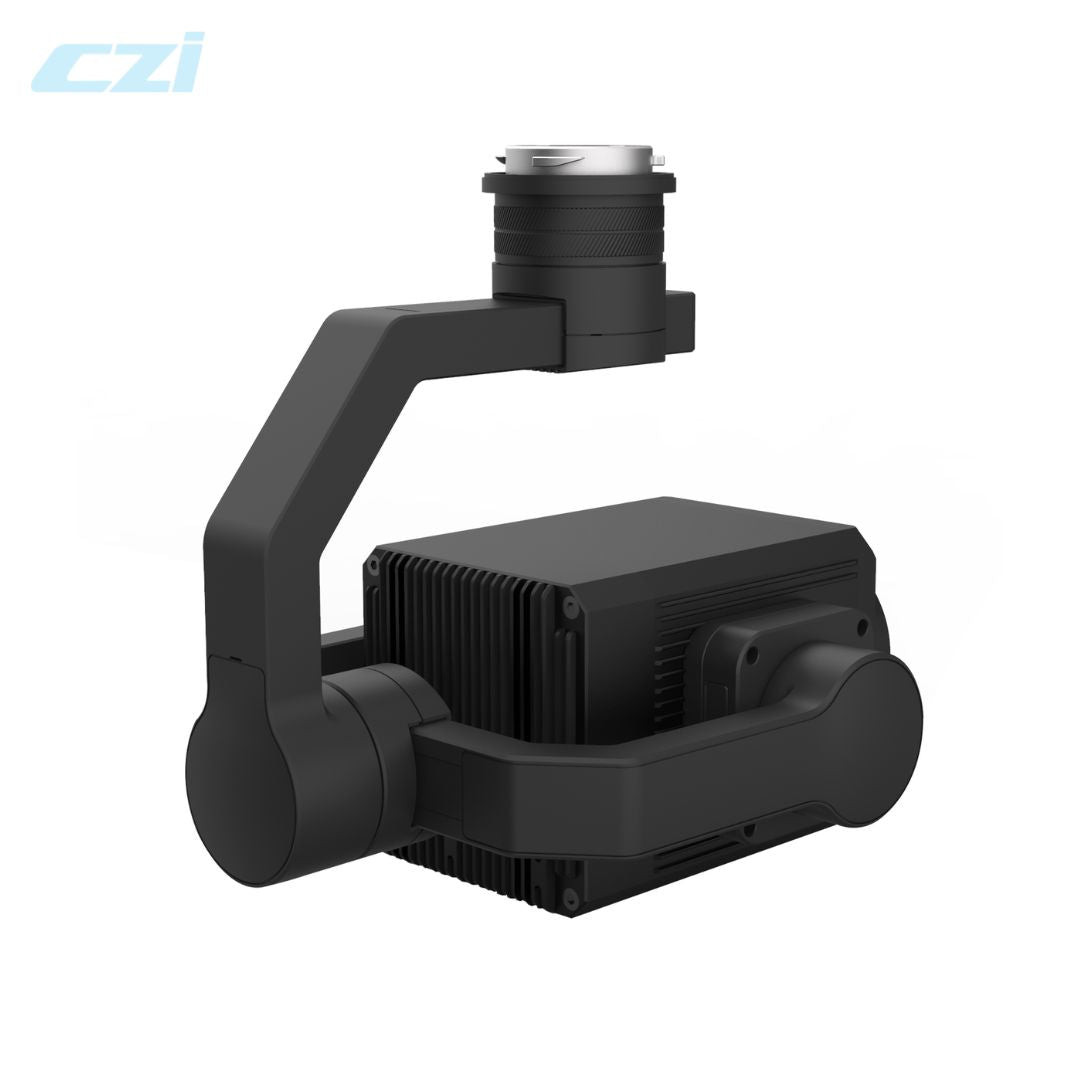

The CZI IR10 uses the latest laser fibre generator technology to produce a powerful beam of infrared light. The light is invisible to the human eye, making it ideal for stealth surveillance. The IR10 infrared zoom spotlight has a 70x optical zoom, which allows it do precise tracking with flexible control of brightness. Its rain and smoke haze see through effective distance is over 1000 meters.
The IR10 is a powerful and versatile tool that can be used for a variety of night vision applications and stealth surveillance.
The CZI IR10 is compatible with DJI Matrice M210 V2, M300 RTK and 350 RTK drones.
Specifications
CZI IR10 |
|
Version: |
See through rain/haze IR fill-in light (940nm) |
Dimensions: |
(L*W*H): 186*128*158mm |
Weight: |
800±5g |
Power: |
≤40W |
Out Light Power: |
12±0.5W |
FOV: |
0.56°-45° |
Luminous Wavelength: |
808nm/940nm |
Effective Distance: |
≥1000m |
Laser Safety Distance: |
≥90m |
Electrical Interface: |
DJI SkyPort V2.0 |
Individual Control Angle: |
Pitch -125°~+40° Horizontal ±320° |
IR10 Mount |
|
No.1 Head Port & H20T: |
Pitch -125°~+40° Horizontal -25°~+45° |
No.2 Head Port & H20T: |
Pitch -125°~+40° Horizontal -15°~+12° |
No.1/2 Head Port & H20: |
Pitch -125°~+40° Horizontal ±45° |
