Description

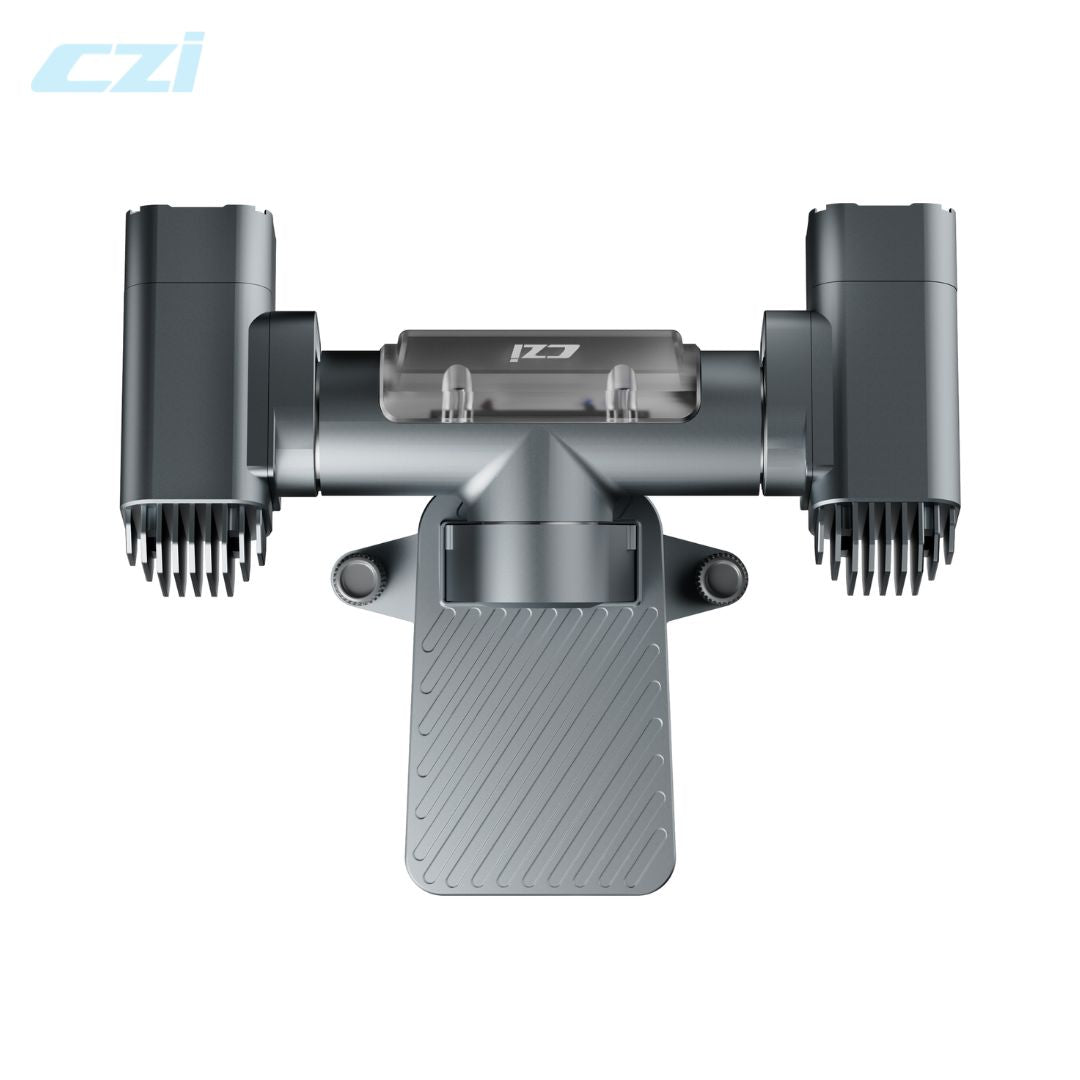

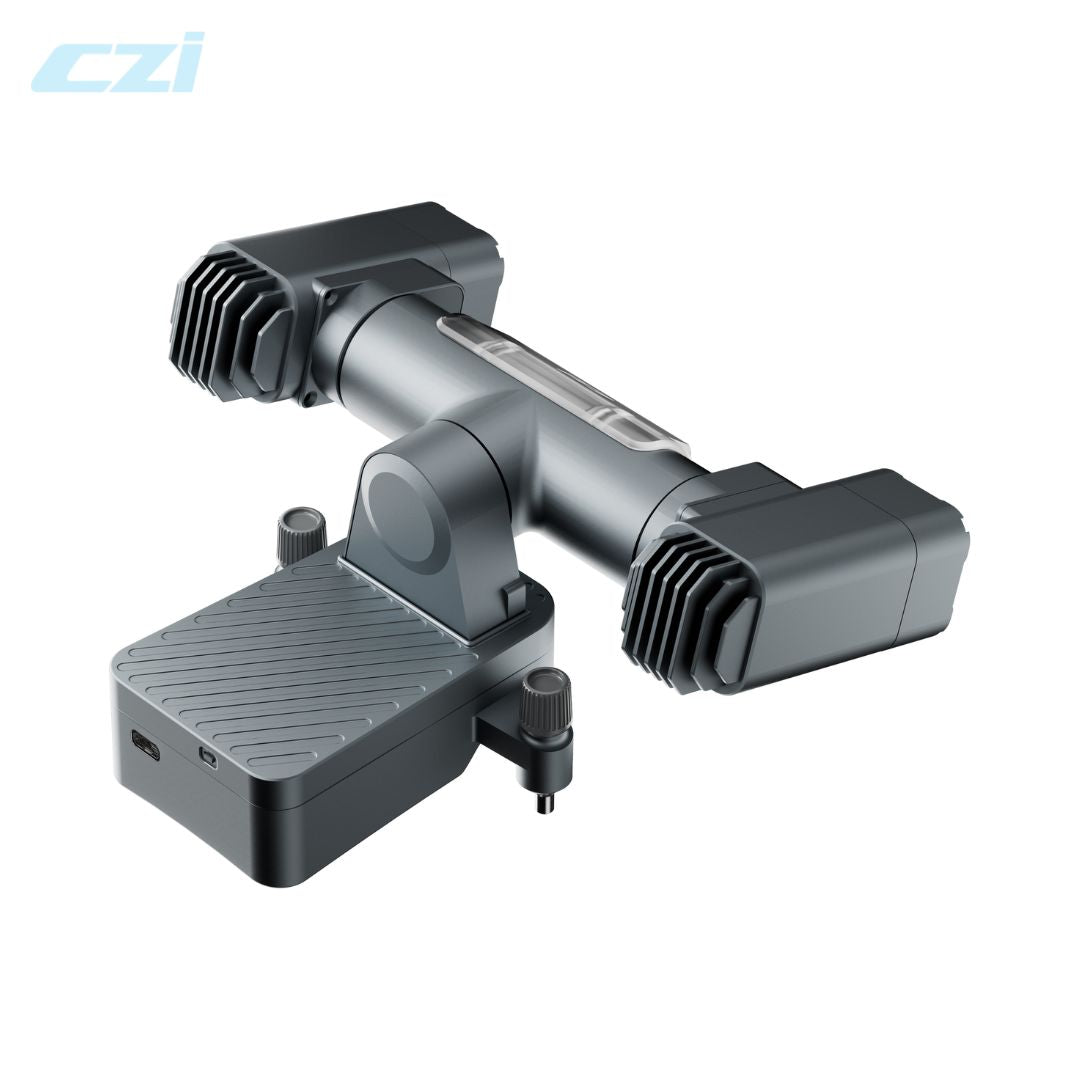

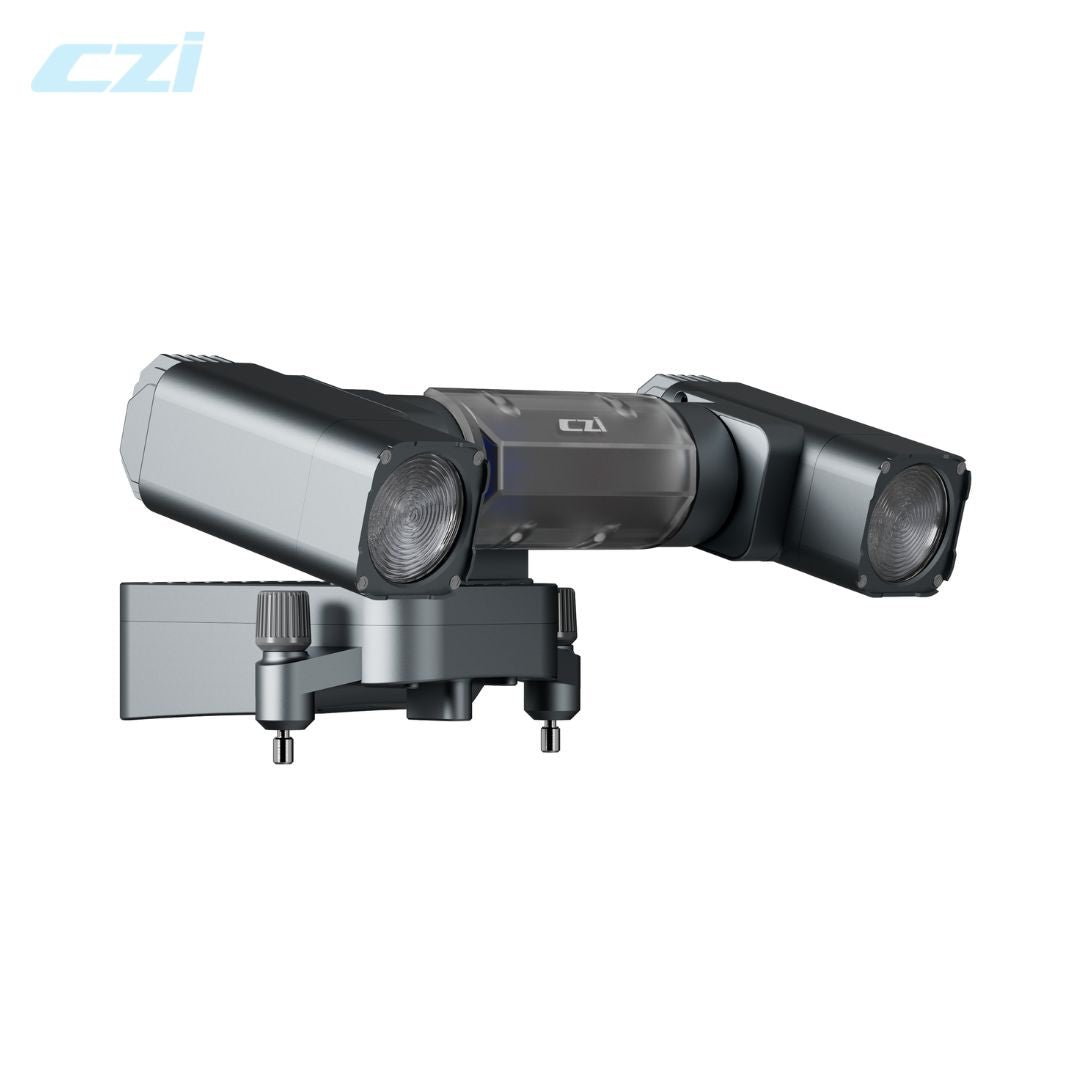

The CZI GL10 gimbal searchlight offers a lightweight design which can emit a sharp beam of 12.5° that reaches up to 100 meters. The GL10 ensures uniform brightness and colour consistency, useful in night inspections, location marking, search and rescue operations. Its new-generation dual-axis gimbal stabilisation enhances precision and anti-shake ability. The AI algorithms enable automatic light spot centring, adapting the beam with angle changes. The built-in red and blue flashing lights aid law enforcement identification and deterrence.
The GL10 gimbal searchlight is a highly useful drone accessory, especially for the public safety and rescue missions.
The CZI GL10 is compatible with the DJI Mavic 3 Enterprise series drones.
Specifications
CZI GL10 |
|
|
Dimensions: |
(L*W*H) 107*128*51.5 |
|
Weight: |
130g±4% |
|
Total Power: |
30W |
|
LED Power (White Light): |
20W |
|
LED Power (Red & Blue Light): |
2W |
|
Supply Voltage: |
15V |
|
Luminous Flux: |
1830lm±3% |
|
FOV: |
12.5° |
|
Search Distance: |
100m 75m 50m |
|
Diameter of Light Spot: |
22.8m 17.1m 11.4m |
|
Search Area: |
407m 229m 102m |
|
Centre Illumination: |
5.8Lux 13.3Lux 22.8Lux |
|
Controlled Rotation: |
Pitch -90°~+70° |
|
Working Temperature: |
-20°C~+50°C |
|
Electrical Interface: |
DJI PSDK |
|
Basic Function: |
Light supplement for white light Red and blue flashing lights Gimbal with dual-axis stability augmentation AI algorithm of gimbal, automatically cantering for light spot |
