Description

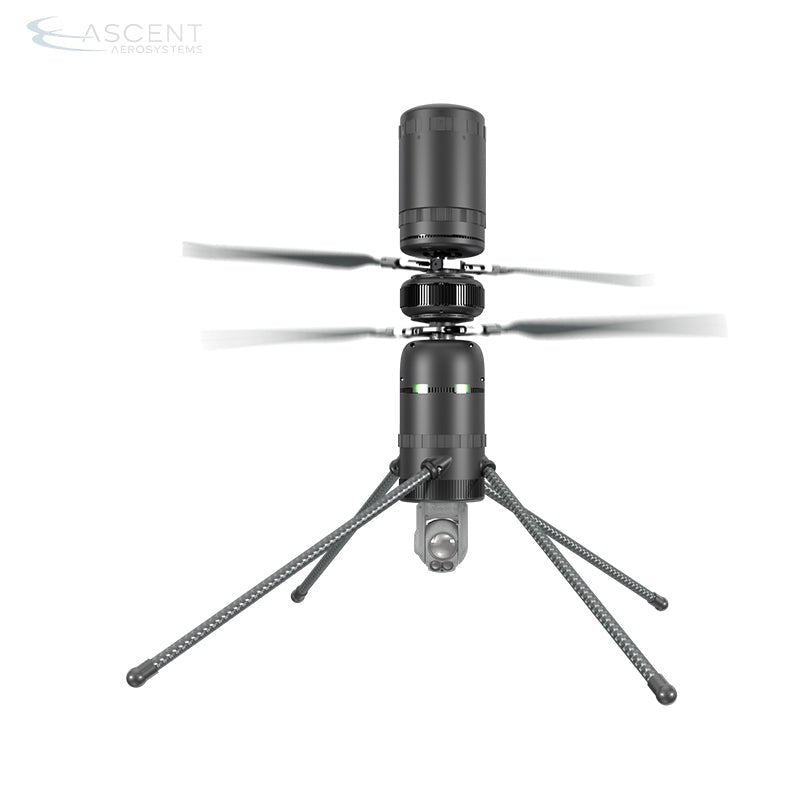

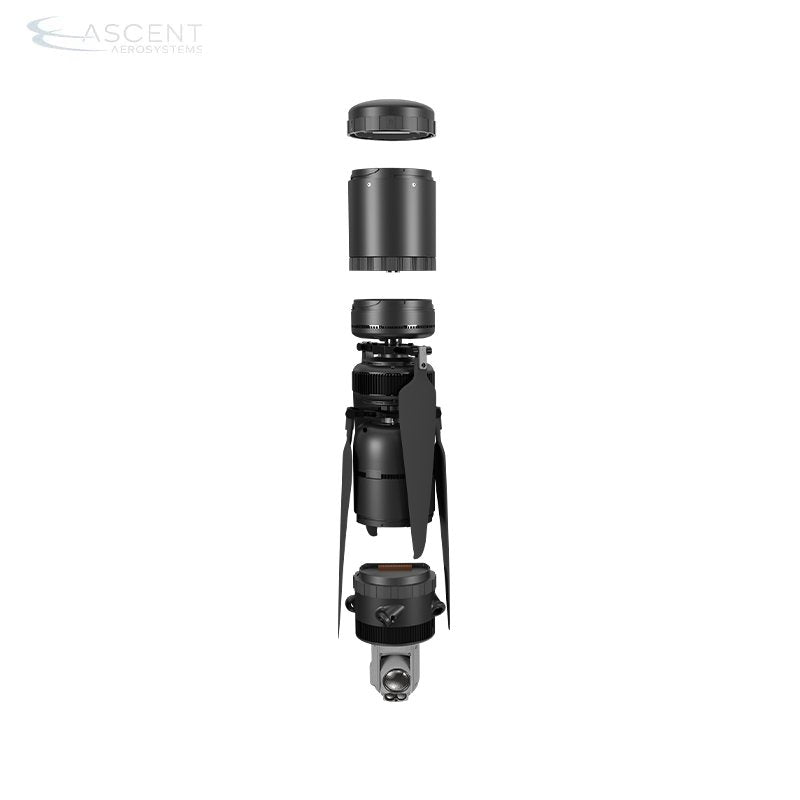

The AeroSystems Spirit is a UAV system built for dependability and all weather performance. It is comprised of a modular design making it a practical addition for missions in the field as payloads and technology can be easily swapped out wherever and whenever needed.
The Spirit can be operated in all weather conditions, with a top speed of over 96KPH. Two identical top and bottom payload attach points allow for modules to be quickly configured for any mission. With two batteries mounted the Spirit can fly for up to 53 minutes, or 32 minutes with a payload.
The versatile and adaptable nature of the Spirit allows for a growing ecosystem of payloads, power sources and launch methods, ensuring capability for all future missions.
Specifications
Capabilities |
|
| Endurance (Single battery): | 38 min. w/ no payload 16 min. w/ max payload |
| Endurance (Dual battery): | 58 min. w/ no payload 32 min. w/ max payload |
| Max. Altitude: | 14,600 feet above MSL (5,000 m) demonstrated |
| Max. Take-off Weight: | 13.5 lbs. (6.1 kg) |
| Max. Payload: | Maximum available payload: 6.5 lbs. (3.0 kg) Supports dual payloads (top and bottom) |
| Max. Speed: | Manual >60 mph (100 kph, 27 m/s) Auto (Recommended) 40 mph (65 kph, 18 m/s) |
Environmental |
|
| Environmental Rating: | IP56 |
| Operating Temperature: | -40 to 130°F (-40 to 54°C) |
| Wind Resistance: | CLASS 8 (40mph+) |
Physical Features |
|
| Airframe Design: | Coaxial Unmanned Aerial Vehicle |
| Materials: | Polycarbonates, composites, aluminium |
| Height: | 12.0 inches (305 mm) |
| Core Diameter: | 4.2 inches (106 mm) |
| Tip-to-Tip Span: | 25.5 inches (648 mm) |
