Description

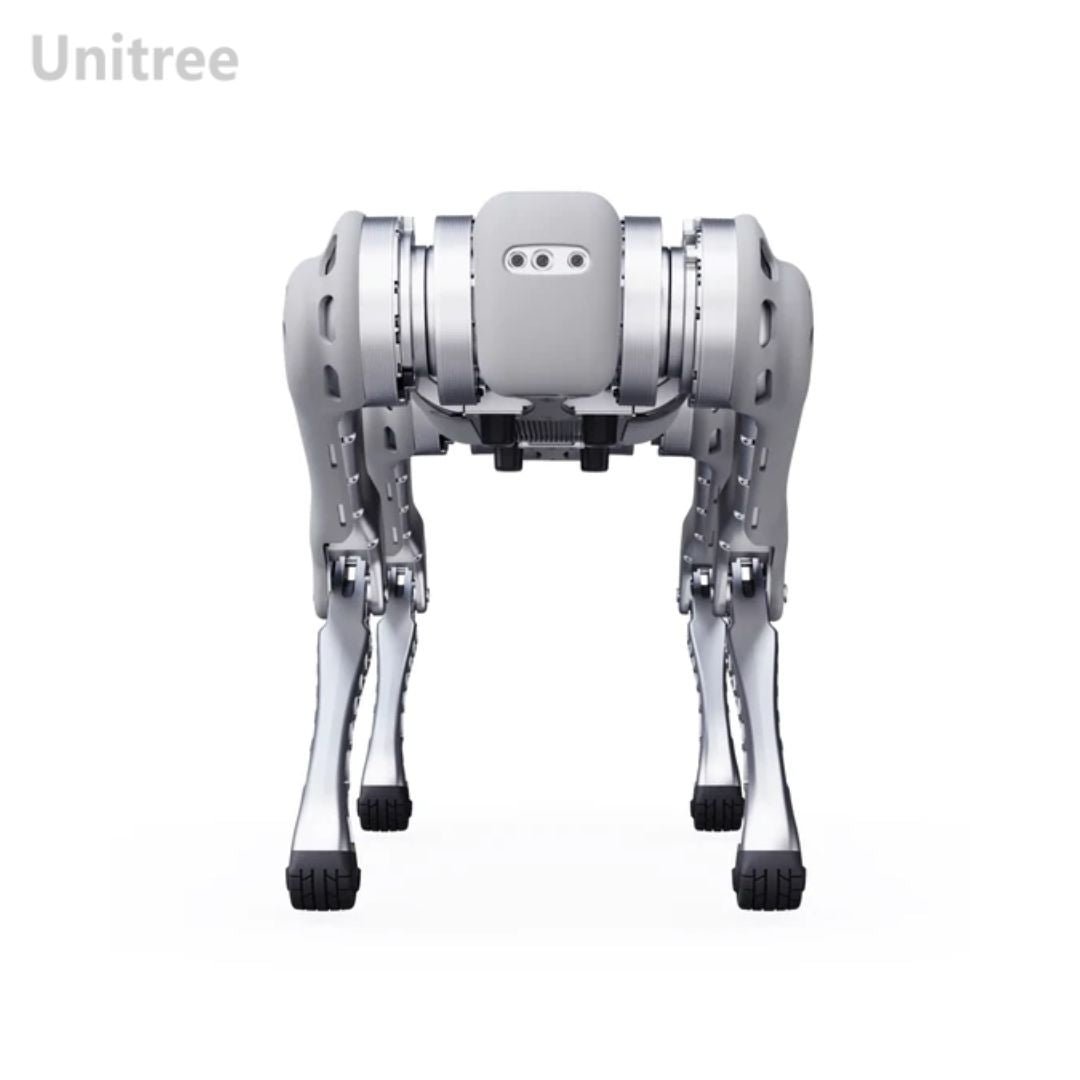

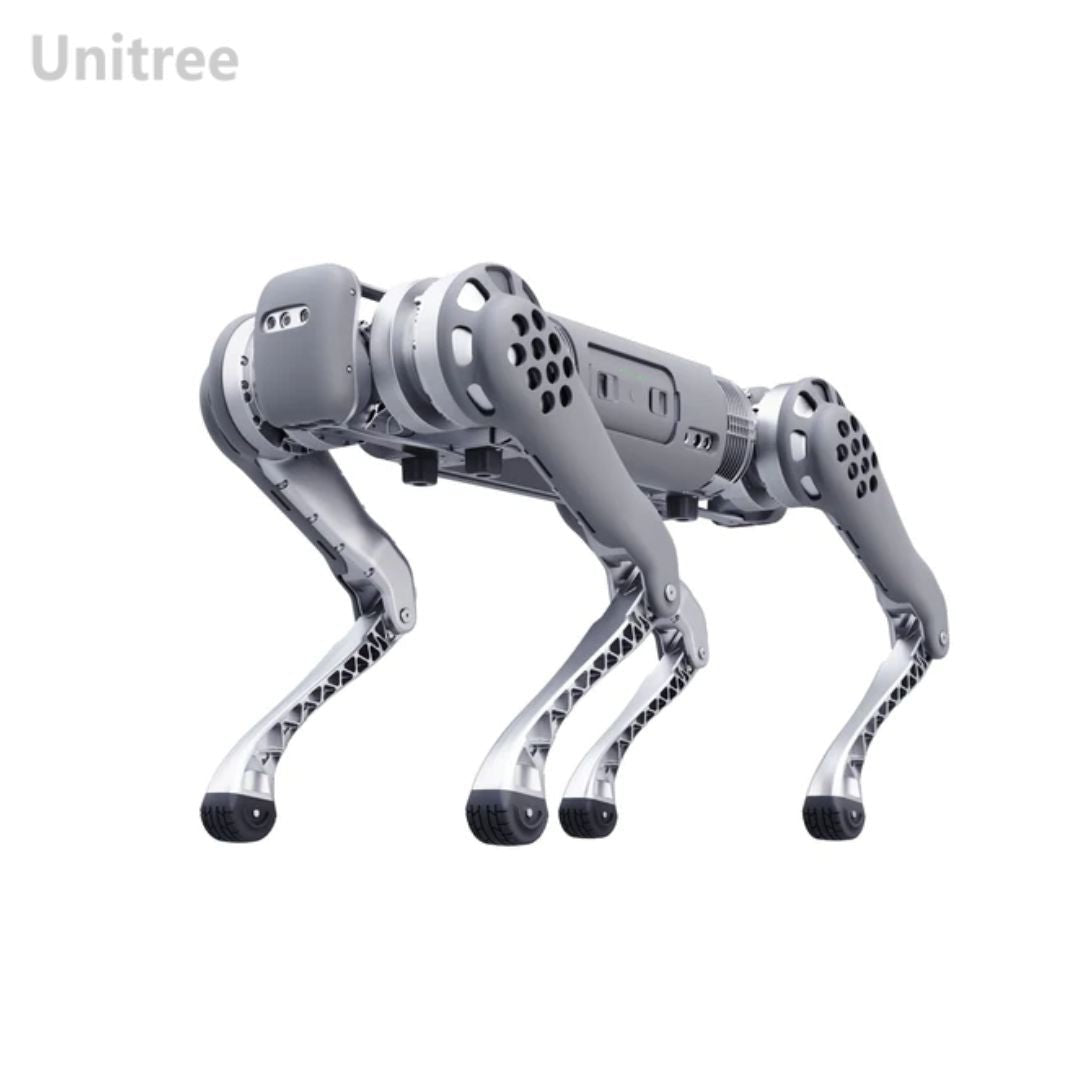

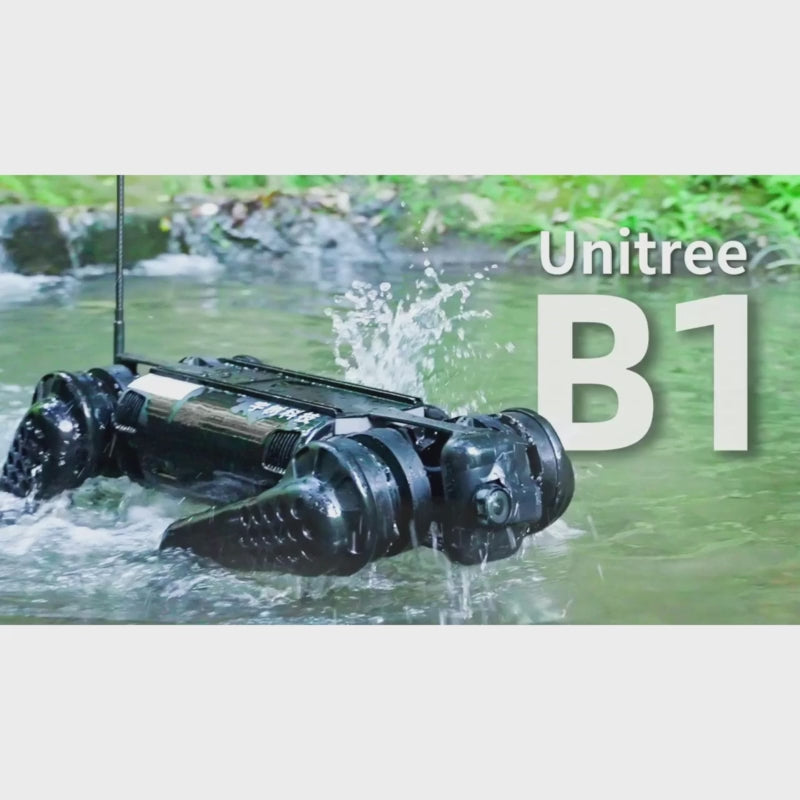

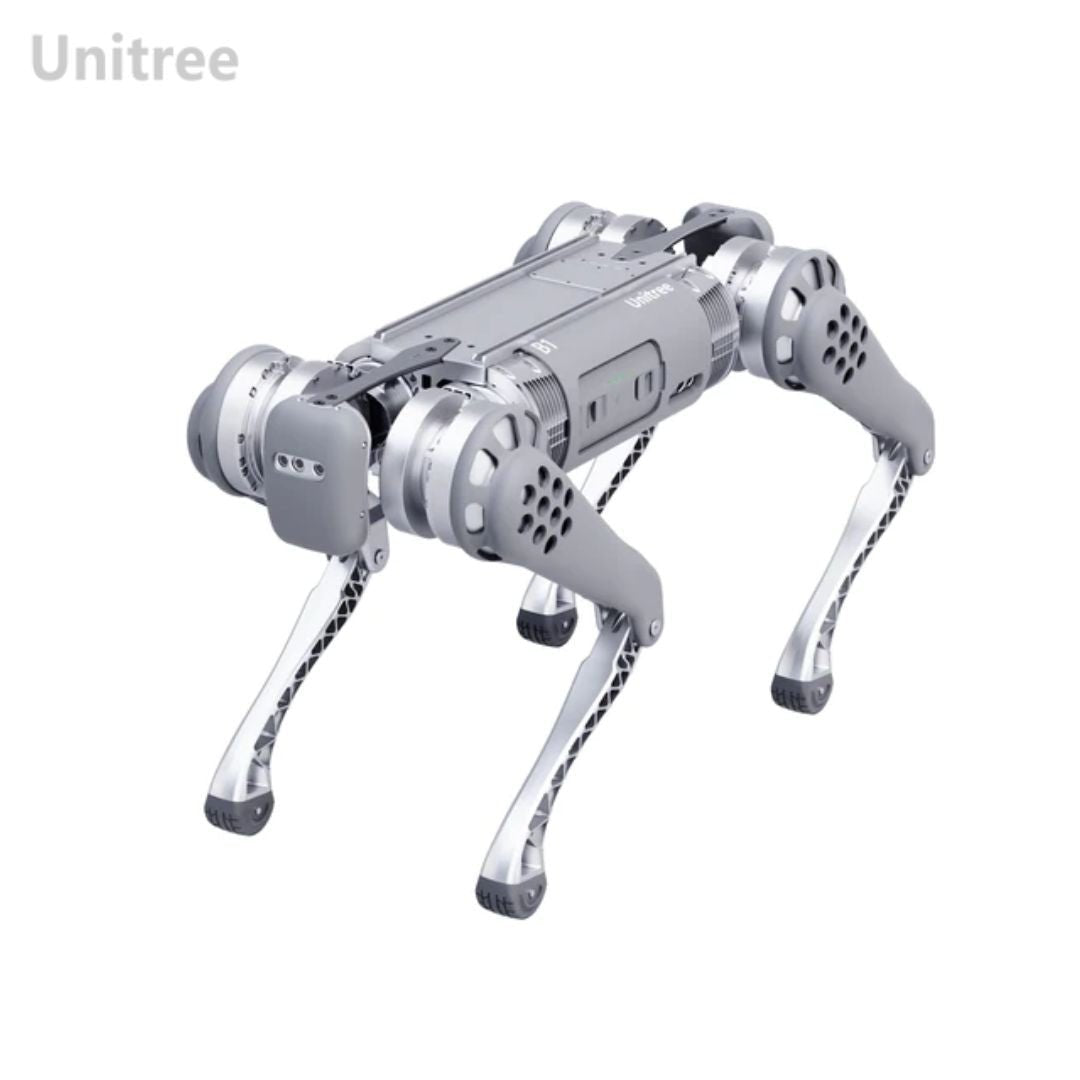

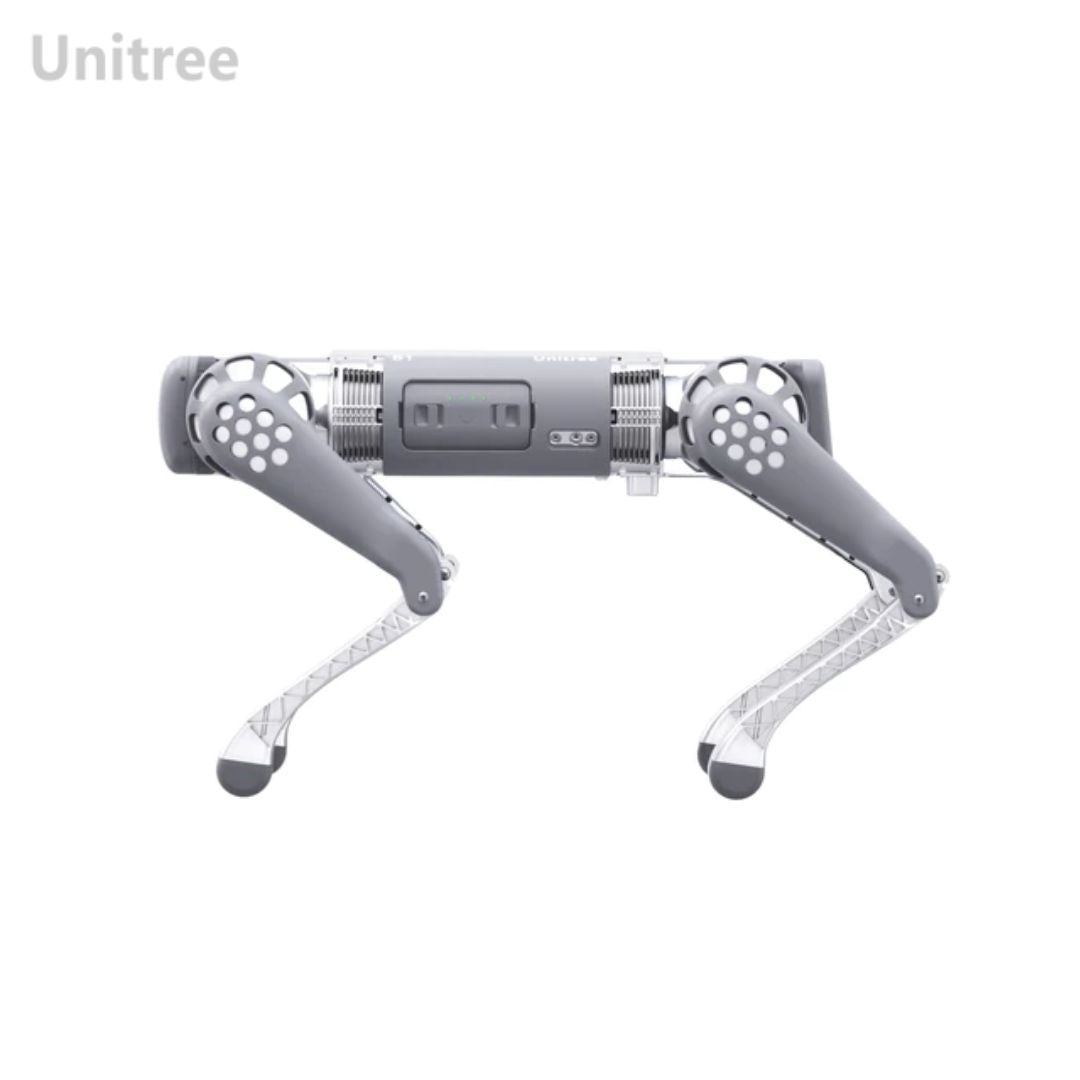

The Unitree B1 is an advanced quadruped robot with the heavy loading capacity and IP68 rating, which means it is waterproof and can perform well under all-weather scenarios. The Unitree B1 is a highly efficient and intelligent solution for various industrial operations and high-risk missions as it comes with high mobility and flexibility, strong computing power and latest sensors for multi-dimensional perception.
The Unitree B1 is a highly useful robot and has various application possibilities like agricultural and industrial uses, security patrols, inspections, surveying, explorations, public rescue missions and many more.
Specifications
Product Details |
|
Dimensions: |

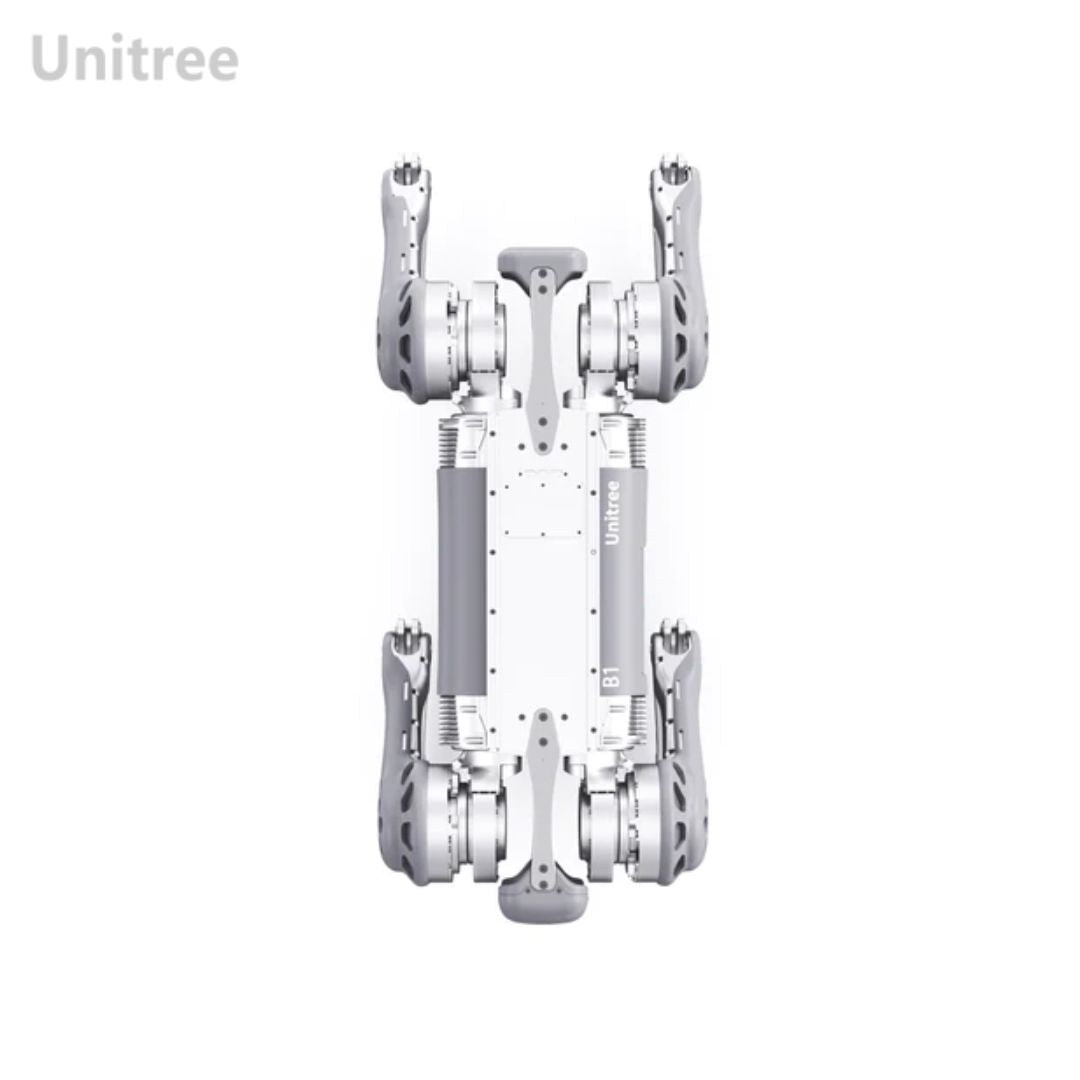

(L*W*H): 1126*467*636mm (Standing) 1202*467*297mm (Folded) |
Weight: |
About 50kg (Whole machine, including battery) About 5kg (Only battery) |
Load: |
20kg (Continuous walking load) 80kg (Maximum standing load) In the process of carrying the load, it is recommended to control the weight within 20kg. |
Endurance: |
5h Stand Endurance 2h Continuous walking and endurance without load The endurance is related to the load, fuselage height, ground flatness, and ambient temperature, which are all values in the ideal environment. |
Control & Sensing Disposition: |
Main Control CPU - Intel i5-1135G7 Sensing Calculation Platform - Jetson XavierNX *3 Sensing Sensor - Intel RealSense D430*5 |
Battery Details: |
Type - Lithium Battery Rated Capacity - 18000mAh Rated Voltage - 51.8V Rated Energy - 932.4Wh Charge Limit Voltage - 58.8V Charge Time - 1 to 2h |
Output: |
Standard Output – Power 12V/24V Expansion Board - Gigabit Interface*7/RS485*4/USB*5/CAN*4 |
Maximum Step Height to Climb: |
20cm |
Protection: |
Temperature/ Current |
