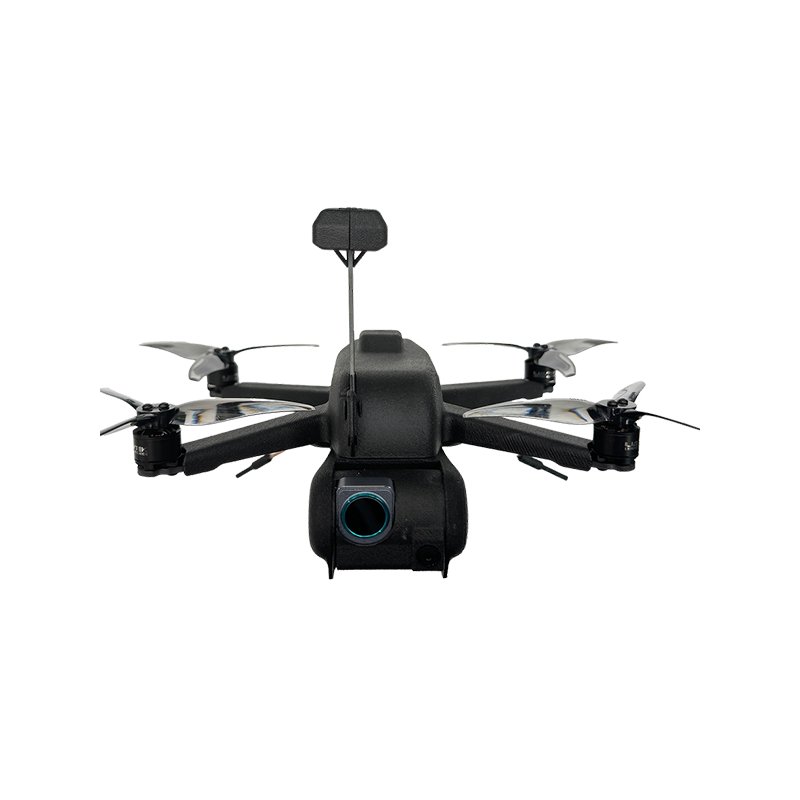

UAVTEK Bug 4.2


Finance and business invoice options available

Description

Currently the smallest airframe in our fleet, the Bug is compact, lightweight and visually discrete. The Bug can be deployed for missions of up to 20 minutes, with a removable battery that can be swapped in seconds and lasts for up to 120 minutes.

Specifications

Size: L 205mm x W 250mm x H 62mm
Weight: 245g
Flight Time: Up to 20 minutes
Max. Windspeed: 40kts (Gusting 45kts)
Operating Temperature: -30 +50 Celsius
Launch and Recovery Options: Hand / Thrown / Ground / Vehicle / Boat
Frequency: 5.8Ghz
Fully Autonomous Mission Capable:

Full mission planning – press go to start
Automatic take off, landing, return to launch, with many other mission planning options

Daytime Camera & Thermal Camera:

EO 5MP Day Camera, Thermal 256 x 192,
Video 720p and full night time capacity

Range With Full Video Link:

3km+ (5.8Ghz)
Up to 7km with optional sector antenna

Date Dissemination:

Local devices via Wi-Fi or multiple possible connection methods via USB, RJ45 or HDMI connections. StarLink plug and play ready.

UAVTEK Tripltek Controller:

The brightest 8” screen on the market at 1300nts



Key Features

Sub 250g with thermal or choose Bug 4.2R for rugged ability in a sub 300g package
Can be deployed within seconds via hand (stationary/thrown), ground or vehicle and can be safely recovered by hand
Deployable for non-stop flight missions of up to 30 minutes, flying at speeds of up to 80 kph (22m/s) with a maximum transmission distance of 3km+ (5.8Ghz)
Capable of flying in windspeeds of up to 30 knots (35 knots gusting)
Pre-programmed flight modes installed on controller featuring intelligent return to launch mode and fully autonomous mission capability
Equipped with a lossless zoom HD camera and thermal camera, the Bug can provide unrivalled visual surveillance/situational awareness during day or night using photography and video. Footage can be broadcast securely to multiple locations*
The small mass of the Bug means it can complete covert surveillance or reconnaissance for hours and is a capable platform even in the most challenging environments operating in temperatures -20 to +50 Celsius
Use of secure wireless link and SD card encryption for protection
Cellular network and Manet radio modules used to effectively overcome radio frequency disruption, especially in an urban environment
