Description

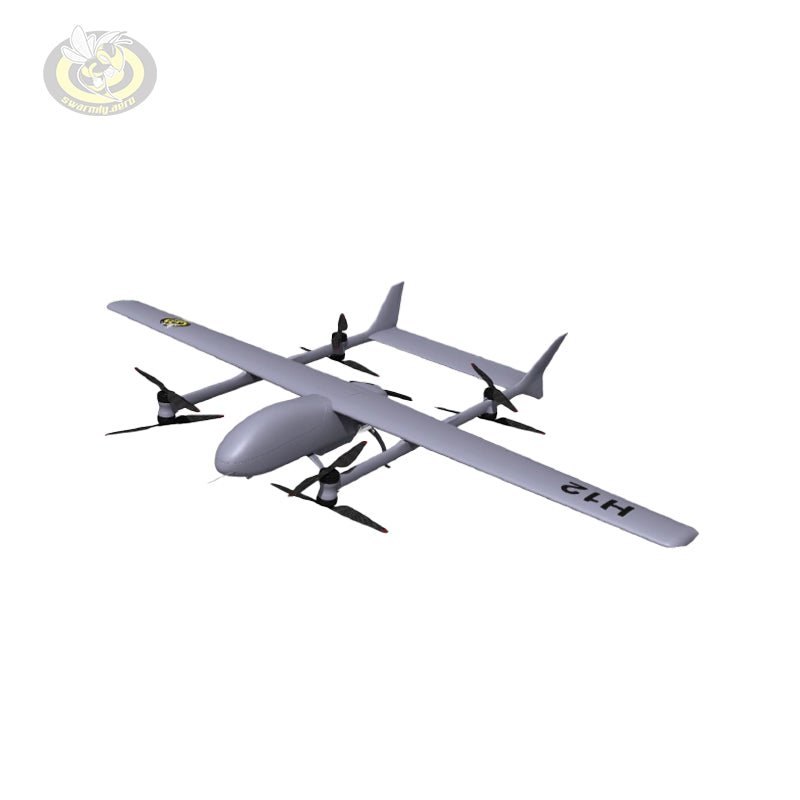

The H12 Poseidon is designed to serve as a universal aerial superiority platform with payload capacity up to 50kg. It is capable of both land based and maritime operations with excellent mobility and survivability.
The H12 Poseidon is designed as a high wing airframe with hybrid propulsion – a gasoline cruise motor and eight permanently mounted VTOL electric motors. Redundant motors are included to ensure safe delivery even in the instance of complete failure.
The H12 Poseidon is field transportable in a specialised T20 Kipseli C2/Transport truck, designed to operate in GNSS-denied environments and integrates a wide range of payload options, such as unguided mortar bombs, Black Scorpion torpedo, SAR and forward-looking radars, large format EO/IR gimbals, EW packages and more.
H12 Poseidon VTOL UAS is usually supplied with the following components:
Two H12 Poseidon VTOL UAS with optional payloads |
One Ground Control Station |
Training for operators and technicians |
Some other components required for C2/transport container, documentation, and maintenance |
Specifications
Airframe Details |
|
Wingspan: |
6,000 mm |
Length: |
3,300 mm |
Height: |
1,100 mm |
Payload Bay Dimensions: |
920 mm x 340 mm x 350 mm |
Wing Area: |
312 dm² |
MTOW: |
150 kg |
Max. Payload Capacity: |
50 kg |
Max. Endurance: |
10 hrs |
Max. Speed: |
130 km/h |
Stall Speed: |
85 km/h |
Cruise Speed: |
120 km/h |
Max. Total Range: |
750 km |
