Description

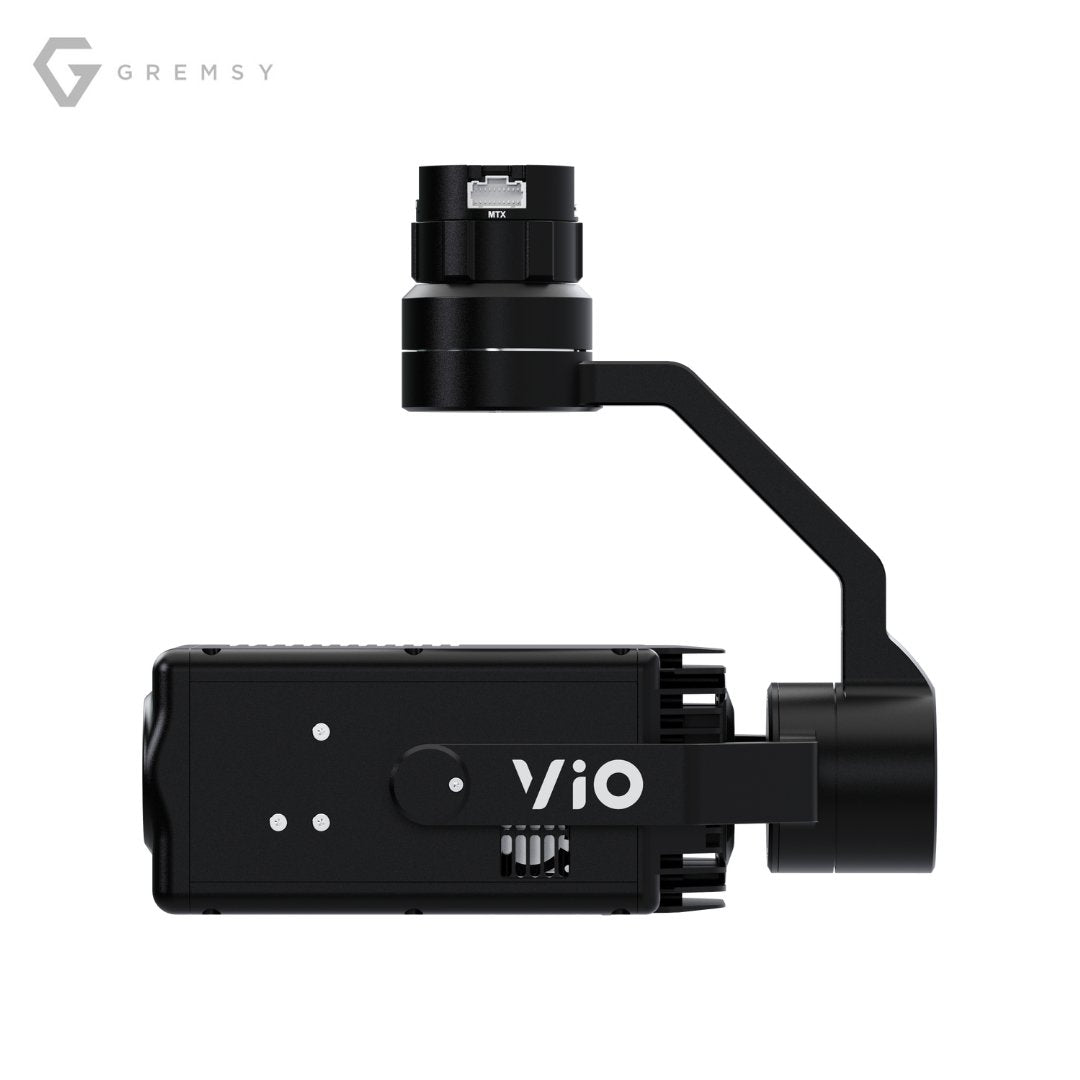

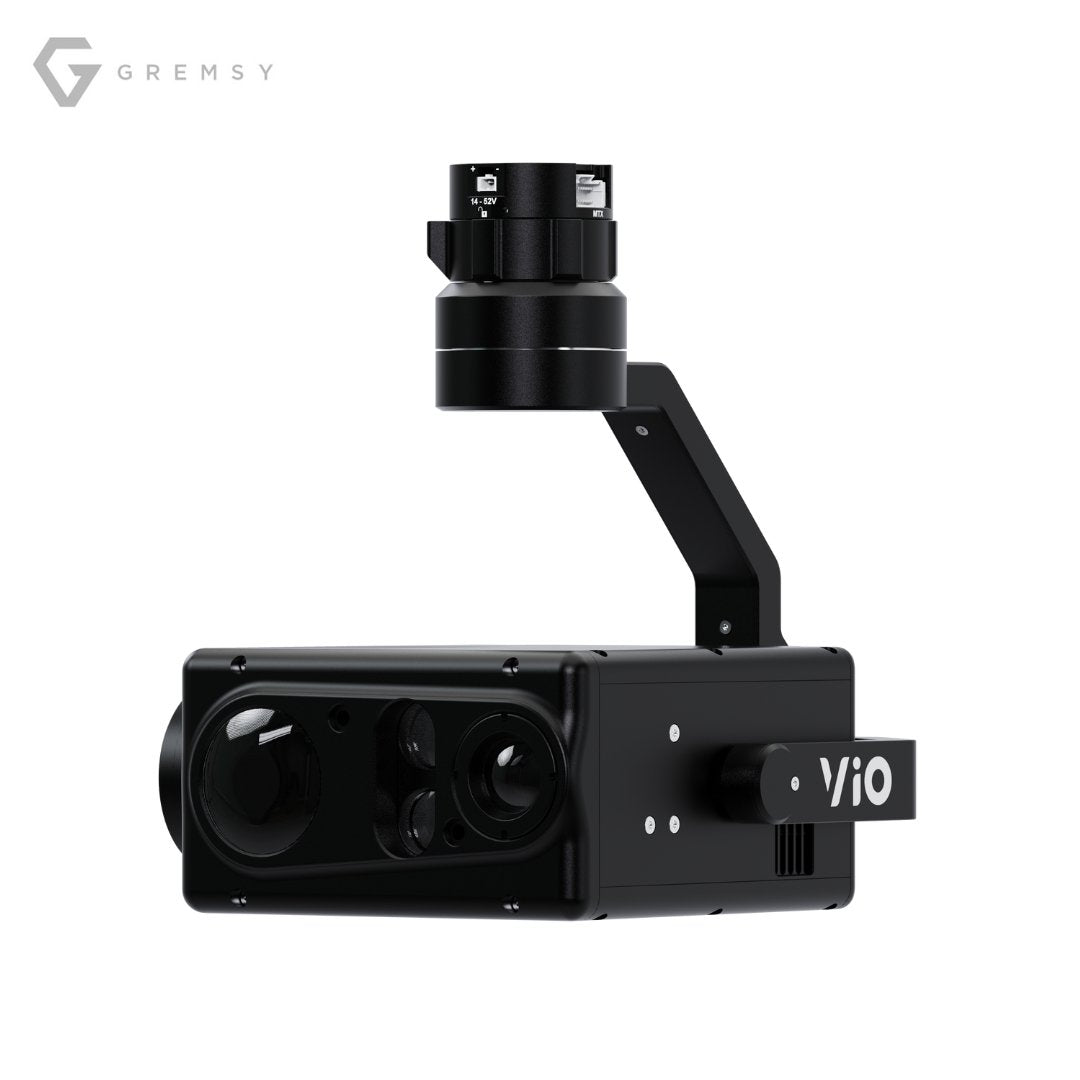

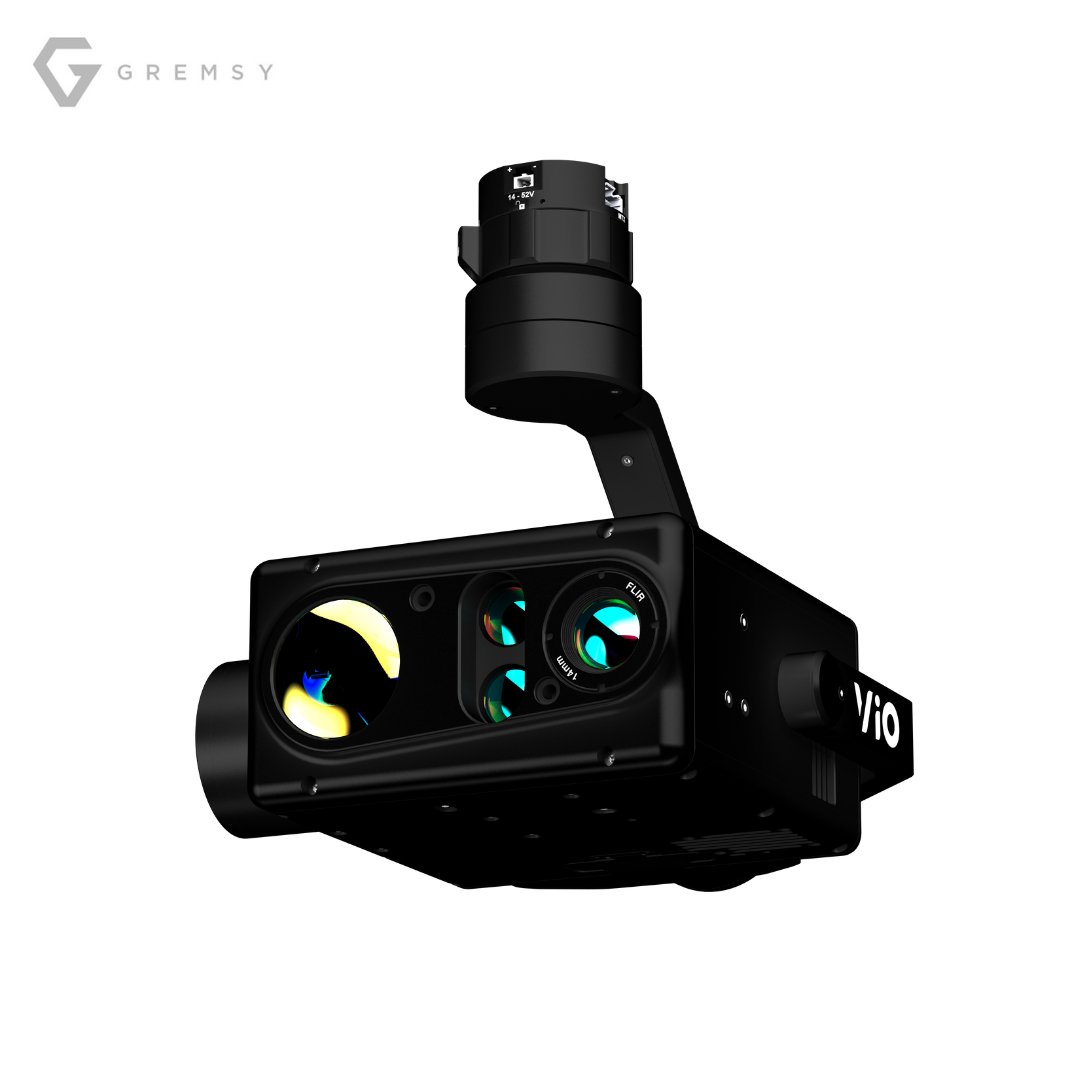

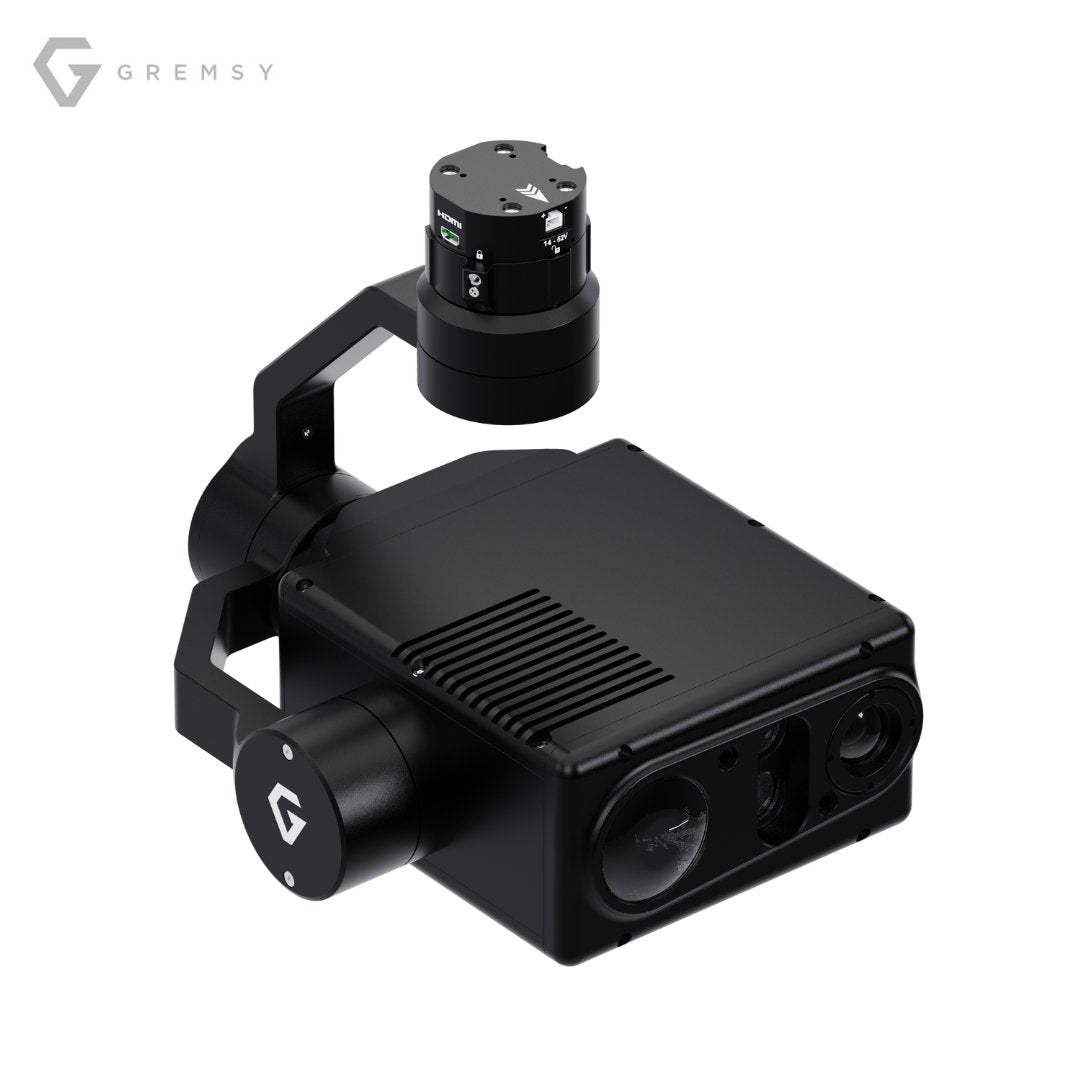

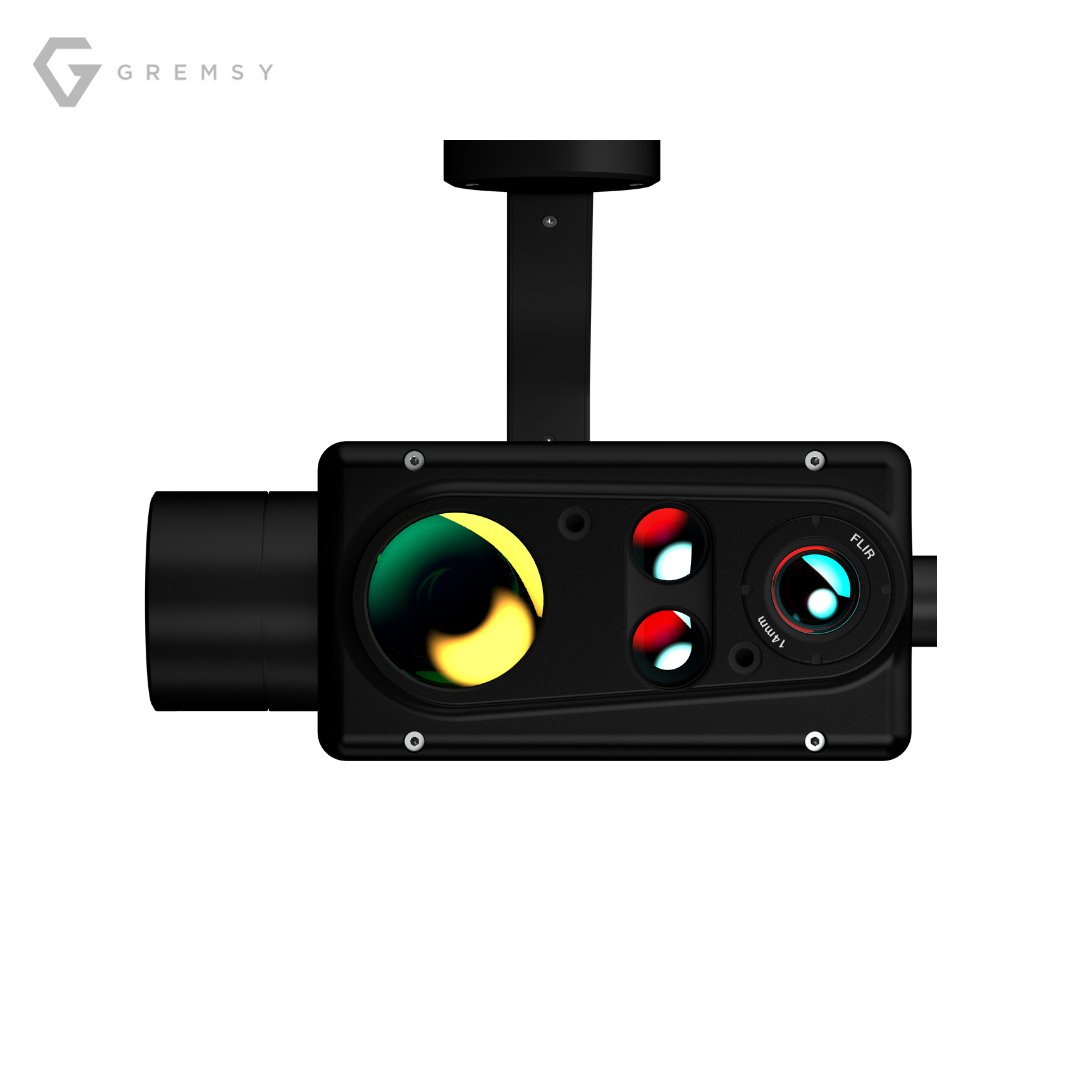

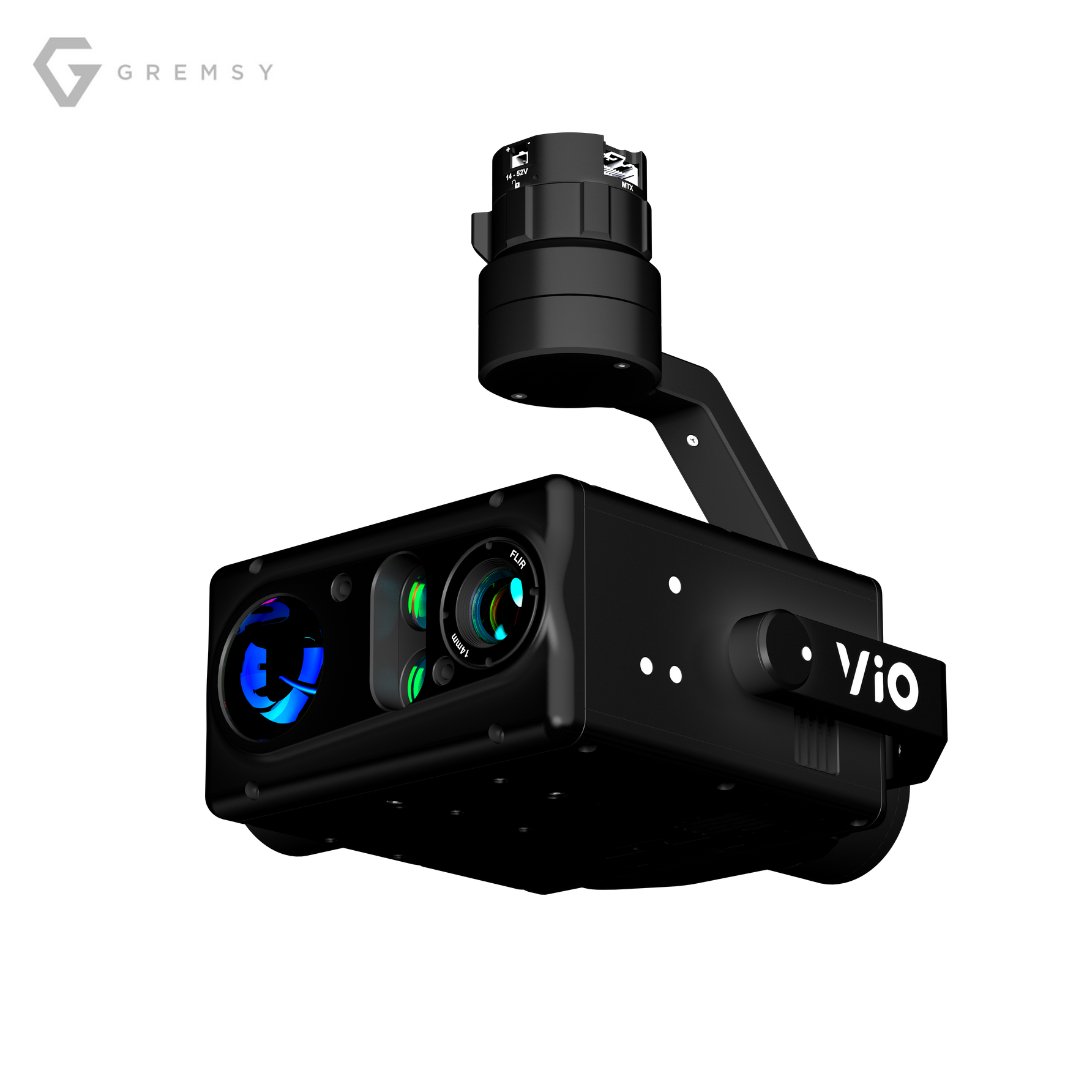

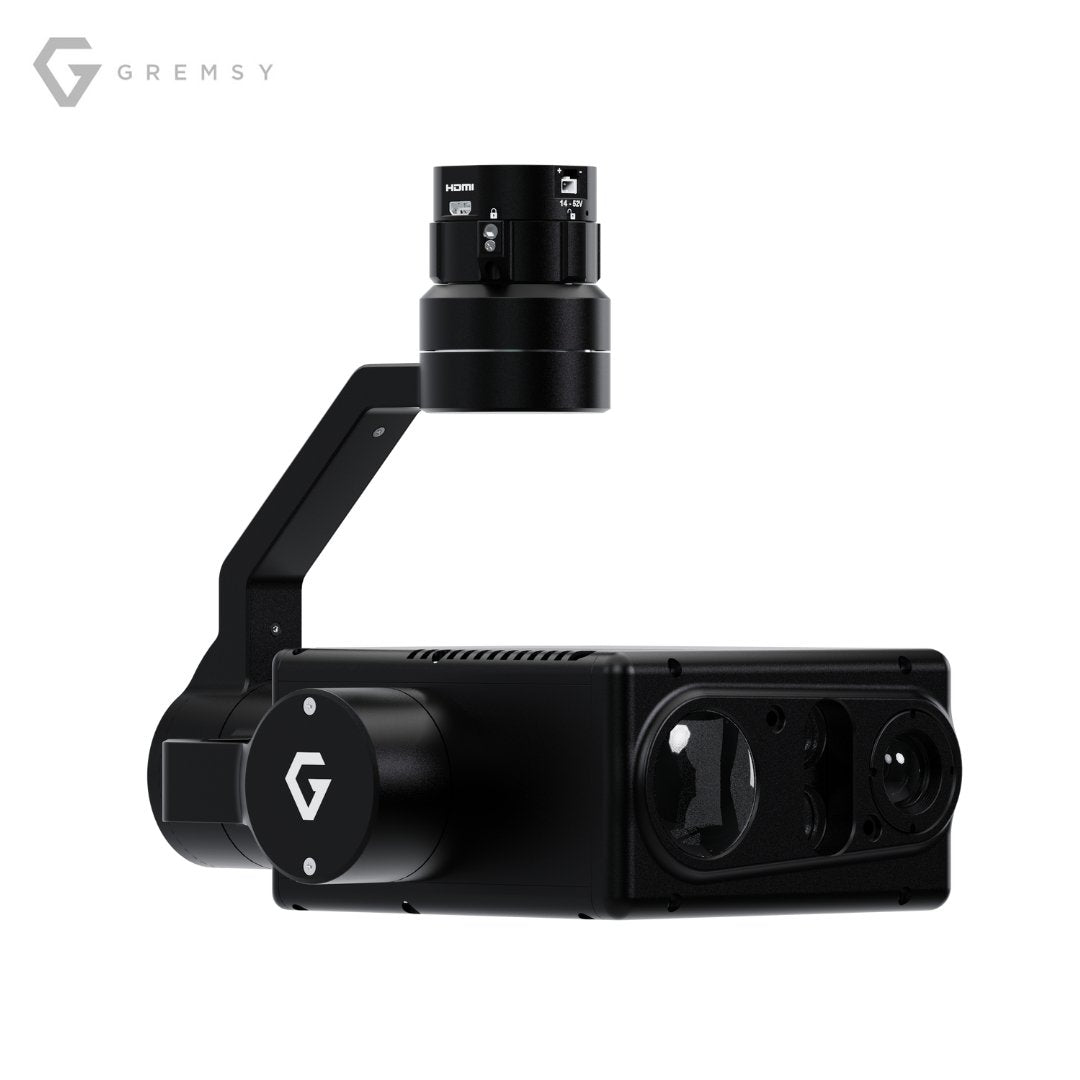

The Gremsy Vio is an advanced, lightweight EO/IR payload that includes a 4K zoom sensor, a 640x512 radiometric thermal camera, and a built-in 2400m laser rangefinder, designed for diverse industrial uses.
You can select between two models of the Vio series, Vio F1 and Vio G1, to achieve unparalleled performance and precision.
The Vio F1 comes with Sony 4K Block Zoom Camera, Flir Boson 640 Radiometric Thermal Core, 14 mm (EFL), and up to 2400m LRF, whereas the Vio G1 comes with Sony 4K Block Zoom Camera, 640 Radiometric Thermal Core, 19mm (EFL), and up to 2400m LRF.
Additional Functionalities:
|
Geotagging: |
Enable data embedding into your images |
| Video Stream: | Support stream video via HDMI/Ethernet RTSP |
| Payload SDK: | Access payload info and control it using available libraries for specific applications |
| Direct Media Retrieval: | Easily access and retrieve media files from a device using Ethernet |
Specifications
Payload Details |
|
|
Weight: |
854g (1.88 lbs) |
|
Dimensions: |
(DxWxH): 173mm x 148mm x 159mm |
|
Input Voltage: |
14.5V ~ 52V |
|
Working Currant: |
Static current: 1.75A (@12V) Tracking current: 2A (@12V) Max current: Max 4.7A (@12V) |
EO Camera Sensor |
|
|
Sensor: |
1/2.5" CMOS |
|
Lens: |
Focal Length: 4.4mm to 88.4mm |
|
Zoom: |
Optical: 20x Digital: 12x Super Resolution: 30x |
|
Resolution: |
Photo: 3840 x 2160 (8.51 MP) Video: 3840 x 2160 (4K@30fps) |
|
Format: |
Photo: JPEG Video: MP4, H265 |
|
Shutter Speed: |
1/30 to 1/2000s |
IR Camera |
|
|
Sensor: |
Uncooled VOx Microbolometer |
|
Array Format: |
640x512 |
|
Frame Rate: |
VIO F1 - 60Hz VIO G1 - 30Hz |
|
Pixel Size: |
12 µm |
|
Scene Temp Range: |
VIO F1: to 140 °C (high gain) to 500 °C (low gain) VIO G1: -20 °C to 150 °C, 0 °C to 550 °C |
|
Lens Options: |
VIO F1 - Fixed Focus, 32° (HFOV) 14 mm (EFL) VIO G1 - Fixed Focus A-thermal: 19 mm (EFL) |
|
Digital Zoom: |
1x to 8x |
|
Resolution: |
VIO F1 - Photo: 640×512 | Video: 640×512 @ 60Hz VIO G1 - Photo: 640×512 | Video: 640×512 @ 30Hz |
|
Format: |
Photo: JPEG Video: MP4 |
Gimbal |
|
|
Angular Vibration Range: |
±0.01° |
|
Gimbal Mount: |
Bottom |
|
Gimbal Mode: |
Off | Lock | Follow |
|
Controllable Range: |
Tilt: ±120° Pan: ± 310° Roll: ± 45° |
|
Mechanical Range: |
Tilt: ± 143° Pan: ±320° Roll: -260° to 80° |
|
Max. Controllable Speed: |
Tilt: 100°/s Pan: 100°/s Roll: 100°/s |
Key Features
| Powerful Zoom Capability: | Vio provides the ability to zoom in both thermal and optical modes, making it suitable for a range of applications including mapping, inspection, surveying, and public safety tasks. |
| Radiometric Thermal Imaging: | Vio offers two versions equipped with advanced 640x512 radiometric thermal sensors, featuring an impressive sensitivity of ≤50 mK (default version), ensuring precise temperature detection. These are ideal for demanding industrial applications such as asset and infrastructure inspection, disaster relief, firefighting, search and rescue, urban safety, and more. |
| EO/IR Object Tracking: | Easily auto-tracks and auto-centres your selected object, keeping it perfectly framed even when zooming or adjusting the gimbal position. |
| Laser Rangefinder and Pinpoint: | Vio includes a highly precise laser rangefinder with a range of 0.01-0.5m, optimized for object detection at 1200m at 10Hz, but capable of reaching up to 2400m at 1Hz. By combining the aircraft's GPS, it can pinpoint the exact position of targets for rescue missions. |
