Description

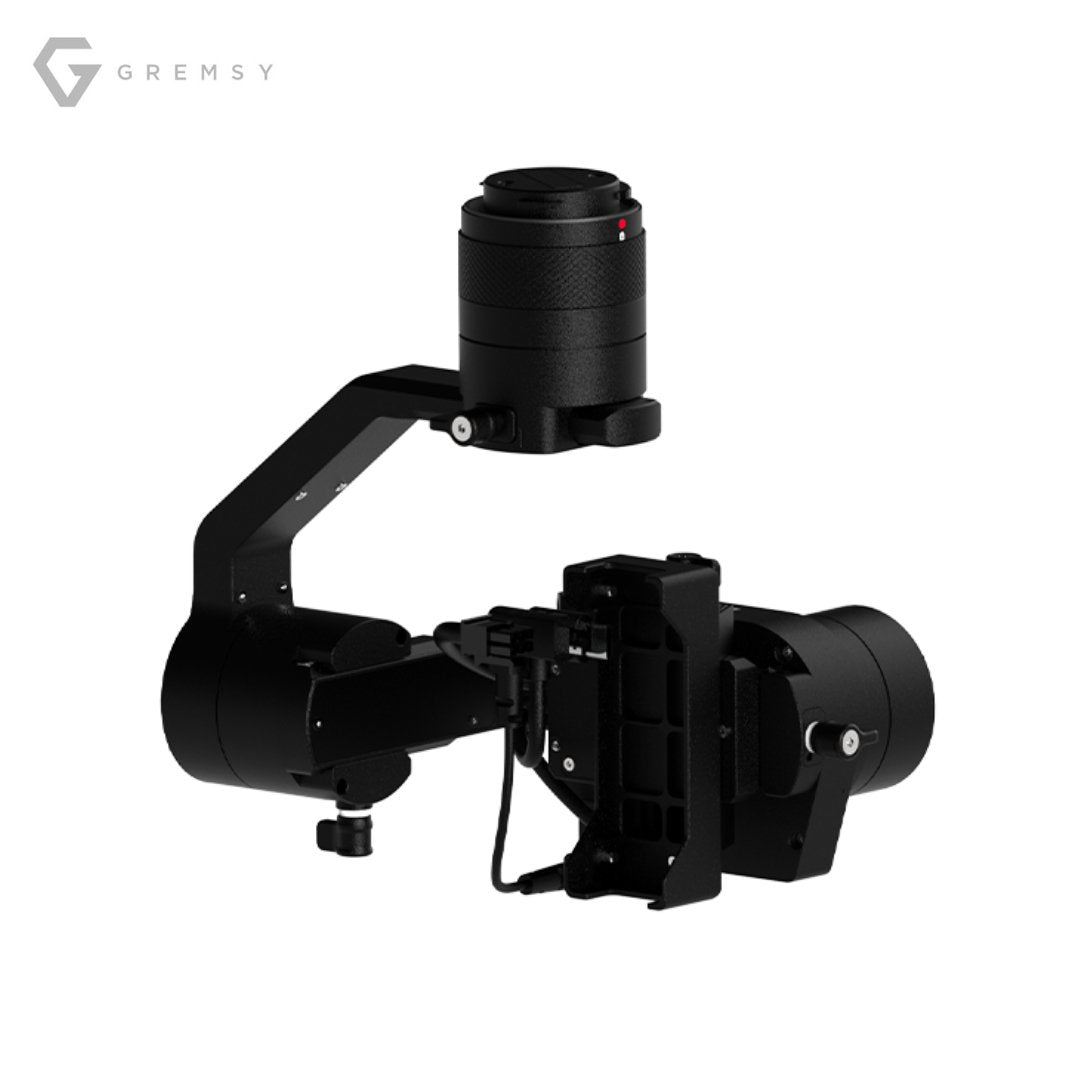

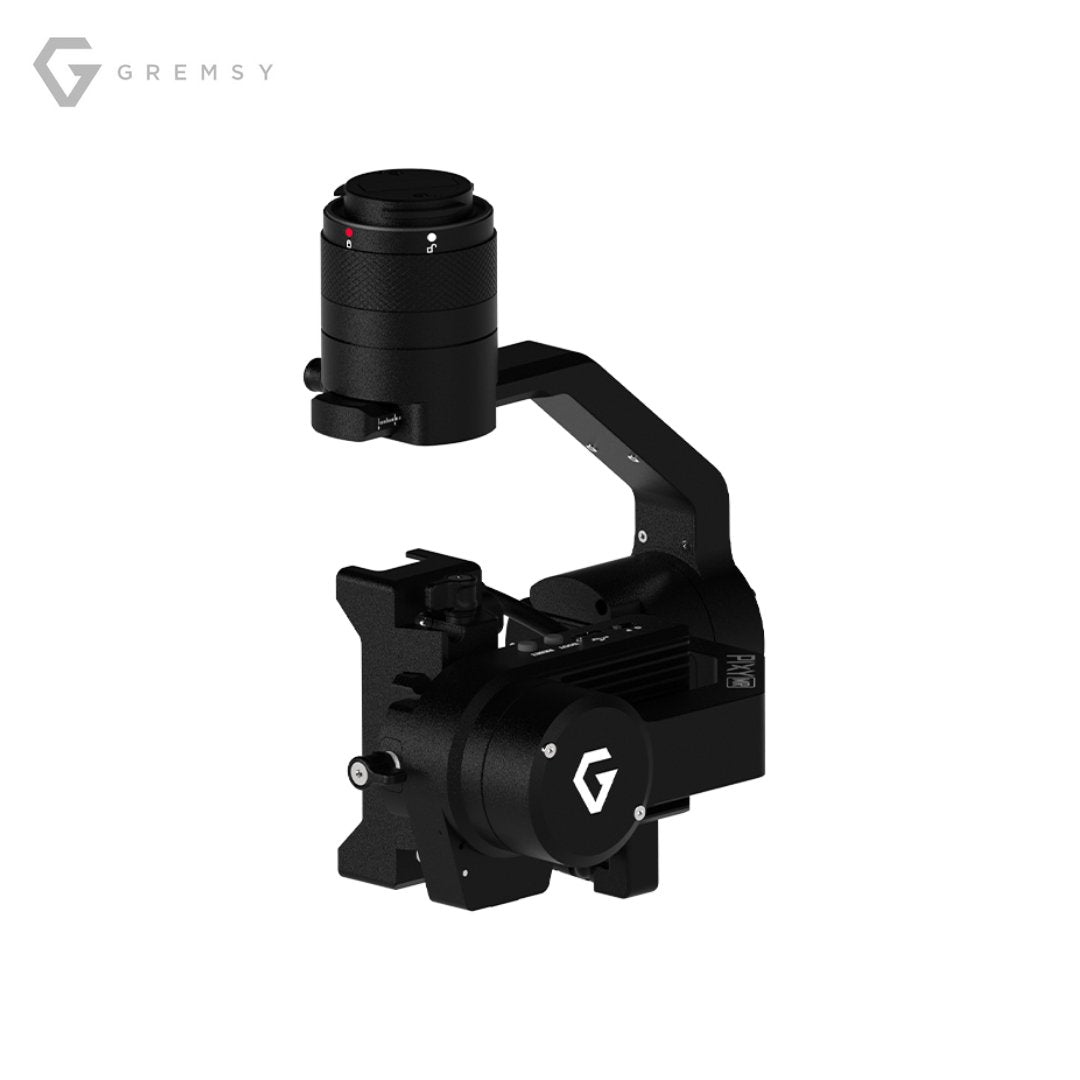

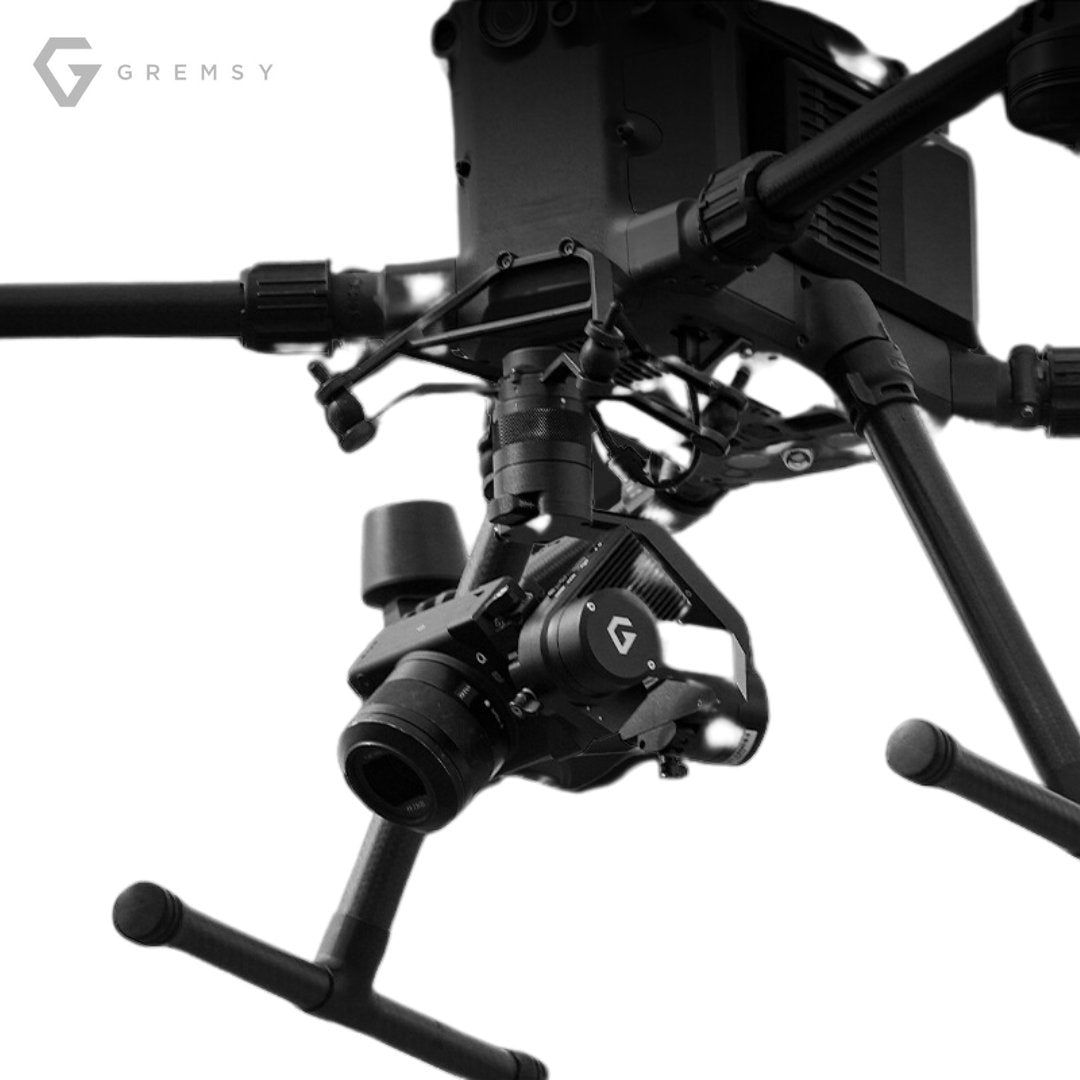

The Pixy MR is Gremsy's new lightweight gimbal designed for the Sony ILX-LR1 and is fully compatible with the DJI M300/M350 RTK drones with quick and straightforward integration via DJI Skyport. The Pixy MR is optimised in size, weight yet powerful (SWaP), designated for UAV experts in multiple applications.
Benefits
| For scrutiny, inspections, and GIS mapping, get high-resolution photographs. |
| Get the accuracy of measurements up to the hundredth of a centimetre. |
| Less hassle and time are required in the setup process. |
| Have all the camera parameters under your command to capture the best possible shots. |
| Real-time collaborative video streaming service. |
Pixy MR is ideal for professional UAV mapping as it offers a powerful and easy-to-use solution for capturing high-resolution images for various applications, including:
| Inspection: | During the infrastructure assessment, capture even more detailed aspects, such as cracks and scratches. |
| Surveying and Mapping: | Produce correct 2D orthomosaics with a 2.42 mm/pix ground sample distance. (with a 70% front overlap, 80% side overlap) |
| Investigation: | Specialized images for viewers who need high-definition images for forensic or investigative cases. |
Specifications
Pixy MR Details |
|
|
Weight: |
520g/1.15lbs |
|
Dimensions: |
(DxWxH): 157mm x 108mm x 167mm |
|
Input Voltage: |
13.7V |
|
Power Consumption: |
Min: 5.5W, Max: 55W, Normal: 11W |
|
Working Current: |
Static current: 400mA (@13.7V) Dynamic current: 800mA (@13.7V) Locked motor current: Max 4.0A (@13.7V) |
|
Connection: |
DJI Skyport V2, USB 2.0, UART |
|
Supported Drone Platforms: |
DJI M300/M350 |
|
Supported Controllers: |
RC Smart Controller, DJI RC Plus |
Gimbal |
|
|
Angular Vibration Range: |
± 0.02° |
|
Gimbal Mount: |
Bottom mount |
|
Gimbal Mode: |
Motor ON/OFF, Lock mode, Follow mode / Mapping mode |
|
Controllable Range: |
Pan axis control: +160° to -160° Tilt axis control: +135° to -45° Roll axis control: ± 25° |
|
Mechanical Range: |
Pan axis control: +330° to -330° |
|
Max. Controllable Speed: |
Pan axis: 100°/s |
Key Features
| Complete Camera Control: | Mobility allows for the changing of exposure, the shutter, ISO, aperture, and other similar camera options. |
| Live Streaming: | Record live HD video feed on your aircraft directly on the DJI RC controller through HDMI/USB output. |
| Lightweight: | 883 Gram Payload Sony ILX-LR1 with SEL35F28ZA |
| Accurate RTK Positioning: | 3 cm horizontally / 3 cm vertically (With a 70% front overlap, 80% side overlap) |
| Plug-and-Play Integration: | Compatible with DJI M300/M350 drones through DJI SkyPort. (DJI default damping supports multiple Sony ILX-LR1 lenses.) |
| Multiple Lens Compatibility: | This product has been extensively tested and is compatible with most of the Sony ILX-LR1 lenses, such as the SEL28F20, SEL35F28Z, SEL55F18Z, SEL24F28G, SEL40F25G, and SEL50F25G (Gremsy Advanced Damping is compatible with the SEL55F18Z lens only). |
