Gremsy PIXY LR


Finance and business invoice options available

Description

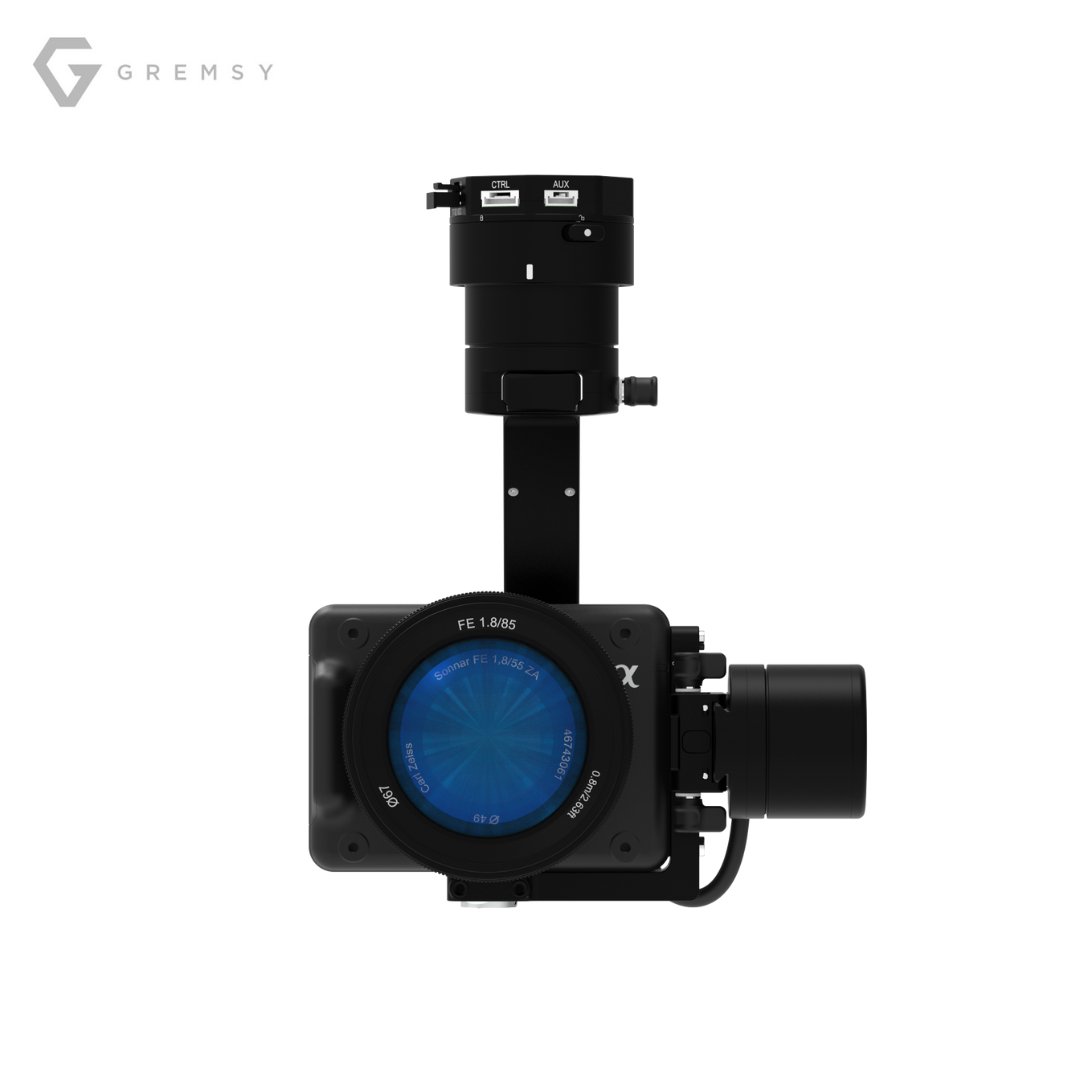

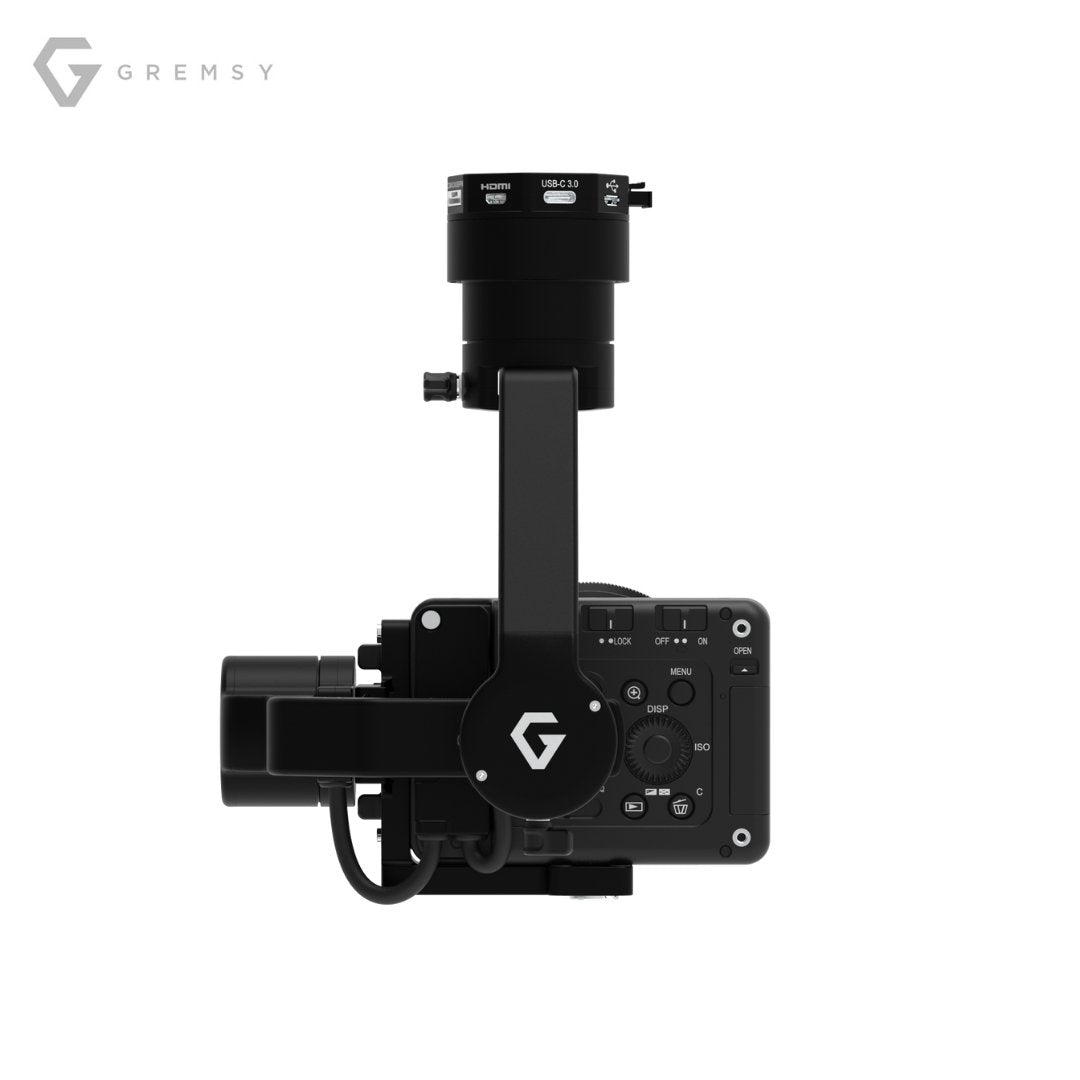

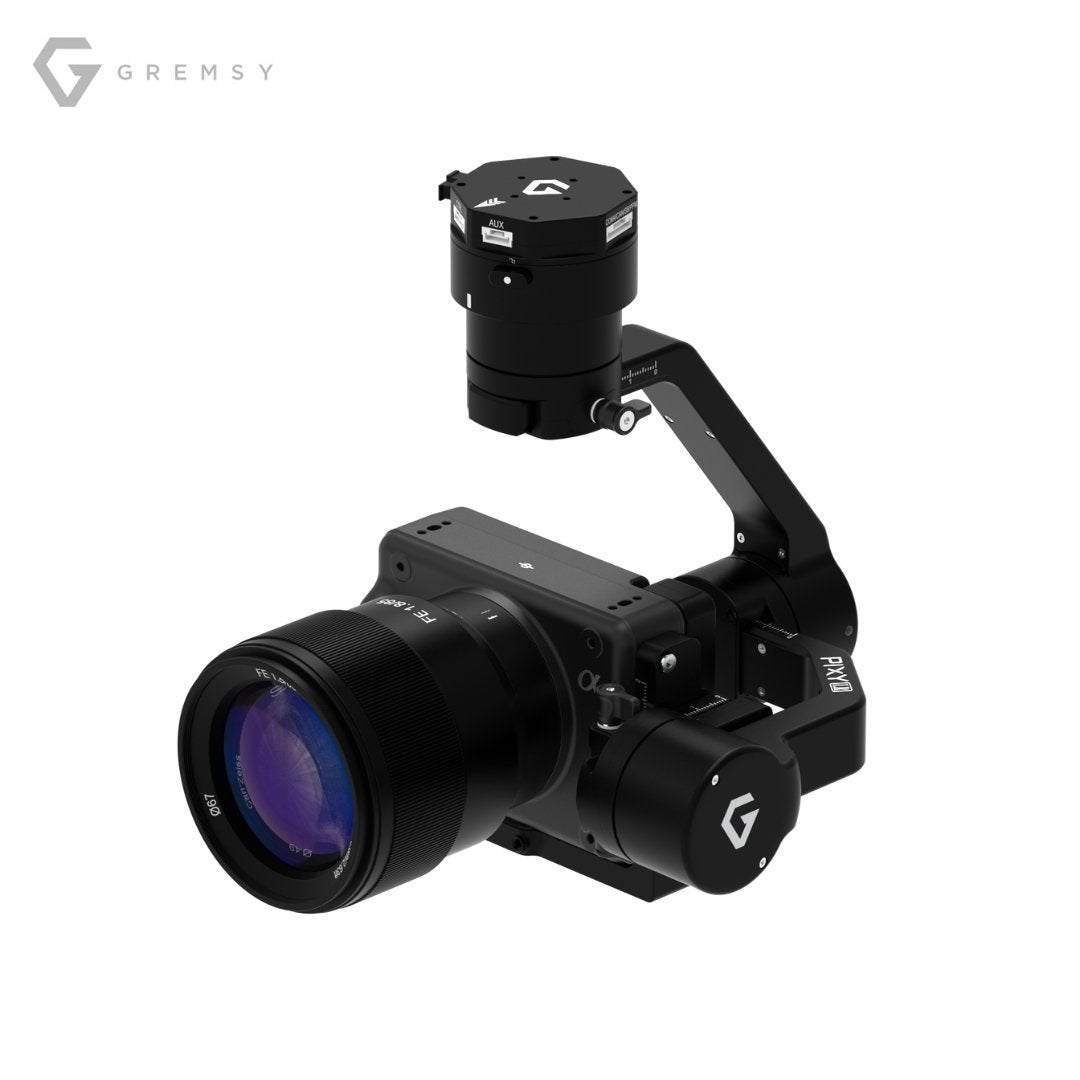

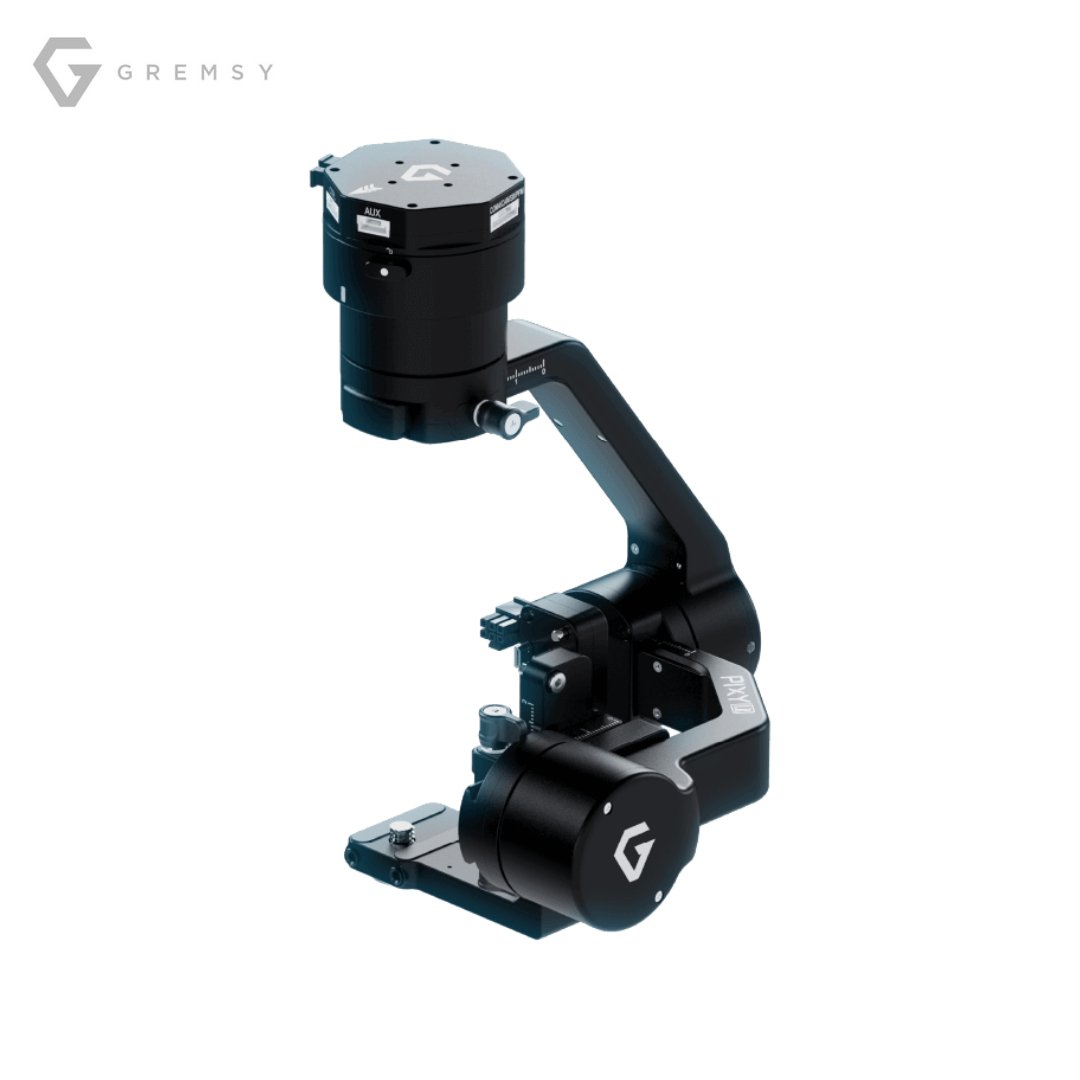

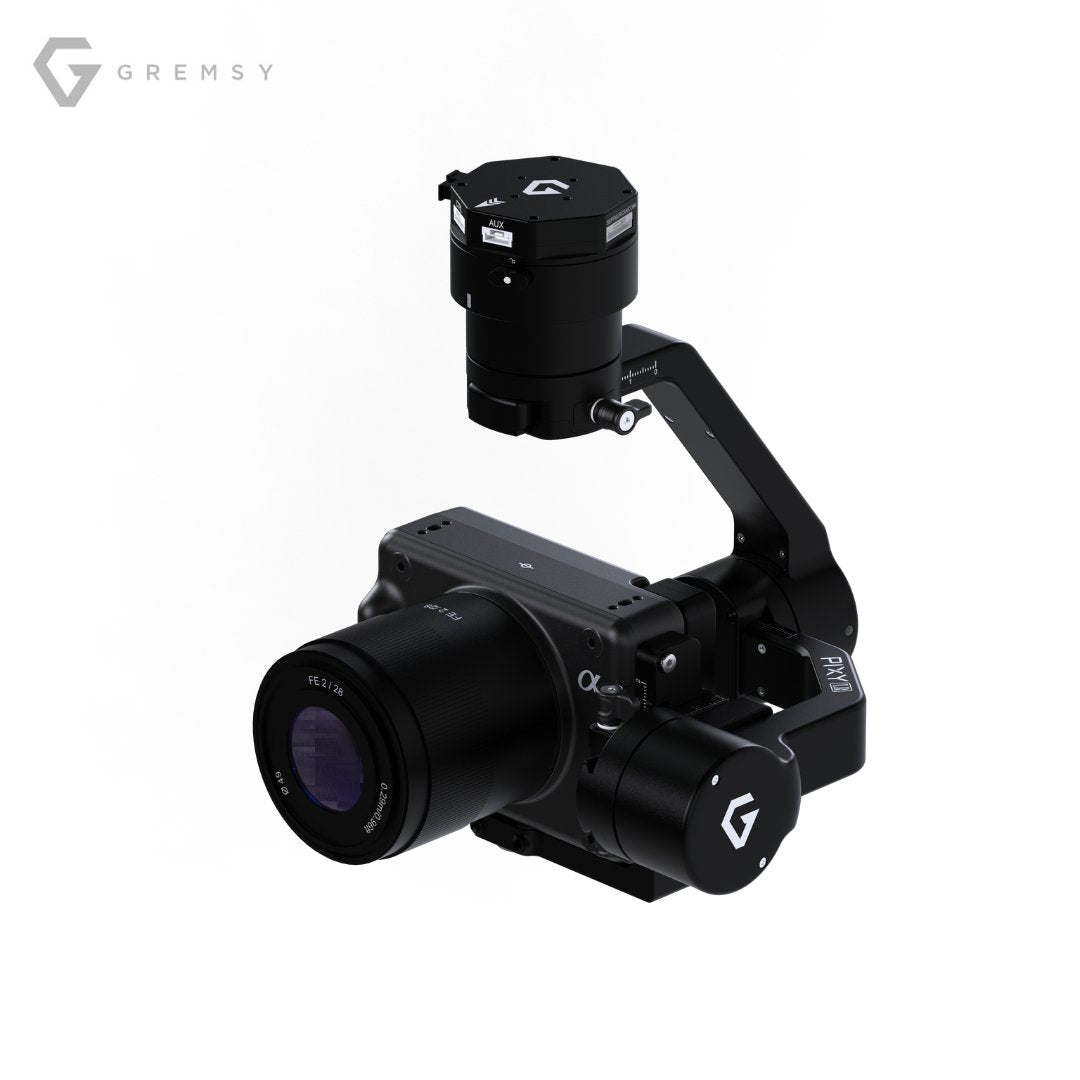

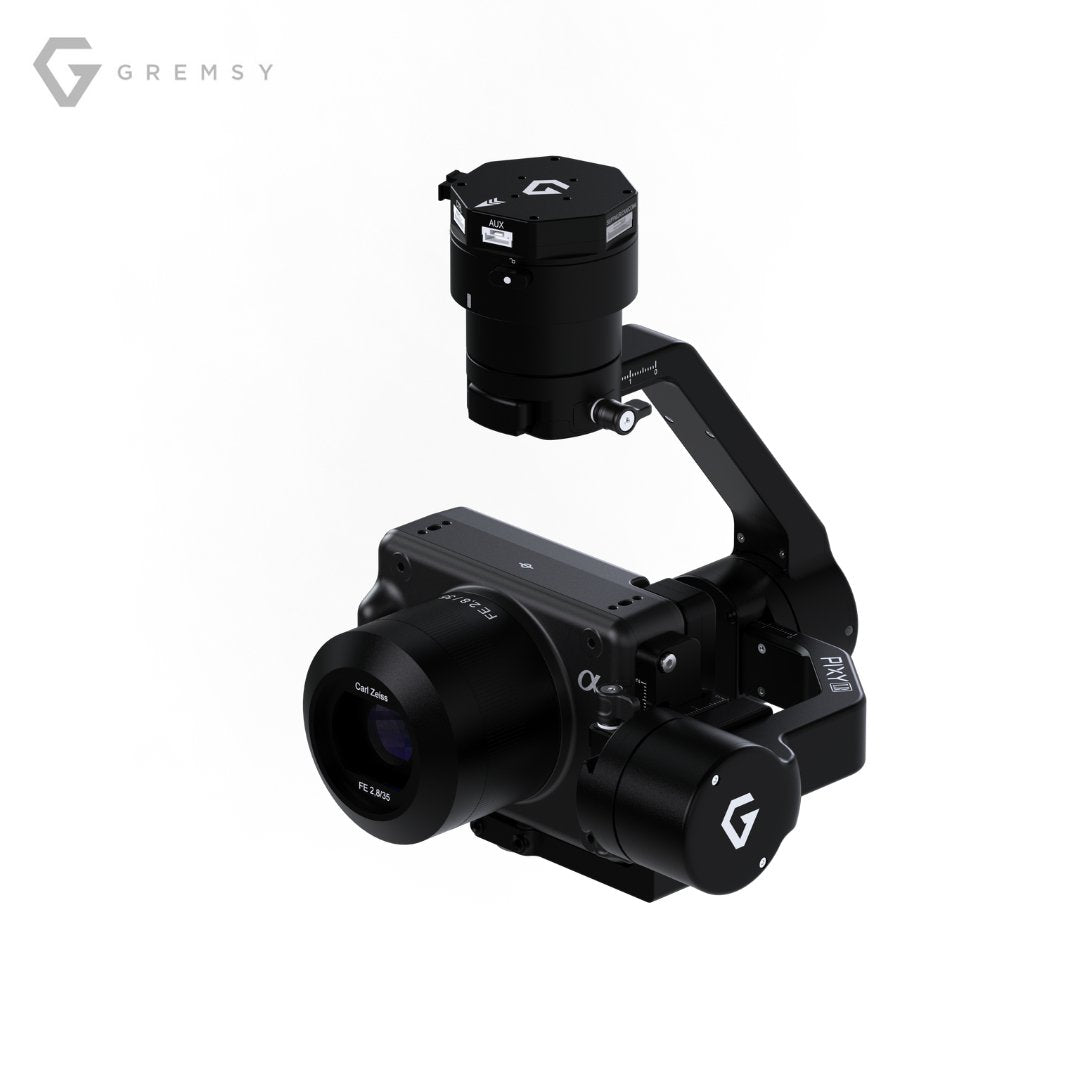

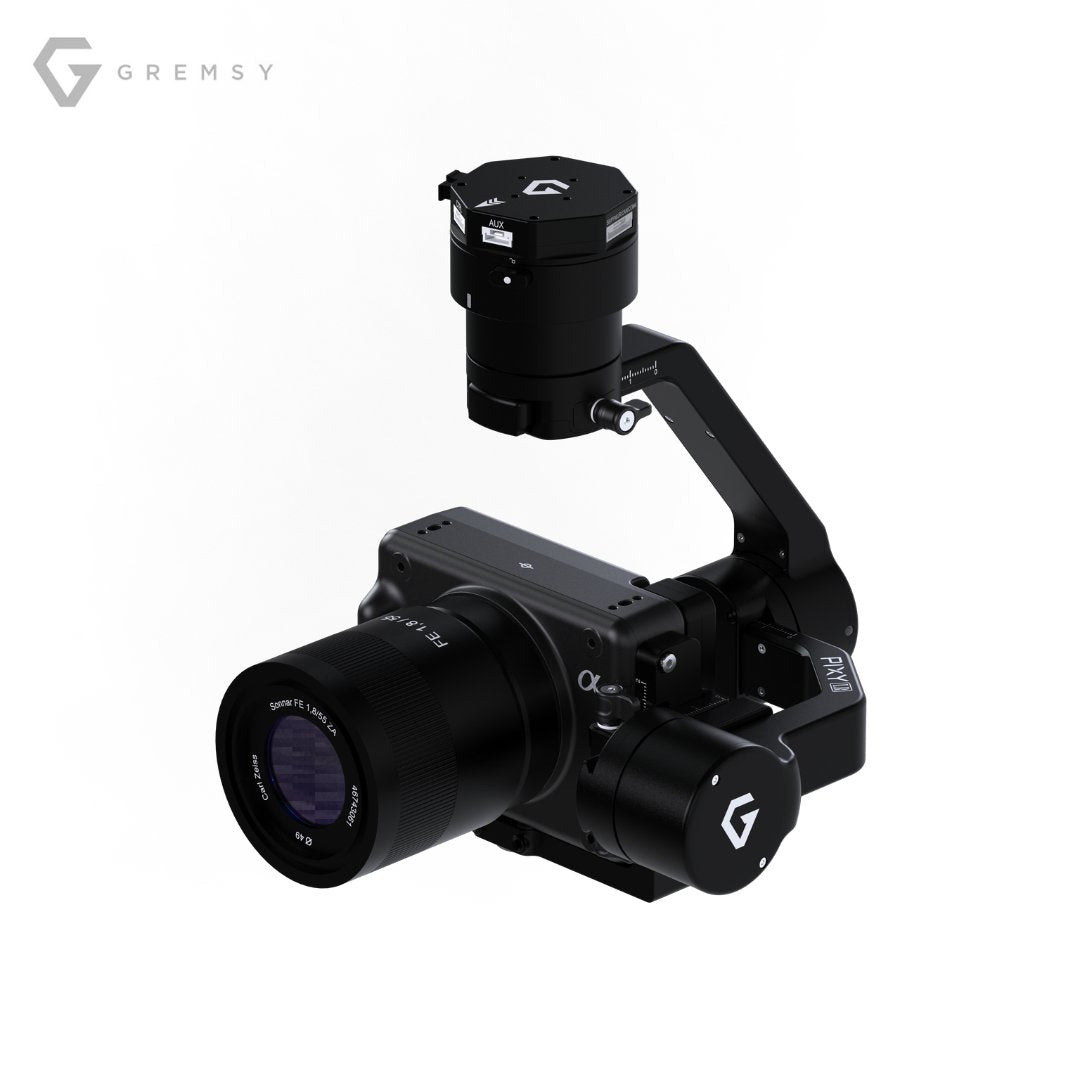

The Gremsy Pixy LR is a powerful camera gimbal specially developed for the Sony ILX-LR1 camera system. The Pixy LR provides professionals with a specialized payload for high-quality imaging and seamless aerial operations in industrial applications.

The Pixy LR and Sony ILX-LR1 duo excels in a variety of drone industrial applications, offering exceptional versatility and reliability in mapping, surveying and inspection missions.

Specifications

Built-In Functions



Operation Modes:

ON/OFF
Lock mode
Follow mode / Mapping mode

IMU Sensor:

New generation

Mechanical & Electrical


Working Current:

Static current: 7.5W
Dynamic current: 8.8W
Locked motor current: 80W

Operating Temp:

32° F ~ 122° F (0° C ~ 50° C)

Gimbal Weight:

495g/1lbs

Gimbal Dimensions:

(DxWxH): 140 x 115 x 200 (mm)

Peripheral


Damping Type:

Pixy S/LR damping

Gimbal Mount:

Bottom

Quick Release:

Hyper Quick Release V3.0

AUX Signals:

4 signals

Input Power:

17 - 52VDC

Connections:

Micro USB, USB-C (3.0), CAN, UART, SBus, Micro HDMI

Working Performance


Angular Vibration Range:

±0.02°

Max. Controlled Rotation Speed:

Pan axis: 180°/s
Tilt axis: 180°/s
Roll axis: 180°/s

Mechanical Endpoint Range:

Pan axis control: ±326°
Tilt axis control: +50° ~ -140°
Roll axis control: +50°~-274°

Controlled Rotation Range:

Pan axis control: ±320°
Tilt axis control: +40° ~ -120°
Roll axis control: ± 40°

Key Features

Extend Functionality: I/O ports located on the new Hyper Quick Release 3.0 streamline connections to your flight controller, remote, and accessories. The 4-signal AUX port enables seamless integration of third-party devices like LiDAR, laser range finders, and thermal cameras, enhancing functionality for various applications.
High-Speed Data Transfer:  Pixy LR is the first Gremsy gimbal that incorporates USB 3.0 compatibility, making transferring, storing, and manipulating your images or videos easier and faster.
Support Lenses up to 85mm:  Transcending the boundaries by broadening the range of lenses supported, Pixy LR provides outstanding image stabilization for the ILX-LR1 camera, catering to a wide spectrum of user needs and preferences.
Versatile Drone Platform Support:  It works with key drone platforms like Pixhawk, CubePilot, Skynode, Airpeak, M600, and more, providing users with a wide range of options for their missions.
Open SDK Development:  This gives developers the tools they need to develop applications of their choice customized for their unique needs.
