Description

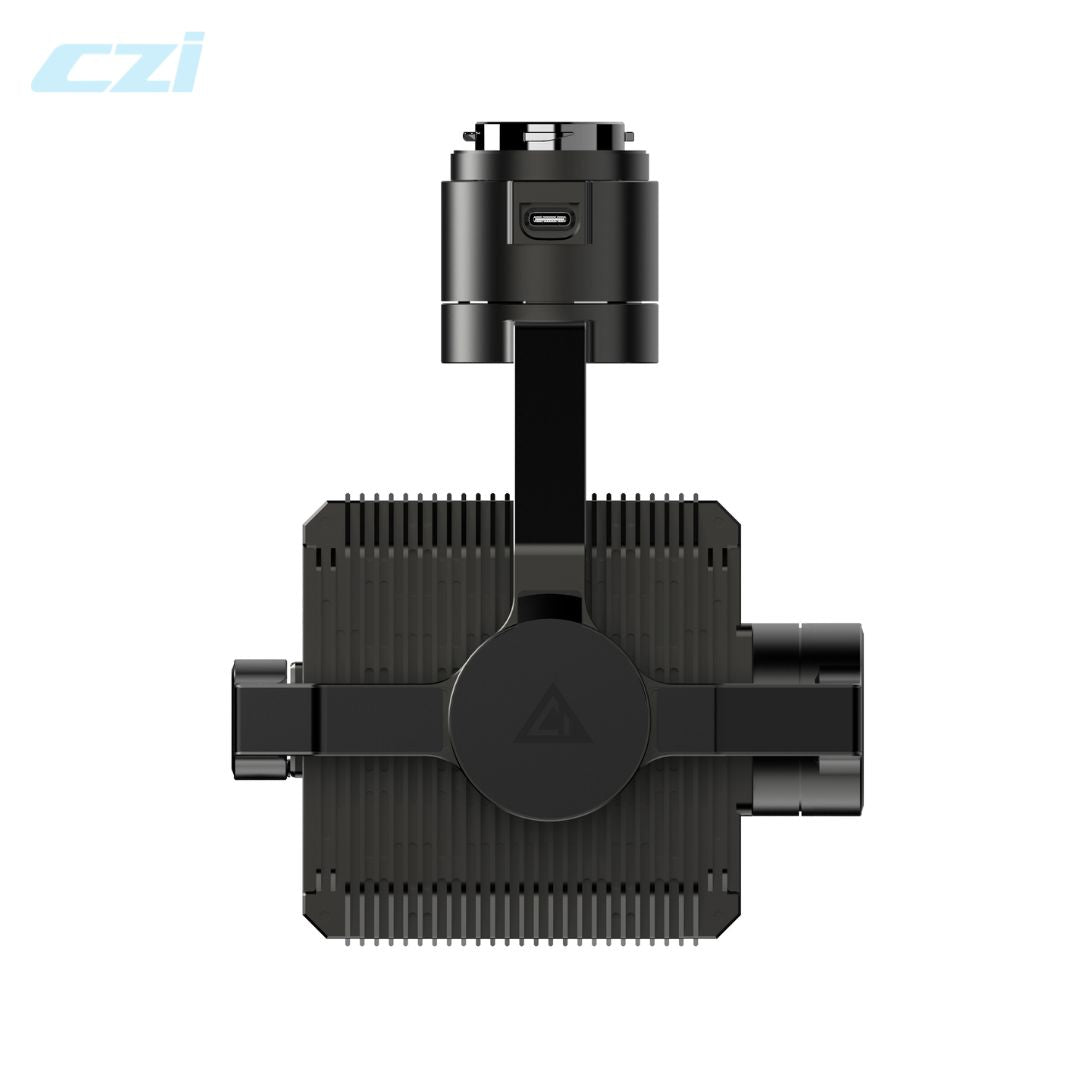

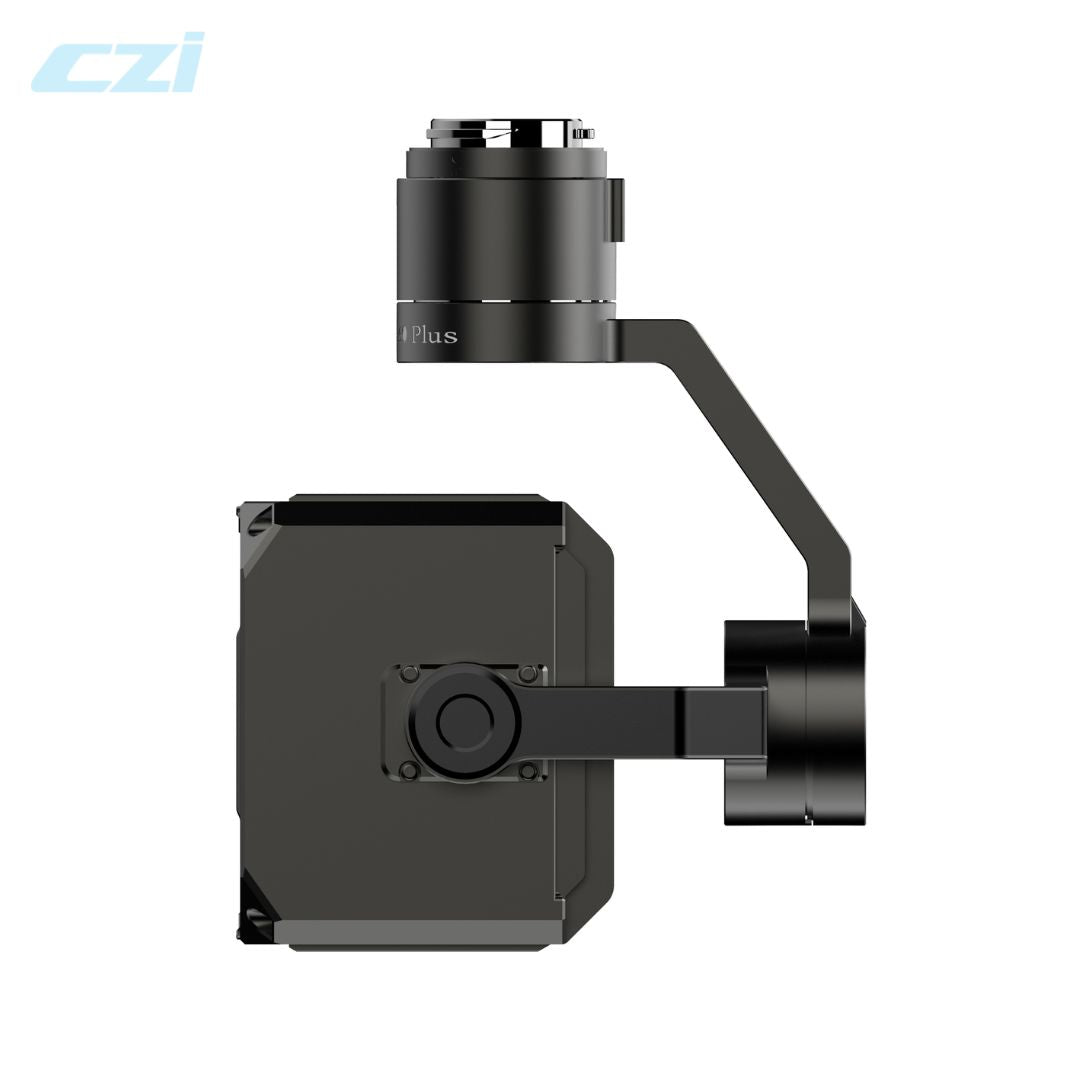

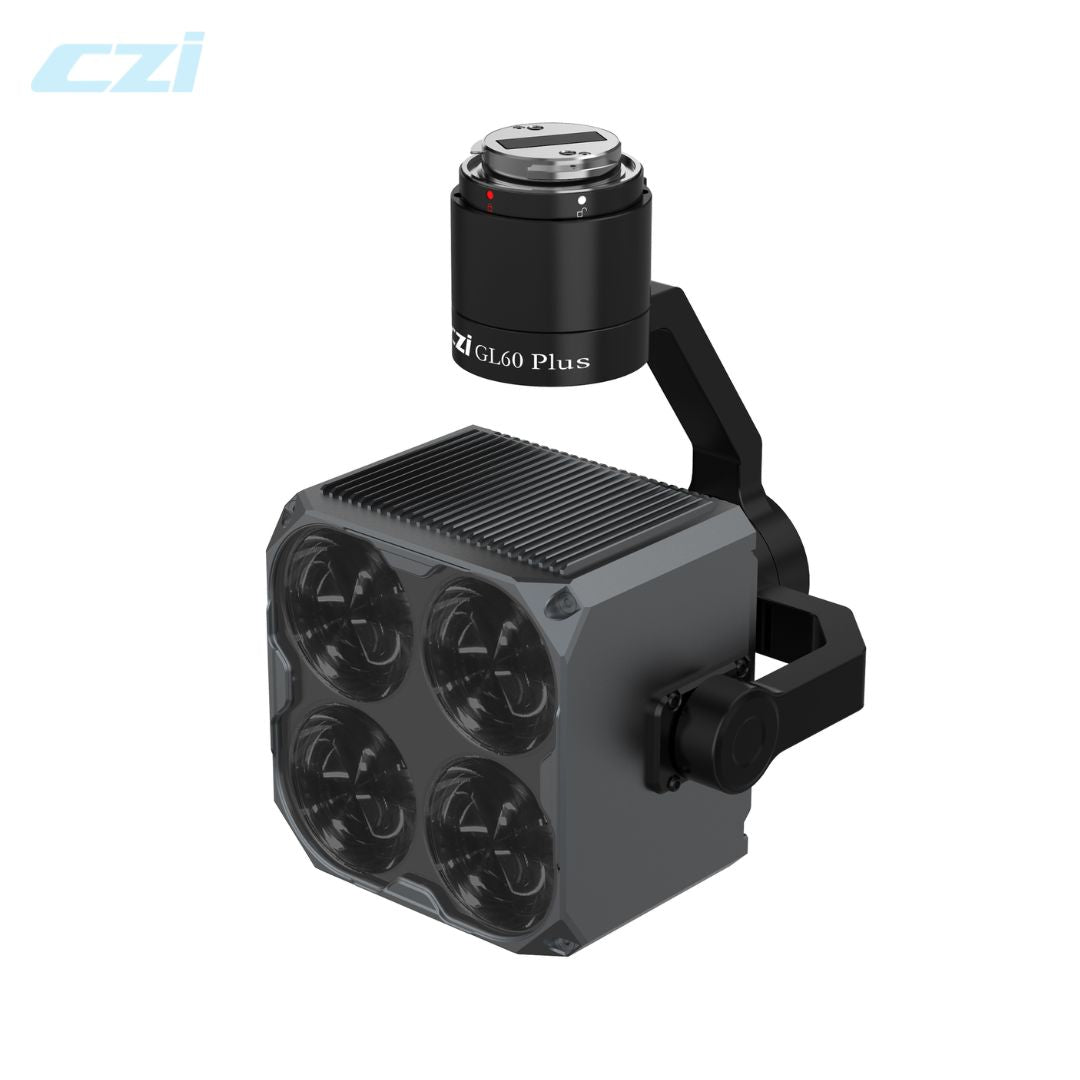

The CZI GL60 Plus Gimbal Searchlight is a powerful and lightweight searchlight that has a brightness of 24 lux at 100 meters with 120W power and can illuminate an area of up to 1225 square meters at 150 meter height. The GL60 Plus comes with imaging optical technology and no reflector design which reduces the effective loss in brightness. Its DJI SkyPortV2.0 interface makes it compatible with DJI Matrice M200 V2, M300 RTK and 350 RTK drones.
The GL60 Plus is a powerful and lightweight searchlight for drones and highly useful in various safety and emergency drone missions.
Specifications
CZI GL60 |
|
|
Dimensions: |
(L*W*H): 126*131*167mm |
|
Weight: |
750g |
|
FOV: |
15° |
|
Supply Voltage: |
PSDK 17V+OSDK 24V PSDK 17V |
|
Total Power: |
128W 68W |
|
LED Power: |
120W 60W |
|
Electrical Interface: |
DJI SkyPort V2.0 |
|
Luminous Flux: |
13400lm±3% 8000lm±3% |
|
Luminous Efficacy: |
111.67lm/W 133.33lm/W |
|
Spot Diameter: |
13.2m (distance 50m, 120W) 26.4m (distance 100m, 120W) 39.5m (distance 50m, 120W) 13.2m (distance 50m, 60W) 26.4m (distance 100m, 60W) 39.5m (distance 150m, 60W) |
|
Illumination Area: |
136m² (distance 50m, 120W) 544m² (distance 100m, 120W) 1225m² (distance 150m, 120W) 136m² (distance 50m, 60W) 544m² (distance 100m, 60W) 1225m² (distance 150m, 60W) |
|
Central Illuminance: |
85Lux (Power 120W, distance 50m) 23Lux (Power 120W, distance 100m) 11Lux (Power 120W, distance 150m) 45Lux (Power 60W, distance 50m) 12Lux (Power 60W, distance 100m) 6Lux (Power 60W, distance 150m) |
|
Function Mode: |
Normally on 120W, 60W Sharp flash 120W, 60W Adjusting the gimbal angle Adjusting brightness |
Gimbal |
|
|
Range of Rotation: |
Pitch -99°~+23° Horizontal ±99° |
|
Design Range: |
Pitch - 100° ~ + 24° Horizontal ±100° Rolling - 90°～+ 60° |
